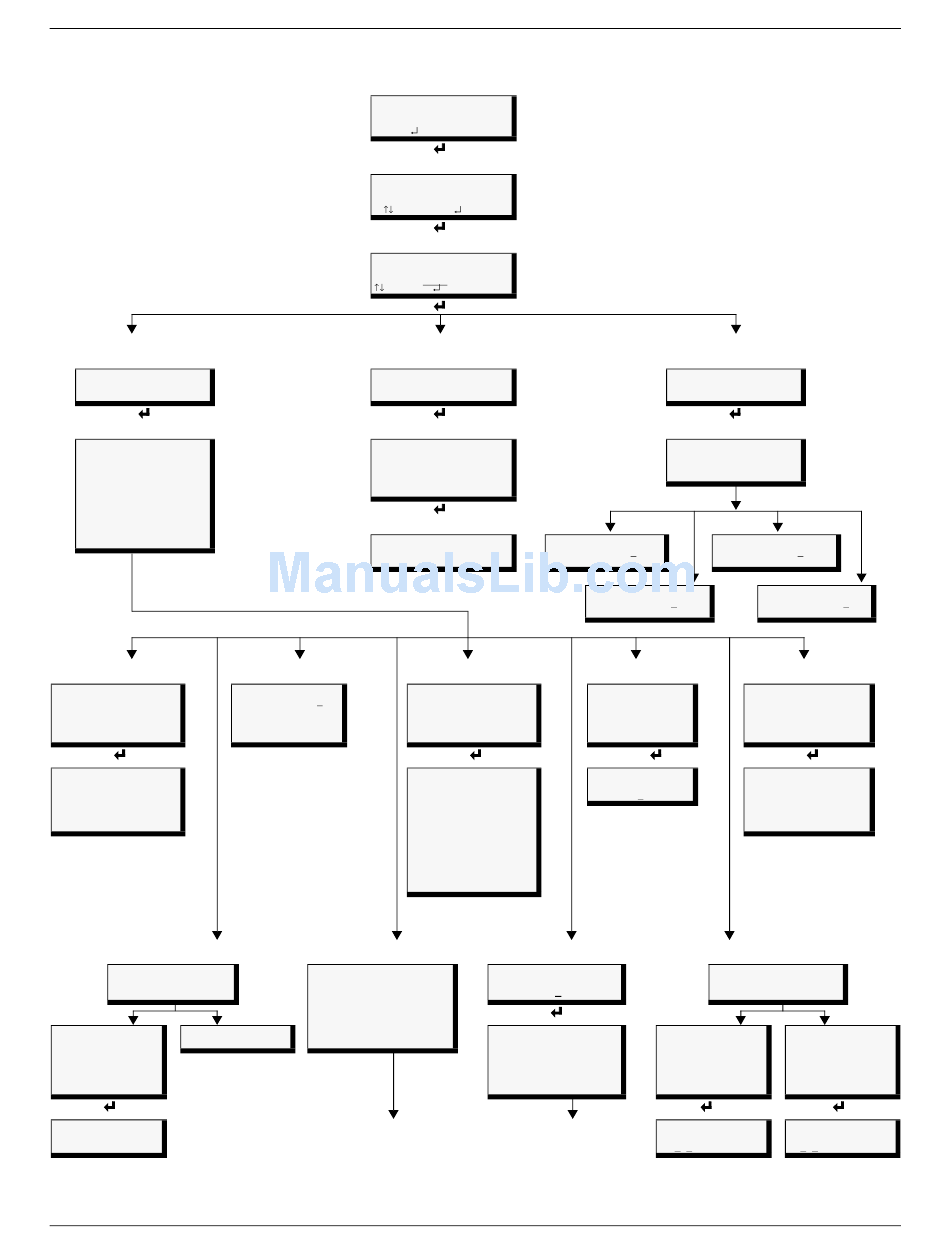

Figure 10 Menu overview - System and Control menu

System & Control menu
Setup System selected
> SETUP SYSTEM
OVERRIDE OUTPUT
CLEAR ALARMS & LOGS
Setup System menu
See
SETUP INPUTS
Section
SETUP COMMON ALARM
7.2
SETUP SENSOR
SETUP ZONES

SETUP OUTPUTS

SETUP MODEM&PAGERS
SETUP SYSTEM INFO
SETUP OPERATION
SETUP I/O MATRIX
Setup System options
Setup Inputs
See
SELECT INPUT
Sec.
> DEVICE_1 NO-AL-L
7.3
DEVICE_2 NO-AL-L
.
.
.
DEVICE_8 NO-AL-L
SETUP DEVICE_1
LABEL: DEVICE_1
NORM OPEN/CLOSE: NO
ALARM/EVENT: AL
LATCHED: Y
DELAY: 00:01
Setup Modem & Pagers
SETUP PAGERS
SETUP MODEM
SELECT PAGER ENTER INIT STRING
PAGER NUMBER 1 ATS0=1
.
.
.
PAGER NUMBER 4
SET PAGER 1 NUMBER
SET PAGER 1 PIN
Opening Screen
LIEBERT AC8
DD-MON-YY HR:MM:SS
VX.XXX.X
PRESS
Main Menu
VIEW STATUS
> SYSTEM AND CONTROL
=NEXT
Login Screen
LOGIN
=SELECT
System & Control menu
Override Output selected
SETUP SYSTEM
> OVERRIDE OUTPUT
CLEAR ALARMS & LOGS
Select Output
OVERRIDE OUTPUT
> DEVICE_1
DEVICE_2
.
.
.
DEVICE_8
Override Output
SELECT DEVICE_1
Setup Common Alarm Setup Sensor
See
RESET COMMON ALARM
Sec.
WITH SILENCE? N > SENSOR_1 +80.00 DEG
7.4
Setup System Info
See
CHANGE PASSWORD
Sec.
CHANGE DATE & TIME
7.8
SETUP SITE ID
CONNECT BATTERY
SETUP SERV PH NUM
FACTORY DEFAULTS
See Figure 11
for details on
Setup System Info
=STATUS/SETUP
=SELECT
AAAA
=NEXT/END
See
Section
AUTO
7.12
AUTO
AUTO
CLEAR ACTIVE ALARMS
ARE YOU SURE? N
AUTO
CLEAR EVENT LOG
ARE YOU SURE? N
Setup Zones
See
SELECT SENSOR
Sec.
> ZONE 1:4
.
7.5
.
.
SENSOR_4 +79.50 RH
SETUP SENSOR_1 # DEVICES IN ZONE
CONNECTED: N
LABEL: SENSOR_1 ZONE
UNITS: DEG
4 mA: +045.0
20 mA: +096.0
OFFSET: +000.0
ALARM/EVENT: AL
LATCHED: N
LOW SETPT: +0050.0
HIGH SETPT: +0090.0
SENSOR DELAY: 00:01
Setup Operation
See
SELECT ZONE FOR
Sec.
THE OPERATION
7.9
> ZONE 1
> AUTO SEQUENCING OFF
STANDBY TESTING OFF
FAILED STANDBY
HOLD DELAY : 10:00
RESTART : 00:06
STAGING : OFF
See Figure 12
for details on
Setup Operation
