Lightolier FIXTURE Instructions For Installation

x
R
7
/

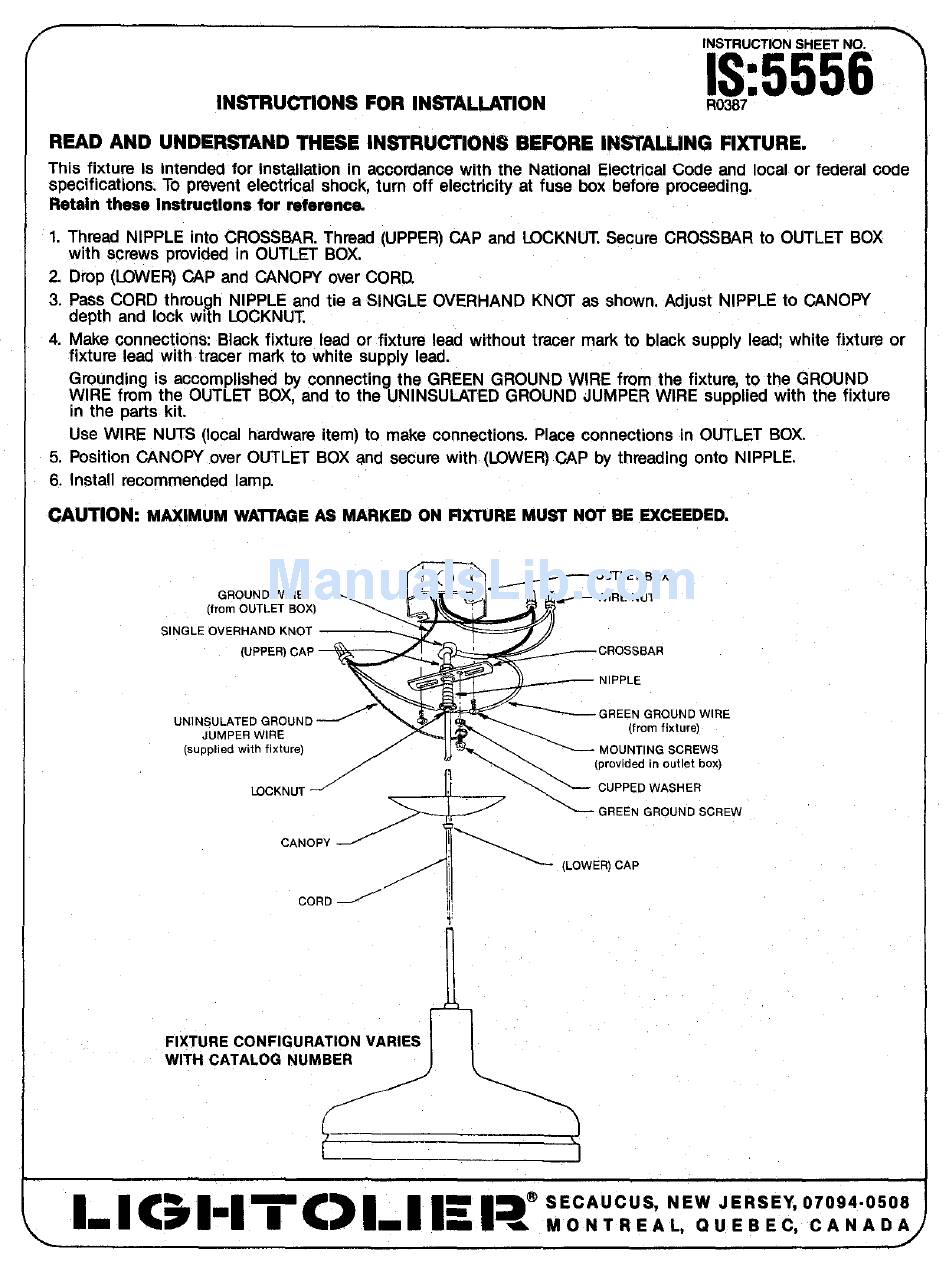

INSTRUCTION SHEETNo.
\
lN!YrRUCTIONS FOR lN~ALLATION
lS:5556
R0387m
READ AND UNDERWAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This ,fiXtllre is intended for installation in accordance with the National Electrical Code end 10cal or federal code
specifications. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain thasa Inatructlons for rwferanoa
1. Thrsad NIPPLE into CROSSBAR. Thread (uPPER) CAP and LOCKNUT. Secure CROSSBAR to OUTLET BOX
with s$rewa provided in OUTLET BOX.
2. Drop (LOWER) CAP and CANOPY over CORD,
3. Psee CORD through NIPPLE and tie a SINGLE OVERHAND KNOT ae shown. Adjust NIPPLE to CANOPY
depth and lock with LOCKNUT
4. Make connections Black fixture lead or fixture lead without tracer mark to black eupply lea white fixtutp or
fixture lead with tracer mark to white supply lead.
Grounding ie accomplished by connecting the GREEN GROUND WIRE fmm the fixtu~ to the GROUND
WIRE from the OUTLET BOX, and to the IJNINSULATED GROUND JUMPER WIRE supplied with the fixture
in the parta kit.
Use WIRE NUTS (local hardware item) to make connections. Place connections in OUTLET BOX.
5. Position CANOPY over OUTLET BOX and secure with (LOWER) CAP by threading onto NIPPLE.
6. Inetall recommended lamp.
CAUTION: MAXIMUM WAlTAGE AS MARKED ON FfXTURE MUST Nti SE SXCEEDED.
SIN
u
E
EW
J
FIXTURE CONFIGURATION VARIES
WITH CATALOG NUMBER
'---'m
J
—. )
"l-[<>[m[~<>[ml
1:
I?"
sEcAucus,
NEW .JERsEY,l)TClg~.ll~Cllj
~, MO NT REAL, QUEBE C, CANADA
