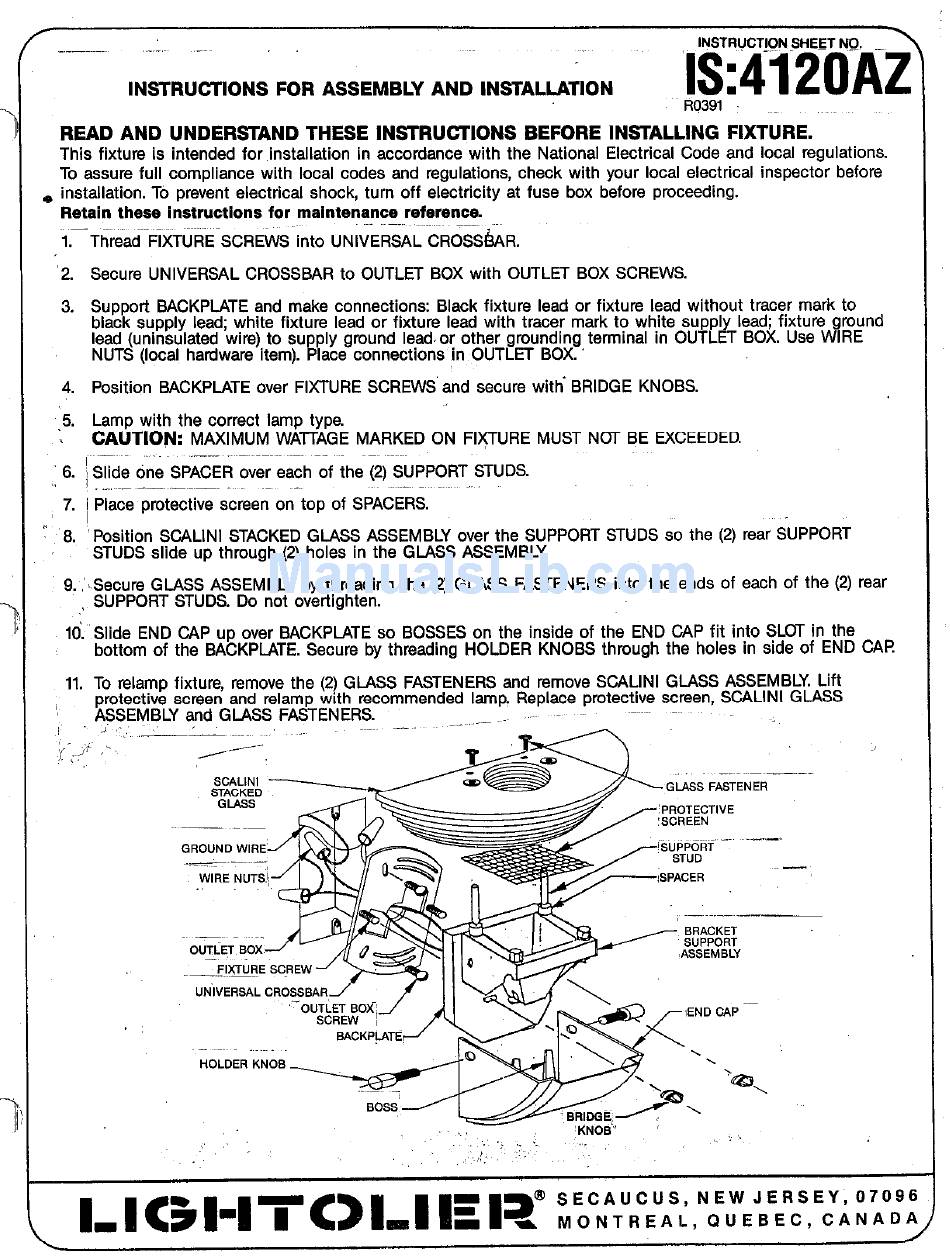

INSTR.UCTION.SHEET @ .
_
'
INSTRUCTIONS
FOR ASSEMBLY
AND INSTALLATION
IS:4120AZ
R0391
READ AND
UNDERSTAND
THESE
INSTRUCTIONS
BEFORE
INSTALLING
FIXTURE.
This fixture
is intended
for .instsllation
in accordance
with the National
Electrical
Code and local regulations.
To assure full compliance
with local codes and regulations,
check with your local electrical
inspector
bsfore
~ installation.
To prevent electrical
shock, turn off electricity
at fuse box before proceeding.
Retain these instructions
for maintenance
reference.
1.
2.
3.
4.
:5.
6.
7.
~ 8.
9.
Thread FIXTURE SCREWS into UNIVERSAL
CROSSbAR.
Secure UNIVERSAL
CROSSBAR
to OUTLET BOX with OUTLET BOX SCREWS.
Support
BACKPLATE
and make connections
Black fixture
lead or fixture
lead without
tracer mark to
black supply
lead; white fixture
lead or fixture
lead with tracer mark to white supply
lead; fixture
ground
lead (uninsulated
wire) to supply
ground
lead. or other grounding
terminal
in OUTLET BOX. Uae WIRE
NUTS (local hardware
item). Place connections
in OUTLET BOX.'
Position
BACKPLATE over FIXTURE SCREWS' and secure with BRIDGE KNOBS.
Lamp with the correct
lamp type.
CAUTION:
MAXIMUM
WAlTAGE
MARKED
ON FIXTURE MUST NOT BE EXCEEDED.
Slide one SPACER over each of the (2) SUPPORT STUDS.
Place protective
screen on top of SPACERS.
Position
SCALINI
STACKED GLASS ASSEMBLY
over the SUPPORT STUDS so the (2) rear SUPPORT
STUDS slide up through
(2) holes in the GLASS ASSEMBLY.
Secure GLASS ASSEMBLY
by threading
the (2) GLASS FASTENERS
into the ends of each of the (2) rear
, SUPPORT STUDS. Do not overtighten.
10. "Slide END CAP up over SACKPlATE
so BOSSES on the inside of the END CAP fit into SLOT in the
bottom
of the BACKPIATE.
Secure by threeding
HOLDER
KNOBS through
the holes in side of END CAP
11. To relamp fixture,
remove the (2) GIASS
FASTENERS and remove SCALINI GLASS ASSEMBLY. Lift
protective screen and relamp with recommended
lamp. Replace protective screen, SCALINI GLASS
ASSEMBLY and GLASS FASTENERS.
