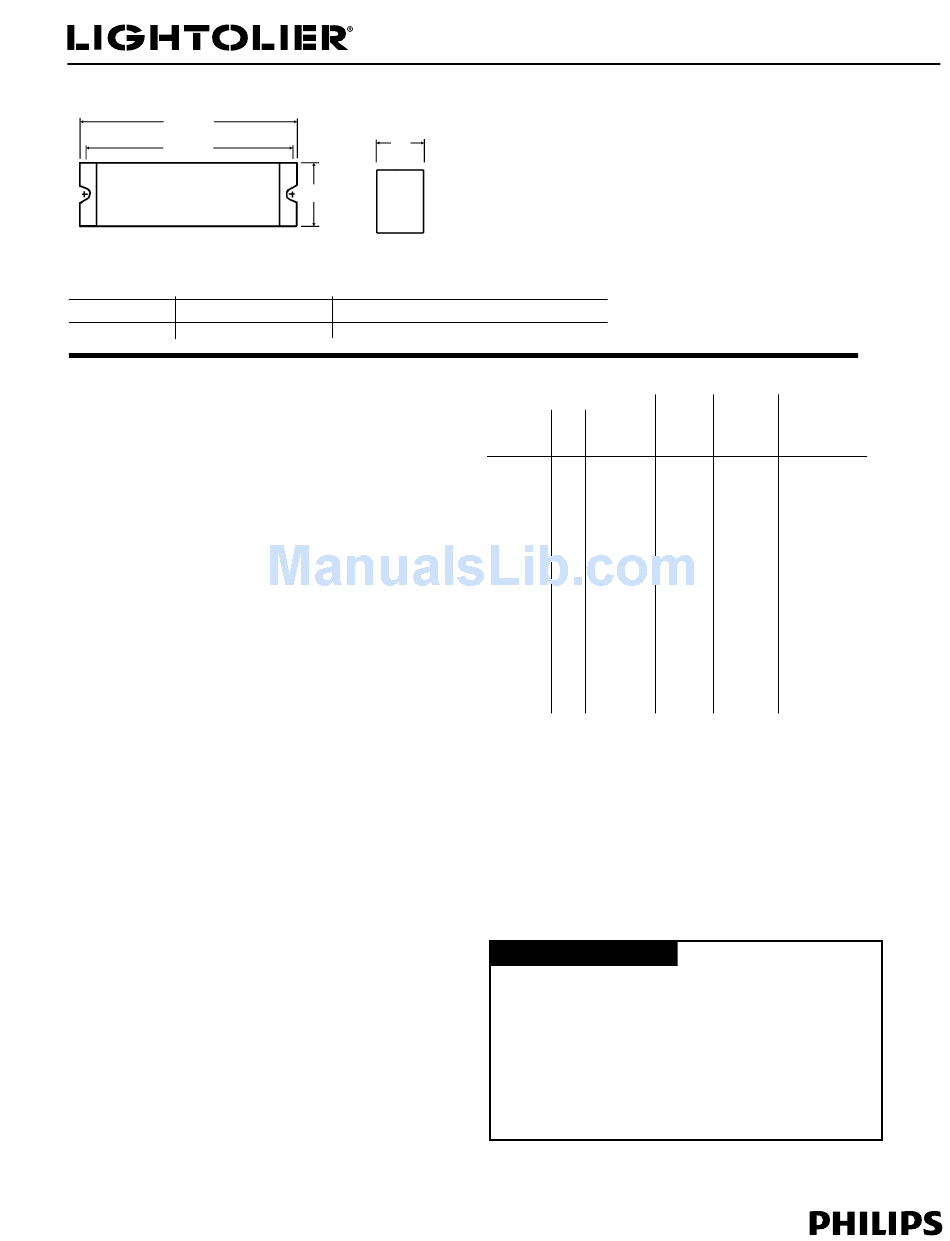

Lightolier FBP Series Fluorescent Emergency Ballast FBP1000-4P Specification Sheet

Page 1 of 1
9.4"
(23.8 cm)
Nickel Cadmium Battery
Complete Fixture consists of ballast unit. Select options and accessories below.
Model # Max. Lumens
FBP1000-4P 1000
Features
1. Lamp Operation: Operates the following lamp types: T4 Compact
Fluorescent (4-pin base), 13W - 50W twin, quad and triple twin-tube without
integral starter. See Lamp Operation and Performance table for specific lamp
performance and operation.
2. Illumination: Provides 90 minutes of emergency illumination, and produces a
maximum of 1,000 lumens initial emergency light output.
3. Housing: Constructed of 20 gauge steel with a high temperature powder
coat finish. Housing allows for frame mounting on most recessed luminaires.
Housing includes 2' lengths of flex conduit attached on each end.
4. Electronics: 120/277 VAC dual voltage input with surge-protected, solid-
state circuitry. Charging system is complete with AC indicator lamp and test
switch.
5. Battery: Maintenance free, sealed nickel cadmium battery has an estimated
service life of 10 years, and an operating temperature range of 32°F (0°C) to
131°F (55°C)
6. Input Power Requirements: 3.5 watts max.
7. Warranty: Electronics: 2 years; Battery: 2 years.
Code Compliance
U.L. 924 listed.
Options
EX = Special Input Transformer for 220 VAC/50 Hz, 240 VAC/50Hz. Contact
factory for other input voltages and frequencies.
Accessories
CCAPS = Wire bundle cover for mounting external to luminaire.
RT = Remote Test Switch.
Lightolier is a Philips group brand
FBP Series Fluorescent Emergency Ballast
One Lamp Operation 4-Pin Fluorescent Lamps 1,000 Lumens
1.5"
(3.8 cm)
2.4"
(6.1 cm)
Lamp Operation
One Lamp 4-Pin Fluorescent (without integral starter)
Lamp Operation and Performance
Lamp
Type
F18DBX/4P
F26DBX/4P
F18TBX/4P
F26TBX/4P
F32TBX/4P
F18BX
F27/24BX/RS
F39/36BX/RS
F40/30BX/RS
F50BX/RS
F162D/4P
F212D/4P
F282D/4P
F382D/4P
F42TBXT4
Notes:
1. Maximum non-emergency lumen output can vary based on lamp manufacturer, ambient operating
2. Maximum emergency lumen output is based on total output of one or two lamps, and can vary
3. Maximum emergency lumen output is supported for a full 90 minutes of operation.
4. Consult factory for compatibility, operation and performance of lamp types not listed.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C0308
Non-Emer. Emer. Op.
Non-Emer. Max.
Base Lumen
Watt. Type Output
18 G24Q-2 1150
26 G24Q-3 1710
18 GX24Q-2 1200
26 GX24Q-3 1800
32 GX24Q-3 2200
18 2G11/4-Pin 1250
27 2G11/4-Pin 1800
39 2G11/4-Pin 2850
40 2G11/4-Pin 3150
50 2G11/4-Pin 4000
16 GR10Q-4 1050
21 GR10Q-4 1350
28 GR10Q-4 2050
38 GR10Q-4 2850
42 GX24Q-4P 3200
temperature, and ballast manufacturer.
based on lamp manufacturer and ambient operating temperature.
FBP1000-4P
Max. Emer
Lumen Lamp
Output Operation
500 One or Two
675 One or Two
400 One or Two
600 One or Two
750 One or Two
325 One or Two
525 One or Two
725 One or Two
600 One
825 One
550 One or Two
550 One or Two
550 One or Two
675 One or Two
1000 One
Type:
