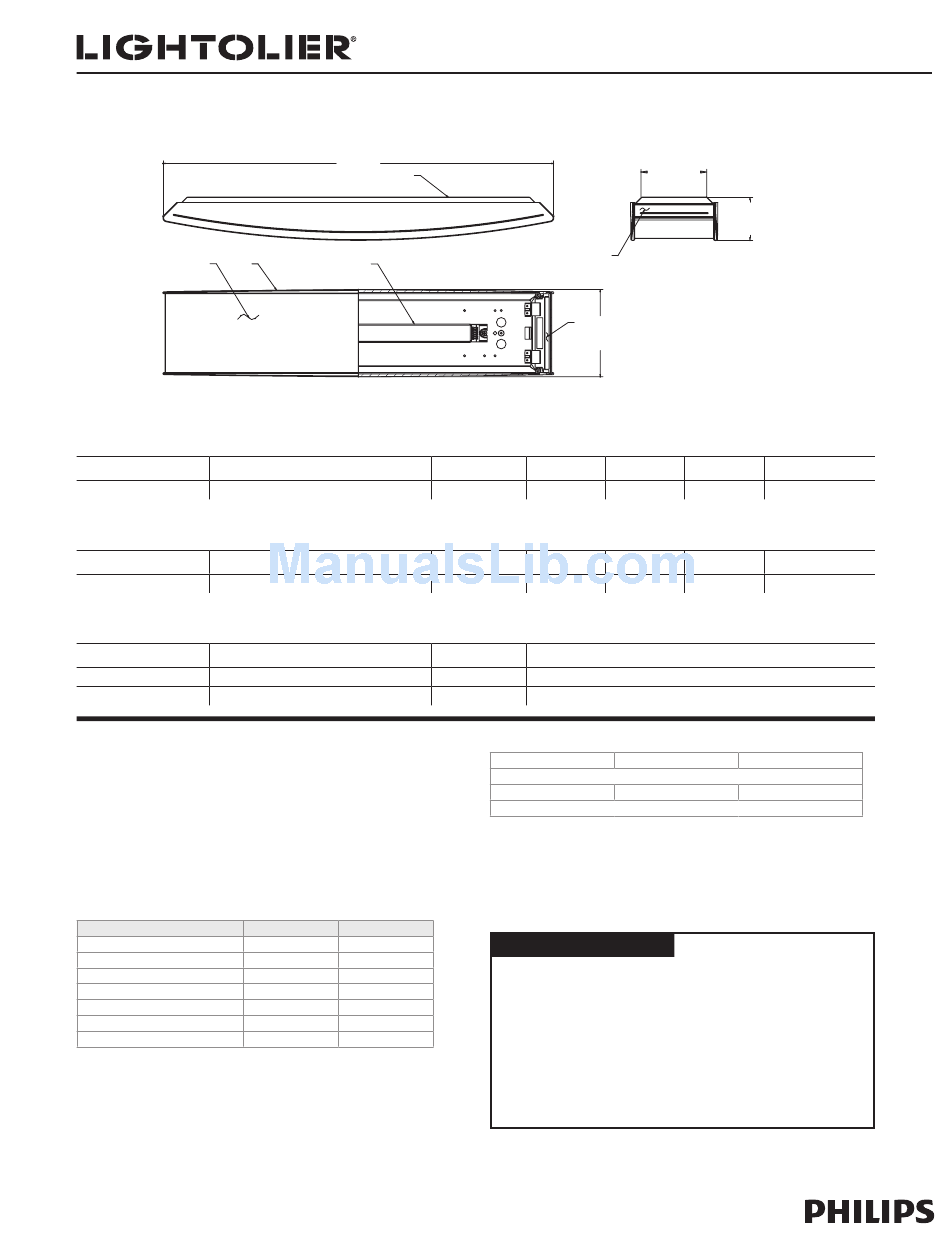

Lightolier Brisa FB5114UDA Specification

Page 1 of 2
Fixture Ordering Information
Catalog No.
FB5114UDA
Fixture Ordering Information
Catalog No.
FB5214UDA
Diffuser Ordering Information
Catalog No.
FBA5
FBG5
Features
1. Housing Sides and ends: Die-cast aluminum.
2. Back Pan: Stamped 18ga. (0.048") sheet metal.
3. Diffuser: Bowed opal glass or opal acrylic
4. Optics: Internal white acrylic diffuser covers slots on housing sides
and ends.
Mounting
Fixture Mounts directly to 4" octagonal junction box.
Electrical
5. Ballast
A. Dali Dimming 120V-277V
Voltage
Total Input Watts
Max. Line Current (Amps)
Power Factor
THD
Min. Starting Temp
Dimming Range
6. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)
and CEC Disconnect Requirements.
Lampholders
Fluorescent: Mini Bi-Pin, G5 Base
Lightolier is a Philips group brand
Brisa
25 5/16"
[643mm]
3 1
5
Description
Linear Bow Surface Mount Dali Dimming
Description
Linear Bow Surface Mount Dali Dimming
Description
Acrylic Bow Diffuser
Glass Bow Diffuser
1 Lamp 2 Lamp
120V 277V 120V 277V
18W 18W 35W 35W
0.15A 0.07A 0.28A 0.13A
>0.98 >0.98 >0.98 >0.98
<10% <10% <10% <10%
50°F, -10°C 50°F, -10°C
100%-1% 100%-1%
Linear Bow Surface Mount
™
Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
2
4
[144mm]
Finish Wattage Volts
Satin aluminum 14W
Finish Wattage Volts
Satin aluminum 14W
Finish Dimensions (Nominal)
Opal 5" X 24"
Opal 5" X 24"
Lamping (by others)
General Electric
F14W/T5/*/ECO
*Manufactures Color Temperature Designation
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Damp Locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0309
FB5114UDA
4 1/4"
[108mm]
2 13/16"
[71mm]
1
5 5/8"
Lamp
120V-277V (1) T5
Lamp
120-277V (2) T5
Osram/Sylvania
(1) 14W T5 Linear Fluorescent
FP14/* F14T5/*/ALTO
Type:
Ballast (Dali)
B114PUNVDV1
Ballast (Dali)
B114PUNVDV1
Philips
