Lightolier fixture Instructions For Installation

7
-m
-.,
/
INSTRUCTION SHEETNO.
\

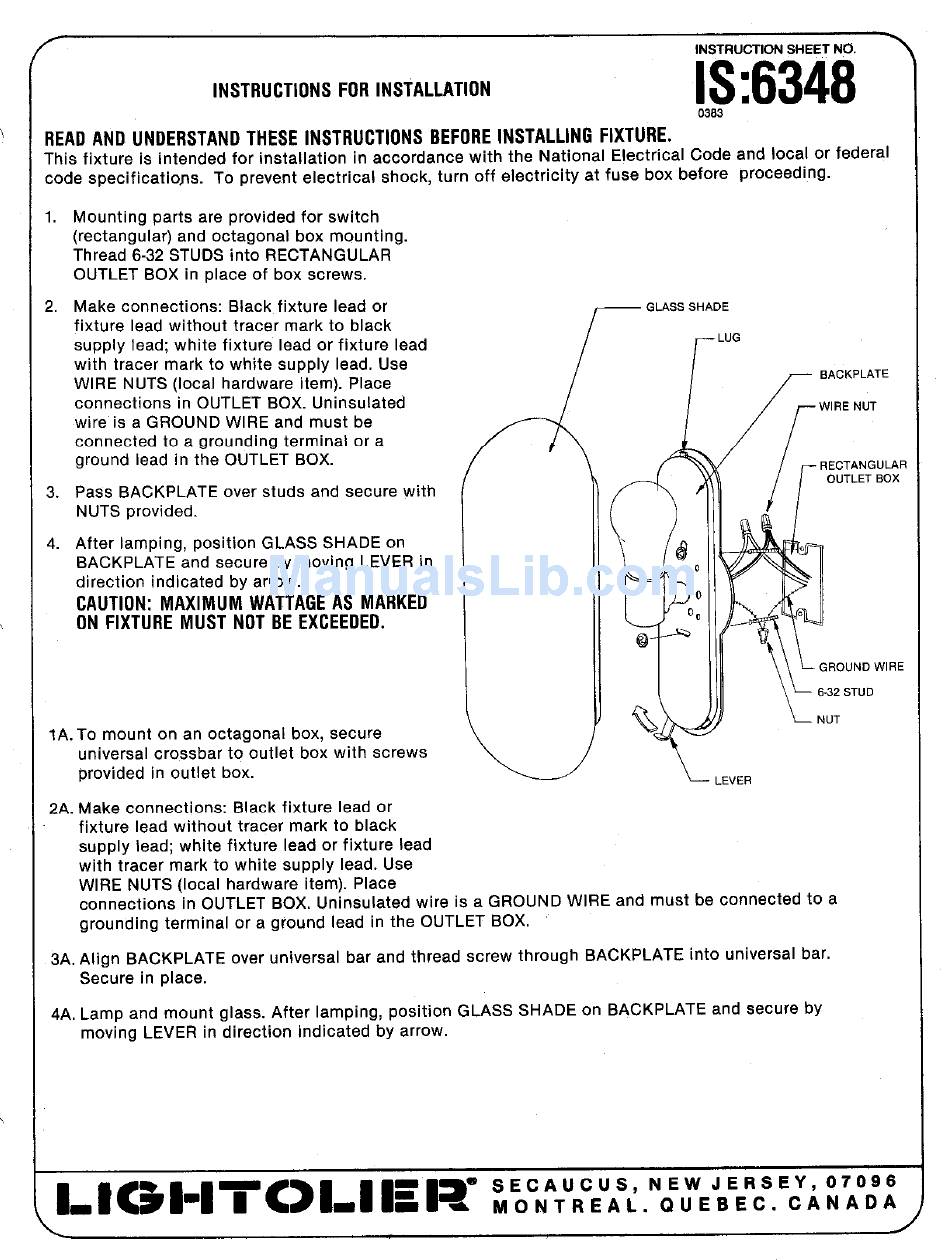

INSTRUCTIONS FOR INSTALLATION
IS:6348
0383
READ ANO UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fixture is intended for installation in accordance with the National Electrical Code and local or federal
code specifications. To prevent electrical shock, turn off electricity at fuse box before proceeding.
1,
2
3
4
Mounting parts are provided for switch
(rectangular) and octagonal box mounting.
Thread 6-32 STUDS into RECTANGULAR
OUTLET BOX in place of box screws.
Make connections: Black fixture lead or
fixture lead without tracer mark to black
supply lead; white fixture lead or fixture lead
with tracer mark to white supply lead, Use
WIRE NUTS (local hardware item). Place
connections in OUTLET BOX. Uninsulated
wire is a GROUND WIRE and must be
connected to a grounding terminal or a
ground lead in the OUTLET BOX.
Pass BACKPLATE over studs and secure with
NUTS provided.
After Iamping, position GLASS SHADE on
BACKPLATE and secure by moving LEVER in
direction indicated by arrow.
CAUTION: MAXIMUM WATTAGE AS MARKED
ON FIXTURE MUST NOT BE EXCEEDED.
1A. To mount on an octagonal box, secure
universal crossbar to outlet box with screws
provided in outlet box.
2A. Make connections: Black fixture lead or
fixture lead without tracer mark to black
supply lead; white fixture lead or fixture lead
GLASS SHADE
I
r
LUG
I
/'-
'ACKPLA
with tracer mark to white supply lead. Use
WIRE NUTS (local hardware item). Place
connections in OUTLET BOX. Uninsulated wire is a GROUND WIRE and must be connected to a
grounding terminal or a ground lead in the OUTLET BOX.
3A. Align BACKPLATE over universal bar and thread screw through BACKPLATE into universal bar.
Secure in place.
4A, Lamp and mount glass. After Iamping, position GLASS SHADE on BACKPLATE and secure by
moving LEVER in direction indicated by arrow.
