INSTRUCTION SHEETNO.
7

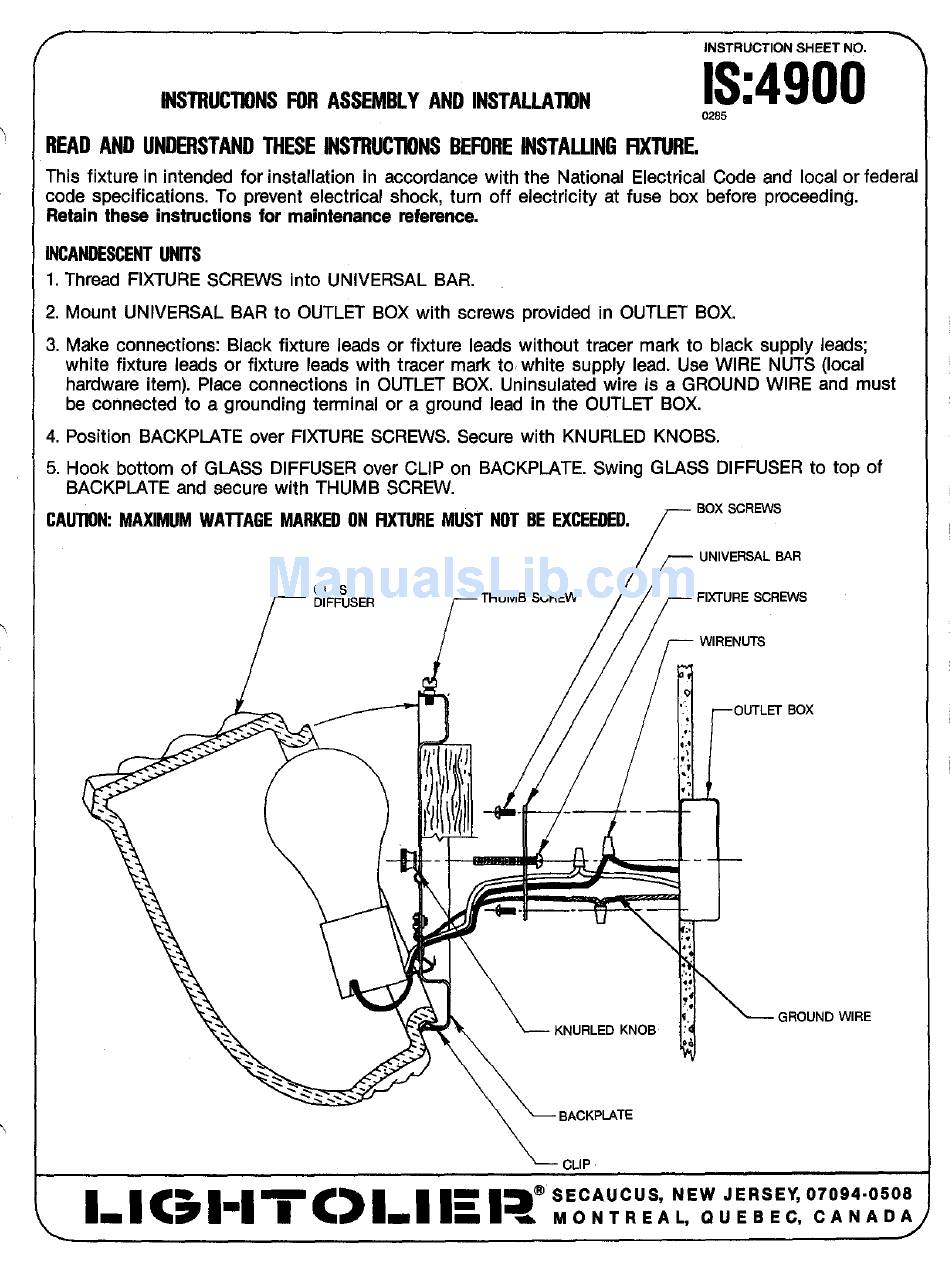

lNSTRUCllONS FOR ASSEMBLY AND lNSTALLA~N
IS:4900
0285
BEAD AND UNDERSTAND THESE fN5TRUCllDNS BEFDRE INSTALLING FIXTURE.
Fhis fixture in intended for installation in accordance with the National Electrical Code and local or federal
:ode specifications. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
NCANOESCENT U NITS
1.
Thread FIXTURE SCREWS into UNIVERSAL BAR.
?. Mount UNIVERSAL BAR to OUTLET BOX with screws provided in OUTLET BOX,
3. Make connections: Black fixture leads or fixture leads without tracer mark to black supply Ieadsy
white fixture leads or fixture leads with tracer mark to white supply lead. Use WIRE NUTS (local
hardware item). Place connections in OUTLET BOX. Uninsulated wire is a GROUND WIRE and must
be connected to a grounding terminal or a ground lead in the OUTLET BOX.
L Position BACKPlATE over FIXTURE SCREWS. Secure with KNURLED KNOBS.
5. Hook bottom of GLASS DIFFUSER over CLIP on BACKPLATE. Swing GLASS DIFFUSER to top of
BACKPLATE and secure with THUMB SCREW.
CAUTfON MAXIMUM WATTAGE MARKED ON FIXTURE MUST NOT BE EXCEEOEO. /"_ 'ox 'Rm
/ /--
UNIVERSAL SAR
~ ~#F~SER ~THUM' sCREw
// /'--
FIXTURE SCREWS
/ /
//'/
- WIRENUTS
d--%-———7— --4- 1
LCLIP
