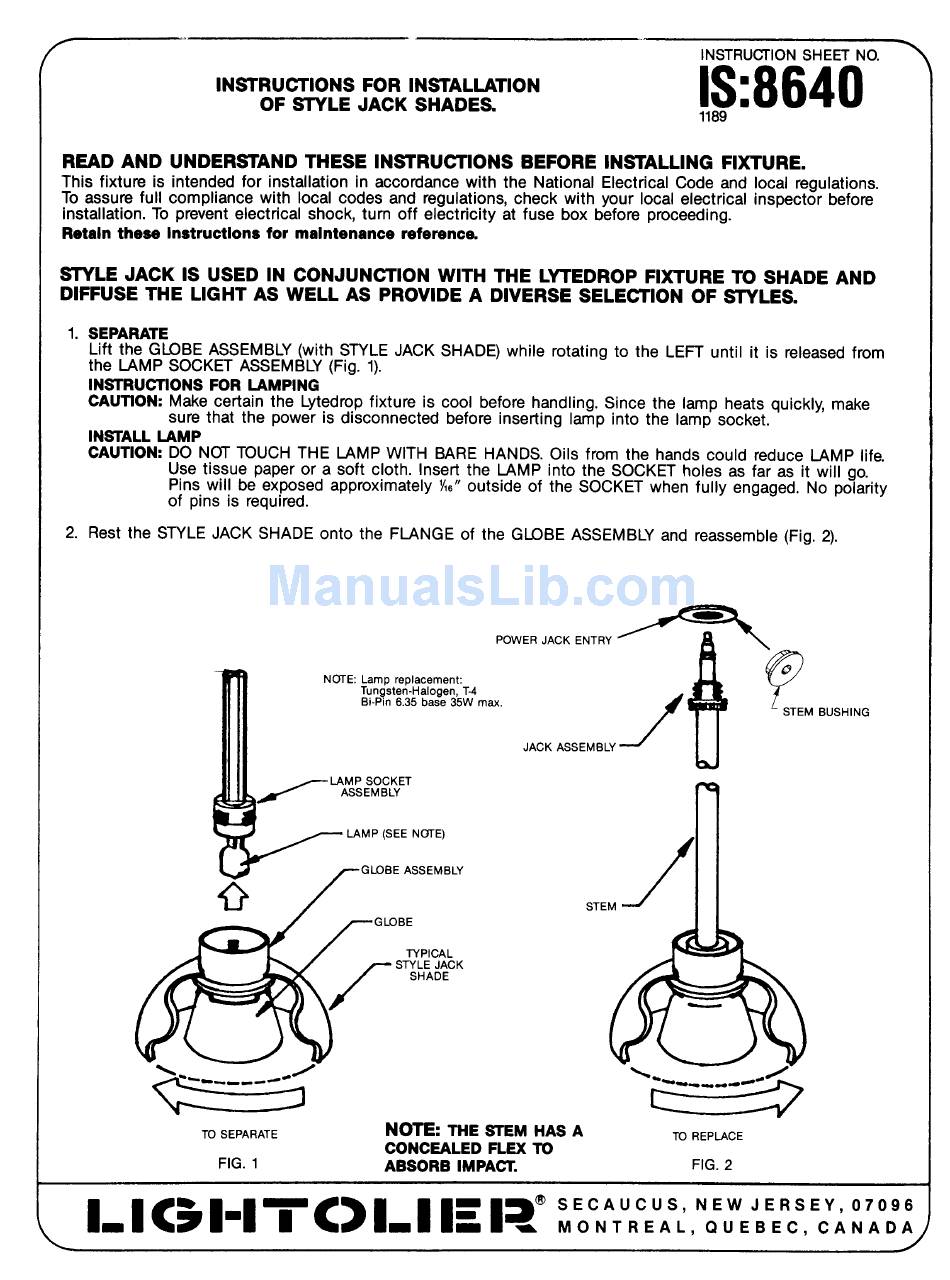

Lightolier FIXTURE Instructions For Installation

INSTRUCTIONSFOR INSTALLATION
OF STYLE JACK SHADES.
INSTRUCTION SHEET NO.
IS:8640
1189
READ AND UNDERSTAND THESE INSTRUCTIONSBEFORE INSTALLINGFIXTURE.
This fixture is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these Instructions for maintenance raferanca
STYLE JACK IS USED IN CONJUNCTION WITH THE LWEDROP FIXTURE TO SHADE AND
DIFFUSE THE LIGHT AS WELL AS PROVIDE A DIVERSE SELECTION OF STYLES.
1. SEPARATE
Lift the GLOBE ASSEMBLY (with STYLE JACK SHADE) while rotating to the LEFT until it is released from
the LAMP SOCKET ASSEMBLY (Fig. 1).
INSTRUCTIONS FOR LAMPING
CAUTION: Make certain the Lytedrop fixture is cool before handling. Since the lamp heats quickly, make
sure that the power is disconnected before insertina Iamr) into the lamD socket.
INSTALL LAMP
-,
CAUTION: DO NOT TOUCH THE LAMP WITH BARE HANDS. Oils from the hands could reduce LAMP life.
Use tissue paper or a soft cloth. Insert the LAMP into the SOCKET holes as far as it will ao.
Pins will be exposed approximately M," outside of the SOCKET when
of
pins is required.
2. Rest the STYLE JACK SHADE onto the FLANGE of the GLOBE ASSEMBLY and
fully engaged. No p~arity
reassemble (Fig. 2).
NOTE:
p.wE.J..KENTRy-
l!
P
0
Lamp replacement:
Tungsten-Halogen, T-4
Bi-Pin 6.35 base 35W max.
1
STEM
JACK ASSEMBLY
!!-
LAMP SOCKET
< 'SSEMBLY
LAMP (SEE NOTE)
> //G~BEASSEM13LY
STEM Y
\
BUSHING
TO SEPARATE
NOTE:
THE STEM HAS A
TO REPLACE
CONCEALED FLEX 10
FIG. 1
ABSORB IMPACE
FIG. 2
