Lightolier FIXTURE Instructions For Installation

~
-3
--l
/
INSTRUCTIONSHEETNO

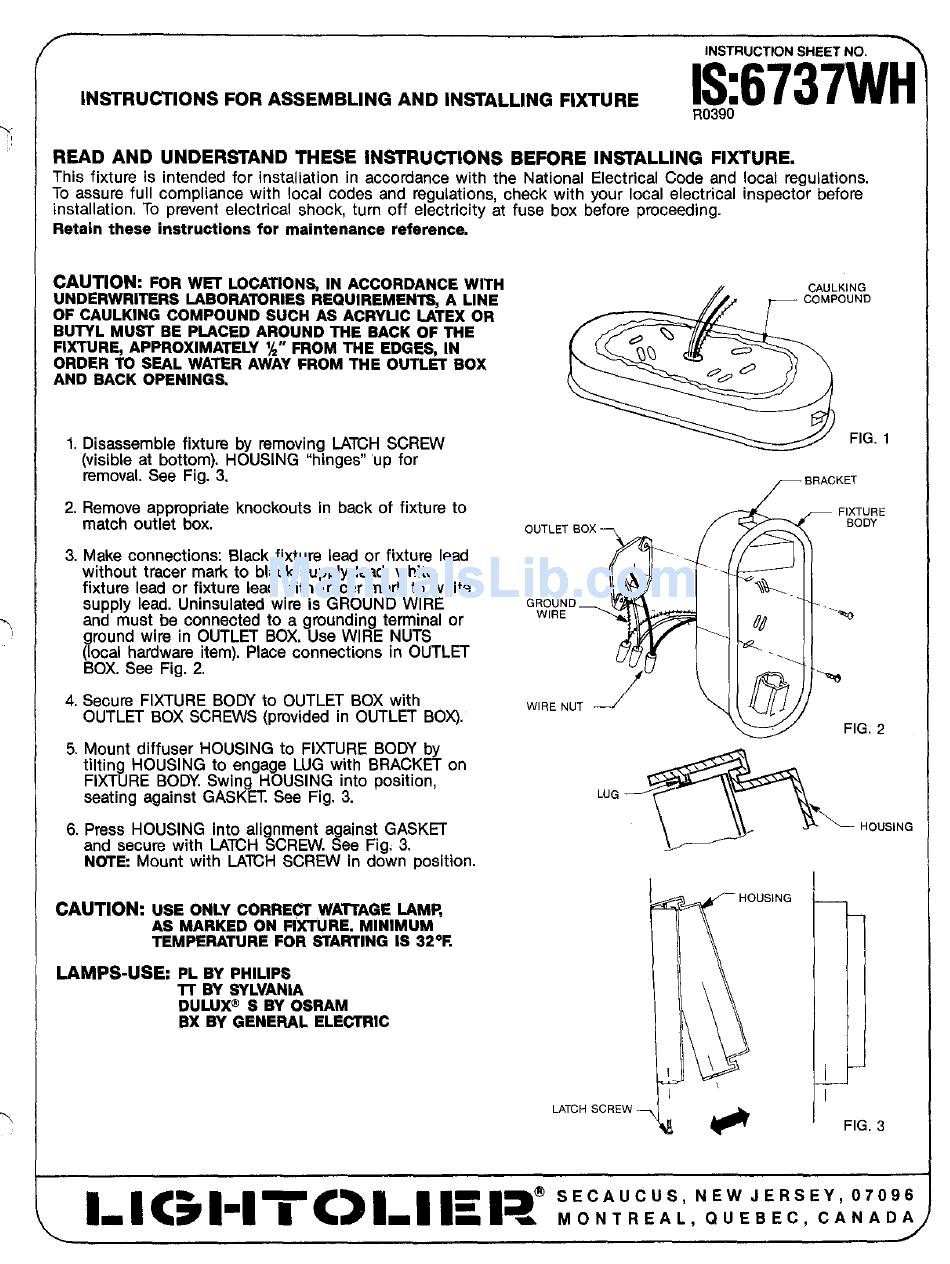

INSTRUCTIONS FOR ASSEMBLING AND INSTALLING FIXTURE
IS:6737WH
R0390
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fixture is intended for installation in accordance with the National Electrical Code and local regulations,
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To Drevent electrical shock, turn off electricity at fuse box before Droceedirm.
Retain these i&truotions for maintenance reference.
1, Diaaesemble fixture by removing LATCH SCREW
(visible at bottom). HOUSING "hinges" up for
removal. See Fig. 3.
2. Remove appropriate knockouts in back of fixture to
match outlet box.
3. Make connections Black fixture lead or fixture lead
without tracer mark to black supply lea@ white
fixtUre lead or fixture lead with tracer mark to white
eupply lead. Uninsulated wire is GROUND WIRE
and must be connected to a grounding terminal or
ground wire in OUTLET BOX. Use WIRE NUTS
(local hardware item). Place connections in OUTLET
BOX. See Fig. 2,
4, Secure FIXTURE BODY to OUTLET BOX with
OUTLET BOX SCREWS (provided in OUTLET BOX).
5. Mount diffuser HOUSING to FIXTURE BODY by
tilting HOUSING to engage LUG with BRACKET on
FIXTURE BODY. Swing HOUSING into poeition,
seating against GASKET See Fig. 3.
6. Press HOUSING into alignment againet GASKET
and secure with LATCH SCREW. See Fig. 3.
N~E Mount with LATCH SCREW in down position.
OUTLET
GROUN
WIRE
WIRE NUT
— /\
/"-
BRACKET
LUG
m
\
CAUTION:
USE
ONLY CORRECT WAlTAGE LAMP,
AS MARKED ON FIXTURE. MINIMUM
TEMPERATURE FOR STARTING IS 32°E
LAMPS-USE PL SY PHILIPS
lT BY SYLVANIA
DU LUX@ S BY OSRAM
BX BY GENERAL ELECTRIC
LATCH SCREW –
h
– HOUSING
\
\
\
\'
FIG. 2
— HOUSING
.
I —
FIG. 3
