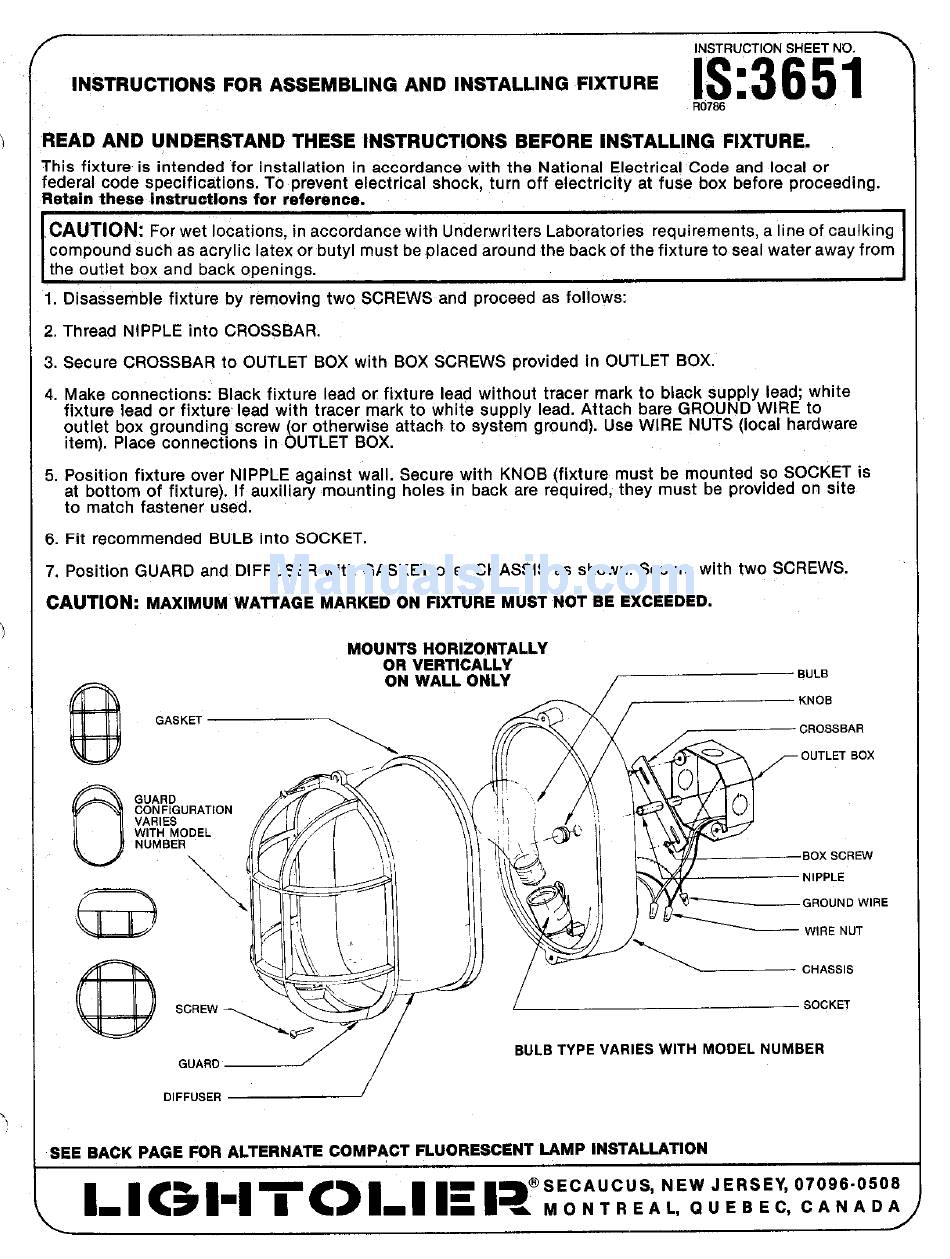

Lightolier FIXTURE Assembly And Installation

--?
-)
-'!
INSTRUCTIONS FOR ASSEMBLING AND INSTALLING FIXTURE
IS:3651
IEAD AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
'his fixture is intended for installation in accordance with the National Electrical Code and local or
~deral code specifications. To prevant electrical shock, turn off electricity at fuse box before proceeding.
Ietahr these Inatructiona for raferenca.
CAUTION:
For wet locations, in accordance with Underwriters Laboratories requirements, a line of caulking
compound such as acrylic latex or butyl must be placed around the back of the fixture to seal water away from
the outlet box and back openings.
Disassemble fixtura by removing two SCREWS and proceed as follows:
!, Thread NIPPLE into CROSSBAR.
L Secure CROSSBAR to OUTLET BOX with BOX SCREWS provided in OUTLET BOX.
L Make connections: Black fixture lead or fixture lead without tracer mark to bleck supply lead; white
fixture lead or fixture lead with tracer mark to white supply lead. Attach bare GROUND WIRE to
outlet box grounding screw (or otherwise attach to system ground). Use WIRE NUTS (local hardware
item). Place connections in OUTLET BOX.
j. Position fixture over NIPPLE against wall. Secure with KNOB (fixture must be mounted so SOCKET is
at bottom of fixture). If auxiliary mounting holes in back are required, they must be provided on site
to match fastener ueed.
). Fit recommended BULB into SOCKET.
7. Position GUARD and DIFFUSER with GASKET over CHASSIS ae shown. Secure with two SCREWS.
2AUTION: MAXIMUM WAlTAGE MARKED ON FIXTiJRE MUST
NOT BE EXCEEDED.
MOUNTS HORIZONTALLY
E
SEE BACK PAGE FOR ALTERNATE COMPACT FLUORESCENT LAMP INSTALLATION
