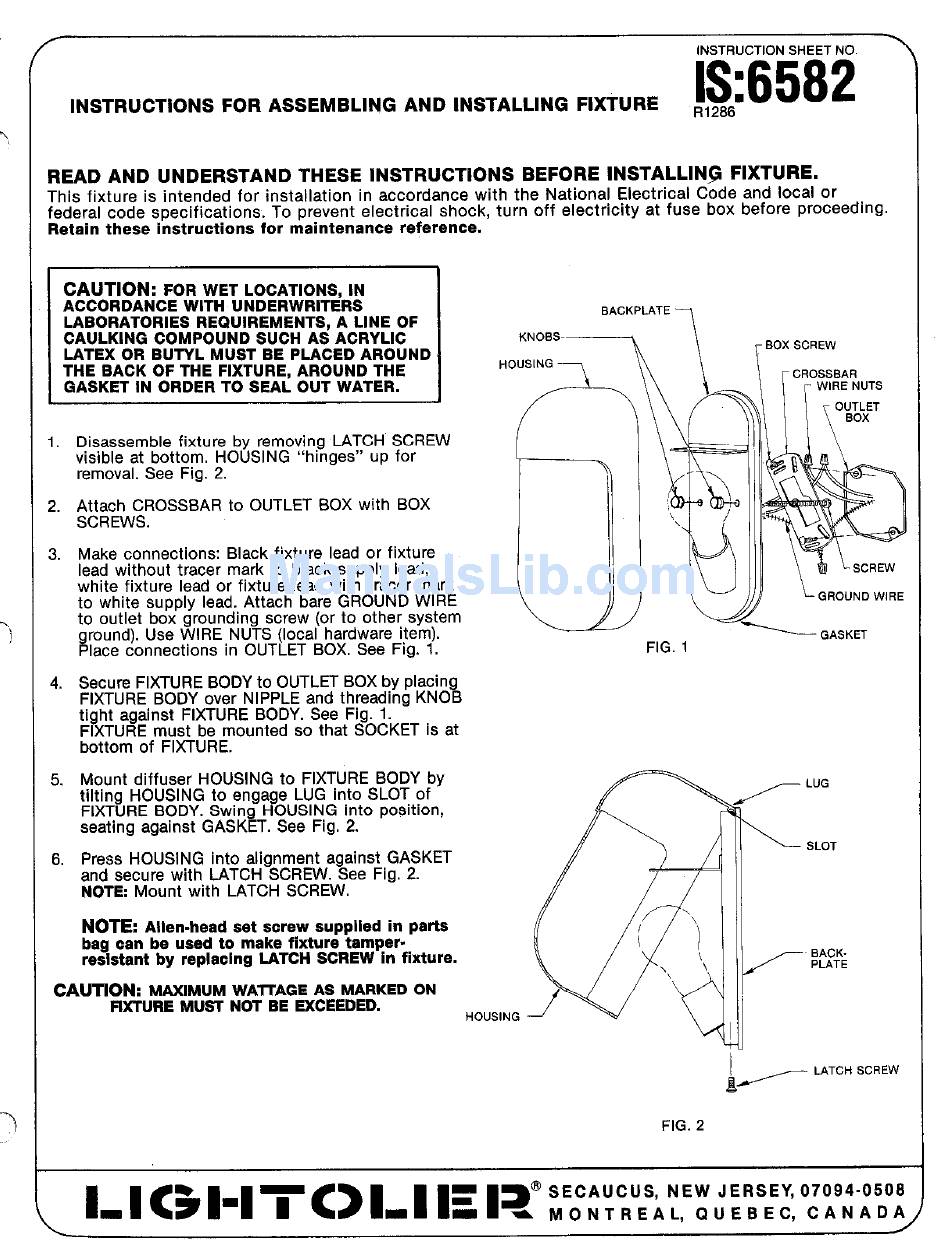

Lightolier FIXTURE Assembly And Installation

INSTRUCTION SHEETNO.
\
INSTRUCTIONS FOR ASSEMBLING AND INSTALLING FIXTURE
IS:6582
R1286m
EAD AND UNDERSTAND THESE INSTRUCTIONS BEFORE lNSTALLIN~ FIXTURE.
his fixture is intended for installation in accordance with the National Electrical Code and local or
!deral code specifications. To prevent electrical shock, turn off electricity at fuse box before proceeding.
etain these instructions for maintenance reference.
= '0
ACCORDANCE WITH UNDERWRITERS
LABORATORIES REQUIREMENTS, A LINE OF
CAULKING COMPOUND SUCH AS ACRYLIC
LATEX OR BUTYL MUST BE PLACED AROUND
THE BACK OF THE FIXTURE, AROUND THE
GASKET IN ORDER TO SEAL OUT WATER.
Disassemble fixture by removing LATCH" SCREW
visible at bottom, HOUSING "hinges" up for
removal. See Fig. 2.
Attach CROSSBAR to OUTLET BOX with BOX
SCREWS.
Make connections Black fixture lead or fixture
lead without tracer mark to black supply lead;
white fixture lead or fixture lead with tracer mark
towhite eupplylead. Attach bare GROUND WIRE
to outlet box grounding screw (ortoothersyetem
round). Use WIRE NUTS (local hardware item).
~lace connections in OUTLET BOX, See Fig. 1.
FIG. 1
Secure FIXTURE BODY to OUTLET BOX by placing
FIXTURE BODY over NIPPLE and threading KNOB
tight againat FIXTURE BODY. See Fig. 1.
FIXTURE must be mounted eo that SOCKET is at
bottom of FIXTURE.
Mount diffuser HOUSING to FIXTURE BODY by
tilting HOUSING to engage LUG into SLOT of
LUG
FIXTURE BODY. Swing HOUSING into position,
seating againet GASKET. See Fig. 2.
Preee HOUSING into alignment against GASKET
SLOT
and secure with LATCH SCREW. See Fig, 2.
NOTE Mount with LATCH SCREW.
NOTE
Allen-hesd set screw supplied in psrts
bsg csn be used to mskeffxturetsmper.
resistent by repleclng LATCH SCREW in fixture.
BACK.
PLATE
;AUTION:
MAXIMUM WAlTAGE AS MARKED ON
FIXIIJRE MUST N~ BE EXCEEDED.
HOUSING
LATCH SCREW
~~
FIG. 2
