Lightolier Tangent FXA1B Specification

Lightolier Tangent FXA1B Specification

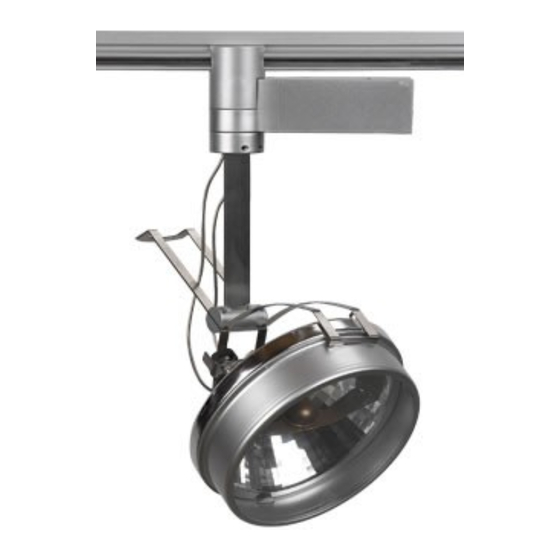

Track lighting system ar111 bare holder

Advertisement

Quick Links

Page 1 of 2
1 1/8 in
[29 mm]
5
5 1/8 in
[131 mm]
7 3/8 in
[187 mm]
6
Ordering Information
Catalog No.
Finish
FXA1B
Silver
Features
1. Transformer: Class two electronic transformer for 12V Halogen lamps.
2. Track Attachment fitting: Molded thermoplastic clamping adapter with
captive, nickel-plated steel pin. Clockwise rotation of pin secures fixture
adapter to track.
3. Fixture Stem: Stainless steel.
4. Horizontal Pivot: Infinite horizontal rotation.
5. Vertical Pivot: 0° to 90° vertical adjustment.
6. Aiming Handle: Stainless steel; allows aiming of fixture while it is on.
7. Snoot: Spun aluminum; with integral glass shield. Painted silver
Dimming
Use only dimmers specifically designed for use with electronic transformers.
Low Voltage fixtures may produce audible sound when dimmed.
Finish
All Painted finishes are baked enamel.
Accessories
No accessory capability.
Tangent
3 7/8 in
[97 mm]
1 in
[27 mm]
1 in
[25 mm]
7
6 3/8 in
[162 mm]
Track Mountings
For use on all Tangent Track systems. May
be horizontal or vertical wall mounted.
Labels
cULus Listed
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • A0407
Track Lighting System
1
1 1/2 in
[39 mm]
5/8 in
[15 mm]
4 3/8 in
[111 mm]
Lamps
12V AR111 Halogen
G53 Base
50W Max
Type:
a Genlyte company
FXA1B
AR111 Bare Holder
2
3
4
www.lightolier.com
