INSTRUCTION SHEETNO. =

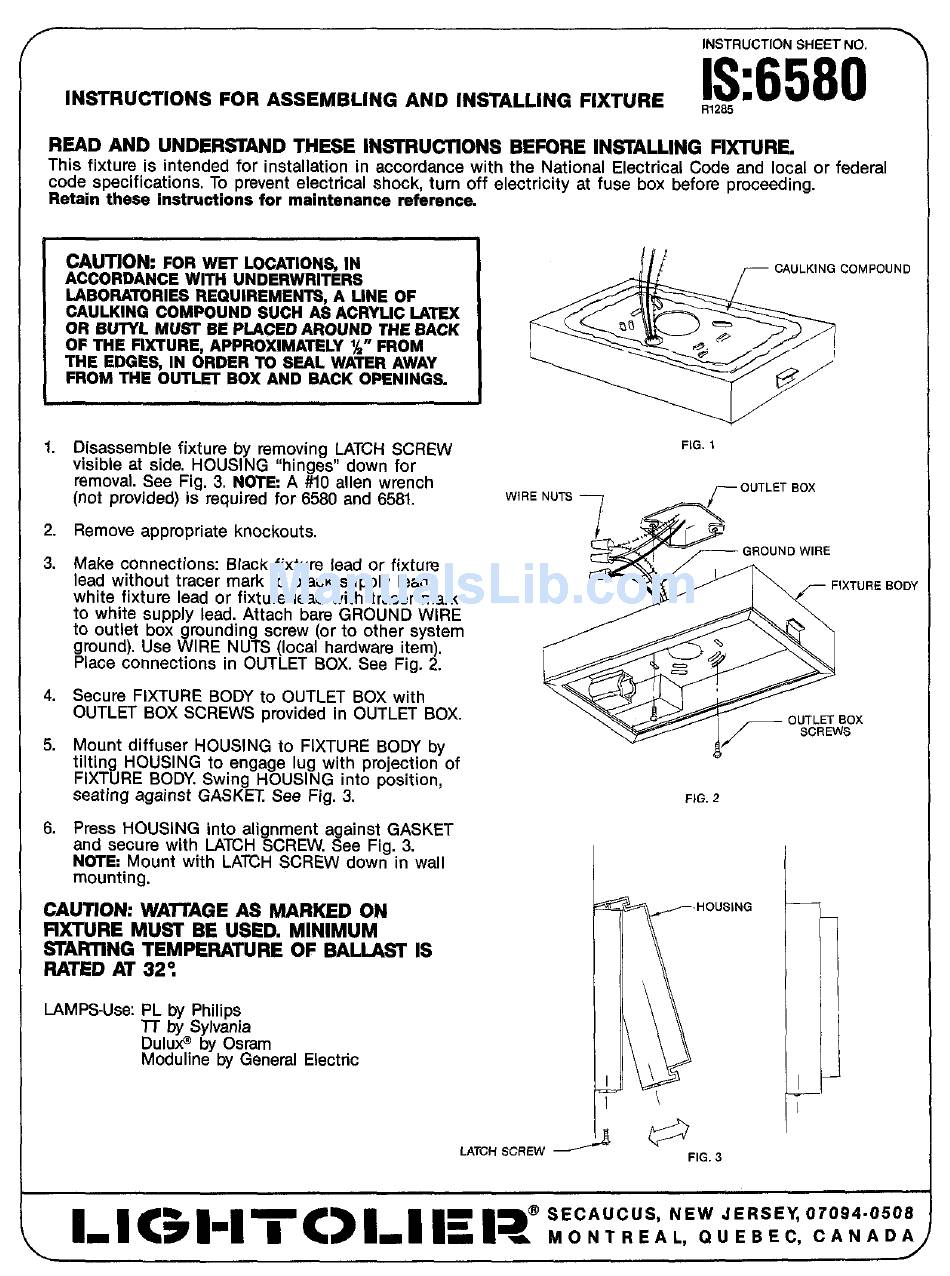

INSTRUCTIONS FOR ASSEMBLING AND INSTALLING FIXTURE
IS:6580
R1285
READ AND UNDERS14ND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fiXtUre is intended for installation in accordance with the National Electrical Code and local or federal
code specifications, To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these Instructions for maintenance reference.
1. Disassemble fixture by removing LATCH SCREW
visible at side, HOUSING "hinges" down for
removal. See Fig. 3. N~E A MO allen wrench
(not provided) is required for 6580 and 6561.
2. Remove appropriate knockouts,
3. Make connections Black fixture lead or fixture
lead without tracer mark to black supply lead;
white fixture lead or fixture lead with tracer mark
to white supply lead. Attach bare GROUND WIRE
to outlet box grounding screw (or to other system
ground). Use WIRE NUTS (local hardware item),
Place connections in OUTLET BOX. See Fig. 2.
4. Secure FIXTURE BODY to OUTLET BOX with
OUTLET BOX SCREWS provided in OUTLET BOX.
5. Mount diffueer HOUSING to FIXTURE BODY by
tilting HOUSING to engage lug with projection of
FIXTURE BODY. Swing HOUSING into position,
seating against GASKET See Fig. 3.
CAULKING COMPOUND
*
FIG. 1
WIRE
RE BOi3
FIG. 2
6. Press HOUSING into alignment against GASKET
and secure with LATCH SCREW. See Fig. 3.
NU7E Mount with LATCH SCREW down in wall
mounting.
CAUTION: WATKAGE AS MARKED ON
FIXTURE MUST BE USED. MINIMUM
STARTING TEMPERATURE OF BALLA~ IS
RATED AT 32:
lAMPS-Use PL by Philips
T7 by Sylvania
DuIuP by Osrem
Moduline by General Electric
LATCH
SCREW ~
b
HOUSING
\
i@
FIG.3
[m[<~~-[y<>,d,:l~
MONTREAL, Q"EBEC, CANADA
@ SECAUCUS, NEW JERSEY 07094.0508
,,
