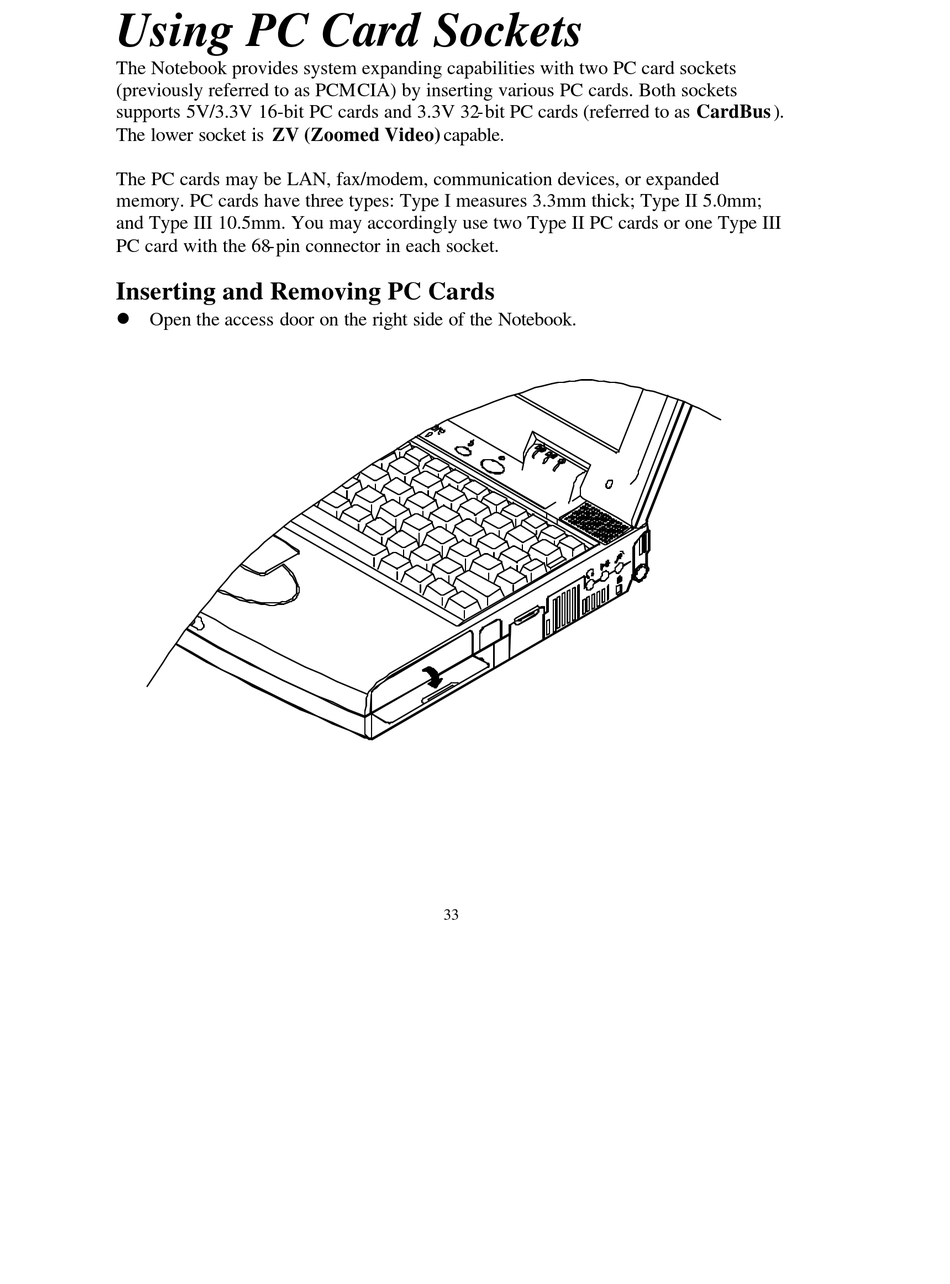

Using PC Card Sockets

The Notebook provides system expanding capabilities with two PC card sockets
(previously referred to as PCMCIA) by inserting various PC cards. Both sockets
supports 5V/3.3V 16-bit PC cards and 3.3V 32-bit PC cards (referred to as CardBus ).
The lower socket is ZV (Zoomed Video) capable.
The PC cards may be LAN, fax/modem, communication devices, or expanded
memory. PC cards have three types: Type I measures 3.3mm thick; Type II 5.0mm;
and Type III 10.5mm. You may accordingly use two Type II PC cards or one Type III
PC card with the 68-pin connector in each socket.
Inserting and Removing PC Cards
l Open the access door on the right side of the Notebook.
33
