Utility - EUROCOM 7200 User Manual

Utility

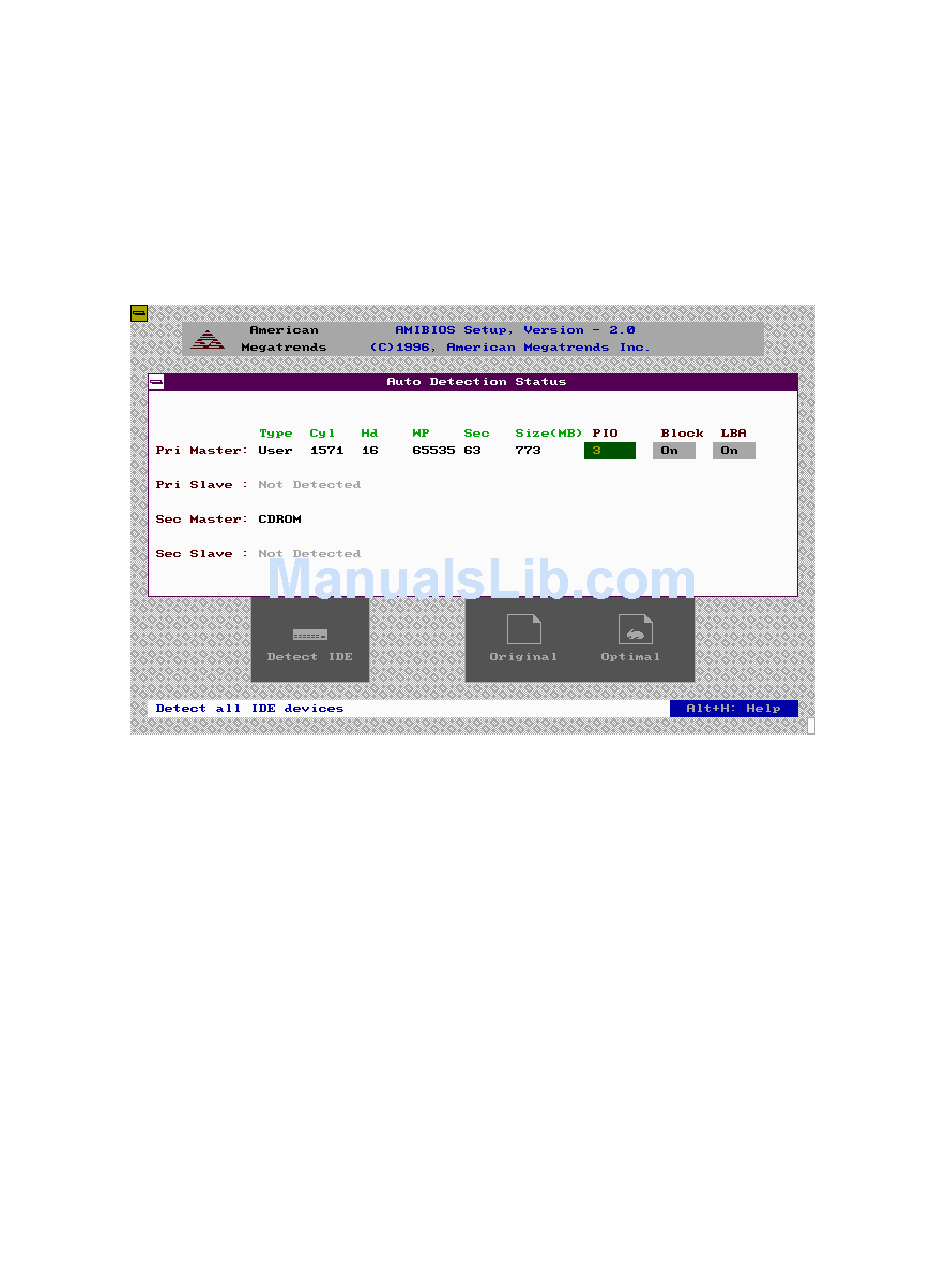

Select the IDE Detection icon to automatically detect all drive
Detect IDE
parameters: Type, Cyl (number of cylinders), Hd (number of
heads), WP (Starting write precompensation cylinder), Sec
(number of sectors), Size (drive capacity). Click on PIO Mode to
select the IDE programmed I/O mode among the settings Auto, 0,
1, 2, 3, 4, 5. Click on Block Mode and choose On to support IDE
drives that use Block Mode. Click on LBA Mode and choose On
to support IDE drives whose capacities are greater than 528MB.
55
