Connecting Your Touchmonitor

Before connecting the cables to your touchmonitor and PC, be sure that the computer

Important:

and touchmonitor are turned off.

Note:

You will need a Phillips screwdriver to remove the back cover.

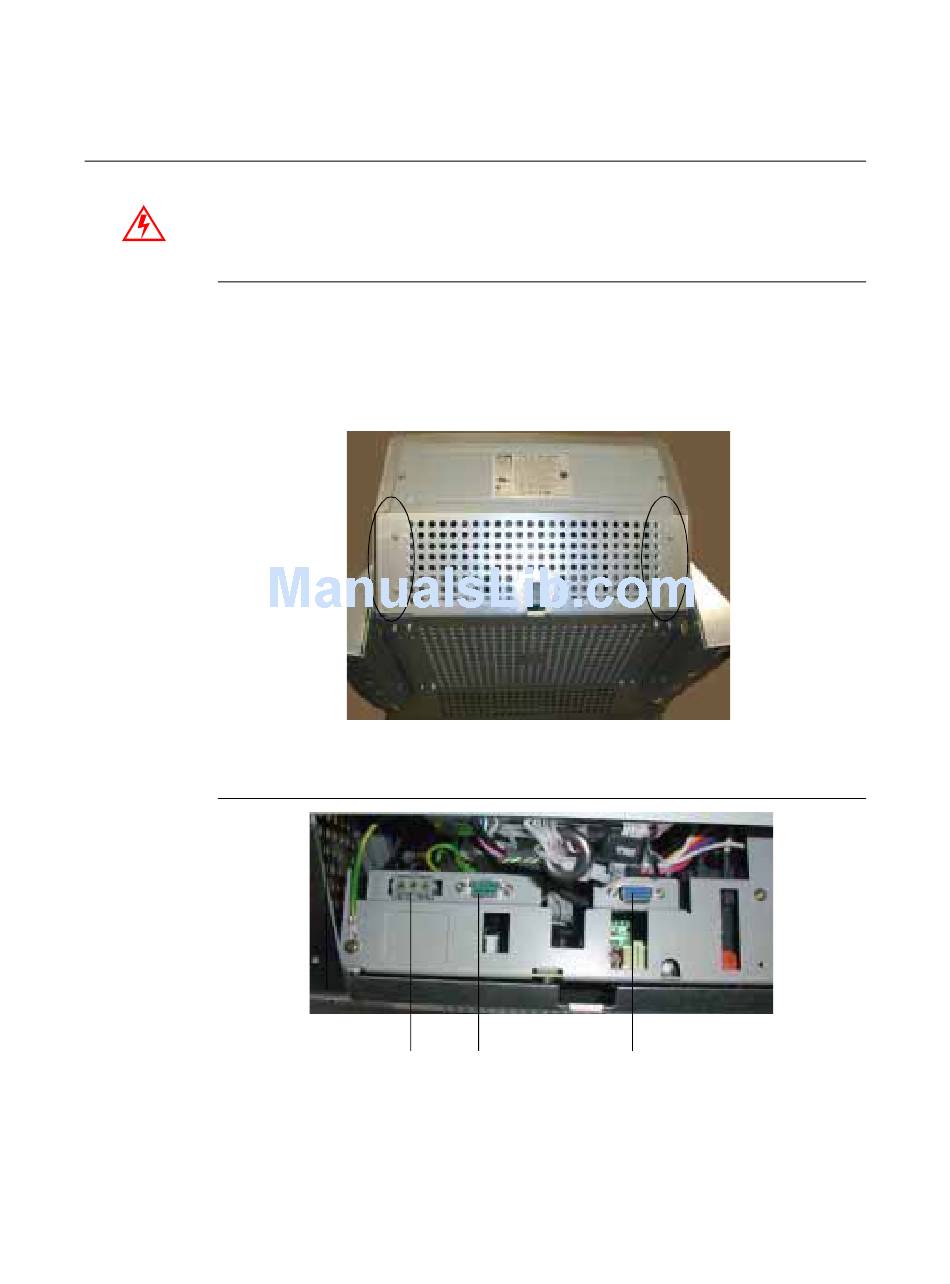

• In order to access the touchmonitor connections, unscrew the four screws on

the back cover.

• Remove the back cover to expose the touchmonitor connections.

2-4

E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e

Power

Female 9-pin

serial or USB

touchscreen

connector

Female 15-pin video

connector
