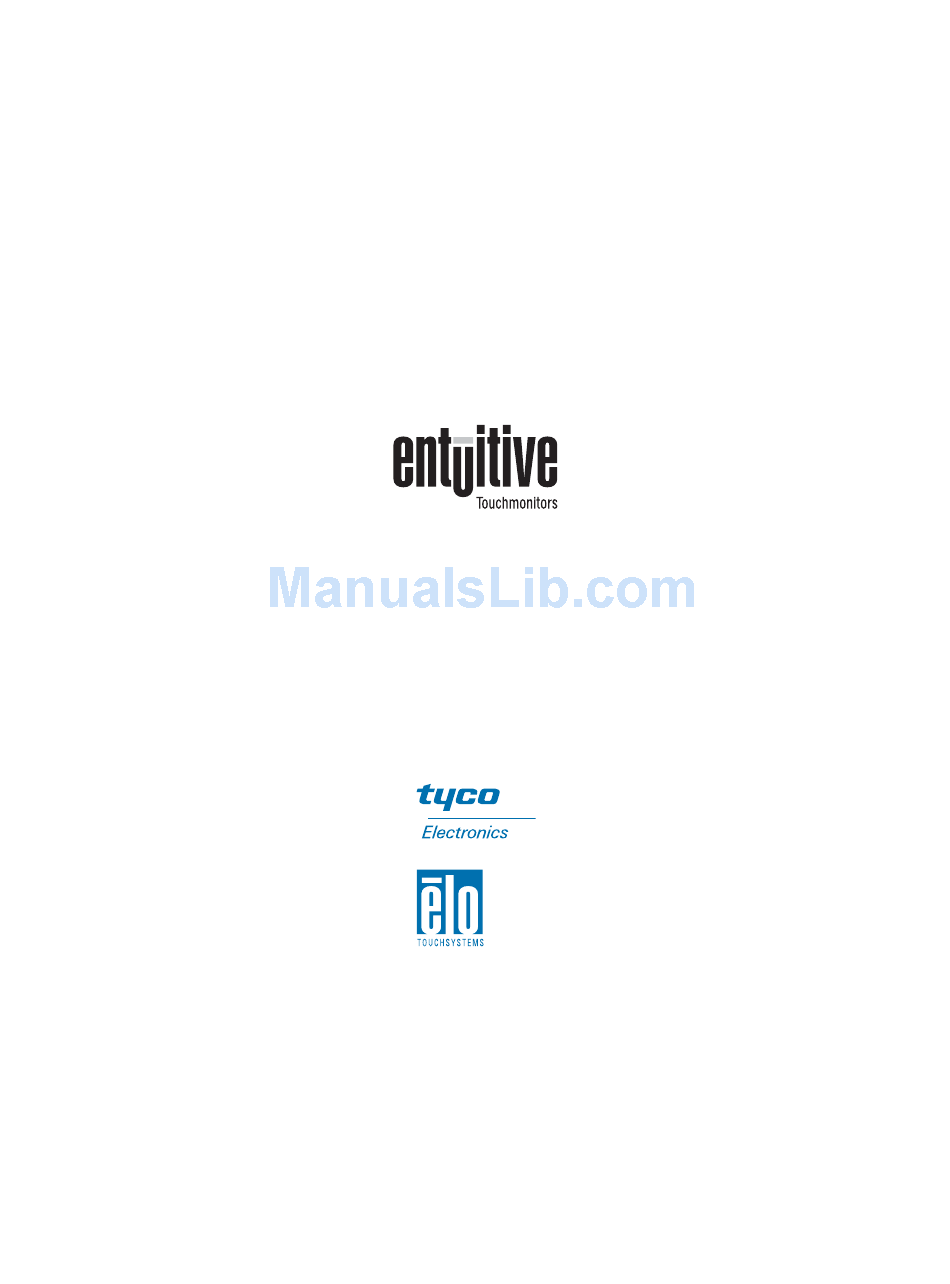

Page 1: User Guide
Elo Entuitive Touchmonitor User Guide 15" LCD Rear Mount Touchmonitor ET1546L-XXWA-X Series Revision B P/N 008593 Elo TouchSystems, Inc. 1-800-ELOTOUCH www.elotouch.com... -
Page 3: Trademark Acknowledgments
Elo TouchSystems. Disclaimer The information in this document is subject to change without notice. Elo TouchSystems makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes. -
Page 5: Table Of Contents
Table of Contents Chapter 1 Precautions ....1 About the Product ....1 Chapter 2 Unpacking Your Touchmonitor. -
Page 6: Precautions
Congratulations on your purchase of an Elo TouchSystems Entuitive LCD touchmonitor. Your new high-resolution touchmonitor combines the reliable performance of Elo’s touch technology with the latest advances in LCD display design. This combination of features creates a natural flow of information between a user and your touchmonitor. - Page 7 • Auto adjustment capability • High quality full screen re-scaling • Multilingual OSD menus: English, French, Dutch, Italian, Spanish, German, Swedish, Finnish, Danish and Portuguese • VESA flat panel monitor physical mounting interface (75mm) • For full Product Specifications refer to Appendix C. E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 8: Unpacking Your Touchmonitor
Unpacking Your Touchmonitor Check that the following 9 items are present and in good condition: European monitor power cable Monitor power cable (US/Canada) Mounting L brackets (2) NSTALLATION AND HAPTER OSD remote USB touchscreen Serial touchscreen cable cable CD and Quick Install Guide H A P T E R ETUP... -
Page 9: Product Overview
Product Overview Main Unit Rear View E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Detachable mounting L-brackets 75.0 [2.95] LCD Display... -
Page 10: Bottom View/Side View
Bottom View/Side View Remote OSD connector Power switch Power Connector Touch interface connector (serial or USB) Video Cable (analog) connector... -
Page 11: Attaching The L-Brackets
Attaching the L-Brackets Depending on your mounting scheme, use the L-brackets or the VESA 75mm standard holes located on the back of the kiosk monitor. See page 15 for VESA mounting information. You will need a screwdriver to attach the L-brackets. Your kiosk touchmonitor comes with a mounting bracket (C-bracket) attached at the back. -
Page 12: Touch Interface Connection
Touch Interface Connection Your interface cables may have been pre-connected to your monitor at the factory. Your touchmonitor comes with one of the following touchscreen connector cables: Serial (RS-232) cable or USB cable (For Windows 98 or Windows 2000 computers only.) To setup this display, please refer to the following figures and procedures: Serial Connection The following illustrations guide you step by step in connecting your... -
Page 13: Connecting The Video Cable
Connecting the Video Cable • Connect the 15-pin video cable to the video port on your PC. • Connect the other end of the video cable to the video connector on your touchmonitor. • Secure the cable to your touchmonitor and PC by turning the screws on the connector clockwise. -
Page 14: Connecting The Serial Touchscreen Cable
Connecting the Serial Touchscreen Cable • Connect the female end of the serial (RS-232) cable to the serial port on the back of your PC. • Connect the male end of the cable to the serial touchscreen connector on your touchmonitor. -
Page 15: Connect The Remote Osd Cable
Connect the Remote OSD Cable • Connect the 6 pin DIN cable to the OSD Remote port on your touchmonitor. 2-10 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Connections on underside remote port... -
Page 16: Connecting The Power Cable
Connecting the Power Cable Depending on where you live, you will use either the European or US/Canadian power cable. • Connect the female end of the power cable into the power port on the touchmonitor. To protect your equipment against risk of damage from electrical surges in the power line, plug the touchmonitor’s power cord into a surge protector, and then connect the surge protector to a grounded (three-pronged) AC electrical outlet. -
Page 17: Usb Connection
USB Connection A USB connection can only be used if your PC is running Windows 98 or Windows 2000. The following illustrations guide you step by step in connecting your touchmonitor using a USB cable connection. Before connecting the cables to your touchmonitor and PC, be sure that the computer and the touchmonitor are turned off. -
Page 18: Connecting The Video Cable
Connecting the Video Cable • Connect the 15-pin video cable to the video port on your PC. • Connect the other end of the video cable to the video connector on your touchmonitor. • Secure the cable to your touchmonitor and PC by turning the screws on the connector clockwise. -
Page 19: Connecting The Usb Touchscreen Cable
Connecting the USB Touchscreen Cable • Connect the USB touchscreen cable to the USB touchscreen connector on the touchmonitor. • Connect the other end of the USB cable to your PC. • The touchscreen cable connectors should fit snugly into the connectors on your touchmonitor and PC. -
Page 20: Connecting The Remote Osd Cable
Connecting the Remote OSD Cable • Connect the 6 pin DIN cable to the OSD Remote port on your touchmonitor. Connections on underside remote port 2-15... -
Page 21: Connecting The Power Cable
Connecting the Power Cable Depending on where you live, you will use either the European or US/Canadian power cable. • Connect the female end of the power cable into the power port on the touchmonitor. To protect your equipment against risk of damage from electrical surges in the power line, plug the touchmonitor’s power cord into a surge protector, and then connect the surge protector to a grounded (three-pronged) AC electrical outlet. -
Page 22: Optimizing The Lcd Display
Optimizing the LCD Display To ensure the LCD display works well with your computer, configure the display mode of your graphic card to make it less than or equal to 1024 x 768 resolution, and make sure the timing of the display mode is compatible with the LCD display. -
Page 23: Installing The Driver Software
Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows XP • Windows 2000 • Windows Me • Windows 98 •... -
Page 24: Installing The Serial Touch Driver For Windows Xp, Windows 2000, Me, 95/98 And Nt
Installing the Serial Touch Driver for Windows XP, Windows 2000 , Me, 95/98 and NT 4.0 For Windows 2000 and NT 4.0 you must have administrator access rights to install the driver. Insert the Elo CD-ROM in your computer’s CD-ROM drive. If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program. -
Page 25: Installing The Serial Touch Driver For Ms-Dos And Windows 3.1
Installing the Serial Touch Driver for MS-DOS and Windows 3.1 To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below: Insert the Elo CD-ROM in your computer’s CD-ROM drive. From DOS, type d:\EloDos_W31 to change to the correct directory on the CD-ROM (your CD-ROM drive may be mapped to a different drive letter). -
Page 26: Installing The Usb Touch Driver
Browse to select the \EloUSB directory on the Elo CD-ROM. Choose Next. Once the Elo TouchSystems USB touchscreen driver has been detected, choose Next again. You will see several files being copied. Insert your Windows 98 CD if prompted. - Page 27 2-22 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 28: About Touchmonitor Adjustments
About Touchmonitor Adjustments Your touchmonitor will likely require adjustment. Variations in video output and application will require you to adjust your touchmonitor to optimize the quality of the display. For best performance, your monitor should be operating in native resolution, that is 1024 x 768 at 60-75 Hz. -
Page 29: Remote Osd Buttons
Remote OSD Buttons MENU DOWN AUTO/SEL 3-24 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e AUTO/SEL DOWN MENU AUTO/SEL DOWN... -
Page 30: Osd Menu Function
OSD Menu Function Brightness Controls the picture brightness Contrast Controls the picture contrast Color Control You can select on of the default color temperatures (5500°K, 6500°K and 9300°K). Press the OSD button Up or Down, or set color values individually using the User option., Position Controls the horizontal and vertical... - Page 31 3-26 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 32: Solutions To Common Problems
If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center. Solutions to Common Problems Problem No image appears on screen. “Out of Range” display ROUBLESHOOTING HAPTER Suggestion(s) - Page 33 Image has vertical flickering line bars. Image is unstable and flickering Image is scrolling Touch doesn’t work 4-28 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Use “PHASE”...
- Page 34 The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the Elo LCD touchmonitor, the native resolution is 1024 x 768 for the XGA-15 inch size. In almost all cases, screen images look best when viewed at their native resolution.
- Page 35 As an example, a SVGA resolution LCD panel has 800 pixels horizontally by 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels horizontally by 768 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels.
- Page 36 Do not use a damaged power cord. Use only the power cord that comes with your Elo TouchSystems Touchmonitor. Use of an unauthorized power cord may invalidate your warranty.
-
Page 37: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your Elo Entuitive touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning. -
Page 38: Compatibility Modes
Compatibility Modes Your Elo Entuitive touchmonitor is compatible with the following video modes: Mode IBM & VESA VGA IBM & VESA VGA IBM & VESA VGA IBM & VESA XGA IBM & VESA XGA IBM & VESA XGA VESA VGA VESA VGA ECHNICAL HAPTER... -
Page 39: Touchmonitor Specifications Et1546L
Touchmonitor Specifications ET1546L Table C.1 15" LCD Touchmonitor Specifications Active matrix, thin film transistor Display Type (TFT), liquid crystal display 15-inch diagonal Size 304 x 228 mm useful screen area 1024 x 768 Pixel Format 0.125-inch IntelliTouch anti-glare Touchscreen Surface wave technology 16.2 million Colors IntelliTouch: 225 cd/m²... - Page 40 Table C.2 IntelliTouch Touchmonitor Specifications Mechanical Positional Accuracy Touchpoint Density Touch Activation Force Surface Durability Expected Life Performance Sealing Optical Light Transmission (per ASTM D1003) Visual Resolution Gloss (per ASTM D2457 using a 60- degree gloss meter) Environmental Chemical Resistance Electrostatic Protection (per EN 61 000-4-2, 1995)
-
Page 41: 15" Lcd Touchmonitor Dimensions
15" LCD Touchmonitor Dimensions ET1546L C-36 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e 4X 9... - Page 42 Detail A Scale 1:1 See Detail A 380.2 296.2 See www.elotouch.com/pdfs/drawings/ms500235.pdf C-37...
-
Page 43: Cut Out Dimensions
Cut Out Dimensions ET1546L Rear Mount Plate Cut Out 4X Customer Option See notes NOTES: Material: 1. Wood: Ø4.5 holes thru for M4 screws w/nuts or screws for wood Ø4 mm. 2. Sheet Metal: Concealed head threaded studs M4 w/nuts. C-38 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e 314.0 +1.0... -
Page 44: Vertical Attachment
Vertical Attachment Vertical Attachment Horizontal Attachment Horizontal Attachment 314.0+1.0 238.0+1.0 314.0+1 238.0+1 C-39... -
Page 45: Without Brackets
Without Brackets 314+1 238+1 Without Brackets C-40 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e... - Page 46 ARRANTY HAPTER Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 1 year. Seller makes no warranty regarding the model life of components.
- Page 47 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
- Page 48 EGULATORY HAPTER I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
- Page 49 D) General Information to all Users: This equipment generates, uses and can radi- ate radio frequency energy. If not installed and used according to this manual the equipment may cause interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors.
- Page 50 "The application of this monitor is restricted to special controlled luminous envi- ronments. The screen surface trend to reflect annoying light of lamps and sunlight. To avoid these reflections the monitor should not be positioned in front of a win- dow or directed to luminaries.
- Page 51 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 52: Index
Numerics 15" LCD Touchmonitor Dimensions 36 15” LCD Touchmonitor (ET15-XXWC-1) Specifications 34 About the Product 1 About Touchmonitor Adjustments 23 Attaching the L-Brackets 6 Auto Adjust 25 Bottom View/Side View (1545L) 5 Brightness 25 Care and Handling of Your Touchmonitor 32 Color Control 25 Compatibility Modes 33 Connect the Remote OSD Cable 10... - Page 53 Unpacking Your Touchmonitor 3 USB Connection 12 Using the On-Screen Display Menus 23 Vertical Attachment 39 VESA Mount on Your Touchmonitor 17 Warranty 41 Without Brackets 40 I n d e x - 4 8...
