Summary of Contents for Elo TouchSystems 1566L
-
Page 2: User Guide

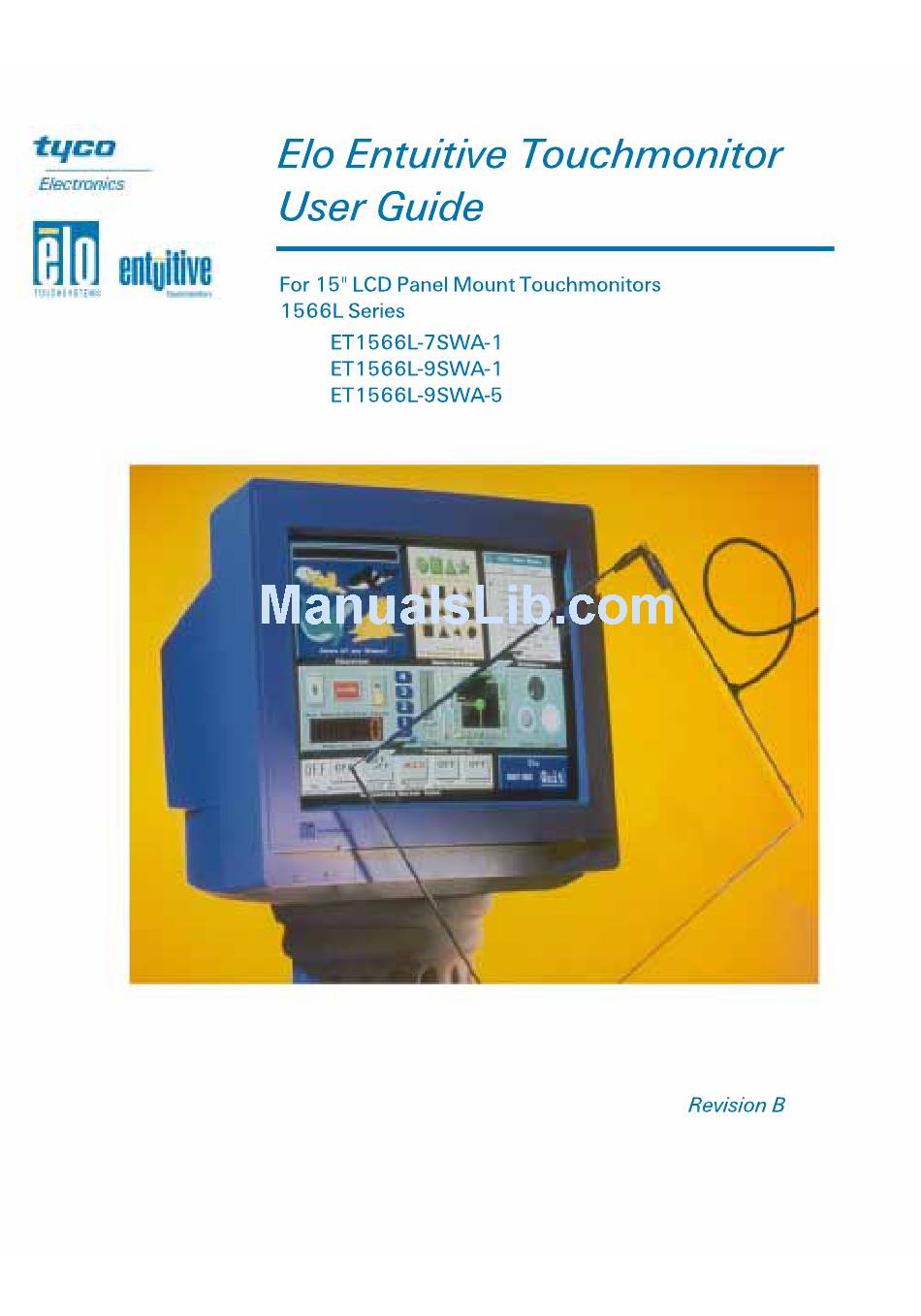

Elo Entuitive Touchmonitor User Guide 15" LCD Panel Mount Touchmonitor 1566L Series Revision B P/N 008531 Elo TouchSystems, Inc. 1-800-ELOTOUCH www.elotouch.com... -
Page 4: Trademark Acknowledgments
Elo TouchSystems. Disclaimer The information in this document is subject to change without notice. Elo TouchSystems makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes. -
Page 6: Table Of Contents
Table of Contents Chapter 1 Introduction Precautions ....1 About the Product ....1 Chapter 2 Installation and Setup Unpacking Your Panel Mount... -
Page 8: Introduction
Congratulations on your purchase of an Elo TouchSystems Entuitive LCD panel mount touchmonitor. Your new high-resolution industrial touchmonitor combines the reliable performance of Elo’s touch technology with the latest advances in LCD display design. This combination of features creates a natural flow of information between you and your touchmonitor. - Page 9 • Auto adjustment capability • High quality full screen re-scaling • Multilingual OSD menus in four languages: English, German, Spanish, and Japanese • Corded remote OSD controller • VESA DDC 1/2B data communication • VESA DPMS power saving • VESA flat panel monitor physical mounting interface (75mm) •...
-
Page 10: Installation And Setup
H A P T E R NSTALLATION AND ETUP HAPTER This chapter discusses how to install your LCD panel mount touchmonitor and how to install Elo TouchSystems driver software. -
Page 11: Unpacking Your Panel Mount Touchmonitor
Unpacking Your Panel Mount Touchmonitor Check that the following 10 items are present and in good condition: LCD Display Monitor power cable (US/Canada) Elo QuickStart Software User’s Guide, Quick Start Guide and software CD E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Brick power supply Serial touchscreen cable... -
Page 12: Product Overview
Product Overview Main Unit LCD Display Rear View... -
Page 13: Bottom View
Bottom View Customer Panel Remote OSD with Cable Attachment AUTO/SEL DOWN UP MENU E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e... -
Page 14: Mounting Your Touchmonitor
Mounting Your Touchmonitor You will need a 6mm allen socket and torque wrench (Hex) to attach the mounting brackets. Your panel mount touchmonitor comes with 6 mounting brackets (and 6 screws). You will need 6 brackets to mount your touchmonitor. Two brackets attach to the top and bottom and one on each side. -
Page 15: Connecting Your Touchmonitor
Connecting Your Touchmonitor The following illustrations guide you step by step in connecting your touchmonitor. Before connecting the cables to your touchmonitor and PC, be sure that the computer and the touchmonitor are turned off. OSD Module connector Serial touchscreen connector E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Video cable... -
Page 16: Step 1-Connecting The Video Cable
STEP 1-Connecting the Video Cable • Connect the 15-pin video cable (the ferrite bead end) to the video port on your PC. • Connect the other end of the video cable to the video connector on your touchmonitor. • Secure the cable to your touchmonitor and PC by turning the screws on the connector clockwise. -
Page 17: Step 2-Connecting The Serial Touchscreen Cable
STEP 2-Connecting the Serial Touchscreen Cable • Connect the female end of the serial (RS-232) cable to the serial port on the back of your PC. • Connect the male end of the cable to the serial touchscreen connector on your touchmonitor. -
Page 18: Step 3-Connecting The Power Cable
STEP 3-Connecting the Power Cable Power switch Depending on where you live, you will use either the European or US/Canadian power cable. • Connect the female end of the power cable to the Brick power supply. • Connect the Brick power supply into the power port on the touchmonitor. To protect your equipment against risk of damage from electrical surges in the power line, plug the brick supply’s power cord into a surge protector, and then connect the surge protector to a grounded (three-pronged) AC electrical outlet. -
Page 19: Installing The Driver Software
• Windows 3.x • MS-DOS 2.x or later Additional drivers and driver information for other operating systems (including OS/2, Macintosh, and Linux) are available on the Elo TouchSystems Web site at www.elotouch.com. Your Elo touchmonitor is plug-and-play™ compliant. Information on the video capabilities of your touchmonitor is sent to the video display adapter when Windows starts. -
Page 20: And Nt
Installing the Serial Touch Driver To install your driver software, follow the instructions in the appropriate following section. Installing the Serial Touch Driver for Windows 2000, Me, 95/98 and NT 4.0 For Windows 2000 and NT 4.0 you must have administrator access rights to install the driver. -
Page 21: Installing The Serial Touch Driver For Ms-Dos And Windows 3.1
Installing the Serial Touch Driver for MS-DOS and Windows 3.1 To install the drivers for Windows 3.x and MS-DOS from Windows 95/98, follow these steps: Insert the Elo CD-ROM in your computer’s CD-ROM drive. From DOS, type d:\EloDos_W31 to change to the correct directory on the CD-ROM (your CD-ROM drive may be mapped to a different drive letter). -
Page 22: Chapter 3 Operation
H A P T E R PERATION HAPTER About Touchmonitor Adjustments Variations in video output and application will likely require you to adjust your touchmonitor to optimize the quality of the display. For best performance, your monitor should be operating in native resolution; that is, 1024 x 768 at 60-75 MHz. -
Page 23: Connecting The Osd Module
Connecting the OSD Module All adjustments are made by using the remote on-screen display (OSD) module. First, connect the OSD module by inserting the corded end into the OSD module connector in the back of the monitor. OSD module AUTO/SEL DOWN UP MENU Brick power supply 3-16 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e... -
Page 24: Osd Module Controls
OSD Module Controls Control Auto/Select Down Menu AUTO/SEL DOWN UP MENU Function Auto- To activate the “Auto Adjustment” function to obtain an optimum image. Select- To select the adjustment items from the OSD menus. 1. Decreases the brightness of the display image. 2. -
Page 25: Using The Osd Menus
Using the OSD Menus All menu items can be selected by using the buttons on the remote OSD. OSD menu default is enabled. Press the UP and DOWN buttons at the same time and hold them down for several seconds to enable/disable the OSD functions. Auto Adjustment Auto Adjustment automatically optimizes a number of video characteristics such as, vertical, horizontal, size and positioning as well as, contrast and... -
Page 26: First Osd Menu
First OSD Menu To access the first OSD menu: Press the Menu button to display the menu and to select between the two Main Menus. Choose the adjustment items by pressing the Auto/Sel button. Adjust the value of the adjustment items by pressing the Up or Down button. The OSD menus have a pre-set time delay after which menus will automatically disappear. -
Page 27: Horizontal Position
Horizontal Position The horizontal position function allows you to adjust the horizontal image position. To adjust the horizontal position: Highlight the Horizontal Position option by pressing the Auto/Sel button. The Horizontal Position gauge will display. By using the Up or Down buttons adjust the horizontal position to center the displayed image. -
Page 28: Tracking
Tracking The tracking function synchronizes the signal timing of the display to that of the graphic card. If you experience an unstable flickering image, use this function to make an adjustment. To adjust the tracking: Highlight the Tracking option by pressing the Auto/Sel button. By using the Up or Down buttons adjust the tracking. -
Page 29: Display Mode
Display Mode The display mode shows the display resolution, horizontal scan frequency, vertical scan frequency and vertical refresh of the current mode. To adjust the Display Mode: Highlight the Display Mode option then press the Auto/Sel button. By using the Up or Down buttons adjust the display mode. OSD Off-Time The OSD off-time function allows you to set the time delay before the on-screen menus are deactivated. -
Page 30: Chapter 4 Troubleshooting
If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your reseller or our technical support at 1-800-557-1458. Solutions to Common Problems Problem No image appears on screen. Partial image or incorrectly displayed image. - Page 31 Problem Image is unstable and flickering Image is scrolling Touch doesn’t work Remote OSD does not work 4-24 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Suggestion(s) Use the Tracking function to make an adjustment.
-
Page 32: Appendix A Native Resolution
The native resolution of a monitor is the resolution at which the LCD panel is designed to perform best. In almost all cases, screen images look best when viewed at their native resolution. You can lower the resolution setting of a monitor but not increase it. - Page 33 For example, a SVGA resolution LCD panel displays 800 pixels horizontally and 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels horizontally by 768 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one-to- one correspondence of mapping of input video pixels to LCD pixels.
-
Page 34: Appendix B Touchmonitor Safety
Do not use a damaged power cord. Use only the power cord that comes with your Elo TouchSystems touchmonitor. Use of an unauthorized power cord may invalidate your warranty. -
Page 35: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your Elo Entuitive touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning. -
Page 36: Compatibility Modes
Compatibility Modes Your Elo Entuitive touchmonitor is compatible with the following standard video modes. All specifications are typical and subject to change. Mode IBM & VESA VGA IBM & VESA VGA IBM & VESA VGA IBM & VESA VGA IBM & VESA VGA IBM &... -
Page 37: Touchmonitor Specifications
Touchmonitor Specifications 15" LCD Touchmonitor (ET1566L) Specifications Display Type Size Pixel Format Touchscreen Colors Display Brightness Back-light Lamp Life Viewing Angle Contrast Ratio Display Response Time Environmental Mechanical Materials Electrical Agencies * ITE Recogniz Component C-30 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Active matrix, thin film transistor (TFT), liquid crystal display... -
Page 38: Accutouch Touchscreen Specifications
AccuTouch Touchscreen Specifications Mechanical Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than ±1%. Touchpoint Density More than 100,000 touchpoints/in Touch Activation Force Typically less than 4 ounces (113 grams). Surface Durability Surface durability is that of glass, Mohs’... -
Page 39: Carrolltouch Specifications
CarrollTouch Specifications Mechanical Construction Cable and Connector Positional Accuracy PARAMETER Horizontal Touch Size Vertical Touch Size Typical Accuracy Minimum Accuracy Minimum Accuracy % Minimum Stylus Size (1) Typical accuracy demonstrated by product using a stylus greater than minimum specified diameter. See note (4). - Page 40 Touchpoint density is based on controller resolution of 4096 x 4096. This equates to more than 100,000 touchpoints/in (15,500 touchpoints/cm touchscreen used with Elo TouchSystems controllers No minimum touch activation force is required with IR touch technology. Glass Filter meets Mohs’ hardness rating of 7. Meets Taber Abrasion Test.
-
Page 41: 15" Lcd Panel Mount Touchmonitor (Et1566L-Xswa-X) Dimensions
15" LCD Panel Mount Touchmonitor (ET1566L-XSWA-X) Dimensions For cutout dimensions, see page 36. Customer Panel C-34 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e... - Page 42 Customer Panel Dimensions in millimeters (inches) C-35...
-
Page 43: Panel Cutout
Panel Cutout Maximum panel thickness 13mm (0.5") C-36 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e 398.2 ±... -
Page 44: Regulatory Information
EGULATORY HAPTER I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 45 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 89/336/EEC indicated in European Standard EN 55 022 Class B and the Low Voltage Directive 73/23/EEC as indicated in European Standard EN 60 950.
- Page 47 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 48: Warranty
ARRANTY HAPTER Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product are: 3 years monitor, 5 years AccuTouch screen, 5 years Controller. - Page 49 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
-
Page 50: Regulatory Information
Numerics 15” LCD Panel Mount Touchmonitor (ET1566L-7SWA-1) Dimensions, 34 15” LCD Touchmonitor (ET1566) Specifications, 30 About the Product, 1 About Touchmonitor Adjustments, 15 AccuTouch Touchmonitor Specifications, 31 Auto Adjustment, 18 Bottom View, 6 Care and Handling of Your Touchmonitor, 28 Compatibility Modes, 29 Connecting the OSD Module, 16 Connecting the Power Cable, 11... - Page 51 Unpacking Your Panel Mount Touchmonitor, 4 Using the OSD Menus, 18 Vertical Position, 20 Warranty, 41 Windows 2000, 12 Windows 3.1, 14 Windows 3.x, 12 Windows 95, 12 Windows 98, 12 Windows Me, 12 Windows NT 4.0, 12 I n d e x - 4 4...
