Summary of Contents for Elo TouchSystems Entuitive 1525/27L Series
-
Page 2: User Guide

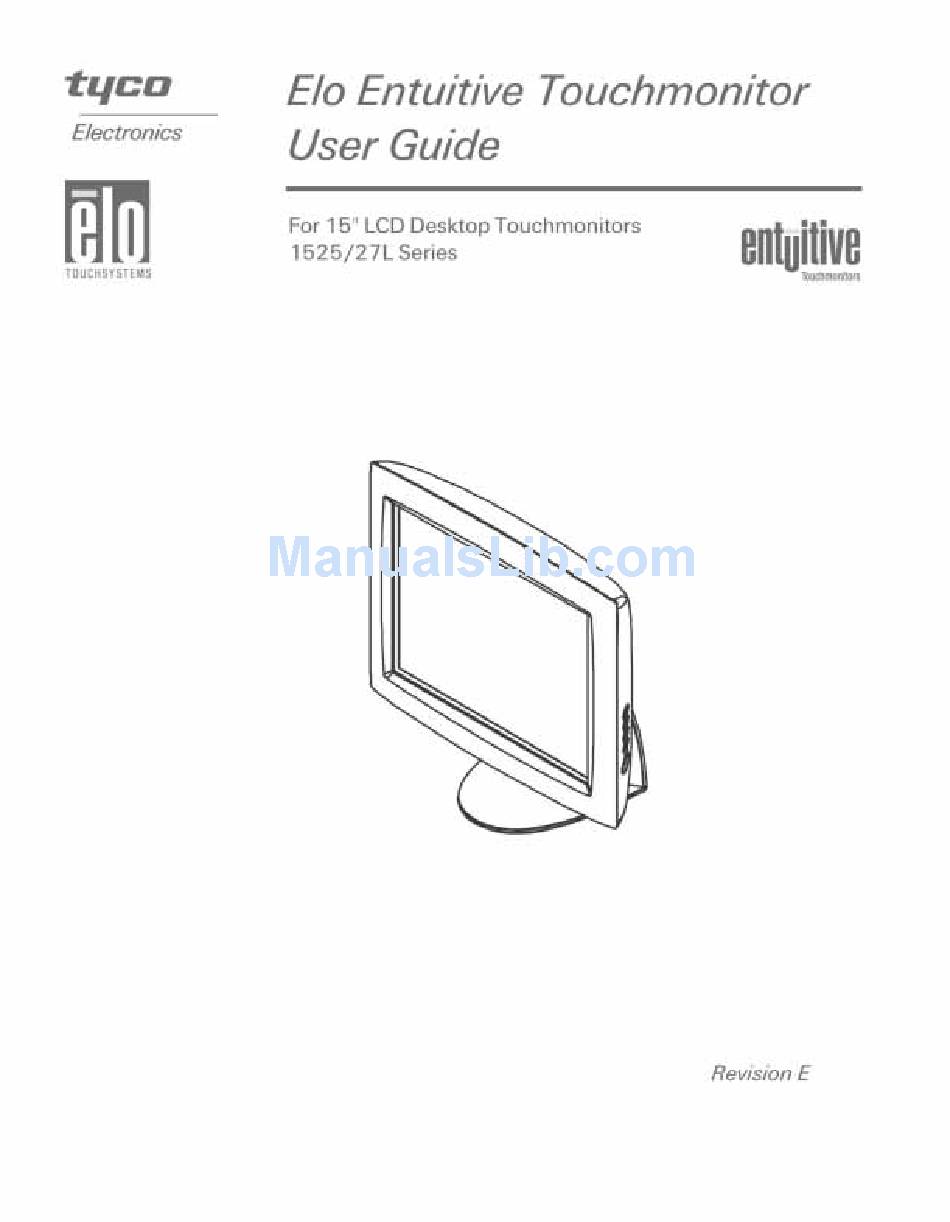

Elo Entuitive Touchmonitor User Guide 15" LCD Desktop Touchmonitor 1525/27L-XXWC-X Series Revision E P/N 008520 Elo TouchSystems, Inc. 1-800-ELOTOUCH www.elotouch.com... - Page 3 Elo TouchSystems. Disclaimer The information in this document is subject to change without notice. Elo TouchSystems makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes.
-
Page 5: Table Of Contents
Table of Contents Chapter 1 Introduction Precautions ....1 About the Product ....1 Chapter 2 Installation and Setup Unpacking Your Touchmonitor. -
Page 6: Introduction
Congratulations on your purchase of an Elo TouchSystems Entuitive touchmonitor. Your new touchmonitor combines the reliable performance of Elo’s touch technology with the latest advances in LCD display design. This combination of features creates a natural flow of information between a user and your touchmonitor. - Page 7 • Serial or USB touch interface (USB requires Windows 98, 2000, Me and XP.) • Built in speakers • Patented touch technology of Elo TouchSystems • VESA DDC 1/2B data communication • VESA DPMS power saving • Stand with minimum 45° angle of tilt.
-
Page 8: Installation And Setup
This chapter discusses how to install your LCD touchmonitor and how to install Elo TouchSystems driver software. Unpacking Your Touchmonitor Check that the following 8 items are present and in good condition: LCD Display Software User Guide-on CD, Quick Install Guide and software CD... -
Page 9: Product Overview
Product Overview Main Unit Rear View E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e LCD Display Stand... -
Page 10: Side View
Side View User Controls Base Bottom View... -
Page 11: Touch Interface Connection
Touch Interface Connection Your interface cables may have been pre-connected to your monitor at the factory. Your touchmonitor comes with one of the following touchscreen connector cables: Serial (RS-232) cable or USB cable. (For Windows 98, 2000, Me and XP systems only.) To set up this display, please refer to the following figures and procedures: Serial Connection The following illustrations guide you step by step in connecting your... -
Page 12: Step 1-Removing The Back Cover
STEP 1-Removing the Back Cover • The cables are routed through the back of the stand. • To remove the back cover, place one hand at the top of the stand and your other hand on the bottom cut-out. • Pull forward from the bottom cut-out and twist the cover until it snaps off. The cable ports are located on the underside of your touchmonitor. -
Page 13: Step 2-Connecting The Video Cable
STEP 2-Connecting the Video Cable Cable management clip • Tilt the screen up and back to access the connection ports. • Connect the 15-pin video cable (the ferrite bead end) to the video port on your PC. • Connect the other end of the video cable to the video connector on your touchmonitor by routing the cable through the hole in the stand. -
Page 14: Step 3-Connecting The Serial Touchscreen Cable
STEP 3-Connecting the Serial Touchscreen Cable • Connect the female end of the serial (RS-232) cable to the serial port on the back of your PC. • Connect the male end of the cable to the serial touchscreen connector on your touchmonitor. -
Page 15: Step 4-Connecting The Speaker Cable
STEP 4-Connecting the Speaker Cable If you do not wish to connect the speaker cable, go to step 5. • To use the built in speakers, you need to connect the speaker cable. Connect the speaker cable to the speaker port inside the back of your touchmonitor. •... -
Page 16: Step 5-Connecting The Power Cable
STEP 5-Connecting the Power Cable Cable management clip Depending on where you live, you will use either the European or US/Canadian power cable. • Connect the female end of the power cable to the power port on the touchmonitor. • Route the cable through the cable management clip. To protect your equipment against risk of damage from electrical surges in the power line, plug the touchmonitor’s power cord into a surge protector, and then connect the surge protector to a grounded AC electrical outlet. -
Page 17: Usb Connection
USB Connection A USB connection can only be used if your PC is running Windows 98, 2000, Me or XP. The following illustrations guide you step by step in connecting your touchmonitor using a USB cable connection. CAUTION Before connecting the cables to your touchmonitor and PC, be sure that the computer and the touchmonitor are turned off. -
Page 18: Step 1-Removing The Back Cover
STEP 1-Removing the Back Cover • The cables are routed through the back of the stand. • To remove the back cover, place one hand at the top of the stand and your other hand on the bottom cut-out. • Pull forward from the bottom cut-out and twist the cover until it snaps off. The cable ports are located on the underside of your touchmonitor. -
Page 19: Step 2-Connecting The Video Cable
STEP 2-Connecting the Video Cable Cable management clip • Tilt the screen up and back to access the connection ports. • Connect the 15-pin video cable (the ferrite bead end) to the video port on your PC. • Connect the other end of the video cable to the video connector on your touchmonitor by routing the cable through the hole in the stand. -
Page 20: Step 3-Connecting The Usb Touchscreen Cable
STEP 3-Connecting the USB Touchscreen Cable Cable management clip • Connect the USB touchscreen cable to the USB touchscreen connector on the touchmonitor. • Connect the other end of the USB touchscreen cable to your PC. • The touchscreen cable connectors should fit snugly into the connectors on your touchmonitor and PC. -
Page 21: Step 4-Connecting The Speaker Cable
STEP 4-Connecting the Speaker Cable If you do not wish to connect the speaker cable, go to step 5. • To use the built in speakers, you need to connect the speaker cable. Both ends of the speaker cable are identical, so you can connect either end of the speaker cable to the speaker port inside the stand of your touchmonitor. -
Page 22: Step 5-Connecting The Power Cable
STEP 5-Connecting the Power Cable Depending on where you live, you will use either the European or US/Canadian power cable. • Connect the female end of the power cable into the power port on the touchmonitor. • Route the cable through the cable management clip. To protect your equipment against risk of damage from electrical surges in the power line, plug the touchmonitor’s power cord into a surge protector, and then connect the surge protector to a grounded AC electrical outlet. -
Page 23: Optimizing The Lcd Display
Optimizing the LCD Display To ensure the LCD display works well with your computer, configure the display mode of your graphic card to make it less than or equal to 1024 x 768 resolution, and make sure the timing of the display mode is compatible with the LCD display. -
Page 24: Accessing The Vesa Mounting Interface
Accessing the VESA Mounting Interface If you want to convert your desktop monitor to a wall mount or kiosk monitor, follow the steps below to access the VESA mounting interface. You will need a screwdriver for the following steps. Remove the back cover of the stand by pulling forward on the bottom cut-out. -
Page 25: Installing The Driver Software
Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows XP • Windows 2000 • Windows Me • Windows 98 •... -
Page 26: Installing The Serial Touch Driver
Installing the Serial Touch Driver Installing the Serial Touch Driver for Windows XP, 2000, Me, 95/98 and NT 4.0 For Windows 2000 and NT 4.0 you must have administrator access rights to install the driver. Insert the Elo CD-ROM in your computer’s CD-ROM drive. If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program. -
Page 27: Installing The Serial Touch Driver For Ms-Dos And Windows 3.1
Installing the Serial Touch Driver for MS-DOS and Windows 3.1 You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below: Insert the Elo CD-ROM in your computer’s CD-ROM drive. -
Page 28: Installing The Usb Touch Driver
Browse to select the \EloUSB directory on the Elo CD-ROM. Choose Next. Once the Elo TouchSystems USB touchscreen driver has been detected, choose Next again. You will see several files being copied. Insert your Windows 98 CD if prompted. - Page 29 2-24 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 30: Operation
About Touchmonitor Adjustments Your touchmonitor will unlikely require adjustment. Variations in video output and application may require adjustments to your touchmonitor to optimize the quality of the display. For best performance, your touchmonitor should be operating in native resolution, that is 1024 x 768 at 60-75 Hz. Use the Display control panel in Windows to choose 1024 x 768 resolution. -
Page 31: Side Bezel Buttons
Side Bezel Buttons MENU SELECT 3-26 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Control Function Menu Display on exit the OSD menus. -
Page 32: Image Information
OSD Menu Function Contrast Controls the picture contrast Brightness Controls the picture brightness V-Position Controls the vertical position H-Position Controls the horizontal position Recall Defaults Recalls factory settings of the image parameters C1/C2/USER (Color) Using these icons, you can select one of the preset color temperatures (9300°K or 6500°K). - Page 33 3-28 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 34: Appendix A
If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center. Solutions to Common Problems Problem No image appears on screen. “Out of Range” display ROUBLESHOOTING HAPTER Suggestion(s) - Page 35 Image has vertical flickering line bars. Image is unstable and flickering Image is scrolling Touch doesn’t work 4-30 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Use “PHASE”...
-
Page 36: Native Resolution
The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the Elo LCD touchmonitor, the native resolution is 1024 x 768 for the XGA-15 inch size. In almost all cases, screen images look best when viewed at their native resolution. - Page 37 As an example, a SVGA resolution LCD panel has 800 pixels horizontally by 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels horizontally by 768 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels.
-
Page 38: Appendix B Touchmonitor Safety
Do not use a damaged power cord. Use only the power cord that comes with your Elo TouchSystems Touchmonitor. Use of an unauthorized power cord may invalidate your warranty. -
Page 39: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your Elo Entuitive touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning. -
Page 40: Compatible Video Modes
Compatible Video Modes Your Elo Entuitive touchmonitor is compatible with the following standard video modes: Mode Resolution IBM & VESA VGA 640 x 350 IBM & VESA VGA 640 x 400 IBM & VESA VGA 720 x 400 IBM & VESA VGA 640 x 480 IBM &... -
Page 41: Display Brightness
Touchmonitor Specifications Table C.1 15" LCD Touchmonitor (ET15XXL-XXWC-1) Specifications Active matrix, thin film transistor Display Type (TFT), liquid crystal display 15-inch diagonal Size 304.1 x 228.1 mm useful screen area 1024 x 768 Pixel Format 0.125-inch IntelliTouch and Touchscreen AccuTouch, anti-glare IntelliTouch or AccuTouch 16 million with dithering Colors... - Page 42 Table B.1 IntelliTouch Touchmonitor Specifications Mechanical Positional Accuracy Touchpoint Density Touch Activation Force Surface Durability Expected Life Performance Sealing Optical Light Transmission (per ASTM D1003) Visual Resolution Gloss (per ASTM D2457 using a 60- degree gloss meter) Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than ±1%.
- Page 43 Environmental Chemical Resistance Electrostatic Protection (per EN 61 000-4-2, 1995) C-38 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e The active area of the touchscreen is resistant to all chemicals that do not affect glass, such as: Acetone...
- Page 44 Table B.1 AccuTouch Touchmonitor Specifications Mechanical Construction Positional Accuracy Touchpoint Density Touch Activation Force Surface Durability Expected Life Performance Optical Light Transmission (per ASTM D1003) Visual Resolution Haze (per ASTM D1003) Gloss (per ASTM D2457) Top: Polyester with outside hard-surface coating with clear or antiglare finish.
-
Page 45: 15" Lcd Touchmonitor (Et15Xxl-Xxwc-1) Dimensions
15" LCD Touchmonitor (ET15XXL-XXWC-1) Dimensions 255.4mm [10.06] C-40 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e... - Page 46 Detail B C-41...
- Page 47 C-42 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 48: Regulatory Information
EGULATORY HAPTER I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 49 D) General Information to all Users: This equipment generates, uses and can radi- ate radio frequency energy. If not installed and used according to this manual the equipment may cause interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors.
- Page 50 N10051...
- Page 51 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 52: Warranty
ARRANTY HAPTER Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 3 years. Seller makes no warranty regarding the model life of components. - Page 53 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
-
Page 54: Index
Numerics 15" Touchmonitor (ET15XXL-XXWC-1) Dimensions, 40 15" Touchmonitor (ET15XXL-XXWC-1) Specifications, 36 About the Product, 1 About Touchmonitor Adjustments, 25 Accessing the VESA Mounting Interface, 19 AccuTouch Touchmonitor Specifications, 39 Agencies, 36 Auto Adjust, 27 Back-light Lamp Life, 36 Base Bottom View, 5 Brightness, 27 C1/C2/USER (Color), 27 Care and Handling of Your Touchmonitor, 34... -
Page 55: Regulatory Information
Native Resolution, 31 Operation, 25 Optical, AccuTouch, 39 Optical, IntelliTouch, 37 Optimizing the LCD Display, 18 OSD H-Position, 27 OSD Language, 27 OSD Menu Function, 27 OSD Time, 27 OSD V-Position, 27 Out of Range display, 29 Phase, 27 Pixel Format, 36 Plus/Clockwise, 26 Positional Accuracy, AccuTouch, 39 Positional Accuracy, IntelliTouch, 37...
