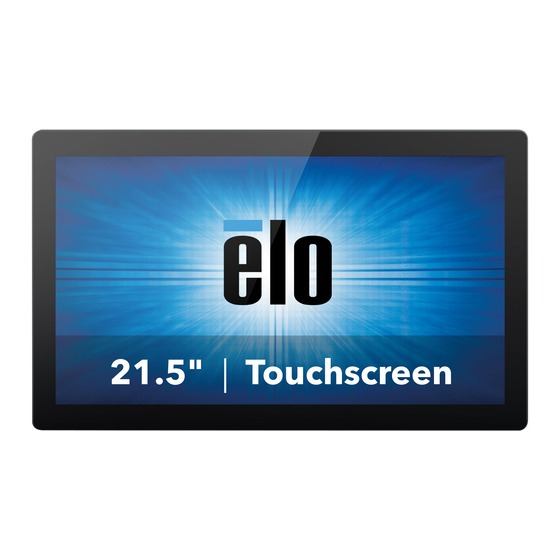

Elo TouchSystems ET2294L User Manual

Elo TouchSystems ET2294L User Manual

Open frame touch displays

Advertisement

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
Elo 2794L
o cerca
il tuo prodotto tra le
migliori offerte di Monitor

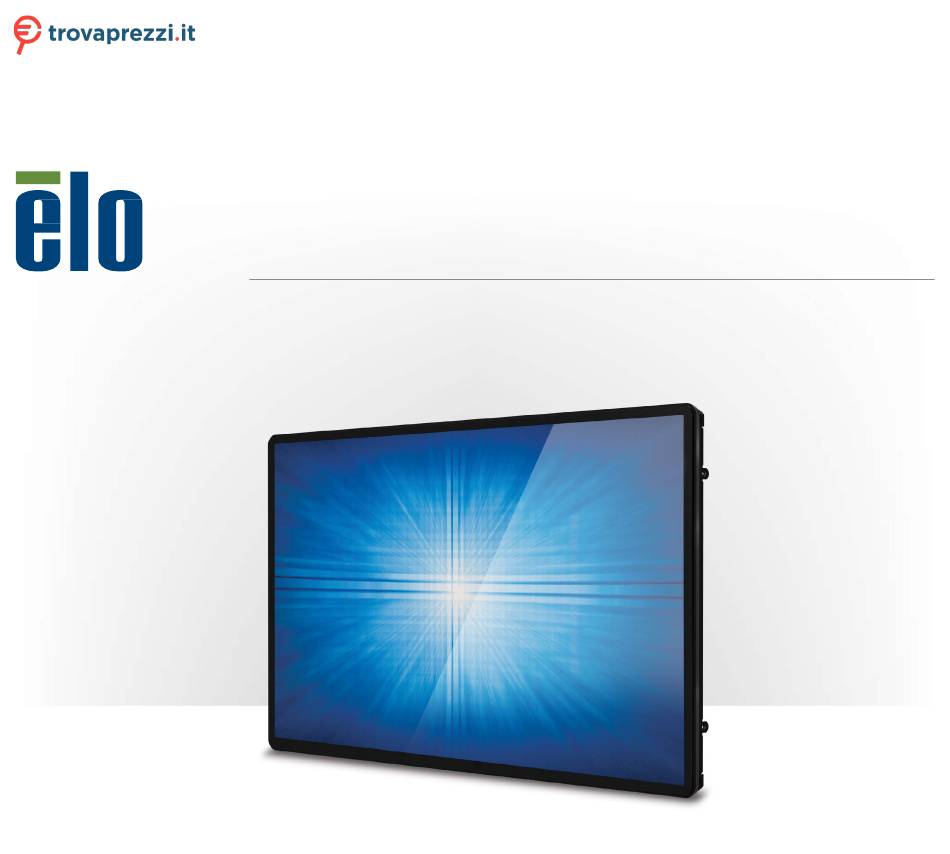

USER MANUAL
Elo Touch Solutions
90 Series Open Frame Touch Displays

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET2294L and is the answer not in the manual?

Questions and answers

casey
April 15, 2025

where can i locate the osd?

1 comments:
Mr. Anderson
April 15, 2025

The OSD (On-Screen Display) on the Elo TouchSystems ET2294L can be adjusted horizontally and vertically, with default positions centered. This means the OSD appears centered on the display screen by default.

This answer is automatically generated

Summary of Contents for Elo TouchSystems ET2294L

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Elo 2794L o cerca il tuo prodotto tra le migliori offerte di Monitor USER MANUAL Elo Touch Solutions 90 Series Open Frame Touch Displays...
  • Page 2 Copyright © 2016 Elo Touch Solutions, Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice.
  • Page 3: Table Of Contents

    Table of Contents Section 1: Introduction ............................................. 4 Section 2: Installation .............................................. 4 Section 3: Mounting ..............................................7 Section 4: Operation ..............................................9 Section 5: Technical Support ..........................................14 Section 6: Safety & Maintenance .......................................... 16 Section 7: Regulatory Information ......................................... 17 Section 8: Warranty Information ..........................................
  • Page 4: Section 1: Introduction

    Section 1: Introduction Product Description Your new touch display combines Elo Touch Solutions touch the latest developments in touch technology and display design with the reliability for use in high-traffic environment. This touch display incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance. The 90 Series offers sizes that range from 10.1 inch to 27 inch and resolutions that range from 800x600 to Full HD 1920x1080.
  • Page 5 Connector Panel & Interfaces 12V DC IN OSD Connector Touch USB Touch Display Connections 1. Connect the DP or VGA video cables between the monitor’s DP/VGA input connectors and your DP/VGA video source. Tighten the video cable’s screws for best performance on VGA connector. 2.
  • Page 6 Installing the Touch Technology Software Drivers Some software installation may be required for your touch display to work with your computer. No additional drivers are required for your projected-capacitive touch display with Windows 7 and 8 operating systems, as it uses Windows HID drivers. To download the latest touch drivers 1.
  • Page 7: Section 3: Mounting

    Section 3: Mounting Flush Mount Flush-mount Bracket Installation Notes: Bracket shape varies for each model, drawing for illustration purposes only. See dimensional drawing for exact dimensions. touch display 1. Attach bracket “A” To (all four sides) with M4 screws (included) 2. Attach bracket “C’ to customer panel per drawing (all four sides) 3.
  • Page 8 Rear VESA Mount A four-hole (200x100mm for 2794 and 75x75mm, 100x100mm for the rest size) mounting pattern for M4 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-E,C. ET1093L ET1291L ET1590L ET1593 L ET1790L ET1990/1991L ET2094L ET2293/2294L ET2494L ET2794L (depends on different 75 x 75 mm...
  • Page 9: Section 4: Operation

    Section 4: Operation Power The touch display ships in an ON state. To turn the touch display on or off, press the touch display power button on the OSD controller once. The power status LED on the OSD controller functions according to the following table. Touch Display/Computer Module Status LED Status SLEEP...
  • Page 10 IntelliTouch Plus Touchscreen Technology When connected to Windows 7 computers, the touch display can report 2 simultaneous touches. When connected to Windows XP computers, the touch display reports single touches. The IntelliTouch Plus touchscreen can be re-calibrated to your displayed video image, if needed, through the calibration function in the Elo driver control panel.
  • Page 11 Gesture Support The IntelliTouch Plus touch technology enables several gestures that support single and multiple touches. Refer to the Microsoft Website http://msdn.microsoft.com/en-us/library/dd940543 on the various gestures that are supported in Windows 7. Video A display’s native resolution is its width and height measured in number of pixels. Generally, for best performance, an image displayed on this monitor will look best when your computer’s output resolution matches this monitor’s native resolution.
  • Page 12 Using the OSD buttons controls an on-screen graphical user interface which displays on top of your input video, allowing intuitive adjustment of the following display parameters: Parameter Available Adjustment Increase/decrease monitor brightness Brightness Default: maximum Increase/decrease monitor contrast Contrast Default: best gray-shade performance Allows fine adjustments of the panel’s pixel dot clock.
  • Page 13 Parameter Available Adjustment Adjusts the horizontal location of the OSD menus on the display OSD H-Position Default: centered Adjusts the vertical location of the OSD menus on the display. OSD V-Position Default: centered touch display Adjusts how long a period of OSD button inactivity the will wait before closing the OSD Timeout OSD.
  • Page 14: Section 5: Technical Support

    Section 5: Technical Support If you are experiencing trouble with your touch display, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Worldwide technical support phone numbers are available on the last page of this use manual. Solutions to Common Problems Problem Suggested Troubleshooting...
  • Page 15 Technical Assistance Technical Specifications Online Self-Help Technical Support visit www.elotouch.com/go/contactsupport visit www.elotouch.com/products visit www.elotouch.com/go/websupport for technical support for technical specifications for this device for online self-help See this user manual’s last page for worldwide technical support phone numbers. User Manual - 90 Series...
  • Page 16: Section 6: Safety & Maintenance

    Section 6: Safety & Maintenance Safety • To avoid risk of electric shock, follow all safety notices and do not disassemble the touch display. They are not user-serviceable. • The slots located on the sides and top of the touch display case are for ventilation. Do not block or insert anything inside the ventilation slots. •...
  • Page 17: Section 7: Regulatory Information

    Section 7: Regulatory Information Electrical Safety Information Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. There are no operator serviceable parts inside this equipment.
  • Page 18 General Information to all Users: This equipment generates, uses and can radiate radio frequency energy. If not installed and used according to this manual the equipment may cause interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors.
  • Page 19 Explanation of Markings 1. In accordance with the SJ/T11364-2006 requirement, the electronic information products are marked with the following pollution control logo. The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal operating conditions listed below, so that the use of this electronic information product will not result in any severe environmental pollution, any bodily injury, or damage to any assets.
  • Page 20: Section 8: Warranty Information

    Section 8: Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touch display and their components is three years. Seller makes no warranty regarding the model life of components.
  • Page 21 Notes User Manual - 90 Series...
  • Page 22 Notes User Manual - 90 Series...
  • Page 23 www.elotouch.com Visit our website for the latest • Product Information • Specifications • Upcoming Events • Press Releases • Software Drivers • Touch Display Newsletter To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. North America 800-ELO-TOUCH Europe...
