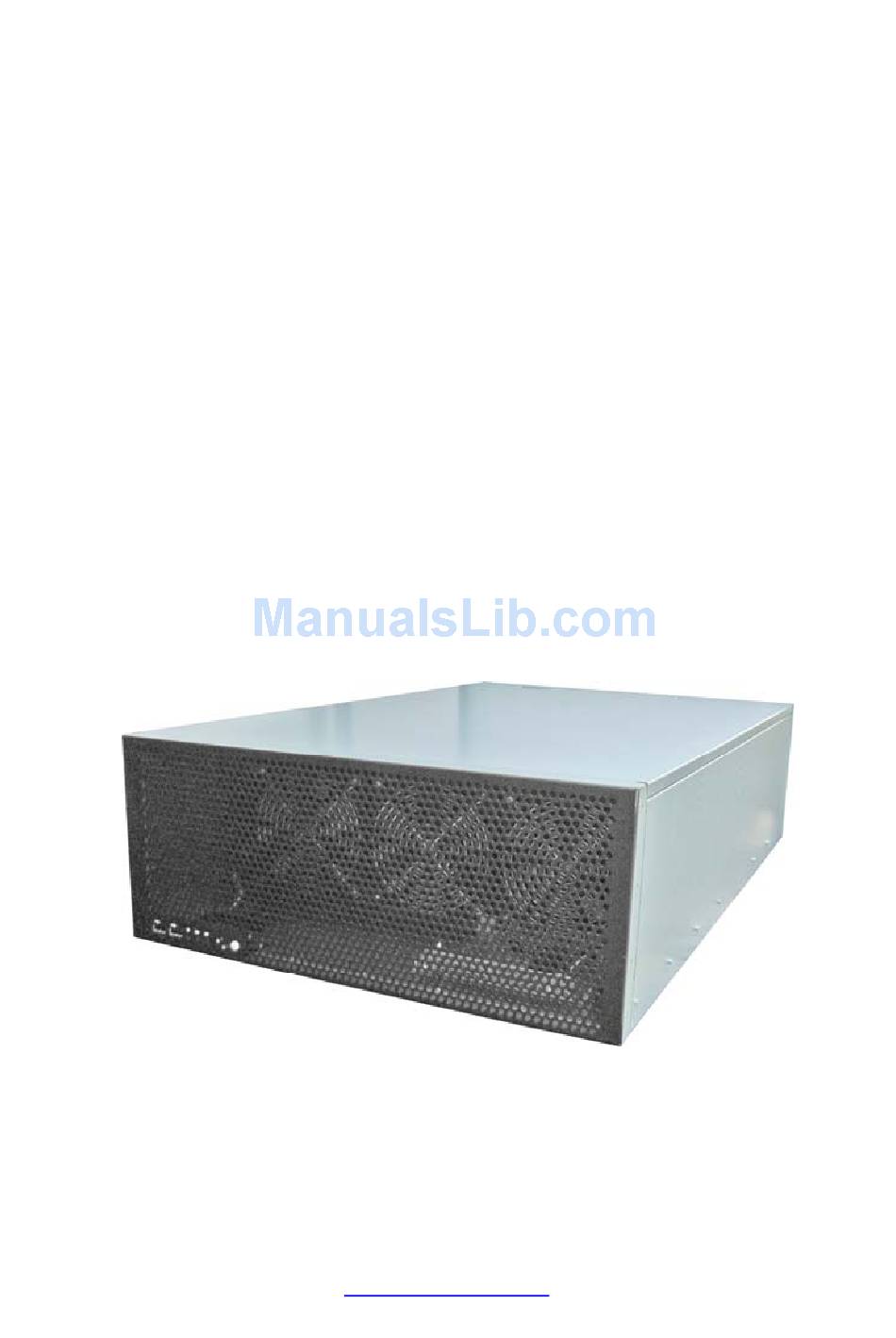

- Page 1 ® TYAN FT72 B7015 Service Engineer’s Manual http://www.tyan.com...
- Page 2 http://www.tyan.com...
- Page 3 Corporation and has been reviewed for accuracy and reliability prior to ® printing. TYAN assumes no liability whatsoever, and disclaims any ® express or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or ® merchantability. TYAN retains the right to make changes to produce descriptions and/or specifications at any time, without notice.
- Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...
- Page 5 For information on the mainboard, please refer to the attached mainboard user’s manual. You can find the detailed description about jumper and BIOS settings from the mainboard manual. http://www.tyan.com...
- Page 6 ·When service or repairs have been done, perform routine safety checks to verify that the system is operating correctly. ·Avoid using the system near water, in direct sunlight, or near a heating device. ·Cover the unit when not in use. http://www.tyan.com...
-
Page 7: Table Of Contents
Table of Contents Chapter 1: Overview ..............9 1.1 About the TYAN FT72-B7015 ..........9 1.2 Product Models..............10 1.3 Features ................11 1.4 Standard Parts List ..............13 1.4.1 Box Contents ..............13 1.4.2 Accessories ..............15 1.5 About the Product..............16 1.5.1 System Front View............16 1.5.2... - Page 8 M1008 LED Control Board Connector Pin Definition ...53 3.7 Replacing the System Fan ............54 3.8 Removing the Motherboard...........56 Appendix I: BIOS Differences.............57 Appendix II: Cable Connection Tables ........59 Appendix III: FRU Parts Table ............61 Appendix IV: Technical Support ..........63 http://www.tyan.com...
-
Page 9: Chapter 1: Overview

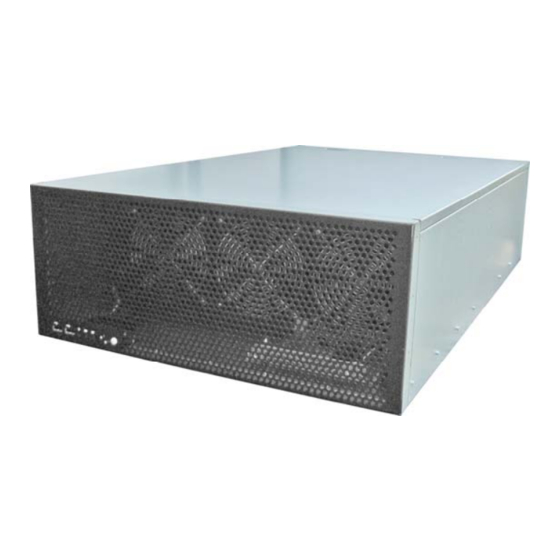

Chapter 1: Overview 1.1 About the TYAN FT72-B7015 ® Congratulations on your purchase of the TYAN FT72-B7015, a highly optimized rack-mountable 4U barebone system. FT72-B7015 is designed ® to support dual Intel Nehalem-EP/Nehalem-WS 2S processors and up to 6 channels with 18 DDR3 DIMMs, providing a rich feature set and ®... -
Page 10: Product Models
1.2 Product Models Model HDD Bays Power supply Support 2 internal 2.5” 2400W(1200W+1200W) B7015F72V2 SATAII HDD PWR supply http://www.tyan.com... -
Page 11: Features
1.3 Features TYAN FT72B7015 (B7015F72V2) Form Factor 4U Rackmount Chassis Model FT72 Dimension (D x W x 27.96" x 17.245" x 6.93" (710 x 438 x 176mm) System Motherboard S7015 Board Dimension 16"x19" (406.4x482.6mm) Gross Weight 32KG Buttons (1) PWR / (1) RST / (1) NMI / (1) ID... - Page 12 Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Complaint Yes Barebone (1) F72-B7015 Barebone Manual (1) BB User's manual Package Contains Installation CD (1) TYAN installation CD Heatsink / Cooler (2) CHSK-0410, 1366-pin CPU heatsinks http://www.tyan.com...
-
Page 13: Standard Parts List
FT72-B7015 package contents accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents Component Description 4U FT72 Chassis Main Board,S7015-CA 1200W Power Supply http://www.tyan.com... - Page 14 120 x120 x38 MM Fan M1008 Front LED control Board(R02) M7015 Rear I/O Board M7015-PBP PWR Backplane Board(R01) M7015-PDB PWR Distribution board for PCI-E card(R01) http://www.tyan.com...
-
Page 15: Accessories
If any items are missing or appear damaged, contract your retailer ® or browse to TYAN ’s website for service: http://www.tyan.com. ® The Web site also provides information on other TYAN products, plus FAQs, compatibility lists, BIOS settings, and more. ® 1 x TYAN... -
Page 16: About The Product
The following views show you the product. 1.5.1 System Front View USB ports ID button Power button (with LED) Warning LED NMI button HDD LED Reset button 1.5.2 System Rear View ID LED VGA Port Power Supply Expansion slots USB Port LAN Port http://www.tyan.com... -
Page 17: Led Definitions
Press ID button when the system is AC (Alternating Current) on, then ID LED will show the system is identified with emitting blue light. Users from remote site could also activate ID LED by input a few commands in IPMI, detailed software support please visit http://www.tyan.com for latest AST2050 user guide. http://www.tyan.com... -
Page 18: Motherboard Layout
1.5.4 Motherboard Layout The diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. http://www.tyan.com... -
Page 19: Jumpers & Connectors
1.5.5 Jumpers & Connectors Jumper/Connector Function CN17/CN20 COM port CN18 Board-to-Board Receptacle connector CN19 USB header CN43 Front Panel header CN36/CN37/CN40 FAN connector CN101 Clear CMOS CN61 System Intrusion header CN73 NMI button header CN74 ID button header http://www.tyan.com... - Page 20 Jumper Placement CN40 CN43 CN19 CN20 CN37 CN36 CN18 CN17 CN43: Front Panel header Signal PW_LED+ PW_LED- WLED+ HDD_LED+ PWR_SW# P3V3_SB RST_SW# Pin_1 http://www.tyan.com...
- Page 21 HSYNC USB2- VSYNC USB2+ DDC_DATA USB3- DDC_CLK USB3+ Vcc5_VGA Vcc_USB Vcc_USB Vcc_USB Vcc_USB Vcc_USB Vcc_USB CN19: USB header Signal PW_LED+ PW_LED- WLED+ HDD_LED+ PWR_SW# P3V3_SB RST_SW# Pin_1 CN36/ CN37/ CN40: FAN connector Signal GND P12V TACH PWM GND P12V http://www.tyan.com...
- Page 22 Put jumper cap back to Pin_1 and Pin_2 (default setting) Use jumper cap to close Pin_2 and Pin_3 Pin_3 Pin_1 for several seconds to Clear CMOS Clear CMOS Reconnect power and power on system CN61: System Intrusion header Signal INTRUDER_N Pin_1 http://www.tyan.com...
- Page 23 CN73: NMI button header Signal FP_NMI_N Pin_1 CN74: ID button header Signal ID_BUTTON_N Pin_1 http://www.tyan.com...
-
Page 24: System Block Diagram
1.5.6 System Block Diagram S7015 Block Diagram http://www.tyan.com... -
Page 25: Internal View
② ④ ⑦ ③ S7015 Main Board Power Cage ① ⑤ M7015 -PDB M7015 -PBP ② ⑥ PWR Distribution board PWR Backplane Board M1008 HDD Bracket ③ ⑦ Front LED control Board System Fan PCI-E Slot Shield ④ ⑧ http://www.tyan.com... - Page 26 http://www.tyan.com...
-
Page 27: Chapter 2: Setting Up
Most of the electrical and mechanical connections can be disconne- -cted using your fingers. It is recommended that you do not use nee- -dlenosed pliers to remove connectors as these can damage the soft metal or plastic parts of the connectors. http://www.tyan.com... -
Page 28: Precautions
Metallic parts or metal flakes can cause electrical shorts. Note: All connectors are keyed to only attach one way. All use the correct screw size as indicated in the procedures. http://www.tyan.com... -
Page 29: Installing Motherboard Components
2.1.1 Removing the Chassis Cover Follow these instructions to remove FT72-B7015 chassis cover. Thumb two screws on the back side as show in the small diagram. Then slide the top cover out. Here is the overview after the chassis cover was removed. http://www.tyan.com... -
Page 30: Installing The Cpu And Heatsink
2.1.2 Installing the CPU and Heatsink Follow the steps below on installing CPUs and CPU heatsinks. 1. Locate the CPU socket. 2. Press the lever and unlock the CPU socket. http://www.tyan.com... - Page 31 3. Lift the CPU protection cap up and lay the CPU into the socket(A), ensuring pin1 is correctly located(B); 4. Close the socket cover and press the CPU lever down to secure the CPU; http://www.tyan.com...
- Page 32 5. Place the heatsink on top of the CPU and secure it with 4 screws. http://www.tyan.com...
-
Page 33: Installing The Memory
Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. http://www.tyan.com... - Page 34 2). Refer to the memory population option table for recommended memory installation instruction. 3). “√”indicates a populated DIMM slot. Memory Population Option Table ® To achieve the best performance, TYAN strongly recommended memory installation configuration as listed below: 1. Single CPU installed (CPU0 Only) Quantity of memory...
- Page 35 CPU1 DIMMA 1 √ √ CPU1 DIMMA 2 √ CPU1 DIMMB 0 √ √ √ CPU1 DIMMB 1 √ √ CPU1 DIMMB 2 √ CPU1 DIMMC 0 √ √ √ CPU1 DIMMC 1 √ √ CPU1 DIMMC 2 √ http://www.tyan.com...
-
Page 36: Installing Expansion Cards
FT72-B7015 has eight expansion slots which can support GPU (Graphic Processing Unit) card. Follow these instructions to install expansion cards. 1. Locate the expansion slot on the motherboard, unscrew the bracket from the slot you want to use. 2. Take the brackets out from the slot. http://www.tyan.com... - Page 37 4. Connect the cables between the expansion card and the power distribution board, the connectors you use should match with the slot you add the card with. 5. Here is the end of the add on card installation. http://www.tyan.com...
-
Page 38: Installing Hard Drives
Unscrew the 2.5’’ bracket out from the chassis, place a 2.5’’ hard drive into the HDD tray and secure it using four flat screws. Reinsert the HDD bracket into the chassis, secure it with one screw and connect both power cable and SATA cable. http://www.tyan.com... -
Page 39: Rack Mounting
Maintenance can be performed on the unit while in a rack but it is preferable to install the device in a fully operational condition. Screw Sack Including: A: M5 Washer------ 8pcs B: M5 x 10 ----------8pcs C: M5 x13 -----------2pcs http://www.tyan.com... -
Page 40: Installing The Inner Rails To The Chassis
Screw the mounting ear to each side of FT72 as shown using 3 screws from the supplied screws kit. Push the latch key and draw out the inner rails from sliding rails. Secure inner rails to both sides of the chassis, be sure the five mounting holes are correctly matched. http://www.tyan.com... -
Page 41: Installing The Outer Rails To The Rack
4 M5 x 10 screws with washer for each side. 2.2.4 Rack mounting the Server 1. Draw out the middle rail till the latch position. 2. Lift the chassis and then insert the inner slide rails into the middle rails. http://www.tyan.com... - Page 42 3. Push the chassis in and pull the latch key (A). Then push the whole system into the rack (B). 4. Secure the mounting ears of chassis to the rack with 2 M5 x 13 screws. http://www.tyan.com...
-
Page 43: Chapter 3: Replacing Pre-Installed Components
Motherboard, M1008 front panel board, M7015 power distribution board, M7015 power backplane, system fan, power cage etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. Chassis Cover Power Cage M7015-PDB M7015 PBP M7015 I/O board System Fan M1008 Front Panel Board System Main board http://www.tyan.com... -
Page 44: Removing The Cover
Press the tab as shown in the diagram and pull out the power. Free the power from the power socket. Replace a new single power (FRU NO: CPSU-0420) and reinsert it into the power socket following the above steps in reverse. http://www.tyan.com... -
Page 45: Replacing M7015 Power Distribution Board
3.4.2 Replacing M7015 Power Distribution Board 1. Remove the 2 screws securing M7015-PDB to the bracket. 2. Renew the M7015-PDB and fix it to the chassis following the step in reverse. http://www.tyan.com... -
Page 46: M7015 Power Distribution Board Features
3.4.3 M7015 Power Distribution Board Features 2x4 Power Connectors for PCI-E add on card Power Connector (Connect to M7015-PBP PWR backplane) http://www.tyan.com... -
Page 47: Replace The M7015 Power Backplane
1. Lift out the M7015- PBP bracket after pulling out the power Supplies and M7015-PDB. 2. Remove the 4 screws securing M7015-PBP to the bracket. 3. Renew the M7015-PBP and fix it to the chassis following the steps in reverse. http://www.tyan.com... -
Page 48: M7015 Power Backplane Features
M7015 power backplane Features M7015-PBP Power backplane support FT72-B7015 with EMERSON DC1200-3 power supply. On board PWR Connector * 3 (Vertical, connect to PWR supply) PWR Connector (Right angle, connect to MB) PWR Connector (Vertical, connect to M7015-PDB PWR distribution board) http://www.tyan.com... -
Page 49: Replacing M7015 I/O Board
After remove power supplies and M7015 PBP, you can replace the M7015 I/O board follow these instructions. Remove the power cage from the chassis with four screws. Lift the power cage out of the chassis and locate the M7015 I/O board. http://www.tyan.com... - Page 50 Unscrew M7015 I/O board with its bracket and carefully pull it Renew the M7015 I/O board and fix it to the chassis following the step in reverse. http://www.tyan.com...
-
Page 51: Replacing The Led Control Board
Follow these instructions to replace the M1008 LED control board. Unplug the cables from the connectors on M1008 and main board. A: From M1008 B: From S7015 Remove the three screws securing the LED control board unit to the chassis. http://www.tyan.com... -
Page 52: M1008 Led Control Board Features
3. Renew the board and place it back to the chassis following the above procedures in reverse. 3.6.1 M1008 LED Control Board Features http://www.tyan.com... -
Page 53: M1008 Led Control Board Connector Pin Definition
M1008 LED Control Board Connector Pin Definition J1: USB Header Definition Definition USB1- USB2- USB1+ USB2+ J3: SSI Definition Definition PW_LED+ ID_LED+ PW_LED- ID_LED- HD/LAN3 LED+ SYS_FAULT1- HD/LAN3 LED- SYS_FAULT2- PWR_SW+ LAN1_LED+ PWR_SW- LAN1_LED- RESET+ ICH_SMBDAT RESET- ICH_SMBCLK ID_SW+ INTRU# TEMP_SENSER LAN2_LED+ EXT_INT LAN2_LED- http://www.tyan.com... -
Page 54: Replacing The System Fan
3.7 Replacing the System Fan Disconnect system fan cables from the chassis. Remove the three screws securing the fan holder into the chassis and lift the fan holder out. Remove the four screws securing the fan to the fan holder. http://www.tyan.com... - Page 55 Renew the fan and reinsert the fan holder into the chassis and fix it with four screws. http://www.tyan.com...
-
Page 56: Removing The Motherboard
Remove the 14 screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis as S7015 is too large to lift straight out .Lift the front edge of the board to an angle of about 45 then slides the whole board out. http://www.tyan.com... -
Page 57: Appendix I: Bios Differences
Exit Enables Hardware Health Hardware Health Configuration Monitoring Device. Auto FAN Control [Enabled] Hardware Health Event Monitoring ← → Select Screen ↑↓ Select Item Sensor Data Register Monitoring Change Option Select Field General Help Save and Exit ESC Exit http://www.tyan.com... - Page 58 03 VBattary : x.xxx V Select Field 22 FAN1 : xxxx RPM General Help 23 FAN2 : xxxx RPM Save and Exit 24 FAN3 : xxxx RPM ESC Exit Read only. It can not be modified in user mode. http://www.tyan.com...
-
Page 59: Appendix Ii: Cable Connection Tables
3. SATA & SATA PWR Cable HDD device to S7015 MB HDD device Connect to S7015 MB → SATA cable 1 for HDD1 CN14 → SATA cable 2 for HDD2 CN15 SATA PWR cable for → HDD1 & HDD2 http://www.tyan.com... - Page 60 PW5 or PW6 GPU card 3 → PW7 or PW8 GPU card 4 → PW9 or PW10 GPU card 5 → PW11 or PW12 GPU card 6 → PW13 or PW14 GPU card 7 → PW15 or PW16 GPU card 8 http://www.tyan.com...
-
Page 61: Appendix Iii: Fru Parts Table
CHSK-0410 343786600001 G+PIPE,1366-CPU-PASSIVE 411780900009(SA) M1008 Front LED control Board(R02) 541178090002(FG) M7015-I/O 411782600054(SA) Rear I/O board(R02) board 411786600012(SA) PCBA PWR Distribution board for M7015-PDB PCI-E card(R01) 541178660002(FG) 411786600011(SA) M7015-PBP PWR Backplane board(R01) 541178660001(FG) Rack Mounting CRAL-0150 340783300039 Sliding-Rail Assy Parts http://www.tyan.com... - Page 62 PWR CABLE,2*4P /2*4P CABLE ASSY;PCI-E CARD CCBL-146H 422786600003 PWR CABLE,2*3P /2*3P CORD;US,250V,EL302+711,3 CCBL-0312 332810000347 PIN,16AWG,13A,SPECIAL SOCKET,BLACK,L=1830MM CORD;EU,250V,EL202+711,3PI CCBL-0313 332810000348 N.1.5MM2,16A,SPECIAL SOCKET,BLACK,L=1830MM Note: The table is subject to change without notice. Please visit our web site at http://www.tyan.com for latest update. http://www.tyan.com...
-
Page 63: Appendix Iv: Technical Support
(which can have expensive consequences). If these options are not available for you then TYAN Computer Corporation can help. Besides designing innovative and quality products for over a decade, TYAN has continuously offered customers service beyond their expectations. - Page 64 Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you ®...
