TYAN FT83-B7119 Service Engineer's Manual
  1. Manuals
  2. Brands
  3. TYAN Manuals
  4. Server
  5. FT83-B7119
  6. Service engineer's manual

TYAN FT83-B7119 Service Engineer's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FT83-B7119
Service Engineer's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT83-B7119 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN FT83-B7119

Summary of Contents for TYAN FT83-B7119

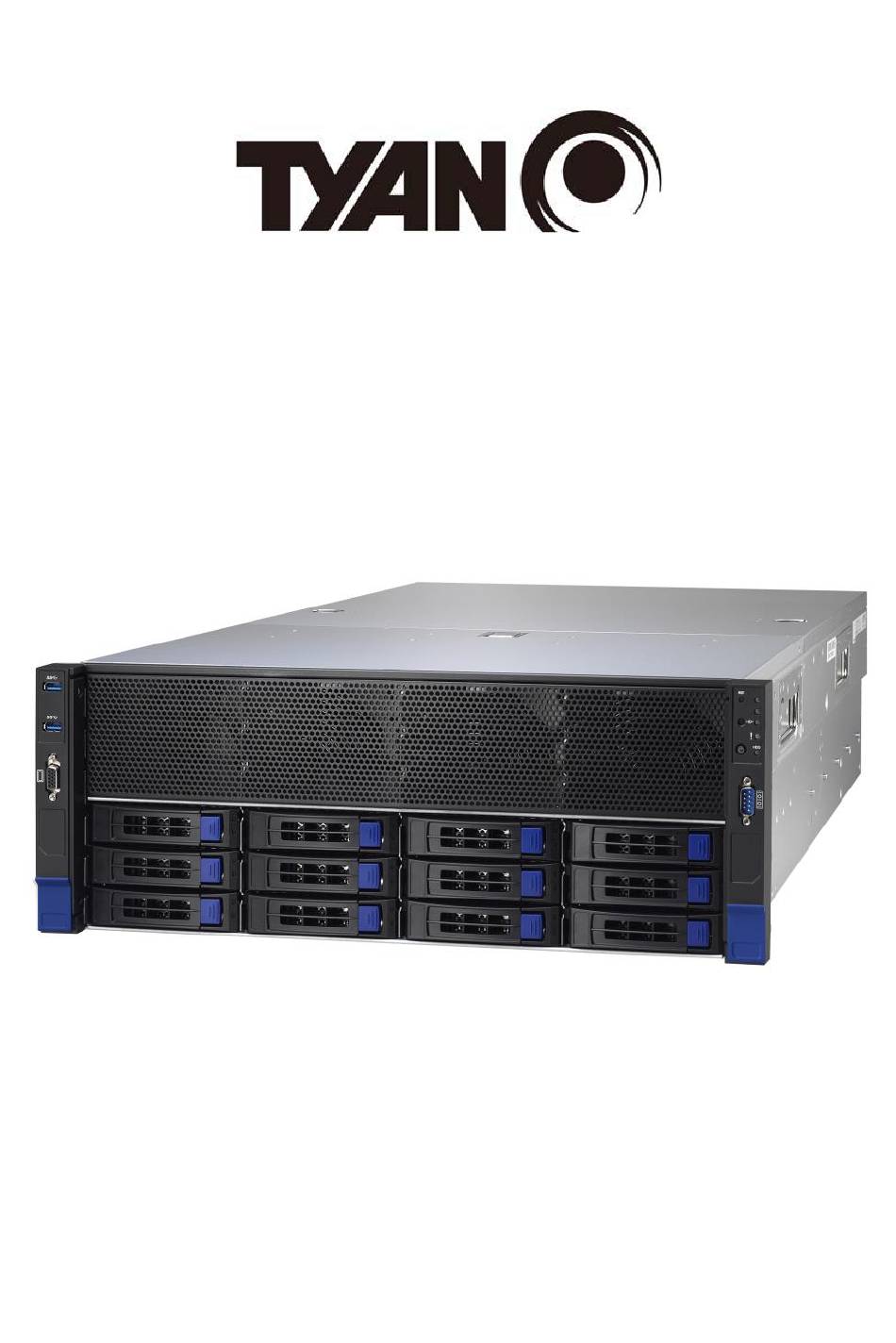

  • Page 1 FT83-B7119 Service Engineer’s Manual...
  • Page 2 TYAN products including liability or ® warranties relating to fitness for a particular purpose or merchantability. TYAN retains the right to make changes to produce descriptions and/or specifications at ® any time, without notice. In no event will TYAN...

  • Page 3: Fcc Declaration

    This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. Notice for Europe (CE Mark) ● This product is in conformity with the Council Directive 2014/30/EU. http://www.tyan.com...
  • Page 4 Safety: IEC/EN 62368-1 ● This equipment is compliant with CB/LVD of Safety: IEC/EN 62368-1. Warning keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. http://www.tyan.com...
  • Page 5 Chapter2: Setting Up This chapter Covers procedures on installing the CPU, memory modules, add on card and hard drives. Give an overview about the FT83-B7119 barebone from an overall angle. Chapter 3: Replacing the Pre-installed Components This chapter covers the removal and replacement procedures for pre-installed components.

  • Page 6: Safety And Compliance Information

    Safety and Compliance Information Before installing and using TYAN FT83-B7119, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Safety Information

    You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 8 · Do not attempt to move a fully loaded rack. Remove equipment from the rack before moving it. · Do not attempt to move a rack on an incline that is greater than 10 degrees from the horizontal. http://www.tyan.com...
  • Page 9 This will reduce the risk of personal injury, fire, or damage to the equipment. The total rack load should not exceed 80 percent of the branch circuit rating. Consult the electrical authority having jurisdiction over your facility wiring and installation requirements. http://www.tyan.com...
  • Page 10 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – The product does not operate normally when you follow the operating instructions. Instructional safeguard requirement An instructional safeguard shall be provided to reduced the likelihood of unintentional contact with a moving part in accordance with Clause F.5 except that element 3 is optional. http://www.tyan.com...

  • Page 12: Table Of Contents

    Table of Contents Chapter 1: Overview ..............14 About the TYAN FT83-B7119..........14 Product Models ..............14 Features................15 Standard Parts List .............. 23 1.4.1 Box Contents ..............23 1.4.2 Accessories ..............23 About the Product ..............24 1.5.1 System Front View ............24 1.5.2...
  • Page 13 Appendix I: How to recover UEFI BIOS ........202 Appendix IV: Fan and Temp Sensors ........204 Appendix V: Cable Connection Tables ........209 Appendix VI: FRU Parts Table ........... 212 Appendix VII: Glossary ............... 214 Appendix VII: Technical Support ..........220 http://www.tyan.com...

  • Page 14: Chapter 1: Overview

    ® TYAN also offers the FT83-B7119 in a version that can support up to twelve (12) or twenty-four (24) 2.5”/3.5” hot-swap SATA 6G HDDs. FT83-B7119 uses rack-mountable 4U chassis featuring a robust structure and a solid mechanical enclosure. All of this provides FT83-B7119 the power and flexibility to meet the needs of nearly any server application.

  • Page 15: Features

    PFC, 80 plus Platinum NOTE: When use 100-127V AC Redundancy input, the system does not support redundant PSU operation. Altitude 5000m Q'ty / Socket Type (2) LGA3647 Processor Supported CPU Intel Xeon Scalable Processor, 2nd Series Gen Intel Xeon Scalable Processor http://www.tyan.com...
  • Page 16 Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail. (1) PCI-E Gen3 x16 slot (FH, FL, PCI-E SW), (10) PCI-E Gen3 x16 slots (FH,...
  • Page 17 Over temperature warning indicator, Fan & PSU fail LED indicator Others Watchdog timer support Onboard Chipset Onboard Aspeed AST2500 24-bit high quality video Server Management AST2500 iKVM compression, Supports storage Feature over IP and remote platform-flash, USB 2.0 virtual hub http://www.tyan.com...
  • Page 18 Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating 90%, non-condensing at 35° C Humidity Operating Environment Please refer to the TYAN NVIDIA Compatibility List for the operating Note temperature while GPGPU deployed RoHS RoHS 6/6 Compliant...
  • Page 19 (24) SATA 6Gb/s Interface External Drive Bay The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please Notification contact Tyan technical support if a discrete SAS HBA/RAID adapter installed is required. Redundancy System Cooling Configuration (5+1) hot-swap 12cm fans...
  • Page 20 Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail. (1) PCI-E Gen3 x16 slot (FH, FL, PCI-E SW), (10) PCI-E Gen3 x16 slots (FH,...
  • Page 21 Monitors temperature for CPU & Temperature memory & system environment Monitors voltage for CPU, memory, Voltage System Monitoring chipset & power supply Over temperature warning indicator, Fan & PSU fail LED indicator Others Watchdog timer support Server Management Onboard Chipset Onboard Aspeed AST2500 http://www.tyan.com...
  • Page 22 Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating 90%, non-condensing at 35° C Humidity Operating Environment Please refer to the TYAN NVIDIA Compatibility List for the operating Note temperature while GPGPU deployed RoHS RoHS 6/6 Compliant...

  • Page 23: Standard Parts List

    Standard Parts List This section describes FT83-B7119 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents FT83-B7119 Chassis Kit  4U chassis*1 ...

  • Page 24: About The Product

    About the Product The following views show you the product. 1.5.1 System Front View http://www.tyan.com...
  • Page 25 Warning Red/Green/Blue PSU warning / Blue solid on FAN warning / Blue blinking System fault / Red solid on HDD present / Green solid on HDD LED Green/Red HDD activity / Green blinking HDD fail / Red solid on http://www.tyan.com...

  • Page 26: System Rear View

    LAN1: from Realtek RTL8211E PHY for IPMI USB 3.0 x 2 ID BTN/ LED OCP Card Area: via PCIex16 OCP2.0 slot add (2)SFP+ or (2)RJ45 ports NOTE: 1. M7119FA77-RIO is pre-installed. 2. M7108-X550-2T LAN Card is pre-installed in this picture. http://www.tyan.com...

  • Page 27: Led Definitions

    Green Solid On Green Solid On Link 100 Mbps Green Blinking Green Solid On Active Green Solid On Amber Solid On Link 1000 Mbps Green Blinking Amber Solid On (1Gbps) Active “Left” and “Right” are viewed from the rear panel. NOTE: http://www.tyan.com...
  • Page 28 AC present Only 12VSB on(PS off) or PS in Smart Redundant state Output ON and OK AMBER AC cord unplugged or AC power lost, with a second power supply in parallel still with AC input power. 2Hz Blink GREEN FW update mode http://www.tyan.com...

  • Page 29: Internal View

    CPU1 PCIE Gen3 x16 OCP2.0 Slot for SAS Card (from CPU#1, M2217-L16-IO pre-installed) M7119FA77-IO PCIE Board 7~11 PCIE Gen3 x16 Slots (FH/FL, GPU#1 ~ GPU#5) PCIE Gen3 x16 Slot (FH/FL) 13~17 PCIE Gen3 x16 Slots (FH/FL, GPU#6 ~ GPU#10) http://www.tyan.com...

  • Page 30: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 31: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to FT83-B7119 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 32: 2.1 Installing Motherboard Components

    CPUs, memory modules and Add-on cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove FT83-B7119 chassis cover. Remove the screw from the front top cover. Release the latch to lift up the front top cover from the chassis.
  • Page 33 Press the two latch to pull the cover in the direction of the arrow to remove the top cover. http://www.tyan.com...

  • Page 34: Installing The Cpu, Heat Sink And Air Duct

    Follow the steps below on installing the processor, heatsink and air duct. Align and install the processor on the carrier. Carefully flip the heatsink. Then install the carrier assembly on the bottom of the heatsink and make sure the guide pin is located in the correct direction. http://www.tyan.com...
  • Page 35 NOTE: A new heatsink comes with pre-applied thermal grease. Once the heatsink has been removed from the processor, you need to clean the processor and heatsink using an alcohol solvent. Then apply new thermal grease before reinstalling the heatsink. http://www.tyan.com...
  • Page 36 NOTE: When disassembling the heatsink, loosen the screws in reverse order (4321). Repeat the procedures described earlier to install the second processor and heatsink. Place the air duct on top of the heatsink and screw it to the chassis. http://www.tyan.com...

  • Page 37: Installing The Memory

    Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. http://www.tyan.com...
  • Page 38 2. Use paired memory installation for max performance. 3. Populate the same DIMM type in each channel, specifically - Use the same DIMM size - Use the same # of ranks per DIMM 4. Always install with CPU0 Socket first. http://www.tyan.com...
  • Page 39 √ √ CPU1_DIMM_C1 √ √ √ √ √ √ √ √ √ CPU1_DIMM_D0 √ √ √ CPU1_DIMM_D1 √ √ √ √ √ √ √ √ CPU1_DIMM_E0 √ √ CPU1_DIMM_E1 √ √ √ √ √ √ √ CPU1_DIMM_F0 √ CPU1_DIMM_F1 http://www.tyan.com...

  • Page 40: Installing The Expansion Card (Pcie Board)

    Installing the Expansion Card (PCIE Board) Follow these instructions to install the PCIE cards. Installing Expansion Cards Unscrew to remove the GPU Bracket. Locate the PCI-E Gen.3 x16 slot on the motherboard. Unscrew to take out the dummy brackets. http://www.tyan.com...
  • Page 41 Insert the expansion card into the PCIE Gen. 3 slot and screw it to the chassis. Connect the PWR cable to the expansion card and motherboard. http://www.tyan.com...
  • Page 42 Secure the GPU Bracket to the chassis with 4 screws. http://www.tyan.com...
  • Page 43 Optional GPU Extend Kit Follow the instructions to install the expansion cards with card brackets or card guides. With Card Bracket Unscrew to remove the Linkbar and GPU Bracket. Loosen three screws on the motherboard. http://www.tyan.com...
  • Page 44 Insert the GPU Linkbard into the chassis and secure it to the chassis with seven screws (3 to the motherboard, 2 on each side of the Linkbar to the chassis). Locate the PCI-E Gen.3 x16 slot on the motherboard. Unscrew to take out the dummy brackets. http://www.tyan.com...
  • Page 45 Screw the GPU card bracket to the GPU card. Insert the GPU card into the PCIE Gen. 3 slot and screw the GPU card to the chassis. Connect the GPU PWR cable to the GPU card and motherboard. http://www.tyan.com...
  • Page 46 With Card Guide Screw the Linkbar to the chassis. Align the expansion card with the card guide and insert the card onto the PCIE slot as shown. http://www.tyan.com...
  • Page 47 Screw the expansion card to the chassis. Connect the power cable to the expansion card and the motherboard. http://www.tyan.com...

  • Page 48: Installing The Expansion Card (Ocp Riser Card)

    Installing the Expansion Card (OCP Riser Card) Follow these instructions to install the M7076-3008-8I onto the OCP Riser Card Slot. Locate the OCP Riser Card Slot. Insert the M7076-3008-8I onto the OCP Riser Card Slot and use 4 screws to secure it to the chassis. http://www.tyan.com...

  • Page 49: Installing Hard Drives

    2.1.6 Installing Hard Drives The FT83-B7119 supports 100 3.5”/2.5” Hard Drives. Follow these instructions to install a hard drive. Installing 3.5” HDD Press Locking lever to release the 3.5”/2.5” HDD tray. Pull the 3.5”/2.5” HDD tray out of the chassis.
  • Page 50 http://www.tyan.com...

  • Page 51: Rack Mounting

    Press the button, to pull out the inner rail from the outer rail. NOTE: Before mounting the TYAN FT83-B7119 in a rack, ensure that the right or left inner rail have been installed correctly. If not, the power cable module cannot be installed on the chassis kit.
  • Page 52 Installing the Inner Rails to the Chassis Align the inner sliding rail on the side of the server, and pull towards the arrow to secure the hooks. http://www.tyan.com...

  • Page 53: Installing The Server In A Rack

    2.2.1 Installing the Server in a Rack Follow these instructions to mount the TYAN FT83-B7119 into an industry standard 19" rack. NOTE: Before mounting the TYAN FT83-B7119 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. However, to make the installation easier, we suggest that you remove all HDD trays before you insert the chassis into the rack.
  • Page 54 Lift the unit and then insert the inner slide rails into the Outer rails. Secure the two rotary screws on the mounting ears of the unit to the rack. http://www.tyan.com...

  • Page 55: Chapter 3: Replacing Pre-Installed Components

    S7119GMRE Motherboard, M2217-L16-IO OCP Riser Board, M1297T65-BP12E-12 IO board HDD Backplane Board, M7119FA77-IO M2218-GF16 / M2221-GF24 bridge, Rear IO card M7119FA77-RIO M1809F77A-FB Fan Board, System Fan and Power Supply, etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...

  • Page 56: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow Chapter 2.1.1 to remove the cover of FT83-B7119. Replacing the Power Supply To replace the power supply follow these instructions. Press the tab as in the diagram from down to up.

  • Page 57: Replacing The Front Panel Board

    Unscrew to remove the front panel board module. Loosen three screws to take out the front panel board. Loosen two screws to take out the front panel board. Follow the steps described earlier in reverse order to reinstall the front panel board module. http://www.tyan.com...

  • Page 58: Front Panel Board Features

    Form Factor Thickness: 1.6mm  Layer: 4 layers  power button with LED  reset button  ID button Specifications  LED: LAN1 LED (green), LAN2 LED (green), ID LED (blue), HDD LED (green/Red), FAULT LED (Red/green/Blue), Power LED http://www.tyan.com...

  • Page 59: Replacing The Usb Board

    Unscrew to remove the front panel board module. Loosen three screws to take out the front panel board. Loosen two screws to take out the front panel board. Follow the steps described earlier in reverse order to reinstall the front panel board module. http://www.tyan.com...

  • Page 60: Front Panel Board Features

    3.6.1 Front Panel Board Features M1717T65-USB USB Board  PCB Dimensions: 48.00*19.00*1.6mm  Form Factor Thickness: 1.6mm  Layer: 4 layers  USB 3.0 Connector Specifications  5*2PIN input Connector http://www.tyan.com...

  • Page 61: Replacing The Fan Board

    Replacing the Fan Board Follow these instructions to replace the M1809F77A-FB Fan Board. Remove all Fan modules. Unscrew the fan cage. Lift up the fan cage. http://www.tyan.com...
  • Page 62 Disconnect all cables from the Fan Board. Unscrew to replace with a new Fan Board. Follow the steps in reverse order to reinstall the Fan Board. http://www.tyan.com...

  • Page 63: Fan Board Features

    3.7.1 Fan Board Features M1809F77A-FB Fan Board Support (6) 120x38 mm system FAN (4) 4-pin B4P RA PWR Connector (run DC+12V) Specifications (6) 4-pin Hot-swap FAN Connector (1) 20-pin barebone system FAN connector to MB FAN Sequence http://www.tyan.com...

  • Page 64: Replacing The Hdd Backplane Board

    Disconnect all cables connected to the HDD BP Board. Unscrew the HDD BP Board from the chassis. Take out the HDD BP Board to replace with a new one. Follow the procedures described earlier in reverse order to reinstall the HDD BP Board and HDD cage. http://www.tyan.com...

  • Page 65: Hdd Backplane Board Features

    HDD Backplane Board Features Front View Rear View Form Factor Dimension: 422.4*29.8mm 2x OCU Link Connector Input Specifications 3x Mini SAS HD Connector Input Overview 4x SGPIO Header 12x SATA HDD or 8 SATA HDD + 4x NVMe Output http://www.tyan.com...

  • Page 66: Connector Definition

    Mini SAS HD Connector SATA4_7 Mini SAS HD Connector SATA8_11 Mini SAS HD Connector NVME01 SLIMSAS Connector NVME23 SLIMSAS Connector Power Connector SGPIO0 SGPIO Header for HDD0~7 SGPIO2 SGPIO Header for HDD8~11 SGPIO3 Reserved for AMD Platform SGPIO1 Reserved http://www.tyan.com...

  • Page 67: Replacing Pcie Board

    Replacing PCIE Board Follow these instructions to replace the M7119FA77-IO PCIE Board. Unscrew to remove the GPU Bracket. Disconnect all cables connected to the PCIE Board. Unscrew to lift up the PCIE Board Bracket (totally 16 screws). http://www.tyan.com...

  • Page 68: Pcie Board Features

    Unscrew the PCIE Board from the M2218-GF16 IO Bridge Bracket. Replace the PCIE Board with a new one. Follow the steps described earlier in reverse order to reinstall the PCIE Board Bracket. 3.9.1 PCIE Board Features Front View http://www.tyan.com...
  • Page 69 Pin 2-3 closed: Insert PCIE x16 card to x8 slot. PCI-E #1: 3PHD_1 PCI-E #12: 3PHD_12 PCI-E #3: 3PHD_3 PCI-E #14: 3PHD_14 PCI-E #5: 3PHD_5 PCI-E #16: 3PHD_16 PCI-E #7: 3PHD_7 PCI-E #18: 3PHD_18 PCI-E #9: 3PHD_9 PCI-E #20: 3PHD_20 Rear View http://www.tyan.com...

  • Page 70: Replacing The Io Bridge Board

    M2221-GF24 IO Bridge Board. Unscrew the M7119FA77-IO PCIE Board Bracket. Flip the IO Bridge Bracket over and unscrew to replace the M2218-GF16 IO Bridge Boards. Follow the steps described earlier in reverse order to reinstall the IO Bridge Bracket. http://www.tyan.com...

  • Page 71: Io Bridge Board Features

    IO Bridge Board Features Front View M2218-GF16 IO Bridge Board PCIE x24 lanes bridge board between S7119 and Specifications M7119FA77-IO PCIE Board Front View M2221-GF24 IO Bridge Board PCIE x24 lanes bridge board between S7119 and Specifications M7119FA77-IO PCIE Board http://www.tyan.com...

  • Page 72: 3.11 Replacing The Rear Io Board

    3.11 Replacing the Rear IO Board Follow these instructions to replace the M7119FA77-RIO Rear IO Board. Unscrew the Rear IO Bracket. Push both latches to pull the Rear IO Bracket out. Unscrew to remove the iron bracket. http://www.tyan.com...
  • Page 73 Unscrew to lift up the pre-installed M7108-X550-2T LAN card. Replace with a new Rear IO Board. Follow the steps described earlier in reverse order to reinstall the Rear IO Bracket. http://www.tyan.com...

  • Page 74: Rear Io Board Features

    Provide (1) 1G RJ-45 port for IPMI + (2) USB3.0 ports + (1) ID BTN w/ blue LED Specifications  (1) FCI Board to board connector to mainboard  (1) OCP type-A + (1) OCP type-B connector for NIC OCP card http://www.tyan.com...

  • Page 75: Replacing The Ocp Riser Card

    Follow these instructions to replace the M2217-L16-IO OCP Riser Card. Unscrew to lift up the M2217-L16-IO OCP Riser Card and replace with a new one. Follow the steps described earlier in reverse order to reinstall the OCP Riser Card. http://www.tyan.com...

  • Page 76: Ocp Riser Card Features

    3.12.1 OCP Riser Card Features Front View M2217-L16-IO OCP Riser Card  Specifications PCIE x16 support (1) OCPA slot + (1) OCPB slot 、 http://www.tyan.com...

  • Page 77: 3.13 Replacing The Motherboard

    3.13 Replacing the Motherboard After removing all of the aforementioned cables and components, follow these instructions to remove the motherboard from the chassis. Disconnect all cables on the motherboard. http://www.tyan.com...
  • Page 78 Refer to 3.10 Replacing the Rear IO Board to remove the Rear IO Board Bracket. Unscrew to lift up the Linkbar. Use a hex screwdriver and Phillips screwdriver to loosen screws. http://www.tyan.com...
  • Page 79 Disconnect all cables on the motherboard. Unscrew the motherboard to lift it up for replacement. http://www.tyan.com...

  • Page 80: Chapter 4: Motherboard Information

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 81: Board Image

    Board Image This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 82: Block Diagram

    Block Diagram S7119 Block Diagram http://www.tyan.com...

  • Page 83: Motherboard Mechanical Drawing

    Motherboard Mechanical Drawing http://www.tyan.com...

  • Page 84: Board Parts, Jumpers And Connectors

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...
  • Page 85 15. Power connector connect to 33. Front panel Connector (FPIO_1) GPU Card (PE_PW13) 16. SSATA Connector 34. Front panel VGA Header (PCH_SSATA_5) (FPIO_VGA2) 17. SSATA Connector 35. COM1 Header (HD_COM3) (PCH_SSATA_4) 18. SSATA Connector 36. System FAN Connector for (PCH_SSATA_0123) Barebone (J35) http://www.tyan.com...
  • Page 86 OCULink (x8) (J8) Board (J1) PCIE slots (x24) connect to PCIE OCULink (x8) (J9) Board (J7) PCIE slots (x16) connecto to PCIE riser card (PEIC_5) Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...
  • Page 87 FP_PWER(3.3V) FP_ID_LED_PWR PW_LED- FP_ID_LED_N HD_LED+ HWM_FAULT_LED- HD_LED- SYS_FAULT_LED- PW_SW# LAN1_ACTLED+ LAN1_ACTLED- RST_SW# FP_ID_LED_BTN_N INTRUDER# FPIO_TEMP_IN LAN2_ACTLED+ NMI_SW# LAN2_ACTLED- ® J51: VROC Header (full featured RAID 0, 1, 10, 5, using Intel VROC, for NVMe SSD SKU) Signal VCC3_AUX PCH_SATA_RAID_KEY http://www.tyan.com...
  • Page 88 P1_RX_P P0_TX_N P0_TX_P P1_TX_N P1_TX_P P0_N P0_P P1_N OC_N P1_P TYPEA_USB3: Vertical Type-A USB3.0 Connector Signal Signal SSRX- SSRX+ USB DATA2- USB DATA2+ SSTX- SSTX+ SSATA_SGPIO1: SSATA SGPIO Pin Header Signal Signal SSDATA IN SSDATA OUT SSLOAD SSCLOCK P3V3_AUX http://www.tyan.com...
  • Page 89 J35: Front Fan Connector (Reserved for Barebone Fan Board) Signal Signal TACH1 TACH6 TACH2 TACH7 TACH3 TACH8 TACH4 TACH9 TACH5 TACH10 PWM2 PWM1 TACH11 TACH12 V3AUX1 PWM3 DBG_HD1: TYAN Module Header Signal Signal P3V3 FRAME_N LAD0 LAD1 PLT_RST_N LAD2 LAD3 CLK_33M DBG_SERIRQ DBG_PRES_N VCC3_AUX TPM_ADDR_MB PCH_TPM_PP_EN http://www.tyan.com...
  • Page 90 PE_PW4 / PE_PW5 / PE_PW11 / PE_PW12 / PE_PW13 / PE_PW14 / PE_PW15 / PE_PW16 / PE_PW17 / PE_PW18: 8-pin Power Connector to GPU Card Signal Signal P12V_IN P12V_IN P12V_IN P12V_IN NOTE: The 8-pin GPU power connector can support up to 20A. http://www.tyan.com...

  • Page 91: Thermal Interface Material

    CPU lid (applying too much will actually reduce the cooling). NOTE: Always check with the manufacturer of the heat sink & processor to ensure that the thermal interface material is compatible with the processor and meets the manufacturer’s warranty requirements. http://www.tyan.com...

  • Page 92: Tips On Installing Motherboard In Chassis

    If there are any studs missing, you will know right away since the motherboard will not be able to be securely installed. http://www.tyan.com...
  • Page 93 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MITAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...

  • Page 94: Installing The Memory

    Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard.  This platform supports (12)+(12) DDR4 RDIMM/RDIMM 3DS/LRDIMM/ LRDIMM 3DS 2933/2666 ...
  • Page 95 2. Use paired memory installation for max performance. 3. Populate the same DIMM type in each channel, specifically - Use the same DIMM size - Use the same # of ranks per DIMM 4. Always install with CPU0 Socket first. http://www.tyan.com...
  • Page 96 √ √ CPU1_DIMM_C1 √ √ √ √ √ √ √ √ √ CPU1_DIMM_D0 √ √ √ CPU1_DIMM_D1 √ √ √ √ √ √ √ √ CPU1_DIMM_E0 √ √ CPU1_DIMM_E1 √ √ √ √ √ √ √ CPU1_DIMM_F0 √ CPU1_DIMM_F1 http://www.tyan.com...
  • Page 97 1 DCPMM per socket and 1 DCPMM per node case. DDR4 Type Capacity DRAM1 RDIMM 3DS RDIMM LRDIMM 3DS LRDIMM Any Capcity DRAM2 RDIMM 3DS RDIMM LRDIMM 3DS LRDIMM Any Capacity and Preferably, >=32GB DRAM3 RDIMM 16GB or 32GB DRAM4 RDIMM 3DS RDIMM LRDIMM Any Capacity http://www.tyan.com...

  • Page 98: Finishing Up

    In the rare circumstance that you have experienced difficulty, you can find help by asking your vendor for assistance. If they are not available for assistance, please find setup information and documentation online at our website or by calling your vendor’s support line. http://www.tyan.com...

  • Page 99: Chapter 5: Bios Setup

    The table below shows how to navigate in the setup program using the keyboard. Function Left/Right Arrow Keys Change from one menu to the next Up/Down Arrow Keys Move between selections Enter Open highlighted section PgUp/PgDn Keys Change pages Change options Exit http://www.tyan.com...
  • Page 100 The following pages provide the details of BIOS menu. Please be noticed that the BIOS menu are continually changing due to the BIOS updating. The BIOS menu provided are the most updated ones when this manual is written. Please visit TYAN’s website at http://www.tyan.com for the information of BIOS updating.

  • Page 101: Main Menu

    This displays the total memory size. System Date Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 2005-2099 Months: 1-12 Days: dependent on month System Time Set the Time. Use Tab to switch between Time elements. http://www.tyan.com...

  • Page 102: Advanced Menu

    This formset allows the user to manage Intel® Virtual RAID on CPU. Trusted Computing Trusted Computing Settings. ACPI Settings System ACPI Parameters. S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm. Serial Port Console Redirection Serial Port Console Redirection. http://www.tyan.com...
  • Page 103 CSM configuration: Enable/Disable, Option ROM execution settings, etc. USB Configuration USB Configuration Parameters. Hardware Health Configuration Hardware Health Configuration. PCIe Slot Configuration Onboard PCIe Slot Configuration. NVDIMM ADR Configuration NVDIMM ADR Configuration. OnBoard Device Configuration OnBoard Device and Function Configuration. http://www.tyan.com...
  • Page 104 Select Advanced  Network Stack Configuration  Network Stack  [Enabled] Step 3. Save changes and reboot. iSCSI Initiator Name The worldwide unique name of iSCSI Initiator. Only IQN format is accepted. Enter [iqn.xxx]. xxx ranges from 4 to 223. http://www.tyan.com...
  • Page 105 5.3.1.1 Add an Attempt Read only. NOTE: Only LAN1 supports iSCSI function. http://www.tyan.com...
  • Page 106 IP4 / IP6 / Autoconfigure Connection Retry Count The minimum value is 0 and the maximum is 16. 0 means no retry. Connection Establishing Timeout The timeout value in milliseconds. The minimum value is 100 milliseconds and the maximum is 20 seconds. http://www.tyan.com...
  • Page 107 Target Port Target Port. Boot LUN Hexadecimal representation of the LU number. Examples are: 4752-3A4F-6b7e-3F99, 6734-9-156f-127, 4186-9. Authentication Type Authentication method: CHAP, Kerberos, or None. CHAP / None Save Changes Must reboot system manually for changes to take place. http://www.tyan.com...
  • Page 108 Delete Attempts Attempt 1 MAC: 34:12:78:56:00:00, PFA: Bus 1/ Dev 0 / Func 0, iSCSI mode: Disabled, IP version: IP4. Disabled / Enabled Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 109 Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. Attempt 1 / Attempt # Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 110 Suppose the card is installed in CPU0 Slot 3, then Intel® VMD for Volume Management Device for PStack0 will be set to [Enabled]. Step 3. Save changes and reboot. All Intel VMD Controllers Select to see more information about the Intel VMD Controllers. http://www.tyan.com...
  • Page 111 5.3.2.1 All Intel VMD Controllers Create RAID Volume This page allows you to create a RAID volume. Non-RAID Physical Disks Read only. http://www.tyan.com...
  • Page 112 Enable RAID spanned over VMD Controllers Enter RAID spanned over VMD Controllers. blank / X Port 0, VMD0, INTEL SSDPE2MD400G4 X – to Select Disk. blank / X Port 1, VMD1, INTEL SSDPEDME400G4 X – to Select Disk. blank / X http://www.tyan.com...
  • Page 113 Create a volume with the settings specified above. NOTE: For Create Volume to be configurable, the following items Enable RAID spanned over VMD Controllers, Port 0, VMD0, INTEL SSDPE2MD400G4 and Port 1, VMD1, INTEL SSDPEDME400G4 must be set to [X]. http://www.tyan.com...
  • Page 114 5.3.2.1.1.1 Create Volume Press ‘y’ to create, ‘n’ to discard. Volume0, RAID0(Stripe), 708.0GB, Normal Select to see more information about the RAID volume. http://www.tyan.com...
  • Page 115 5.3.2.1.1.1.1 Volume0, RAID0(Stripe), 708.0GB, Normal Read only. http://www.tyan.com...
  • Page 116 5.3.2.1.1.1.1.1 Delete Delete the RAID Volume Deleting a volume will reset the disks to non-RAID. Yes / No http://www.tyan.com...
  • Page 117 Port 0, VMD0, INTEL SSDPE2MD400G4 SN: xxxx, … 5.3.2.1.2 Port 1, VMD1, INTEL SSDPEDMD400G4 SN: xxxx, …. Read only. http://www.tyan.com...
  • Page 118 5.3.3 Trusted Computing Security Device Support Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Enabled / Disabled http://www.tyan.com...
  • Page 119 ACPI Settings Enable ACPI Auto Configuration Enable or disable BIOS ACPI Auto Configuration. Disabled / Enabled Enable Hibernation Enable or disable System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some OS. Disabled / Enabled http://www.tyan.com...
  • Page 120 Select 0-23. For example enter 3 for 3am and 15 for 3pm. Wake up minute Select 0-59 for Minute. Wake up second Select 0-59 for Second. When Wake system from S5 is set to [Dynamic Time] Wake up Minute increase 1-5. http://www.tyan.com...
  • Page 121 COM1 / COM2 / Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Legacy Console Redirection Settings Legacy Console redirection settings. http://www.tyan.com...
  • Page 122 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 123 Redirection after BIOS POST The settings specify if BootLoader is selected than Legacy console redirection is disabled before booting to Legacy OS. Default value is Always Enable which means Legacy Console Redirection is enabled for Legacy OS. Always Enable / BootLoader http://www.tyan.com...
  • Page 124 5.3.6.2 Legacy Console Redirection Settings Legacy Serial Redirection Port Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages. COM1 / COM2 http://www.tyan.com...
  • Page 125 VT-UTF8 / VT100 / VT100+ / ANSI Bits per Second Select serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds. 115200 / 9600 / 19200 / 57600 http://www.tyan.com...
  • Page 126 ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. None / Hardware RTS/CTS / Software Xon/Xoff Data Bits / Parity / Stop Bits Read only. http://www.tyan.com...
  • Page 127 View and Set Basic properties of the SIO Logical device. Like IO Base, IRQ Range, DMA Channel and Device Mode. [*Active*] Serial Port 2 View and Set Basic properties of the SIO Logical device. Like IO Base, IRQ Range, DMA Channel and Device Mode. http://www.tyan.com...
  • Page 128 IO=3F8h, IRQ=3, 4, 5, 7, 9, 10, 11, 12; DMA; / IO=2F8h; IRQ=3, 4, 5, 7, 9, 10, 11, 12; DMA; / IO=3E8h, IRQ=3, 4, 5, 7, 9, 10, 11, 12; DMA; / IO=2E8h, IRQ=3, 4, 5, 7, 9, 10, 11, 12; DMA; / http://www.tyan.com...
  • Page 129 If system fails to boot and this option is set to ‘Enabled’, software will reset settings of this page as well as CSM page to its default values automatically. Disabled / Enabled PCIE_1 Empty / PCIE_23 Empty Enable or Disable Option ROM execution for selected Slot. Disabled / Enabled http://www.tyan.com...
  • Page 130 Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding). Enabled / Disabled SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support. Enabled / Disabled http://www.tyan.com...
  • Page 131 Enable Ipv4 HTTP Boot Support. If disabled IPV4 HTTP boot option will not be created. Disabled / Enabled Ipv6 PXE Support Enable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot option will not be created. Disabled / Enabled http://www.tyan.com...
  • Page 132 Disabled / Enabled PXE boot wait time Wait time to press ESC key to abort the PXE boot. Media detect count Number of times presence of media will be checked. 5.3.11 CSM Configuration CSM Support Enable/Disable CSM Support. Enabled / Disabled http://www.tyan.com...
  • Page 133 Video Controls the execution of UEFI and Legacy Video OpROM Legacy / Do not launch / UEFI Other PCI Devices Determines OpROM execution policy for devices other than Network, Storage, or Video. Legacy / Do not launch / UEFI http://www.tyan.com...
  • Page 134 XHCI Hand-off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. Enabled / Disabled USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support. Enabled / Disabled http://www.tyan.com...
  • Page 135 Maximum time the device will take before it properly reports itself to the Host Controller. ‘AUTO’ uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Auto / Manual http://www.tyan.com...
  • Page 136 PWM Minimal Duty Cycle menu is available when Auto Fan Control is set to [Enabled]. PWM Minimal Duty Cycle PWM Minimal Duty Cycle. 15% Duty Cycle / 30% Duty Cycle / 45% Duty Cycle BMC Alert Beep Enable/Disable BMC Alert Beep. On / Off http://www.tyan.com...
  • Page 137 1 / 1+1 / 3 / 3+1 5.3.13.1 Sensor Data Register Monitoring When you enter the Sensor Data Register Monitoring submenu, you will see the following dialog window pop out. Please wait 8~10 seconds. NOTE: SDR can not be modified. Read only. http://www.tyan.com...
  • Page 138 5.3.14 NVDIMM ADR Configuration Assert ADR on Reset Assert ADR on Reset. Disabled / Enabled Assert ADR on Shutdown Assert ADR on Shutdown. Disabled / Enabled http://www.tyan.com...
  • Page 139 Onboard VGA Enable or disable onboard VGA. Disabled / Enabled Chassis Intrusion detect ENABLED: when a chassis open event is detected, the BIOS will record the event. Disabled / Enabled NMI Function Enable or Disable NMI function. Disabled / Enabled http://www.tyan.com...

  • Page 140: Platform Configuration

    Platform Configuration PCH Configuration Displays and provides option to change the PCH Settings. Server ME Configuration Configure Server ME Technology Parameters. http://www.tyan.com...
  • Page 141 SATA devices and settings. PCH sSATA Configuration sSATA devices and settings. USB Configuration USB Configuration Settings. PCH DFX Configuration PCH DFX Configuration Options. PCH state after G3 Select S0/S5 for ACPI state after a G3. S0 / S5 / Last State http://www.tyan.com...
  • Page 142 PCI Express L1 Substates settings. Disabled / L1.1 / L1.2 / L1.1 & L1.2 PCIe Speed Configure PCIe Speed. Auto / Gen1 / Gen2 / Gen3 Max Payload Size PCIE Max Payload Size Selection. MPL 128B / MPL 256B http://www.tyan.com...
  • Page 143 Configure SATA as Determines how SATA controller(s) operate. AHCI / RAID SATA Port 0/1/2/3/4/5/6/7 & Software Preserve Read Only Port 0 Enable or Disable SATA Port. Disabled / Enabled Hot Plug Designates this port as Hot Pluggable. Disabled / Enabled http://www.tyan.com...
  • Page 144 Hard Disk Drive / Solid State Drive SATA Topology Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2. Unknown / ISATA / Direct Connect / Flex / M2 5.4.1.3 PCH sSATA Configuration http://www.tyan.com...
  • Page 145 Identify the SATA port is connected to Solid State Drive or Hard disk Drive. Hard Disk Drive / Solid State Drive SATA Topology Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2. Unknown / ISATA / Direct Connect / Flex / M2 http://www.tyan.com...
  • Page 146 5.4.1.4 USB Configuration XHCI Idle L1 Enabled XHCI Idle L1. Disabled to workaround USB3 hot plug will fail after 1 hot plug removal. Please put the system to G3 for the new settings to take effect. Enabled / Disabled http://www.tyan.com...
  • Page 147 Enables/Disables ADR on Host Partition Reset Enabled / Disabled Enable/Disable ADR Timer Held-off for DEBUG PURPOSES ONLY! Enabled / Held-off ADR timer expire time Select proper ADR timer value: 25uS,50uS,100uS or 0. 25 uS / 50 uS / 100 uS / 0 uS http://www.tyan.com...
  • Page 148 Select proper ADR timer multiplier: x1,8,24,40,56,64,72,80,88,96. x1 / x8 / x24 / x40 / x56 / x64 / x72 / x80 / x88 /x96 5.4.2 Miscellaneous Configuration Active Video Select active video type. Auto / Onboard Device / Offboard Device http://www.tyan.com...
  • Page 149 5.4.3 Server ME Configuration Read only. http://www.tyan.com...

  • Page 150: Socket Configuration

    Displays and provides option to change the UPI Settings. Memory Configuration Displays and provides option to change the Memory Settings. IIO Configuration Displays and provides option to change the IIO Settings. Advanced Power Management Configuration Displays and provides option to change the Power Management Settings. http://www.tyan.com...
  • Page 151 CPUID functions. Disabled / Enabled Execute Disable Bit When disabled, forces the XD feature flag to always return 0. Disabled / Enabled Enable Intel® TXT Enables Intel® TXT. Disabled / Enabled Enables the Vanderpool Technology, takes effect after reboot. http://www.tyan.com...
  • Page 152 Lock or Unlock chipset. Disabled / Enabled Hardware Prefetcher MLC Streamer Prefetcher (MSR 1A4h Bit[0]). Enabled / Disabled Adjacent Cache Prefetch MLC Spatial Prefetcher (MSR 1A4h Bit[1]). Enabled / Disabled Extended APCI Enable/Disable extended APIC support. Disabled / Enabled http://www.tyan.com...
  • Page 153 Selects the allocation size used to assign mmioh resources. Total mmioh space can be up to 32xgranularity. Per stack mmioh resource assignments are multiples of the granularity where 1 unit per stack is the default allocation. 1G / 4G / 16G / 64G / 256G / 1024G http://www.tyan.com...
  • Page 154 Slow / Fast Link Frequency Select Allows for selecting the UPI Link Frequency. 9.6GB/s / 10.4GB/s / Auto / Use Per Link Setting Link L0p Enable Disabled / Enable / Auto Link L1 Enable Disabled / Enable / Auto http://www.tyan.com...
  • Page 155 5.5.3.1 UPI Status Read only http://www.tyan.com...
  • Page 156 Disable --- disables this feature. Auto --- Sets it to the MRC default setting; current default is Enable. Auto / POR / Disable Memory Frequency Maximum Memory Frequency Selections in Mhz. Do not select Reserved. Auto / 1866 / 2133 / 2400 / 2666 http://www.tyan.com...
  • Page 157 5.5.4.1 Memory Topology Read only. http://www.tyan.com...
  • Page 158 Partial mirror mode will enable the required size of memory to be mirrored. If rank sparing is enabled partial mirroring will not take effect. Mirror Enable will disable XPT Prefetch. Disabled / Partial Mirror mode 1LM / Partial Mirror mode 2LM Memory Rack Sparing Enable/Disable Memory Rank Sparing. Disabled / Enabled http://www.tyan.com...
  • Page 159 ADDDC Sparing Enable/Disable ADDDC Sparing. Disabled / Enabled Patrol Scrub Enable/Disable Patrol Scrub. Disabled / Enabled 5.5.5 IIO Configuration Intel® VT for Directed I/O (VT-d) Press <Enter> to bring up the Intel® VT for Directed I/O (VT-d) Configuration menu. http://www.tyan.com...
  • Page 160 Enable/Disable PCIe ACPI Hot Plug globally, or allow per-port control. When Disabled, MSI is generated on HP event. When Enabled, _HPGPE message is generated. Disabled / Enable / Per-Port PCIe Access Control Services Enable/Disable Access Control Services. Enable / Disabled http://www.tyan.com...
  • Page 161 Selects PCIe port Bifurcation for selected slot(s). x4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 / Auto Socket 0 PcieBr1D00F0 – Port 1A Settings related to PCI Express Ports (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A). Socket 0 PcieBr2D00F0 – Port 2A Settings related to PCI Express Ports (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A). http://www.tyan.com...
  • Page 162 In auto mode the BIOS will remove the EXP port if there is no device or errors on that device and the device is not HP capable. Disable is used to disable the port and hide its CFG space. Auto / Disabled / Enabled http://www.tyan.com...
  • Page 163 Auto / Gen 1 (2.5 GT/s) / Gen 2 (5 GT/s) / Gen 3 (8 GT/s) PCI-E ASPM Support This option enables/disables the ASPM (L1) support for the downstream devices. Auto / L1 Only / Disabled L0s Support When disabled, IIO never puts its transmitter in L0s state. Disabled / Enabled http://www.tyan.com...
  • Page 164 / x4x4x8 / x8x4x4 / x8x8 / x16 / Auto Socket 0 PcieBr1D00F0 – Port 1A Settings related to PCI Express Ports (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A). Socket 0 PcieBr2D00F0 – Port 2A Settings related to PCI Express Ports (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A). Socket 0 PcieBr3D00F0 – Port 3A http://www.tyan.com...
  • Page 165 Socket 0 PcieBr3D00F0 – Port 3D Settings related to PCI Express Ports (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A). Socket 0 PcieBr4D00F0 – MCP 0 Settings related to PCI Express Ports (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A). Socket 0 PcieBr5D00F0 – MCP 1 Settings related to PCI Express Ports (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A). http://www.tyan.com...
  • Page 166 This option disables the link so that the no training occurs but the CFG space is still active. Enabled / Disabled Link Speed Choose Link Speed for this PCIe port. Auto / Gen 1 (2.5 GT/s) / Gen 2 (5 GT/s) / Gen 3 (8 GT/s) http://www.tyan.com...
  • Page 167 Disabled / Enabled 5.5.5.3 Intel® VT for Directed I/O (VT-d) Intel® VT for Directed I/O (VT-d) Enable/Disable Intel® Virtualization Technology for Directed I/O (VT-d) by reporting the I/O device assignment to VMM through DMAR ACPI Tables. Enabled / Disabled http://www.tyan.com...
  • Page 168 5.5.5.4 Intel® VMD Technology http://www.tyan.com...
  • Page 169 Intel® VMD for Volume Management Device for PStack1 Enable/Disable Intel® Volume Management Device Technology in this Stack. Disabled / Enabled Intel® VMD for Volume Management Device for PStack2 Enable/Disable Intel® Volume Management Device Technology in this Stack. Disabled / Enabled http://www.tyan.com...
  • Page 170 Intel® VMD for Volume Management Device for PStack1 Enable/Disable Intel® Volume Management Device Technology in this Stack. Disabled / Enabled Intel® VMD for Volume Management Device for PStack2 Enable/Disable Intel® Volume Management Device Technology in this Stack. Disabled / Enabled http://www.tyan.com...
  • Page 171 P State Control Configuration Sub Menu, include Turbo, XE and ete. Hardware PM State Control Hardware P-State setting. CPU C State Control CPU C State setting. Package C State Control Package C State setting. CPU T State Control CPU T State setting. http://www.tyan.com...
  • Page 172 Max Performance / Max Efficient / Set by Intel Node Manager Energy Efficient Turbo Energy Efficient Turbo Disable, MSR 0x1FC [19]. Enabled / Disabled Turbo Mode Enable/Disable processor Turbo Mode (requires EMTTM enabled too). Disabled / Enabled CPU Flex Ratio Override Enable/Disable CPU Flex Ratio Programming. Disabled / Enabled http://www.tyan.com...
  • Page 173 Disable: Hardware chooses a P-state based on OS Request (Legacy P-States). Native Mode: Hardware chooses a P-state based on OS guidance. Out of Band Mode: Hardware autonomously chooses a P-state (no OS guidance). Disabled / Native Mode / Out of Band Mode / Native Mode with NO Legacy Support http://www.tyan.com...
  • Page 174 Enable/Disable CPU C6 (ACPI C3) report to OS. Disabled / Enabled / Auto Enhanced Halt State (C1E) Core C1E auto promotion Control. Takes effect after reboot. Disabled / Enabled OS ACPI Cx Report CC3/CC6 to OS ACPI C2 or ACPI C3. ACPI C2 / ACPI C3 http://www.tyan.com...
  • Page 175 3.5.5.5.4 Package C State Control Package C State Package C State limit. C0/C1 state / C2 state / C6 (non Retention) state / C6 (Retention) state / No Limit / Auto http://www.tyan.com...
  • Page 176 3.5.5.5.5 CPU T State Control Software Controlled T-States Enable/Disable Software Controlled T-States. Disabled / Enabled http://www.tyan.com...

  • Page 177: Server Management

    OS Watchdog Timer If enabled, starts a BIOS timer which can only be shut off by Management Software after the OS loads. Helps determine that the OS successfully loaded or follows the OS Boot Watchdog Timer policy. Enabled / Disabled http://www.tyan.com...
  • Page 178 Do Nothing / Reset / Power Down / Power Cycle BMC Logo Enable or Disable BMC Logo. Enabled / Disabled System Event Log Press <Enter> to change the SEL event log configuration. BMC network configuration Configure BMC network parameters. 5.6.1 System Event Log http://www.tyan.com...
  • Page 179 Choose options for reactions to a full SEL. Do Nothing / Erase Immediately Log EFI Status Codes Disable the logging of EFI Status Codes or log only error code or only progress code or both. Disabled / Both / Error Code / Progress Code http://www.tyan.com...
  • Page 180 BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. Unspecified / Static / DynamicBmcDhcp / DynamicBmcNonDhcp Management Port 2 Enable/Disable BMC Share Nic. Enabled / Disabled IPV6 Support Enable or Disable LAN1 IPV6 Support. Enabled / Disabled http://www.tyan.com...

  • Page 181: Security

    Security http://www.tyan.com...
  • Page 182 Disable means Hard Drive on Non-frozen mode. Enable means Hard Drive on Frozen mode. Disabled / Enabled 5.7.1 Secure Boot Attempt Secure Boot Secure boot activated when Platform Key (PK) is enrolled, System mode is User/Deployed, and CSM function is disabled. Disabled / Enabled http://www.tyan.com...
  • Page 183 Force System to User Mode – install all Factory Default Keys. Press “Yes” to install factory default keys. Enroll Efi Image Allow the image to run in Secure Boot mode. Enroll SHA256 has of the binary into Authorized signature Database (db). http://www.tyan.com...
  • Page 184 Key source: Default, External, Mixed, Test Set New / Append Forbidden Signatures Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 (bin) http://www.tyan.com...
  • Page 185 Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 (bin) 2. Authenticated UEFI Variable 3. EFI PE/C0FF Image (SHA256) Key source: Default, External, Mixed, Test Set New / Append http://www.tyan.com...

  • Page 186: Boot

    Quiet Boot Enable or disable Quiet Boot option. Disabled / Enabled Wait for ‘ESC’ If Error Wait for ‘ESC’ key to be pressed if error occurs. Disabled / Enabled Endless Boot Enable or disable Endless Boot. Disabled / Enabled http://www.tyan.com...
  • Page 187 Boot Option Priorities Boot Option #1 Select the first/second boot device. Device Name / Disabled http://www.tyan.com...
  • Page 188 5.8.1 Delete Boot Option Delete Boot Option Remove an EFI boot option from the boot order. Select one to delete / UEFI: Built-in EFI Shell http://www.tyan.com...

  • Page 189: Save & Exit

    Reset system setup without saving any changes. Save Changes Save changes done so far to any of the setup options. Discard Changes Discard changes done so far to any of the setup options. Restore Defaults Restore/Load Default values for all the setup options. http://www.tyan.com...

  • Page 190: Read Only

    Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Boot Override Read only http://www.tyan.com...

  • Page 191: Chapter 6: Diagnostics

    BIOS flash failure, you must contact your dealer for a replacement BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.

  • Page 192: Amibios Post Code (Aptio)

    Description 0x00 Note used Progress Codes 0x01 Power on. Reset type detection (soft/hard). 0x02 AP initialization before microcode loading 0x03 North Bridge initialization before microcode loading 0x04 South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading http://www.tyan.com...
  • Page 193 Pre-memory CPU initialization (CPU module specific) 0x15 Pre-memory North Bridge initialization is started Pre-Memory North Bridge initialization (North Bridge module 0x16 specific) Pre-memory North Bridge initialization (North Bridge module 0x17 specific) Pre-Memory North Bridge initialization (North Bridge module 0x18 specific) http://www.tyan.com...
  • Page 194 CPU post-memory initialization. System Management Mode 0x36 (SMM) initialization 0x37 Post-Memory North Bridge initialization is started. Post-Memory North Bridge initialization (North Bridge module 0x38 specific) Post-Memory North Bridge initialization (North Bridge module 0x39 specific) Post-Memory North Bridge initialization (North Bridge module 0x3A specific) http://www.tyan.com...
  • Page 195 Reset PPI is not available. 0x5C – 0x5F Reserved for future AMI error codes S3 Resume Progress Codes S3 Resume is started (S3 Resume PPI is called by the DXE 0xE0 IPL). 0xE1 S3 Boot Script execution 0xE2 Video repost http://www.tyan.com...
  • Page 196 Recovery capsule is not found. 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes PEI Beep Codes # of Beeps Description Progress Codes Memory not installed Memory was installed twice (installPEIMemory routine in PEI Core called twice). Recovery started http://www.tyan.com...
  • Page 197 North Bridge DXE initialization (North Bridge module specific) 0x6F North Bridge DXE initialization (North Bridge module specific) 0x70 South Bridge DXE initialization is started. 0x71 South Bridge DXE SMM initialization is started. 0x72 South Bridge devices initialization 0x73 South Bridge DXE initialization (South Bridge module http://www.tyan.com...
  • Page 198 Console output devices connect 0x98 Console Input devices connect 0x99 Super IO initialization 0x9A USB initialization is started. 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E -0x9F Reserved for future AMI codes 0xA0 IDE initialization is started http://www.tyan.com...
  • Page 199 PCI bus hot plug 0xB6 Clean-up of NVRAM 0xB7 Configuration Reset (reset of NVRAM settings) 0xB8 – 0xBF Reserved for future AMI codes 0xC0 – 0xCF OEM BDS initialization codes DXE Error Codes 0xD0 CPU initialization error 0xD1 North Bridge initialization error http://www.tyan.com...
  • Page 200 Platform PCI resource requirements cannot be met. ACPI/ASL Checkpoints Status Code Description 0x01 System is entering S1 sleep state. 0x02 System is entering S2 sleep state. 0x03 System is entering S3 sleep state. 0x04 System is entering S4 sleep state. http://www.tyan.com...
  • Page 201 System is waking up from the S3 sleep state. 0x40 System is waking up from the S4 sleep state. System has transitioned into ACPI mode. Interrupt controller 0xAC is in APIC mode. System has transitioned into ACPI mode. Interrupt controller 0xAA is in APIC mode. http://www.tyan.com...

  • Page 202: Appendix I: How To Recover Uefi Bios

    UEFI recovery bootloader that would prevent the recovery process itself from working. In no event shall Tyan be liable for direct, indirect, incidental, special or consequential damages arising from the BIOS update or recovery.
  • Page 203 “Flash update completed. Press any key to reset the system” displayed on screen. Remove the USB disk and reboot. If your system does not have video output or the POST code halts at “FF” on the right-lower portion of the screen, please contact Tyan representatives for RMA service. http://www.tyan.com...

  • Page 204: Appendix Iv: Fan And Temp Sensors

    The red spot indicates the sensor. Fan and Temp Sensor Location: Fan Sensor: It is located in the third pin of the fan connector, which detects the fan speed (rpm) Temp Sensor: refer to Figure 1: Sensor Location. They detect the system temperature around. http://www.tyan.com...
  • Page 205 BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 206 http://www.tyan.com...
  • Page 207 Temperature of GPU1 Core1 Slot GPU2_Core_ TEMP Temperature of GPU2 Core Slot GPU3_Core0_ TEMP Temperature of GPU3 Core0 Slot GPU3_Core1_ TEMP Temperature of GPU3 Core1 Slot GPU4_Core_ TEMP Temperature of GPU4 Core Slot GPU5_Core0_ TEMP Temperature of GPU5 Core0 Slot http://www.tyan.com...
  • Page 208 Temperature of GPU19 Core0 Slot GPU19_Core1_ TEMP Temperature of GPU19 Core1 Slot SYS_FAN_1 Fan speed of SYS_FAN_1 SYS_FAN_2 Fan speed of SYS_FAN_2 SYS_FAN_3 Fan speed of SYS_FAN_3 SYS_FAN_4 Fan speed of SYS_FAN_4 SYS_FAN_5 Fan speed of SYS_FAN_5 SYS_FAN_6 Fan speed of SYS_FAN_6 http://www.tyan.com...

  • Page 209: Appendix V: Cable Connection Tables

    M1717T65-USB to S7119 MB M1717T65-USB Connect to S7119 M/B → J3 & J4 USB3_FPIO1 4. VGA & COM port Cable Front BKT to S7119 MB Front BKT Connect to S7119 M/B → VGA Cable FPIO_VGA2 → COM port Cable HD_COM3 http://www.tyan.com...
  • Page 210 Mini-SAS HD Cable-3 → PCH PCH_SATA_4567 SATA8_11 (HDD BP1) 7. 2x4P PWR Cable M7119FA77-IO to S7119 MB M7119FA77-IO Connect to S7119 M/B → PW1 2x4P PWR Cable-1 PE_PW6 → PW2 2x4P PWR Cable-2 PE_PW9 → PW3 2x4P PWR Cable-3 PE_PW8 http://www.tyan.com...
  • Page 211 GPU PWR Cable-4 GPU4 PE_PW12 → GPU PWR Cable-5 GPU5 PE_PW15 → GPU PWR Cable-6 GPU6 PE_PW14 → GPU PWR Cable-7 GPU7 PE_PW11 → GPU PWR Cable-8 GPU8 PE_PW17 → GPU PWR Cable-9 GPU9 PE_PW18 → GPU PWR Cable-10 GPU10 PE_PW5 http://www.tyan.com...

  • Page 212: Appendix Vi: Fru Parts Table

    Appendix VI: FRU Parts Table FT83-B7119 FRU Parts Item Model Number Part Number Picture Description TF-AIR DUCT;SBU,AL,FOR Air Duct FRU-TA-0160 343T56800003 CPUHSK,_NCT,FT77D-B7109 FRU-CS-0510 422T53400005 700 mm,MINI-SAS HD CABLE FRU-CS-1140 422T51400005 750 mm,MINI-SAS HD CABLE FRU-CS-0540 422T52100002 850 mm,MINI-SAS HD CABLE...
  • Page 213 FRU-TF-HDD M1297T65-BP12E-12 5412T6100006 BP;SBU,FRU-BP-9270, Backplane FRU-BP-9270 M1297T65-BP12E-12,FT83-B7119 FRU OPTION KIT; GPU Card BKT; ME Parts FRU-SM-9150 GPU HDR ASM; for NVIDIA GPU; for 5412T6100005 FT83-B7119; RoHS 1600 W, CHICONY, Power FRU-PS-0310 471100000398 R18-1K6P1WAR1K6AS02P,1U Supply MODULE,REV.S0F Rack TF-SLIDE RAILKIT;SBU, Mounting FRU-AS-0170...

  • Page 214: Appendix Vii: Glossary

    CPU can manipulate data in a buffer before copying it to a disk drive. While this improves system performance (reading to or writing from a disk drive a single time is much faster than doing so repeatedly) there is the possibility of losing your data http://www.tyan.com...
  • Page 215 (like soundcards or keyboards) to access the main memory without involving the CPU. This frees up CPU resources for other tasks. As with IRQs, it is vital that you do not double up devices on a single line. Plug-n-Play devices will take care of this for you. http://www.tyan.com...
  • Page 216 ROM chip which can, unlike normal ROM, be updated. This allows you to keep ® ’s up with changes in the BIOS programs without having to buy a new chip. TYAN BIOS updates can be found at http://www.tyan.com ESCD (Extended System Configuration Data): a format for storing information about Plug-n-Play devices in the system BIOS.
  • Page 217 Plug-n-Play require you to reconfigure your system each time you add or change any part of your hardware. PXE (Preboot Execution Environment): one of four components that together make up the Wired for Management 2.0 baseline specification. PXE was http://www.tyan.com...
  • Page 218 Sleep/Suspend mode: in this mode, all devices except the CPU shut down. SDRAM (Static RAM): unlike DRAM, this type of RAM does not need to be refreshed in order to prevent data loss. Thus, it is faster and more expensive. http://www.tyan.com...
  • Page 219 CPUs without damaging the sensitive CPU pins. The CPU is lightly placed in an open ZIF socket, and a lever is pulled down. This shifts the processor over and down, guiding it into the board and locking it into place. http://www.tyan.com...

  • Page 220: Appendix Vii: Technical Support

    TYAN serves multiple market segments with the industry's most competitive services to support them. "TYAN's tech support is some of the most impressive we've seen, with great response time and exceptional organization in general" - Anandtech.com ® You can contact TYAN Technical Support by using our Online Support System: http://12.230.196.231/helpstar/hsPages/login.aspx?ReturnUrl=%2fhelpstar%2fhsP...
  • Page 221 Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping ® carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you ®...

Table of Contents

Save PDF
