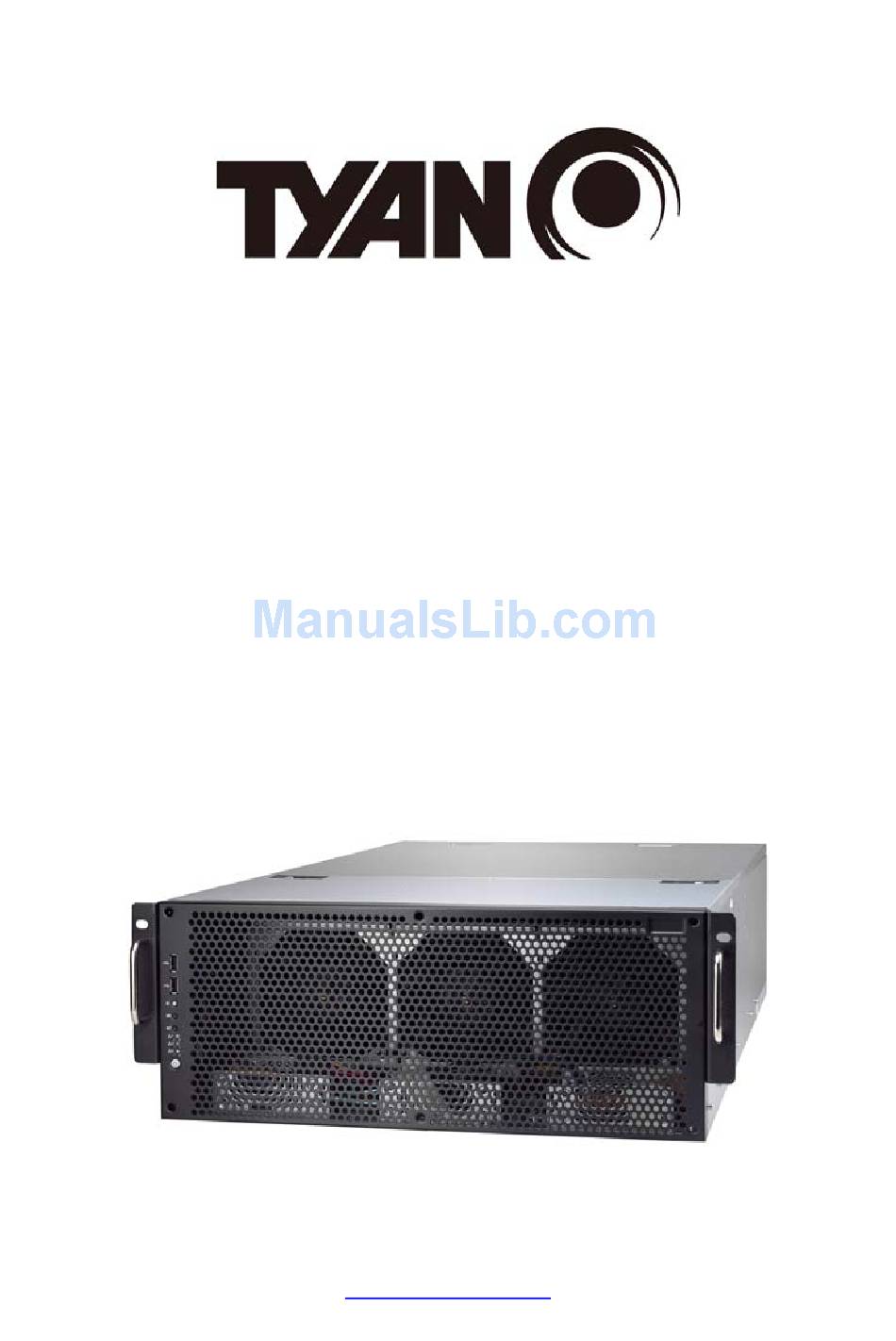

  • Page 1 FT77A-B7059 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 http://www.tyan.com...
  • Page 3 Neither this manual, nor any material contained herein, may be reproduced without written consent of manufacturer. ® Copyright 2013 MiTAC International Corporation. All rights reserved. TYAN a registered trademark of MiTAC International Corporation. Version 1.0a Disclaimer Information contained in this document is furnished by MiTAC International Corporation and has been reviewed for accuracy and reliability prior to printing.
  • Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...

  • Page 5: About This Manual

    About this Manual This manual is intended for experienced users and integrators with hardware knowledge of personal computers. It is aimed to provide you with instructions on installing your TYAN FT77A-B7059. How this guide is organized This guide contains the following parts:...

  • Page 6: Safety And Compliance Information

    Safety and Compliance Information Before installing and using TYAN FT77A-B7059, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Safety Information

    You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 8 · Make sure racks are coupled together if it is a multiple-rack installation. · Make sure the rack is level and stable before installing an appliance in the rack. · Make sure the leveling jacks are extended to the floor. http://www.tyan.com...
  • Page 9 If you do not ground the Green/Yellow tab, it can cause an electrical shock due to high leakage currents. · Do not place objects on AC power cords or cables. Arrange them so that no http://www.tyan.com...
  • Page 10 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – Liquid has been spilled on the product or an object has fallen into the product. – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...
  • Page 12 http://www.tyan.com...

  • Page 13: Table Of Contents

    Table of Contents Chapter 1: Overview............... 17 About the TYAN FT77A-B7059 ..........17 Product Models............... 17 Features.................. 18 Standard Parts List ..............22 1.4.1 Box Contents..............22 1.4.2 Accessories ..............22 About the Product..............23 1.5.1 System Front View............23 1.5.2...
  • Page 14 5.3.10 Info Report Configuration ..........109 5.3.11 Hardware Health Configuration........110 5.3.12 Super IO Configuration..........113 5.3.13 Serial Port Console Redirection ........115 Chipset Menu ............... 120 5.4.1 North Bridge ..............121 5.4.2 South Bridge..............128 5.4.3 WatchDog Timer Configuration ........129 http://www.tyan.com...
  • Page 15 Chapter 6: Diagnostics ..............139 Flash Utility ................139 AMIBIOS Post Code (Aptio) ..........140 Appendix I: Cable Connection Tables ........147 Appendix II: Fan and Temp Sensors .......... 149 Appendix III: FRU Parts Table ............. 155 Appendix IV: Technical Support ..........157 http://www.tyan.com...
  • Page 16 NOTE http://www.tyan.com...

  • Page 17: Chapter 1: Overview

    ® TYAN also offers the FT77A-B7059 in a version that can support up to six 2.5” fixed hard drives. The FT77A-B7059 uses TYAN’s latest chassis featuring a robust structure and a solid mechanical enclosure. All of this provides FT77A-B7059 the power and flexibility to meet the needs of nowadays server application.

  • Page 18: Features

    Features TYAN FT77AB7059 (B7059F77AV6R-2T) Form Factor 4U Rackmount Gross Weight 35 kg Chassis Model FT77A System Dimension (D x W x 30.31" x 17.24" x 6.93" (770 x 438 x 176mm) Motherboard S7059GM2NR-2T Buttons (1) RST / (1) ID / (1) PWR w/ LED...
  • Page 19 M7059F77-QDR-2, Dual QSFP IB mezzanie card Recommended (40Gb/s) / M7059F77-FDR-2, Dual QSFP IB TYAN Riser Card mezzanie card (56Gb/s) Port Q'ty (2) 10GbE ports (1 port shared with IPMI) Controller Intel X540-AT2 (1) Mini-SAS (4-ports) + (2) SATA (totally support 6...
  • Page 20 Contains Manual (1) Quick Installation Guide Installation CD (1) TYAN installation CD Cable Others (1) via a dongle cable TYAN FT77AB7059 (B7059F77AV6R) Form Factor 4U Rackmount Gross Weight 35 kg Chassis Model FT77A System Dimension (D x W x 30.31" x 17.24" x 6.93" (770 x 438 x 176mm)
  • Page 21 (1) PCI 32-bit slot M7059F77-QDR-2, Dual QSFP IB mezzanie card Recommended (40Gb/s) / M7059F77-FDR-2, Dual QSFP IB TYAN Riser Card mezzanie card (56Gb/s) Port Q'ty (2) GbE ports (1 port shared with IPMI) Controller Intel I350-BT2 (1) Mini-SAS (4-ports) + (2) SATA (totally support 6...

  • Page 22: Standard Parts List

    Cable Others (1) via a dongle cable Standard Parts List This section describes FT77A-B7059 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1...

  • Page 23: About The Product

    About the Product The following views show you the product. 1.5.1 System Front View http://www.tyan.com...
  • Page 24 ＊Warning LED Indication for 2+1 PSU Redundancy System Status System Warning LED All PSU present and plug AC cord when system power on One of PSU AC lose Amber solid on One of PSU not present Amber solid on http://www.tyan.com...

  • Page 25: System Rear View

    1.5.2 System Rear View Description Power Supply PCIE x8 Slot for Mezzanine Card (optional) ID LED Button VGA/USB Port via a dongle cable LAN2 LAN1 ID LED Expansion Slots http://www.tyan.com...
  • Page 26 When i350 LAN chip is on, LAN1 and LAN2 can support 10Mbps~1Gbps. When X540 LAN chip is on, LAN1 and LAN2 can support up to 100Mbps~10Gbps. Peripheral devices can be plugged straight into any of these ports but software may be required to complete the installation. http://www.tyan.com...

  • Page 27: System Top View

    1.5.3 System Top View Description M1008 Front Panel LED Control Board Three 2.5” dual HDD Brackets System Fans M7059F77-D-PDB Power Distribution Board M7059F77-D-PBP Power Backplane Board Power Supply Cage NOTE: The system is pre-installed with S7059 motherboard. http://www.tyan.com...
  • Page 28 NOTE http://www.tyan.com...

  • Page 29: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 30: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to FT77A-B7059 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 31: Installing Motherboard Components

    CPUs, memory modules, HDD and PCI-E cards. 2.1.1 Removing the Chassis Cover and Air Duct Follow these instructions to remove the FT77A-B7059 chassis cover. Loosen the thumb screws. Slide the top cover off. Unscrew the top cover and release the latches to remove the top cover from the chassis.
  • Page 32 Unscrew to remove the air duct. http://www.tyan.com...

  • Page 33: Installing The Cpu And Heatsink

    Follow the steps below on installing CPUs and CPU heatsinks. Locate the CPU socket. Pull the lever slightly away from the socket and then push it to a fully open position. Push the CPU socket cover to a fully open position. http://www.tyan.com...
  • Page 34 Take out the protection cap when installing the CPU. Place the CPU into the socket and make sure that the gold arrow is located in the right direction. Close the CPU socket cover and press the lever down to secure the CPU. http://www.tyan.com...
  • Page 35 Position the heatsink on top of the CPU and secure it with 4 screws. Repeat the procedures mentioned earlier to install the second CPU and heatsink. http://www.tyan.com...

  • Page 36: Installing The Memory

    Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. Follow the recommended memory population table to install the other memory modules. http://www.tyan.com...

  • Page 37: Installing The Expansion Cards

    2.1.4 Installing the Expansion Cards FT77A-B7059 has fourteen expansion slots. Only the PCI-E Gen.3 x16 Slots can support GPU (Graphic Processing Unit) cards. One PCI-E Gen3 x8 Slot is reserved for Mezzanine card. PCI-E Gen3 x8 slot (x8 link) PCI-E Gen3 x16 slot (x16 link)
  • Page 38 Connect the cables between the expansion card and the power distribution board, the connectors you use should match with the slot you add the card with. The installation of the GPU card is now complete. http://www.tyan.com...

  • Page 39: Installing The Mezzanine Card

    Locate the PCI-E Gen3 x8 slot reserved for the Mezzanine card. Push the latches inwards to remove the PCI dummy bracket. Prepare a Mezzanine card (M7059F77-FDR) associated with tray and insert the tray into the slot. The installation of the Mezzanine card is completed. http://www.tyan.com...

  • Page 40: Installing Hard Drives

    The FT77A-B7059 can support either (6) 2.5” or (2) 3.5” hard drives. 2.5” Hard Disk Drive The FT77A-B7059 supports up to six internal 2.5” SATAII hard drives. Each bracket could be installed with two hard drives. Follow these instructions to install a hard drive.
  • Page 41 3.5” Hard Disk Drive The FT77A-B7059 can support up to two internal 3.5” SATAII hard drives. Follow these instructions to install a hard drive. Unscrew the 2.5’’ bracket and lift it up from the chassis. Place a 3.5’’ hard drive into the 3.5”...

  • Page 42: Installing The Server In A Rack

    Rack Mounting After installing the necessary components, FT77A-B7059 can be mounted in a rack using the supplied rack mounting kit. Rack Mount Kit Rail with Bracket x 2  Mounting Ears x 2  Screw Sack x 1  Screw Sack...

  • Page 43: Installing The Inner Rails To The Chassis

    Screw the mounting ear to each side of FT77A as shown using 3 screws from the supplied screws kit. Push the latch key and draw out the inner rails from sliding rails. Secure inner rails to both sides of the chassis, be sure the five mounting holes are correctly matched. http://www.tyan.com...

  • Page 44: Installing The Outer Rails To The Rack

    M5 x 10 screws with washer for each side. 2.2.4 Rack mounting the Server Draw out the middle rail till the latch position. Lift the chassis and then insert the inner slide rails into the middle rails. http://www.tyan.com...
  • Page 45 Secure the mounting ears of chassis to the rack with two M5 x 13 screws. Note: To avoid injury, it is strongly recommended that two people lift the TYAN FT77A-B7059 into the place while a third person screws it to the rack. http://www.tyan.com...
  • Page 46 NOTE http://www.tyan.com...

  • Page 47: Chapter 3: Replacing Pre-Installed Components

    Front Panel LED Control Board, M1809F77A-FB Board, M2210-L8-1F Riser Card, M7059F77-FDR Mezzanine Card, M1257F65-BP Backplane Board, M7059F77-D-PBP Power Backplane Board, M7059F77-D-PDB Power Distribution Board, System Fan and Power Supply etc. 3.0.2 Disassembly Flowchart The following flowchart outlines the disassembly procedures. http://www.tyan.com...

  • Page 48: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow Section 2.1.1 Removing the Chassis Cover (page 31) to remove the cover of the FT77A-B7059. Replacing the Power Supply The system has three pre-installed Power Supply Units. Please unplug the power cord before you follow these instructions to replace the power supply units.

  • Page 49: Replacing The Power Backplane Board

    Make sure to take out three power supply units. Remove the M7059F77-D-PBP bracket. Unscrew the M7059F77-D-PBP from the bracket and replace with a new one. Follow the steps described earlier in reverse order to reinstall the power backplane board. http://www.tyan.com...

  • Page 50: Power Backplane Board Features

    3.3.1 Power Backplane Board Features Form Factor W80 x L145 (mm), 8-layer PCB Input: (3) Power Connector for GPU Output: Connectors (1) 24S+6P R/A Connector for Motherboard (1) 24S+6P Connector for M7059F77-D-PDB (1) 2x4-pin ATX Power Connector http://www.tyan.com...

  • Page 51: Pin Definitions

    J2: 2×4-Pin ATX Power Connector for FAN Board, the max current is 30A Definition Definition +12V +12V +12V +12V J3 ~ J18: 2×4-Pin ATX Power Connector for GPU, the max current is 20A Definition Definition +12V +12V +12V +12V http://www.tyan.com...

  • Page 52: Replacing The Riser Card

    Replacing the Riser Card Follow these instructions to replace the M2210-L8-1F Riser Card. Unscrew the power supply cage. Lift out the power supply cage. http://www.tyan.com...
  • Page 53 Unscrew the riser card bracket from the chassis. Take out the riser card bracket. Unscrew to replace with a new riser card. Reinstall the riser card into the chassis following the steps in reverse. http://www.tyan.com...

  • Page 54: Riser Card Features

    3.4.1 Riser Card Features Form Factor W31.85 x L94 (mm), 4-layer PCB Specifications (1) PCI-E Gen3 x8 Slot for non-standard add-on card http://www.tyan.com...

  • Page 55: Replacing The Power Distribution Board

    Follow these instructions to replace the M7059F77-D-PDB Power Distribution Board. Unscrew the M7059F77-D-PDB and disconnect the 8-pin power cable. Remove the power distribution board for replacement. Follow the steps described earlier in reverse order to reinstall the power distribution board into the chassis. http://www.tyan.com...

  • Page 56: Power Distribution Board Features

    3.5.1 Power Distribution Board Features Form Factor W66.93 x L394 (mm), 8-layer PCB Input: (1) 24S+6P Connector Connectors Output: (1) 2x4-pin Power Connector for Fan Board (16) 2x4-pin Power Connector for GPU http://www.tyan.com...

  • Page 57: Pin Definitions

    J2: 2×4-Pin ATX Power Connector for FAN Board, the max current is 30A Definition Definition +12V +12V +12V +12V J3 ~ J18: 2×4-Pin ATX Power Connector for GPU, the max current is 20A Definition Definition +12V +12V +12V +12V http://www.tyan.com...

  • Page 58: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace the system fans. Remove the power distribution board bracket. Pull out all fans. Disconnect all cables attached to the M1809F77A-FB Fan Board. http://www.tyan.com...
  • Page 59 Unscrew the fan cage. Lift out the fan cage from the chassis. Unscrew to replace the fan board with a new one. Follow the steps described earlier in reverse order to reinstall the fans and fan cage into the chassis. http://www.tyan.com...

  • Page 60: Fan Board Features

    3.6.1 Fan Board Features Form Factor W81.4 x L312.28 (mm), 4-layer PCB (4) 1x4P ATX Power Connector for Fan Specifications (6) 2x2-pin Power Connector (1) 2x10-pin System Fan Connector for Motherboard FAN Sequence http://www.tyan.com...

  • Page 61: Pin Definitions

    Tachometer Input7 Tachometer Input3 Tachometer Input8 Tachometer Input4 Tachometer Input9 Tachometer Input5 Tachometer Input10 PWM Output2 PWM Output1 Tachometer Input11 SMB Data Tachometer Input12 SMB Clock 3.3V Standby PWM Output3 J7/J9/J10/J11: 1×4-Pin ATX Power Connector for Fan Definition Definition +12V http://www.tyan.com...

  • Page 62: Replacing The Front Panel Board

    Follow these instructions to replace the M1008 Front Panel LED Control Board. Disconnect both cables and unscrew the front panel board. Prepare a new one to replace. Follow the procedure described earlier in reverse order to reinsert the front panel board into the chassis. http://www.tyan.com...

  • Page 63: Front Panel Board Features

    Power ON: Power LED solid green on  Specifications Power Standby: Power LED blinking green)  Support dual USB Ports Power LED, HDD LED, ID LED, 3 LAN LEDs & BMC LED (1) 2x15-pin Header for SSI FP (Pitch 2.54) http://www.tyan.com...

  • Page 64: Pin Definitions

    3.7.2 Pin Definitions J1: USB Header Definition Definition USB1- USB2- USB1+ USB2+ J3: New SSI FP Definition Definition PW_LED+ ID_LED+ PW_LED- ID_LED- HDD_LED+ HDD_LED- PWR_SW- RESET- ID_SW- TEMP_SENSOR NMI_SW LAN3_LED+ http://www.tyan.com...

  • Page 65: Replacing The Motherboard

    Replacing the Motherboard Follow these instructions to replace the motherboard. Unscrew the power distribution board bracket. Take out the power distribution board bracket. http://www.tyan.com...
  • Page 66 Disconnect all cables. Unscrew the motherboard to lift it out. Replace the motherboard and follow the procedures described earlier in reverse order to reinstall. http://www.tyan.com...

  • Page 67: Chapter 4: Motherboard Information

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 68: Board Image

    #3 and #4 are sourced from SATA #2 and #3, running at SATA 3Gb/s. SATA #4~ #5 (AHCI, SATA 3Gb/s) use standard SATA connectors (marked with yellow). SATA #0 ~ #3 (SCU#0, SATA 3Gb/s) use horizontal mini SAS connector (marked with red but de-populated) http://www.tyan.com...

  • Page 69: Block Diagram

    Block Diagram S7059 Block Diagram http://www.tyan.com...

  • Page 70: Motherboard Mechanical Drawing

    Motherboard Mechanical Drawing http://www.tyan.com...

  • Page 71: Board Parts, Jumpers And Connectors

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...
  • Page 72 ME Firmware Update Jumper JP16 GPU and MIC Card Select Jumper 4-pin HDD Power Connector SW1 / LED1 ID LED Button / ID LED Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...
  • Page 73 http://www.tyan.com...
  • Page 74 J60: Front Panel Header Signal Signal PWRLED+ FP Power(3.3V standby) ID_LED+ PWRLED-(GND) ID_LED-(GND) HD_LED+ Fault LED1- HD_LED- Fault LED2- Power Switch+ LAN1_ACTIVE_LED+ Power Switch-(GND) LAN1_ACTIVE_LED- Reset Switch+ SMB_DATA Reset Switch-(GND) SMB_CLK ID Switch+ INTRUDER# TEMP Sensor LAN2_ACTIVE_LED+ NMI Switch# LAN2_ACTIVE_LED - http://www.tyan.com...
  • Page 75 JP16 http://www.tyan.com...
  • Page 76 Tachometer input11 SMB DATA Tachometer input12 SMB CLK 3.3V Standby PWM output3 J31: IPMB Connector Signal Signal SMB_SDA2 SMB_SCL2 JP16: GPU and MIC Card Select Jumper Pin 1-2 Closed: nVIDIA GPU Card (Default) Pin 2-3 Closed: Intel MIC Card http://www.tyan.com...
  • Page 77 LED1 J56/J57 J58/J59 http://www.tyan.com...
  • Page 78 System identified System not identified NOTE: The ID LED can be activated remotely using IPMI. http://www.tyan.com Please visit the TYAN Web Site at to download the latest IPMI Configuration Guide for more details. J58/J59: Vertical Type-A USB Connector Signal USB 5V Power...
  • Page 79 JP5/JP6/JP7 http://www.tyan.com...
  • Page 80 5. Reconnect power connectors to the motherboard and power on system. Clear CMOS JP6: BIOS Recovery Mode Jumper Pin 1-2 Closed: Normal (Default) Pin 2-3 Closed: Recovery CMOS JP7: ME Firmware Update Jumper Pin 1-2 Closed: Open (Default) Pin 2-3 Closed: ME Force Update http://www.tyan.com...

  • Page 81: Thermal Interface Material

    CPU lid (applying too much will actually reduce the cooling). NOTE: Always check with the manufacturer of the heat sink & processor to ensure that the thermal interface material is compatible with the processor and meets the manufacturer’s warranty requirements. http://www.tyan.com...

  • Page 82: Tips On Installing Motherboard In Chassis

    Be especially careful to look for extra stand-offs. If there are any stand-offs present that are not aligned with a mounting hole on the motherboard, it will likely short components on the back of the motherboard when installed. This will cause malfunction and/or damage to your motherboard. http://www.tyan.com...
  • Page 83 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MiTAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...

  • Page 84: Installing The Memory

    Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard. The following pictures show common types of DDR3 memory modules.
  • Page 85 4. Dual-rank DIMMs are recommended over single-rank DIMMs. 5. Un-buffered DIMM can offer slightly better performance than registered DIMM if populating only a single DIMM per channel. 6. Always install with CPU0 Socket and DIMM_0 Slot first, following the alphabetical order. http://www.tyan.com...
  • Page 86 CPU1_DIMM_A1 √ CPU1_DIMM_A2 √ √ √ √ √ √ √ √ CPU1_DIMM_B0 √ √ CPU1_DIMM_B1 √ CPU1_DIMM_B2 √ √ √ √ √ √ CPU1_DIMM_C0 √ √ CPU1_DIMM_C1 √ CPU1_DIMM_C2 √ √ √ √ CPU1_DIMM_D0 √ √ CPU1_DIMM_D1 √ CPU1_DIMM_D2 http://www.tyan.com...
  • Page 87 The speeds are estimated targets and will be verified through simulation.  For 3SPC/3DPC -Rank Multiplication (RM) >= 2.  DDP -Dual Die Package DRAM stacking. P –Planer monolithic DRAM Die.  Romley-EP/EX platform does not support 3DPC when using E5-2400 LRDIMMs. http://www.tyan.com...
  • Page 88 Command Address Timing is 1N.  QR RDIMM are supported but not validated by Intel/PMO in a homogenous environment. The coverage will have limited system level testing, no signal integrity testing, and no interoperability testing. The passing QR RDIMMs will be web posted. http://www.tyan.com...

  • Page 89: Finishing Up

    In the rare circumstance that you have experienced difficulty, you can find help by asking your vendor for assistance. If they are not available for assistance, please find setup information and documentation online at our website or by calling your vendor’s support line. http://www.tyan.com...
  • Page 90 NOTE http://www.tyan.com...

  • Page 91: Chapter 5: Bios Setup

    The table below shows how to navigate in the setup program using the keyboard. Function Left/Right Arrow Keys Change from one menu to the next Up/Down Arrow Keys Move between selections Enter Open highlighted section PgUp/PgDn Keys Change pages Change options Exit http://www.tyan.com...

  • Page 92: Getting Help

    The following pages provide the details of BIOS menu. Please be noticed that the BIOS menu are continually changing due to the BIOS updating. The BIOS menu provided are the most updated ones when this manual is written. Please visit TYAN’s website at http://www.tyan.com for the information of BIOS updating.

  • Page 93: Main Menu

    It displays BIOS related information. Memory Information This displays the total memory size. System Date Adjust the system date. MM (Months): DD (Days): YYYY (Years) System Time Adjust the system clock. HH (24 hours format): MM (Minutes): SS (Seconds) Access Level Read only. http://www.tyan.com...

  • Page 94: Advanced Menu

    This section facilitates configuring advanced BIOS options for your system. PCI Subsystem Settings PCI, PCI-X and PCI Express Settings. ACPI Settings System ACPI Parameters. CPU Configuration CPU Configuration Parameters. Runtime Error Logging Runtime Error Logging Support Setup Options SATA Configuration SATA Devices Configuration. SAS Configuration SAS Devices Configuration. http://www.tyan.com...
  • Page 95 Onboard Device Configuration Onboard Device Configuration. PCIe Slot Configuration PCIe Slot Configuration. USB Configuration USB Configuration Parameters. Hardware Health Configuration Hardware health Configuration Parameters. Super IO Configuration System Super IO Chip Parameters. Serial Port Console Redirection Serial Port Console Redirection. http://www.tyan.com...

  • Page 96: Pci Subsystem Settings

    Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding). Disabled / Enabled Single Root I/O Virtualization Enable or disable Single Root I/O Virtualization. Enabled / Disabled http://www.tyan.com...

  • Page 97: Acpi Settings

    Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. Both S1 and S3 available for OS to choose from / S1 only (CPU Stop Clock) / S3 only (Suspend to RAM) / Suspend Disabled http://www.tyan.com...

  • Page 98: Cpu Configuration

    Enabled / Disabled Active Processor Cores Number of cores to enable in each processor package. All / 1 / 2 / 3 / 4 / 5 / 6 / 7 Limit CPUID Maximum Disabled for Windows XP. Disabled / Enabled http://www.tyan.com...
  • Page 99 Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. NOTE: Once the lock bit is set, the contents of this register can not be modified until S5 reset occurs. Enabled / Disabled http://www.tyan.com...
  • Page 100 5.3.3.1 Socket 0/1 CPU Information Read only. http://www.tyan.com...
  • Page 101 Custom / Disabled / Energy Efficient EIST Enable/Disable Intel StepSpeed. Disabled / Enabled Turbo Mode Enable/Disable Turbo Mode. Enabled / Disabled P-STATE Coordination Change P-State coordination type. HW_ALL / Disabled CPU C3 Report Enable/Disable CPU C3 (ACPI C2) report to OS. Disabled / Enabled http://www.tyan.com...
  • Page 102 Long duration power limit in Watts. Factory Long Duration Maintained Read only. Long Duration Maintained Time window which the long duration power is maintained. Recommended short duration power limit Read only. Short duration power limit Short duration power limit in Watts. http://www.tyan.com...

  • Page 103: Runtime Error Logging

    5.3.4 Runtime Error Logging Runtime Error Logging Support Enable/Disable Runtime Error Logging Support. Disabled / Enabled http://www.tyan.com...

  • Page 104: Sata Configuration

    Port 0 / 1 / 2 / 3 / 4 / 5 Hot Plug Enable/Disable SATA Ports Hot Plug Support. Enabled / Disabled Port 0 / 1 / 2 / 3 / 4 / 5 Staggered Spin-up AHCI Supports Staggered Spin-up. Disabled / Enabled http://www.tyan.com...

  • Page 105: Sas Configuration

    5.3.6 SAS Configuration Read only. NOTE: You can press [CTRL_I] to set the RAID function while the RAID Card OPROM is loading. http://www.tyan.com...

  • Page 106: Onboard Device Configuration

    The BIOS will automatically read the onboard LAN controller. LAN1 OPROM Enabled/Disabled the LAN Option ROM in the Chipset. Disabled / PXE / ISCSI NOTE: The ISCSI function is only supported in LAN1. LAN2 OPROM Enabled/Disabled the LAN Option ROM in the Chipset. Disabled / PXE http://www.tyan.com...

  • Page 107: Pcie Slot Configuration

    5.3.8 PCIe Slot Configuration PCIe #1/2/3/A/B/C OPTROM Enabled/Disabled OPTROM for PCIe slot. Enabled / Disabled http://www.tyan.com...

  • Page 108: Usb Configuration

    Maximum time the device will take before it properly reports itself to the Host Controller. AUTO uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Auto / Manual http://www.tyan.com...

  • Page 109: 5.3.10 Info Report Configuration

    0 / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / Until Press ESC Info Error Message Info Error Message Support enabled/disabled. Disabled / Enabled Summary Screen Summary Screen Support enabled/disabled. Disabled / Enabled http://www.tyan.com...

  • Page 110: 5.3.11 Hardware Health Configuration

    Disabled / Enabled BMC Alert Beep BMC Alert Beep On/Off. On / Off 5.3.9.1 Sensor Data Register Monitoring When you enter the Sensor Data Register Monitoring submenu, you will see the following dialog window pop out. Please wait 8~10 seconds. http://www.tyan.com...
  • Page 111 http://www.tyan.com...
  • Page 112 NOTE: SDR can not be modified. Read only. http://www.tyan.com...

  • Page 113: 5.3.12 Super Io Configuration

    5.3.12 Super IO Configuration Super IO Chip Read only. http://www.tyan.com...
  • Page 114 / IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Change Settings SUART clock source. 24MHZ/13 / 24MHz http://www.tyan.com...

  • Page 115: 5.3.13 Serial Port Console Redirection

    Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. NOTE: Console Redirection Settings submenu appears when Console Redirection is set to [Enabled]. http://www.tyan.com...
  • Page 116 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 117 Disabled / Enabled Legacy OS Redirection Resolution On Legacy OS, the number of rows and columns supported redirection. 80x24 / 80x25 Putty KeyPad Select FunctionKey and KeyPad on Putty. VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 http://www.tyan.com...
  • Page 118 VT-UTF8 / VT100 / VT100+ / ANSI Bits per Second Select serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds. 115200 / 9600 / 19200 / 38400 / 57600 http://www.tyan.com...
  • Page 119 ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. None / Hardware RTS/CTS Data Bits / Parity / Stop Bits Read only. http://www.tyan.com...

  • Page 120: Chipset Menu

    Chipset Menu North Bridge North Bridge Parameters. South Bridge South Bridge Parameters. WatchDog Timer Configuration WatchDog Timer Configuration. http://www.tyan.com...

  • Page 121: North Bridge

    Enabled / Disabled MPST Support Enable or Disable MPST Support. Along with enabling MPST Support, it also requires NUMA to be enabled and Channel Interleaving to be set to 1-way for MPST tables to be published. Disabled / Enabled http://www.tyan.com...
  • Page 122 DDR Speed Force DDR Speed. Auto / Force DDR3 800 / Force DDR3 1066 / Force DDR3 1333 / Force DDR3 1600 http://www.tyan.com...
  • Page 123 With Manual option user can force the PCI resource allocation across multiple IOHs based on the ratios selected. Auto / Manual MMIOH Size Select number of 1GB contiguous regions to be assigned MMIOH space per CPU. 64G / 1G / 2G / 4G / 8G / 16G / 32G / 128G http://www.tyan.com...
  • Page 124 MMCFG Base Select the MMCFG BASE Values. 0x80000000 / 0xA0000000 / 0xC0000000 http://www.tyan.com...
  • Page 125 Disabled / Enabled ® NOTE: The following items will appear when Intel VT-d is set to [Enabled]. Coherency Support Enable/Disable VT-d Engine Coherency Support. Disabled / Enabled ATS Support Enable/Disable VT-d Engine Address Translation Services support. Enabled / Disabled http://www.tyan.com...
  • Page 126 Read only. QPI Link Speed Mode Select the QPI link speed as either the Fast Mode or the Slow Mode. Fast / Slow QPI Link Frequency Select Select the QPI Link Frequency. Auto / 6.4GT/s / 7.2GT/s / 8.0GT/s http://www.tyan.com...
  • Page 127 5.4.1.3 DIMM Information Read only. http://www.tyan.com...

  • Page 128: South Bridge

    Power Off / Power On / Last State SLP_S4 Assertion Stretch Enable Enabled/Disabled SLP_S4# Assertion Stretch. Enabled / Disabled SLP_S4 Assertion Width Select a minimum assertion width of the SLP_S4# signal. 4-5 Seconds / 1-2 Seconds / 2-3 Seconds / 3-4 Seconds http://www.tyan.com...

  • Page 129: Watchdog Timer Configuration

    Disabled / POST / OS / PowerOn NOTE: Watch Dog Timer will not appear when Watch Dog Mode is set to [Disabled]. Watch Dog Timer Watch Dog Timer Help. 2 MINS / 4 MINS / 6 MINS / 8 MINS / 10 MINS http://www.tyan.com...

  • Page 130: Boot

    Select display mode for Option ROM. Force BIOS / Keep Current INT19 Trap Response BIOS reaction on INT19 trapping by Option ROM: Immediate --- execute the trap right away; Postponed --- execute the trap during the legacy boot. Immediate / Postponed http://www.tyan.com...
  • Page 131 Endless Boot Enable or disable Endless Boot. Disabled / Enabled Boot Option #1 Select the first boot device. Device Name / Disabled http://www.tyan.com...

  • Page 132: Security

    Confirm New Password window will pop out to ask for confirmation. User Password Set user password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation. http://www.tyan.com...

  • Page 133: Server Management

    Server Management Press <Enter> to change the SEL event log configuration. Enable/Disable interfaces to communicate with BMC. http://www.tyan.com...

  • Page 134: System Event Log

    Choose options for reactions to a full SEL. Do Nothing / Erase Immediately Log EFI Status Codes Disable the logging of EFI Status Codes or log only error code or only progress code or both. Both / Disabled / Error Code / Progress Code http://www.tyan.com...

  • Page 135: Bmc Network Configuration

    BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. Unspecified / Static / Dynamic-Obtained by BMC Station IP Address / Subnet Mask / Station MAC Address / Router IP Address / Router MAC Address Read only. http://www.tyan.com...

  • Page 136: Event Logs

    Event Logs Read only. http://www.tyan.com...

  • Page 137: Save & Exit

    Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Save Options Read only. Save Changes Save changes done so far to any of the setup options. http://www.tyan.com...
  • Page 138 Restore Defaults Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Boot Override Read only. http://www.tyan.com...

  • Page 139: Chapter 6: Diagnostics

    BIOS flash failure, you must contact your dealer for a replacement BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.

  • Page 140: Amibios Post Code (Aptio)

    South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading 0x06 Microcode loading 0x07 AP initialization after microcode loading 0x08 North Bridge initialization after microcode loading 0x09 South Bridge initialization after microcode loading 0x0A OEM initialization after microcode loading 0x0B Cache initialization http://www.tyan.com...
  • Page 141 CPU post-memory initialization is started. 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection 0x36 CPU post-memory initialization. System Management Mode(SMM) initialization 0x37 Post-Memory North Bridge initialization is started. http://www.tyan.com...
  • Page 142 Reserved for future AMI progress codes S3 Resume Error Codes 0xE8 S3 Resume failed 0xE9 S3 Resume PPI not found 0xEA S3 Resume Boot Script error 0xEB S3 OS wake error 0xEC – 0xEF Reserved for future AMI error codes http://www.tyan.com...
  • Page 143 CPU DXE initialization (CPU module specific) 0x67 CPU DXE initialization (CPU module specific) 0x68 PCI host bridge initialization 0x69 North Bridge DXE initialization is started. 0x6A North Bridge DXE SMM initialization is started. 0x6B North Bridge DXE initialization (North Bridge module specific) http://www.tyan.com...
  • Page 144 USB initialization is started. 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E -0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started. http://www.tyan.com...
  • Page 145 No Console Output Devices are found. 0xD7 No Console Input Devices are found. 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error). 0xDB Flash update is failed. 0xDC Reset protocol is not available. http://www.tyan.com...
  • Page 146 System is waking up from the S3 sleep state. 0x40 System is waking up from the S4 sleep state. 0xAC System has transitioned into ACPI mode. Interrupt controller is in APIC mode. 0xAA System has transitioned into ACPI mode. Interrupt controller is in APIC mode. http://www.tyan.com...

  • Page 147: Appendix I: Cable Connection Tables

    M1008 FP board Connect to S7059 M/B → → 4. SATA PWR & Mini-SAS & SATA Cable S7059 M/B to HDD device S7059 Connect to HDD device → HDD1 → HDD2 → HDD3 → HDD4 → HDD5 → HDD6 → HDD1~HDD6 http://www.tyan.com...
  • Page 148 J17 or J18 GPU1 → J15 or J16 GPU2 → J13 or J14 GPU3 → J11 or J12 GPU4 → J9 or J10 GPU5 → J7 or J8 GPU6 → J5 or J6 GPU7 → J3 or J4 GPU8 http://www.tyan.com...

  • Page 149: Appendix Ii: Fan And Temp Sensors

    Appendix II: Fan and Temp Sensors This section aims to help readers identify the locations of some specific FAN and Temp Sensors on the motherboard and inside the chassis. A table of BIOS Temp sensor name explanation is also included for readers’ reference. http://www.tyan.com...
  • Page 150 (rpm) Temp Sensor: M-Card_Area_Temp, LAN_Area_Temp and M/B_Inlet_Temp. They detect the system temperature around. NOTE: The system temperature is measured in a scale defined by Intel, not in Fahrenheit or Celsius. BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 151 http://www.tyan.com...
  • Page 152 Temperature of CPU1 DIMM D2 Slot GPU0_Core0 Temperature of GPU0 Core0 Slot GPU0_Core1 Temperature of GPU0 Core1 Slot GPU1_Core0 Temperature of GPU1 Core0 Slot GPU1_Core1 Temperature of GPU1 Core1 Slot GPU2_Core0 Temperature of GPU2 Core0 Slot GPU2_Core1 Temperature of GPU2 Core1 Slot http://www.tyan.com...
  • Page 153 Temperature of GPU7 Core1 Slot BIOS FAN Sensor Name Explanation SYS_FAN_1 Fan speed of SYS_FAN_1 SYS_FAN_2 Fan speed of SYS_FAN_2 SYS_FAN_3 Fan speed of SYS_FAN_3 SYS_FAN_4 Fan speed of SYS_FAN_4 SYS_FAN_5 Fan speed of SYS_FAN_5 SYS_FAN_6 Fan speed of SYS_FAN_6 http://www.tyan.com...
  • Page 154 NOTE http://www.tyan.com...

  • Page 155: Appendix Iii: Fru Parts Table

    Appendix III: FRU Parts Table FT77A-B7059 FRU Parts Item Model Number Part Number Picture Description PCBA M2210-L8-1F 411T47600010 M2210-L8-1F for FT77A SATA cable FRU-CS-0070 422T47600005 A/C Power Cord, L=1800mm, US CCBL-0317 332810000397 type A/C Power Cord, L=1830mm, EU CCBL-0300 332810000281...
  • Page 156 FT77A-B7059 FRU Parts M7059F77A-FDR-2 5411T4760014 PCBA w/ associate tray FRU-RC-0010 For passively-cooled GPU cards w/ Airduct FRU-TA-0010 343T47600001 depth within 10.5” FRU-SM-0020 5412T4760010 For M2090 (w/ screws) GPU bracket FRU-SM-0010 452T47600002 For K10/K20 (w/ screws) http://www.tyan.com...

  • Page 157: Appendix Iv: Technical Support

    By offering plenty of options for users, MiTAC serves multiple market segments with the industry’s most competitive services to support them. Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the beep codes section of this manual.
  • Page 158 (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. TYAN® FT77A-B7059 Service Engineer’s Manual V1.0 Document No.: D2229-100 http://www.tyan.com...

Table of Contents
