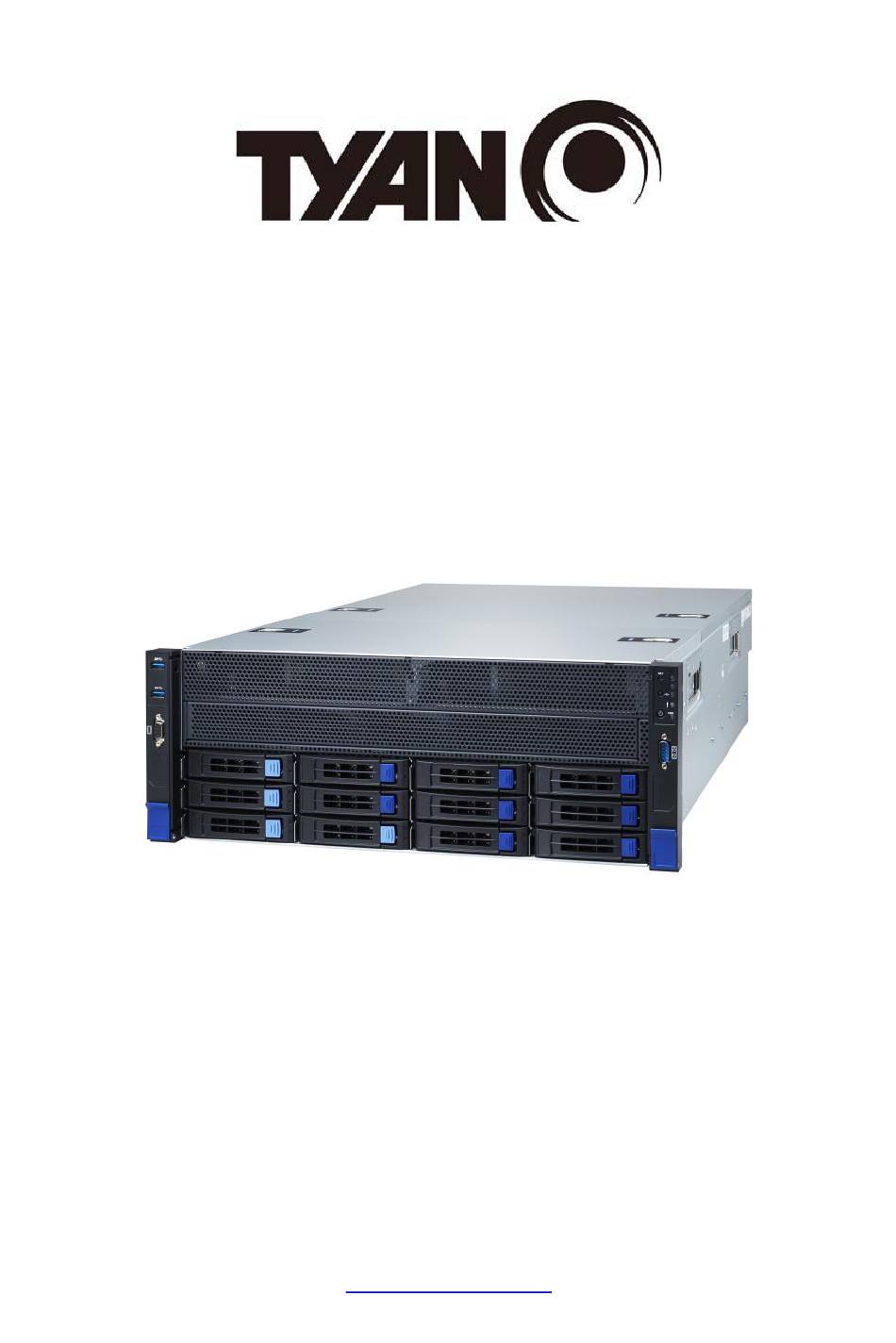

Page 1 FT83A-B7129 Service Engineer’s Manual http://www.tyan.com...
Page 2: Trademark Recognition
Neither this manual, nor any material contained herein, may be reproduced without written consent of manufacturer. Copyright 2024 MITAC COMPUTING TECHNOLOGY CORPORATION. All rights reserved. TYAN is a registered trademark of MITAC COMPUTING ® TECHNOLOGY CORPORATION.
Page 3 Chapter2: Setting Up This chapter Covers procedures on installing the CPU, memory modules, add on card and hard drives. Give an overview about the FT83A-B7129 barebone from an overall angle. Chapter 3: Replacing the Pre-installed Components This chapter covers the removal and replacement procedures for pre-installed components.
Page 4 Notice for Canada This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. Notice for Europe(CE Mark) http://www.tyan.com...
Page 5 This product is in conformity with the Council Directive 2014/30/EU and 2014/35/EU. Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.  VCCI  Regulatory Compliance This equipment is compliant with CB/LVD of Safety: IEC/EN 62368-1. http://www.tyan.com...
Page 6 You must become familiar with the safety information in this guide before you install, operate, or service Tyan products. http://www.tyan.com...
Page 7 Symbols on Equipment CAUTION: There is a risk of personal injury and equipment damage. Follow the instructions provided in the Tyan product documentation or displayed on the product. Read the e-manual. https://www.tyan.com/ CAUTION: Hazardous moving parts. Keep body parts away from moving fan blades.
Page 8 Never push objects of any kind through openings in the equipment.  Dangerous voltages might be present. Conductive foreign objects can produce a short circuit and cause fire,  electric shock, or damage to your equipment. Lift equipment using both hands and with your knees bent.  http://www.tyan.com...
Page 9 Make sure the equipment is properly secured to the rails. Equipment  that is improperly secured to the rails might be unstable. http://www.tyan.com...
Page 10 Dispose of used batteries according to the instructions of the  manufacturer. Do not dispose of batteries with the general office waste. For recycling or proper disposal, use a public collection site or return them to Tyan, your authorized Tyan partner, or their agents. http://www.tyan.com...
Page 11 Modifications to Equipment Do not make mechanical or electrical modifications to the equipment.  Tyan is not responsible for regulatory compliance of a modified Tyan product. Equipment Repairs and Servicing The installation of internal options and routine maintenance and service ...
Page 12 CAUTION: Do not operate Tyan products without the cover in place. Failure to take this precaution may result in personal injury and equipment damage. CAUTION: If your equipment is equipped with rack handles, refrain from utilizing them for lifting or transporting the equipment.
Page 13 (for example, use of power strips). Laser Devices Tyan product may contain Class 1 Laser Transceivers, as defined by IEC 60825-1. To reduce any risk including exposure to radiation, follow these precautions when working with laser devices: Avoid direct exposure to the laser beam.
Page 14 Para reducir el riesgo de lesiones, choque eléctrico, incendios y daños en el equipo, respete todas las precauciones incluidas en esta guí a. Debe familiarizarse con la información sobre seguridad de esta guí a antes de instalar, utilizar o reparar los productos Tyan. http://www.tyan.com...
Page 15 Sí mbolos presentes en el equipo Precaución: Existe el riesgo de que se produzcan daños personales y en el equipo. Siga las instrucciones que se proporcionan en la documentación del producto Tyan o las que se muestran en el producto. Lea el e-manual. https://www.tyan.com/ Precaución: Piezas móviles peligrosas.
Page 16 Puede haber niveles de tensión peligrosos. Algunos objetos extraños que sean conductores pueden producir  cortocircuitos y provocar incendios, choques eléctricos o daños en el equipo. Para levantar el equipo, utilice ambas manos y flexione las rodillas.  http://www.tyan.com...
Page 17 Las puertas del bastidor no deben ser sólidas ni tener las rejillas de  ventilación obstruidas. Se debe usar una puerta mallada en las partes frontal y trasera o bien, se deben retirar las puertas para asegurar una correcta circulación del aire en el sistema. http://www.tyan.com...
Page 18 No desarme, aplaste, perfore, conecte en corto los contactos externos  ni deseche la baterí a en el fuego ni en el agua. No exponga la baterí a a temperaturas superiores a los 60°C (140°F).  No intente recargar la baterí a.  http://www.tyan.com...
Page 19 Para enviarlas a un centro de reciclaje o desecharlas, utilice el sistema público de recolección o bien, enví elas a Tyan, al socio autorizado de Tyan o a sus agentes.
Page 20 Precaución: No ponga en funcionamiento los productos Tyan que no tengan colocada la cubierta. De lo contrario, puede sufrir lesiones personales y ocasionar daños en el equipo.
Page 21 (por ejemplo, al uso de zapatillas eléctricas). Dispositivos láser Los producto Tyan puede contener transceptores láser de clase 1, tal y como se define en IEC 60825-1. Para reducir el riesgo de exposición a radiaciones, tenga en cuenta las siguientes precauciones al trabajar con dispositivos láser:...
Page 22 Beachten Sie die Warnungen in der Produktdokumentation und den Betriebsanweisungen. Halten Sie die angegebenen Vorsichtsmaßnahmen ein, um das Risiko von Verletzungen, elektrischen Stromschlägen und Beschädigungen des Geräts zu verringern. Machen Sie sich mit den Sicherheitsinformationen in diesen Richtlinien vertraut, bevor Sie ein Tyan-Produkt installieren, betreiben oder warten. http://www.tyan.com...
Page 23 Gerätesymbole Vorsicht: Gefahr von Verletzung und Geräteschaden. Befolgen Sie die in der Dokumentation zum Tyan-Produkt bereitgestellten bzw. auf dem Produkt angegebenen Anweisungen. Lesen Sie das E-Handbuch. https://www.tyan.com/ Vorsicht: Gefährliche bewegliche Teile. Von Lüfterschaufeln fernhalten. Vorsicht: Heiße Oberfläche. Nicht berühren, da Verletzungsgefahr durch heiße Oberfläche besteht.
Page 24 Führen Sie keine Gegenstände in die Geräteöffnungen ein, da  möglicherweise gefährliche Spannungen vorliegen. Leitende Gegenstände können einen Kurzschluss verursachen und zu  Feuer, Stromschlag oder Beschädigungen des Geräts führen. Heben Sie das Gerät immer mit beiden Händen und gebeugten Knien an.  http://www.tyan.com...
Page 25 Installation oder nicht ausreichende Luftzirkulation kann zu Beschädigungen des Geräts führen. Das Rack darf keine undurchlässigen oder blockierten Luftöffnungen  haben. Verwenden Sie an der Vorder und Rückseite des Racks eine Maschenabdeckung oder entfernen Sie die Abdeckungen, um eine ausreichende Luftzirkulation sicherzustellen. http://www.tyan.com...
Page 26 Batterien nicht ordnungsgemäß gehandhabt werden, besteht Feuer- und Verbrennungsgefahr. Demontieren, zerquetschen, durchlöchern und entsorgen Sie die Batterie  nicht in Feuer oder Wasser. Setzen Sie die Batterie keinen Temperaturen über 60° C aus.  Versuchen Sie nicht, die Batterie aufzuladen.  http://www.tyan.com...
Page 27 Herstellers. Entsorgen Sie Batterien nicht im Haushaltsmüll. Um Batterien zu recyceln oder ordnungsgemäß zu entsorgen, bringen Sie diese zu einer öffentlichen Sammelstelle oder geben Sie sie an Tyan oder einen autorisierten Tyan-Händler zurück. Vorsicht: Wenn die Batterie durch einen falschen Typ ersetzt wird, besteht Explosionsgefahr.
Page 28 Vorsicht: Trennen Sie vor dem Warten das Stromkabel des Geräts vom Netzanschluss, um das Risiko eines Stromschlags zu verhindern. Vorsicht: Nehmen Sie Tyan-Geräte nicht ohne Abdeckung in Betrieb. Die Nichtbeachtung dieses Warnhinweises kann Verletzungen oder Geräteschaden zur Folge haben. Vorsicht: Wenn Ihr Gerät mit Rack-Griffen ausgestattet ist, dürfen Sie es nicht an den Rack-Griffen anheben oder tragen.
Page 29 Verwendung Mehrfachsteckdosen). Lasergeräte Tyan-Produkt kann Laser-Transceiver der Klasse 1, klassifiziert nach Sicherheitsnorm IEC 60825-1, umfassen. So verringern Sie das Risiko von gefährlicher Strahlung beim Einsatz von Lasergeräten: Vermeiden Sie die direkte Exposition mit dem Laserstrahl. Versuchen  Sie nicht, das Gehäuse des Lasergeräts zu öffnen. Das Gehäuse enthält keine Komponenten, die vom Benutzer gewartet werden können.
Page 30 Vorsicht: Verwendung eines optischen Transceiver-Moduls muss sichergestellt werden, dass es sich um ein nach IEC 60825 / IEC 60825-1 (EN 60825 / EN 60825-1) zertifiziertes Lasergerät des Klasse 1 handelt. http://www.tyan.com...
Page 31 électrique, d'incendie et d'endommagement de l'équipement, veuillez respecter toutes les précautions décrites dans ce guide. Avant d'installer, d'utiliser ou d'effectuer la maintenance des produits Tyan, nous vous prions de bien vous familiariser avec les informations relatives à la sécurité contenues dans ce guide.
Page 32 Symboles figurant sur l'équipement Précaution: Vous risquez d'endommager le matériel ou de vous blesser. Suivez les instructions fournies dans la documentation du produit Tyan. Lire le manuel électronique. https://www.tyan.com/ Précaution: Pièces mobiles dangereuses. Tenez-vous éloigné des pales du ventilateur lorsqu'elles sont en mouvement.
Page 33 Levez l'installation à deux mains en pliant les genoux.  Racks de l'équipement Pour éviter toute lésion corporelle et l'endommagement de l'équipement: Respectez les exigences locales en matière de protection sanitaire et de  sécurité au travail, ainsi que les consignes de manutention des matériaux. http://www.tyan.com...
Page 34 Vous devez utiliser une porte en maille à l'avant et à l'arrière, ou enlever les portes pour assure une circulation d'air adéquate dans le système. Vérifiez que l'équipement est bien fixé aux rails. Un équipement mal fixé  aux rails peut devenir instable. http://www.tyan.com...
Page 35 Veuillez ne pas démonter les piles, les écraser, les percer, en  court-circuiter les contacts externes ou les jeter au feu ou à l'eau. Veuillez ne pas exposer la batterie à une température supérieure à 60 °C  (140 °F). Ne tentez pas de recharger la batterie.  http://www.tyan.com...
Page 36 Ne jetez pas les batteries dans le conteneur d'ordures ménagères du bureau. Pour un recyclage ou une élimination adaptés, allez dans une déchetterie publique ou retournez les batteries à Tyan, à votre partenaire Tyan agréé ou à l'un de ses agents.
Page 37 à la maintenance de l'équipement. Précaution: Ne mettez jamais des produits Tyan sous tension si leur couvercle supérieur n'est pas mis en place. Si vous ne prenez pas ces précautions, vous risquez de vous blesser ou d'endommager le équipement.
Page 38 (utilisation de rallonge multiprise par exemple). Appareils laser Les produit Tyan peuvent contenir des émetteurs-récepteurs laser de classe 1, tels que définis par la norme IEC 60825-1. Pour réduire les risques d'exposition à des radiations, suivez ces recommandations lorsque vous travaillez avec des appareils laser: Évitez toute exposition directe au rayonnement laser.
Page 39 Précaution: Lors l'utilisation d'un module d'émetteur-récepteur radio optique, assurez-vous qu'il s'agit d'un produit laser de classe 1 conforme aux normes IEC 60825 / IEC 60825-1 (EN 60825/EN 60825-1). http://www.tyan.com...
Page 40 Per ridurre il rischio di lesioni fisiche, scariche elettriche, incendi e danni all'apparecchiatura, osservare tutte le precauzioni riportate nella presente guida. Prima di installare, utilizzare o riparare i prodotti Tyan, è necessario acquisire familiarità con le informazioni sulla sicurezza contenute nella presente guida.
Page 41 Simboli sull'apparecchiatura Attenzione: Rischio di danni alle persone o alle apparecchiature. Seguire le istruzioni fornite nella documentazione del prodotto Tyan o disponibili sul prodotto. Leggete il manuale elettronico. https://www.tyan.com/ Attenzione: Parti mobili pericolose. Tenere lontano dalle pale in movimento del ventilatore.
Page 42  dell'apparecchiatura, in quanto potrebbero essere presenti tensioni pericolose. La presenza di oggetti conduttivi estranei potrebbe essere causa di  cortocircuiti, incendi, scariche elettriche o danni all'apparecchiatura. Sollevare l'apparecchiatura con entrambe le mani, partendo con le  ginocchia piegate. http://www.tyan.com...
Page 43 Assicurarsi che il rack sia livellato e stabile prima di estrarre un  componente. Assicurarsi di estendere un solo componente alla volta, in quanto la  stabilità del rack potrebbe venire compromessa se si estende più di un componente alla volta. http://www.tyan.com...
Page 44 Non tirare il cavo di alimentazione o il cavo dei dati. Afferrare il cavo di  alimentazione dalla spina per disinserirlo dalla presa elettrica. Prima di procedere alla manutenzione dell'apparecchiatura, scollegare  tutti i cavi di alimentazione per ridurre il rischio di scariche elettriche. http://www.tyan.com...
Page 45 Per il riciclo o il corretto smaltimento delle batterie utilizzare il sistema di raccolta pubblico o restituirle a Tyan, al partner autorizzato Tyan o a uno dei loro agenti. Attenzione: Sostituendo la batteria con una di tipo non appropriato esiste un rischio di esplosione.
Page 46 Attenzione: Prima di procedere alla manutenzione dell'apparecchiatura, scollegare tutti i cavi di alimentazione per ridurre il rischio di scariche elettriche. Attenzione: Non utilizzare mai i prodotti Tyan senza l'apposita copertura. La mancata osservanza di questa precauzione può causare danni alle persone o al apparecchiature.
Page 47 (ad esempio, l'uso di prese multiple). Dispositivi laser Il prodotto Tyan potrebbe contenere ricetrasmettitori laser di classe 1, come definito da IEC 60825-1. Per ridurre i rischi derivanti dall'esposizione a pericolose radiazioni, osservare le seguenti indicazioni in caso di utilizzo di dispositivi laser: Evitare l'esposizione diretta al raggio laser.
Page 48 Consentire solo a tecnici autorizzati dell'assistenza di riparare il  dispositivo laser. Attenzione: se utilizzato come modulo ricetrasmettitore ottico, assicurarsi che si tratti di un prodotto laser IEC 60825 / IEC 60825-1 (EN 60825 / EN 60825-1), Classe 1. http://www.tyan.com...
Page 49: Nordic Grounded Socket Cautions
Caution: Apparatet må tilkoples jordet stikkontakt. Sverige Caution: Apparaten skall anslutas till jordat uttag. Suomi Caution: Laite on liitettävä suojamaadoitus koskettimilla varustettuun pistorasiaan. Danmark Caution: Apparatets stikprop skal tilstuttes en stikkontakt med jord som giver forbindelse til stikproppens jord. http://www.tyan.com...
Page 50 Safety and Compliance Information (Traditional Chinese) 安全資訊保留並遵循隨設備提供的所有安全操作說明。若本指南中的說明和設備文件中的說明有所衝突，請遵循設備文件中的指示。仔細查看產品上和操作說明中的所有警告。為降低人身傷害、電擊、火災和造成設備損壞的風險，請遵守本指南中的所有安全注意事項。安裝、操作或維修產品之前，必須先熟悉本指南中的安全資訊。 http://www.tyan.com...
Page 51 設備上的符號警告: 有對人體造成傷害並損壞設備的風險。請遵照產品文件所提供或產品上所顯示的指示操作。請於以下網站讀取電子手冊。 https://www.tyan.com/ 警告: 危險的轉動扇葉片，請與轉動中的扇葉片保持距離。警告: 灼熱部件。請勿碰觸。表面溫度很高，碰觸可能對人體造成傷害。請在接觸之前先讓表面溫度冷卻下來。警告: 存在危險的電壓。為降低觸電和危害人身健康的風險，請遵照說明操作。警告: 本設備包括多個電源連接，再進行維修前，應斷開所有電源線。 http://www.tyan.com...
Page 52 心產生反射，本產品不可置於直接視場中。本設備不適合在兒童可能會出現的場所使用。  機房環境本設備僅適用於機房或資訊室。  確保系統安裝的區域通風良好，溫度和濕度等可控制。  確保機房電源的電壓和頻率與設備電力標籤上標示的電壓和頻率相符。  請勿將設備安裝於或靠近高壓、通風管、散熱器的地方。  請勿在潮濕的環境中使用本設備。  機殼請勿堵塞或蓋住設備的開孔。  請勿將任何物體插入設備的開孔。內部可能存在危險電壓。  導電的異物可能造成短路並引起火災、電擊或設備損壞。  雙膝彎曲，用雙手提起設備。  設備機架為避免人身傷害或設備損壞：遵守當地的職業健康和安全規定以及人力搬運物料的指導原則。  請勿嘗試獨自搬動機架，搬動機架至少需要兩人。  請勿嘗試搬動滿載的機架。先將設備從機架上卸下後再搬動機架。  請勿嘗試在大於 10 度的斜坡上搬動機架。  確保機架已正確固定到地板或天花板。  如果是單機架安裝，確保穩定支腳已裝到機架。  http://www.tyan.com...
Page 53  確保機架的全部重量放在承重腳上。  務必由下而上裝入機架。先將最重的元件裝入機架中。  從機架中拉出元件之前，確保機架保持水平和穩定。  確保一次只伸展一個元件。如果一次伸展一個以上的元件，機架可能會不  穩定。為避免設備損壞：機架寬度和深度必須能夠適當地進行維修和排列纜線。  確保機架內的通風良好。安裝不當或通風不良可能會損壞設備。  機架不能有實心或受限制的通風門。您必須在機架前後使用絲網門，或者  將門卸下以確保系統的通風良好。確保設備已妥善固定到導軌上。設備若未妥善固定到導軌上可能會不穩。  確認為機架供電的交流電源分支電路沒有過載，以降低人身傷害、火災及  設備損壞的風險。機架總負載不應超過分支電路額定值的 80%。請向對您的設備配線和安裝規定具有管轄權限的電力部門查詢。電源線僅使用隨設備提供的電源線和電源裝置。設備可能配有一條或多條電源  線。將電源線插入到能隨時方便接觸到的接地電源插座。  確保將電源線連接到具有接地連接的插座。  在歐洲供電環境中，您必須將電源線上的綠色/ 黃色接頭接地。如果未將  綠色/ 黃色接頭接地，可能會由於大量電流洩漏而造成電擊。 http://www.tyan.com...
Page 54 請勿在交流電源線或纜線上放置物體。將電源線或纜線放在人們不易踩到  或被絆倒的地方。請勿拉扯電源線或纜線。從電源插座拔下電源線時，應抓住電源線插頭。  為降低電擊風險，請在維修設備之前，拔除所有電源線。  電池本設備使用鋰錳電池。如果電池組處理不當，則會有起火的風險。  請勿拆解、擠壓、穿刺電池，將其投入火中或水中，或使其與外部短路接  觸。請勿將電池置於 60°C (140°F) 以上的高溫環境中。  請勿嘗試為電池充電。  按照製造商的指示處置使用過的電池。切勿將電池當作一般辦公室垃圾處  理。若要回收或正確處置電池，請利用公共收集系統，或將其送回授權合作夥伴或其代理。警告: 若置換不同型式之電池有起火或爆炸風險。請換上專為本產品指定的備用電池。設備改造請勿對設備統進行機械或電氣改造。對於被改造之產品是否符合法規概不  負責。設備維修與維護本設備的內部選配的安裝和日常維護和維修應由熟悉程序、預防措施及相  關設備內危險的技術人員、被授權的維修人員或受過訓練的硬體維修人員執行。 http://www.tyan.com...
Page 55 請勿超出產品文件中所述程序指定的維修等級。不當的維修可能會在安全  上造成危險。卸下機蓋和接觸內部元件之前進行工作時，應取下手錶、戒指或未鑲嵌的  珠寶等物品。請勿使用可能會橋接執行中部件的導電工具。  卸下或更換內部元件時，請戴上手套，以免被高溫的元件表面燙傷。  如果設備損壞而需要維修，請從交流電源插座拔除與設備的連接，並交由  授權的服務供應商進行維修。損壞而需要維修的情況包括： – 電源線、延長線或插頭損壞。 – 有液體濺到設備上，或異物掉入產品內。 – 設備遭到雨淋或進水。 – 設備掉落或損壞。 – 在您按照操作說明使用時設備未正常運作。  請務必先裝好外殼，再開啟系統電源。警告: 為降低電擊風險，請在維修設備之前，拔除所有電源線。警告: 外殼未放回原處時, 切勿操作產品。違反此防範措施可能會導致人體傷害及設備損壞。警告: 若設備有安裝機架把手，請勿透過機架把手提起或搬運設備。 http://www.tyan.com...
Page 56 操作環境溫度升高如果將此設備安裝在封閉式或具有多個設備的機架上，機架的操作環境溫  度可能會高於設備房間的溫度。因此，在安裝此設備時必須考慮滿足生產廠商規定的最高操作環境溫度 (Tma) 要求。通風不夠將設備安裝於機架上要注意不會有造成安全操作設備所需的通風出現不良  的狀況。機械負載將設備安裝於機架上要注意不會有因為機械負載不均而出現危險的狀況。  電路過載將設備連接到供電電路時必須考量一些狀況，還有電路過載可能對過流防  護及供電線路的影響。對於這類疑慮，必須妥善考量設備標示牌上的額定值。備援式電源供應為提供完整的備援電源供應，請將每條電源線分別連接到各的交流電路。  每條電源線需要適當地接地。可靠的接地安裝於機架上的設備必須保有可靠的接地連接。請特別注意未直接連接分  支電路的電源供應 (例如使用延長線)。 http://www.tyan.com...
Page 57 本產品可能包含於 IEC60825-1 定義下級別為第 1 類的雷射光。為降低暴露於輻射中的風險，使用雷射裝置時請遵循這些注意事項：避免直接暴露於雷射光中。切勿打開雷射裝置外殼，內部沒有使用者可  維修的元件。切勿超出本文件規定，對本雷射裝置進行控制操作、調整或執行程序。  僅允許授權服務技術人員對雷射裝置進行維修。  警告: 當使用光學收發機模組時，請確定它是 IEC 60825 / IEC 60825-1 (EN 60825 / EN 60825-1)，第 1 類雷射產品。警告使用者: 警告: 為避免電磁干擾，本產品不應安裝或使用於住宅環境。連絡方式製造商: 神雲科技股份有限公司地址: 新竹科學園區新竹縣研發二路 1 號 3 樓電話: 886‐3‐3275988 http://www.tyan.com...
Page 58: Taiwan Bsmi Rohs Declaration
Taiwan BSMI RoHS Declaration 設備名稱: 伺服器/型號（型式）: FT83A-B7129 Equipment Name: Server / Type: FT83A-B7129 限用物質及其化學符號 Restricted substances and its chemical symbols 單位鉛汞鎘六價鉻多溴聯苯多溴二苯醚 Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Unit Chromium (Pb) (Hg) (Cd) biphenyls diphenyl ethers...
Page 59 Taiwan BSMI RoHS Declaration 設備名稱：伺服器 / 型號（型式）：FT83A-B7129-HE Equipment Name：Server / Type：FT83A-B7129-HE 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻多溴聯苯多溴二苯醚單位鉛汞鎘 Unit Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (PBB) (PBDE) 印刷電路板...
Page 60: Table Of Contents
Table of Contents Chapter 1: Overview ................ 62 About the TYAN FT83A-B7129 ..........62 Product Models ..............63 Features ................64 Standard Parts List .............. 75 1.4.1 Box Contents ..............75 1.4.2 Accessories ..............75 About the Product ..............76 1.5.1...
Page 61 Appendix III: Fan and Temp Sensors ..........283 Appendix IV: Cable Connection Tables ........289 Appendix V: Installing OCP Card ..........293 Appendix VI: FRU Parts Table ............296 Appendix VII: Glossary ..............299 Appendix VIII: Technical Support ..........305 http://www.tyan.com...
Page 62: Chapter 1: Overview
IT environment but also offers a smooth path for future application usage. TYAN® also offers the FT83A-B7129 in a version that can support up to twelve (12) 2.5”/3.5” hot-swap SAS/SATA HDDs and (2) hot-swap 2.5" SATA HDD, (8) hot-swap 2.5"...
Page 63: Product Models
Product Models The system board within the Tyan Barebone is defined by the following models: B7129F83AV8E4HR-N:  Intel-based platform, (12) SATA 6Gb/s with (4) NVMe ports B7129F83AV14E8HR-N-HE: (2) 2.5" Hot-Swap HDD/SSDs / (8) NVMe / (12)  3.5" Hot-Swap HDD/SSDs B7129F83AV8E4HR-N-HE: (12) 3.5"/2.5"...
Page 64: Features
Processor Max up to 270W Thermal Design Power Wattage System Bus Up to 11.2/10.4 GT/s with Intel UltraPath Interconnect (UPI) support Intel C621A Chipset Switch IC (2) PLX PEX88096 CPU-GPU Link Dual-root All GPU connected to CPUs evenly Topology http://www.tyan.com...
Page 65 8 Channels per CPU, 2 DIMM slots per Channel channel Memory voltage 1.2V PCIe (11) PCI-E Gen4 x16 slot Pre-installed (2) M7129F83A-L16 riser card for (2) PCI-E Gen4 x16 slot (left) TYAN Riser Card (PCIe Gen.4) Pre-installed F7129F83A-RIO Expansion Slots TYAN Mezz. Card (PCIe Gen.3) Others (1) PCI-E Gen4 x16 OCP 3.0 slot...
Page 66 - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Operating Environment In/Non-operatin 90%, non-condensing at 35° C g Humidity Note Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed FCC (SDoC) Class A CE (DoC) Class A Regulation CB/LVD...
Page 67 Thermal Design Max up to 270W (TDP) Power Wattage System Bus Up to 11.2/10.4 GT/s with Intel Ultra Path Interconnect (UPI) support Intel C621A Chipset Switch IC (2) PLX PEX88096 CPU-GPU Link Dual-root All GPU connected to CPUs evenly Topology http://www.tyan.com...
Page 68 Connector (U.2) (2) SFF-8654 for (4) NVMe ports Storage NVMe Notification Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information. Connector type D-Sub 15-pin Graphic Resolution...
Page 69 - 40° C ~ 70° C (-40° F ~ 158° F) Environment Temp. In/Non-operatin 90%, non-condensing at 35° C g Humidity FCC (SDoC) Class A CE (DoC) Class A Regulation CB/LVD VCCI C-Tick OS supported Please refer to our AVL support lists. Operating System list RoHS 6/6 RoHS Compliant http://www.tyan.com...
Page 70 Barebone (1) FT83A-B7129 Barebone Package Contains Manual (1) Quick Installation Guide http://www.tyan.com...
Page 71 Max up to 270W (TDP) Power Wattage System Bus Up to 11.2/10.4 GT/s with Intel Ultra Path Interconnect (UPI) support Intel C621A Chipset Switch IC (2) PLX PEX88096 CPU-GPU Link Dual-root All GPU connected to CPUs evenly Topology Memory Supported (16)+(16) DIMM slots http://www.tyan.com...
Page 72 Connector (U.2) (2) SFF-8654 for (4) NVMe ports Storage NVMe Notification Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information. Connector type D-Sub 15-pin Graphic Resolution...
Page 73 - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Operating In/Non-operatin 90%, non-condensing at 35° C Environment g Humidity Note Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed FCC (SDoC) Class A CE (DoC) Class A Regulation...
Page 74 NOTE: 1. The specifications are subject to change without prior notice. 2. Please visit our website for the latest specifications. http://www.tyan.com...
Page 75: Standard Parts List
Standard Parts List This section describes FT83A-B7129 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents FT83A-B7129 Chassis Kit 4U chassis*1 ...
Page 76: About The Product
About the Product The following views show you the product. 1.5.1 System Front View http://www.tyan.com...
Page 77 DRIVE STATE Active LED (Green) Status LED (Red) Drive Present, No Active Solid on Drive Present with Active Blinking Drive Failure Don’t care Solid on RAID Rebuild Don’t care Blinking @4 Hz Drive Locate Identifier Don’t care Blinking @1 Hz http://www.tyan.com...
Page 78: System Rear View
1.5.2 System Rear View LAN1: from Realtek RTL8211E PHY for IPMI USB 3.1 x 2 OCP Card Area (OCP 3.0 LAN mezzanine slot) NOTE: 1. M7129F83A-RIO Rear IO board is pre-installed. http://www.tyan.com...
Page 79: Led Definitions
AC present Only 12VSB on(PS off) or PS in Smart GREEN Redundant state Output ON and OK AC cord unplugged or AC power lost, with a second AMBER power supply in parallel still with AC input power. FW update mode 2Hz Blink GREEN http://www.tyan.com...
Page 80: Internal View
M1313F83A-BP12E-12 HDD BP Board (pre-installed) System Fan with M7129F83A-Fan Board(pre-installed) Memory Slot CPU Socket M7129FT83A-IO PCIE Board 7~11 PCIE Gen4 x16 Slots (FH/FL, GPU#1 ~ GPU#5) PCIE Gen4 x16 Slots (FH/FL) 13~17 PCIE Gen4 x16 Slots (FH/FL, GPU#6 ~ GPU#10) http://www.tyan.com...
Page 81: Chassis Dimensions
1.5.5 Chassis Dimensions http://www.tyan.com...
Page 82: Chapter 2: Setting Up
Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...
Page 83: Precautions
Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to FT83A-B7129 or injury to yourself. Ground yourself properly before removing the top cover of the ...
Page 84: 2.1 Installing Motherboard Components
CPUs, memory modules and Add-on cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove FT83A-B7129 chassis cover. Remove the screw from the back side of the cover. Press the two latch to pull the back cover in the direction of the arrow to remove the top cover.
Page 85 Press the button to remove the back top cover from the chassis. http://www.tyan.com...
Page 86: Installing The Cpu, Heat Sink And Air Duct
Then install the carrier on the bottom of the heatsink and make sure the latches are snapped under the edge of the heatsink. Align and install the processor on the carrier. Make sure the gold arrow is located in the correct direction. Remove the CPU cover. http://www.tyan.com...
Page 87 NOTE: When disassembling the heatsink, loosen the screws in reverse order (4321). Repeat the procedures described earlier to install the second processor and heatsink. Place the air duct on top of the heatsink and screw it to the chassis. http://www.tyan.com...
Page 88: Installing The Memory
Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. http://www.tyan.com...
Page 89: Installing The Expansion Card (Pcie Board)
Installing the Expansion Card (PCIE Board) Follow these instructions to install the PCIE cards. Installing Expansion Cards Locate the PCIE Bracket. Insert the riser card to the PCIE x16 slot. Secure the card to the bracket with a screw. http://www.tyan.com...
Page 90 Installing GPU Card Follow the instructions to install the expansion cards with card brackets or card guides. Unscrew to remove the Linkbar. Locate the PCIE Gen.4 x16 slot on the motherboard. Unscrew to take out the dummy brackets. http://www.tyan.com...
Page 91 Insert the GPU card into the PCIE Gen. 4 slot and screw the GPU card to the chassis. Connect the GPU PWR cable to the GPU card and motherboard. http://www.tyan.com...
Page 92 Secure the GPU Bracket to the chassis with 4 screws. http://www.tyan.com...
Page 93: Installing Hard Drives
2.1.5 Installing Hard Drives The FT83A-B7129 supports twelve 3.5”/2.5” Hard Drives. Follow these instructions to install a hard drive. Installing 3.5” HDD Press Locking lever to release the 3.5” HDD tray. Pull the 3.5”HDD tray out of the chassis. 3. Pull open the locking lever to install the 3.5” hard disk drive into the HDD tray and lock the tray lever to secure HDD.
Page 94 4. Reinsert the HDD tray into the chassis. http://www.tyan.com...
Page 95 Always install the hard disk drive to the chassis after the chassis has been secured on the rack. Press the locking lever latch and pull the locking lever open. Slide the HDD tray out. Place the 2.5” HDD/SSD into the HDD tray and align the 2.5” HDD/SSD with its hole. http://www.tyan.com...
Page 96 Turn over the HDD tray and secure the HDD/SSD to the tray using 4 screws. Reinsert the HDD tray into the chassis. Push to secure the locking lever until it clicks into place. http://www.tyan.com...
Page 97: Rack Mounting
Rack Mounting After installing the necessary components, the TYAN TS83A-B7129 chassis can be mounted in a rack using the supplied rack mounting kit. Sliding Rail Kit Sliding Rails x 2  Rail screw Pack x 10  http://www.tyan.com...
Page 98: Installing The Server In A Rack
19" rack. NOTE: Before mounting the TYAN TS83A-B7129 chassis in a rack, ensure that all internal components have been installed and that the unit has been fully tested. However, to make the installation easier, we suggest that you remove all HDD trays before you insert the chassis into the rack.
Page 99 Align the inner sliding rail on the side of the server, and push towards the arrow to secure the hooks. To install one screw onto chassis base each side. NOTE: Chassis base with or without screw hole design and the screw position for inner rail may be different for each chassis. http://www.tyan.com...
Page 100 Detach inner rail from standoff Loosen screw both sides of the server. Pull the latch upward and remove the keyhole from standoff and slide inner rail forward to remove inner rail. http://www.tyan.com...
Page 101 Please according to the bracket type, and refer to the install/detach instruction. Secure the outer rails to the rack on each side. 2. Move screw to upper hole to avoid hardware conflict between rail and screw of server. 3. Please repeat installation steps for the other side. http://www.tyan.com...
Page 102 Detach bracket from rack post to Release the outer rails from the rack on each side. 2. Please repeat the detach steps for the other side. http://www.tyan.com...
Page 103 Pull the middle rail fully extended in lock position, ensure ball bearing retainer is located at the front of the middle rail. Horizontally insert the chassis into middle-outer rails. When hit a stop, please pull/push the blue release tab on the inner rails. Tighten chassis with shipping screws. http://www.tyan.com...
Page 104: Removing The Server From Rack
2.2.2 Removing the Server from Rack 1. Loosen shipping screws to pull out chassis. 2. Pull the disconnect tab forward to remove chassis at the full extension position. 3. Push tab to slide the middle rail back. http://www.tyan.com...
Page 105: Chapter 3: Replacing Pre-Installed Components
This chapter explains how to replace the pre-installed components, including the S7129GMRE Motherboard, M7129F83A-L16 Riser Card, M1297T65-BP12E-12 Backplane Board, M7129F83A-IO IO board, M7129F83A-RIO Rear IO card, M7129F83A-FB Fan Board, System Fan and Power Supply, etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...
Page 106: Removing The Cover
Removing the Cover Before replacing any parts you must remove the chassis cover. Follow Chapter 2.1.1 to remove the cover of FT83A-B7129. Replacing the Power Supply To replace the power supply follow these instructions. Press the tab as in the diagram from down to up.
Page 107: Replacing The Front Panel Board
Unscrew to remove the front panel board module. Loosen three screws to take out the front panel board. Loosen two screws to take out the front panel board. Follow the steps described earlier in reverse order to reinstall the front panel board module. http://www.tyan.com...
Page 108: Front Panel Board Features
PCB Dimensions: 40.00*18.00*1.6mm  Form Factor Thickness: 1.6mm  Layer: 4 layers  power button with LED  reset button  Specifications  ID button LED: ID LED (blue), Onboard HDD LED (green/Red),  FAULT LED (Red/green/Blue), Power LED http://www.tyan.com...
Page 109: Replacing The Usb Board
Unscrew to remove the front panel board module. Loosen three screws to take out the front panel board. Loosen two screws to take out the front panel board. Follow the steps described earlier in reverse order to reinstall the front panel board module. http://www.tyan.com...
Page 110: Front Panel Board Features
3.6.1 Front Panel Board Features M1717T65-USB USB Board  PCB Dimensions: 48.00*19.00*1.6mm Form Factor Thickness: 1.6mm  Layer: 4 layers  USB 3.0 Connectors  Specifications  10*2PIN input Connector http://www.tyan.com...
Page 111: Replacing The System Fan
Replacing the System Fan Follow these instructions to replace the system Fan. Take out the system fan. Press both sides of the fan cage as in the image. Open the fan cage. http://www.tyan.com...
Page 112 Take out the small fans. Replace a new fan. http://www.tyan.com...
Page 113: Replacing The Fan Board
Replacing the Fan Board Follow these instructions to replace the M7129F83A-FB Fan Board. Remove all Fan modules. Unscrew the fan cage. Lift up the fan cage. http://www.tyan.com...
Page 114 Disconnect all cables from the Fan Board. Unscrew to replace with a new Fan Board. Follow the steps in reverse order to reinstall the Fan Board. http://www.tyan.com...
Page 115: Fan Board Features
3.8.1 Fan Board Features M7129F83A-FB Fan Board (1) ATX 2*4P Power connector for power input(Power) Specifications (8) 7P FAN connector support(FAN1-FAN8) (1) 2*10P System FAN connector for main board(J10) http://www.tyan.com...
Page 116: Replacing The Riser Board
Disconnect the from the M7129F83A-PCIE Board. Unscrew the release the buckle in the direction of the image to release the riser tray. Unscrew to release the M7129F83A-L16 riser card. Follow the steps described earlier in reverse order to reinstall the IO Bridge Bracket. http://www.tyan.com...
Page 117: Riser Board Features
3.9.1 Riser Board Features Front View Rear View M7129F83A-L16 IO Bridge Board (2) Slim SAS Connector(J5/J6) Specifications (1) 2*2 Power Connector(PWR2) (1) PCIE Slot x16 (J3) http://www.tyan.com...
Page 118: Replacing The Hdd Backplane Board
Disconnect all cables connected to the HDD BP Board. Unscrew the HDD BP Board from the chassis. Take out the HDD BP Board to replace with a new one. Follow the procedures described earlier in reverse order to reinstall the HDD BP Board and HDD cage. http://www.tyan.com...
Page 119: Hdd Backplane Board Features
3.10.1 HDD Backplane Board Features M1297T65-BP12E-12 Front View Rear View http://www.tyan.com...
Page 120: Replacing Pcie Board
Disconnect all cables connected to the PCIE Board. Unscrew to lift up the PCIE Board Bracket (totally 19 screws). Replace the PCIE Board with a new one. Follow the steps described earlier in reverse order to reinstall the PCIE Board Bracket. http://www.tyan.com...
Page 121: Pcie Board Features
3.11.1 PCIE Board Features Front View M7129F83A-IO PCIE Board Dual PCIE x24 lanes input and expansion to Specifications (1)PCIE x16 +(10) DW PCI-E x16 slots or (1)PCIE x16+ (20) PCIE x8 slots http://www.tyan.com...
Page 122 M7129F83A-IO Default PCIe Routing Topology (Dual Root) http://www.tyan.com...
Page 123: Replacing The Rear Io Board
3.12 Replacing the Rear IO Board Follow these instructions to replace the M7129F83A-RIO Rear IO Board. Unscrew the Rear IO Bracket. Push both latches to pull the Rear IO Bracket out. Unscrew to remove the iron bracket. http://www.tyan.com...
Page 124: Rear Io Board Features
Rear IO Board Features Front View M7119FA77-RIO Rear IO Board (1)1G RJ-45 port for IPMI + (2)USB3.0 ports Specifications (1) FCI Board to board connector to Main board (1) OCP type A + (1)OCP type B connector for NIC OCP card http://www.tyan.com...
Page 125: Replacing The Motherboard
3.13 Replacing the Motherboard After removing all of the aforementioned cables and components, follow these instructions to remove the motherboard from the chassis. Unscrew to remove the board. Disconnect all cables on the motherboard and PCIE board. http://www.tyan.com...
Page 126 Refer to 3.9 Replacing the IO Board to unscrew to lift up the Linkbar. Use a hex screwdriver and Phillips screwdriver to loosen screws. http://www.tyan.com...
Page 127 Unscrew the motherboard to lift it up for replacement. http://www.tyan.com...
Page 128 http://www.tyan.com...
Page 129: Chapter 4: Motherboard Information
Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...
Page 130: Board Image
Board Image S7129 This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...
Page 131: Block Diagram
Block Diagram S7129 Block Diagram http://www.tyan.com...
Page 132: Motherboard Mechanical Drawing
Motherboard Mechanical Drawing http://www.tyan.com...
Page 133: Board Parts, Jumpers And Connectors
The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...
Page 134 3.PSU Connector (J2) 36. SlimSAS Connector for HDD BP (CN7) 4.XDP Connector (J7) 37. SlimSAS Connector for HDD BP (CN6) 5.TYAN Module Header (DBG_HD1) 38. SlimSAS Connector for HDD BP (CN5) 6.M.2 Connector (NGFF1) 39. Power Connector for Front Riser (J36) 7.RGMII/Rear USB B2B Connector (CN9)
Page 135 32.SlimSAS Connector for HDD BP (CN2) 65. Clear CMOS Button (CLEAR_BTN1) 33.SlimSAS Connector for HDD BP (CN1) 66.JTAG Connector for CPLD (J28) Jumpers a LPC Mode(default) (J59_12) b ME Recovery Mode Jumper (default) (J113-12) ESPI Mode (J59_23) ME Firmware Update Jumper(J113_23) http://www.tyan.com...
Page 136 PWM1 FAN_T11 FAN_T12 PWM3 FAN_T13 FAN_T15 FAN_T14 FAN_T16 PWM4 PWM5 PWM0 HD_COM1: COM Port Header Signal Signal BMC_COM1_DCD BMC_COM1_DRS BMC_COM1_RXD BMC_COM1_RTS BMC_COM1_TXD BMC_COM1_CTS BMC_COM1_DTR BMC_COM1_NRI HD_COM2: COM Port Header Signal Signal COM2_DCD COM2_DSR COM2_RXD COM2_RTS COM2_TXD COM2_CTS COM2_DTR COM2_NRI http://www.tyan.com...
Page 137 J5: FPB USB3.0 Header Signal Signal N2_RX P2_RX N1_RX P1_RX N2_TX P2_TX N1_TX P1_TX OC_N FPIO_1: Front Panel Header Signal Signal PW_LED+ FP_PWER(3.3V) FP_ID_LED_PWR PW_LED- FP_ID_LED_N HD_LED+ HWM_FAULT_LED- HD_LED- SYS_FAULT_LED- PW_SW# LAN1_ACTLED+ LAN1_ACTLED- RST_SW# FP_ID_LED_BTN_N INTRUDER# FPIO_TEMP_IN LAN2_ACTLED+ NMI_SW# LAN2_ACTLED- http://www.tyan.com...
Page 138 PIN C4 TX1_P TX1_N PIN C5 PIN C6 PIN C7 TX3_P PIN C8 TX3_N PIN C9 PIN D1 VACT PIN D2 VMAN PIN D3 TX0_P PIN D4 PIN D5 TX0_N PIN D6 PIN D7 TX2_P TX2_N PIN D8 PIN D9 http://www.tyan.com...
Page 139 VACT PIN D2 VMAN PIN D3 PIN D4 TX0_P PIN D5 TX0_N PIN D6 PIN D7 TX2_P TX2_N PIN D8 PIN D9 DBG_HD1: TYAN Module Header Signal Signal P3V3 FRAME_N LAD0 LAD1 PLT_RST_N LAD2 LAD3 CLK_33M DBG_SERIRQ DBG_PRES_N VCC3_AUX TPM_ADDR_MB...
Page 140 RST_N J6/J11/J12/J13/J16/J21/J32/J33/J37: 8-pin Power Connector to GPU Card Signal Signal P12V_IN P12V_IN P12V_IN P12V_IN NOTE: The 8-pin GPU power connector can support up to 30A. J36 / J52: 8-pin Power Connector to Front Riser Card Signal Signal P12V_IN P12V_IN http://www.tyan.com...
Page 141 1-2 Closed: Normal 2-3 Closed: ME Recovery Mode J59: ESPI_LPC Jumper Pin1 Pin2 Pin3 PD_ESPI_EN ESPI_H_LPC_L VCC3_AUX 1-2 Closed: LPC Mode 2-3 Closed: ESPI Mode Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...
Page 142: Thermal Interface Material
CPU lid (applying too much will actually reduce the cooling). NOTE: Always check with the manufacturer of the heat sink & processor to ensure that the thermal interface material is compatible with the processor and meets the manufacturer’s warranty requirements. http://www.tyan.com...
Page 143: Tips On Installing Motherboard In Chassis
If there are any studs missing, you will know right away since the motherboard will not be able to be securely installed. http://www.tyan.com...
Page 144 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MITAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...
Page 145 Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard. This platform supports (16)+(16) DDR4 RDIMM/RDIMM 3DS/LRDIMM/ ...
Page 146 2. Use paired memory installation for max performance. 3. Populate the same DIMM type in each channel, specifically - Use the same DIMM size - Use the same # of ranks per DIMM 4. Always install with CPU0 Socket first. http://www.tyan.com...
Page 147 √ √ CPU1_DIMM_ √ √ CPU1_DIMM_ √ CPU1_DIMM_ √ √ √ √ √ √ CPU1_DIMM_ √ √ CPU1_DIMM_ √ √ √ √ CPU1_DIMM_ √ √ CPU1_DIMM_ √ √ √ √ √ CPU1_DIMM_ √ √ CPU1_DIMM_ √ √ CPU1_DIMM_ √ http://www.tyan.com...
Page 148 1 DCPMM per socket and 1 DCPMM per node case. DDR4 Type Capacity DRAM1 RDIMM 3DS RDIMM LRDIMM 3DS LRDIMM Any Capcity DRAM2 RDIMM 3DS RDIMM LRDIMM 3DS LRDIMM Any Capacity and Preferably, >=32GB DRAM3 RDIMM 16GB or 32GB DRAM4 RDIMM 3DS RDIMM LRDIMM Any Capacity http://www.tyan.com...
Page 149: Finishing Up
In the rare circumstance that you have experienced difficulty, you can find help by asking your vendor for assistance. If they are not available for assistance, please find setup information and documentation online at our website or by calling your vendor’s support line. http://www.tyan.com...
Page 150: Chapter 5: Bios Setup
The table below shows how to navigate in the setup program using the keyboard. Function Left/Right Arrow Keys Change from one menu to the next Up/Down Arrow Keys Move between selections Enter Open highlighted section PgUp/PgDn Keys Change pages Change options Exit http://www.tyan.com...
Page 151 The following pages provide the details of BIOS menu. Please be noticed that the BIOS menu are continually changing due to the BIOS updating. The BIOS menu provided are the most updated ones when this manual is written. Please visit TYAN’s website at http://www.tyan.com for the information of BIOS updating.
Page 152: Main Menu
English / Simplified Chinese / Japanese System Date Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 1998-9999 Months: 1-12 Days: dependent on month System Time Set the Time. Use Tab to switch between Time elements. http://www.tyan.com...
Page 153: Advanced Menu
Option ROM Dispatch Policy Option ROM Dispatch Policy. S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm. AST2600 Super IO Configuration System Super IO Chip Parameters Trusted Computing Trusted Computing Settings. ACPI Settings System ACPI Parameters. http://www.tyan.com...
Page 154 NVMe Device Options Settings. Onboard Device Configuration Onboard Device and Function Configuration. Redfish Host Interface Settings Redfish Host Interface Parameters. Network Stack Configuration Network Stack Settings Hardware Health Configuration Hardware health Configuration Parameters. NVDIMM ADR Configuration NVDIMM ADR Configuration. http://www.tyan.com...
Page 155 Press <Enter> to select T1s Auth Configuration. iSCSI Configuration Configure the iSCSI parameters. VLAN Configuration (MAC: XXXXXXXXXXXX) VLAN Configuration (MAC: XXXXXXXXXXXX) MAC: XXXXXXXXXXXX --- IPV4 Network Configuration Configure network parameters. (MAC: XXXXXXXXXXXX) MAC: XXXXXXXXXXXX --- IPV6 Network Configuration Configure IPV6 network parameters. (MAC: XXXXXXXXXXXX) http://www.tyan.com...
Page 156 On Board Mass Storage Controller Onboard Device has: UEFI [X]. Legacy Embedded ROM(s). VIDx8086; DIDxA252 @ s0|Bx0|Dx11|Fx5 Enabled / Disabled On Board Mass Storage Controller Onboard Device has: UEFI [X]. Legacy Embedded ROM(s). VIDx8086; DIDxA202 @ s0|Bx0|Dx17|Fx0 Enabled / Disabled http://www.tyan.com...
Page 157 Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled Slot #12 Bridge Device Device on Slot does not have an option ROM. Slot #13~15 Empty Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled http://www.tyan.com...
Page 158 Select 0-23. For example enter 3 for 3am and 15 for 3pm. Wake up minute Select 0-59 for Minute. Wake up second Select 0-59 for Second. When Wake system from S5 is set to [Dynamic Time] Wake up Minute increase http://www.tyan.com...
Page 159 5.3.3 AST2600 Super IO Configuration Super IO Chip Read only. Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). http://www.tyan.com...
Page 160 / IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; http://www.tyan.com...
Page 161 5.3.4 Trusted Computing Security Device Support Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Enable / Disable http://www.tyan.com...
Page 162 Enable ACPI Auto Configuration Enable or Disable BIOS ACPI Auto Configuration. Disabled / Enabled Enable Hibernation Enable or Disable System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some operating system. Disabled / Enabled http://www.tyan.com...
Page 163 5.3.6 Power Management CPU Power and Performance Policy CPU Power and Performance Policy. Performance / Balanced Power / Power http://www.tyan.com...
Page 164 Console redirection enable or disable. Disabled / Enabled Legacy Console Redirection Settings Legacy Console redirection settings. Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. http://www.tyan.com...
Page 165 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
Page 166 On this mode enabled only text will be sent. This is to capture Terminal data. Disabled / Enabled Resolution 100x31 Enable or disable extended terminal resolution. Disabled / Enabled Putty KeyPad Select FunctionKey and KeyPad on Putty. VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 http://www.tyan.com...
Page 167 When BootLoader is selected, then Legacy Console Redirection is disabled before booting to legacy OS, When Always Enable is selected, then Legacy Console Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. Always Enable / BootLoader http://www.tyan.com...
Page 168 VT-UTF8 / VT100 / VT100+ / ANSI Bits per Second Select serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds. 115200 / 9600 / 19200 / 57600 http://www.tyan.com...
Page 169 ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. None / Hardware RTS/CTS / Software Xon/Xoff Data Bits / Parity / Stop Bits Read only. http://www.tyan.com...
Page 170 Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding). Enable / Disable SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support. Enable / Disable http://www.tyan.com...
Page 171 Displays and provides option to change the Uncore settings Memory Configuration Displays and provides option to change the Memory Settings. IIO Configuration Displays and provides option to change the IIO Settings. Advanced Power Management Configuration Displays and provides option to change the Power Management Settings. http://www.tyan.com...
Page 172 Virtualization Technology allows a platform to run multiple operating systems and applications in independent partitions. Note: A change to this option requires the system to be powered off and then back on before the setting takes effect. Disable / Enable Enable SMX Enables Safer Mode Extensions. Disable Enable http://www.tyan.com...
Page 173 Total Memory Encryption (TME) Enable/Disable Total Memory Encrytion (TME) Disable Enable http://www.tyan.com...
Page 174 Selects the allocation size used to assign mmioh resources. Total mmioh space can be up to 32xgranularity. Per stack mmioh resource assignments are multiples of the granularity where 1 unit per stack is the default allocation. 1G / 4G / 16G / 64G / 256G / 1024G http://www.tyan.com...
Page 175 UMA Based Clustering options include Disable (ALL2ALL), Hemisphere (2 cluster), and Quadrant (4 cluster, not supported on ICX).These option are only valid when SNC is disabled. If SNC is enabled, UMA-Based Clustering is automatically disabled by BIOS. Disable (All2 All) / Hemisphere (2- clusters) http://www.tyan.com...
Page 176 5.3.11.3 UPI Configuration Uncore General Configuration Displays and provides option to change the Uncore General Settings. http://www.tyan.com...
Page 177 Allows for selecting the UPI Link Frequency. 9.6GT/s / 10.4GT/s / 11.2GT/s / Auto / Use Per Link Setting Link L0p Enable Enable --- Set the c_l0p_en, Disable --- Reset it, Auto --- Auto decides based on Si Compatibility. Disable / Enable / Auto http://www.tyan.com...
Page 178 Disable --- Reset it, Auto --- Auto decides based on Si Compatibility. Disabled / Enable / Auto UPI Failover Support Enable - Set the c_failover_en, Disable - Reset it, Auto - Auto decides based on Si Compatibility Disabled / Enable / Auto http://www.tyan.com...
Page 179 5.3.11.3.1.1 Uncore Status Read only http://www.tyan.com...
Page 180 (limited by processor support). Do not select Reserved. Auto / 2400 / 2666 / 2933 / 3200 Erase-Arm NVDIMMs Enables/Disables Erasing and Arming NVDIMMs. Enabled / Disabled Restore NVDIMMs Enables/Disables automatic restoring of NVDIMMs. Enabled / Disabled http://www.tyan.com...
Page 181 Interleave NVDIMMs Controls if NVDIMMs are interleaved together or not. Enabled / Disabled http://www.tyan.com...
Page 182 Enable Mirror on entire memory for TAD0. Enable / Disable UEFI ARM Mirror Imitate behavior of UEFI based Address Range Mirror with setup option Enable / Disable Correctable Error Threshold Correctable Error Threshold (0x01 – 0x7fff) used for sparing, tagging, and leaky bucket. http://www.tyan.com...
Page 183 ADDDC Sparing Enable/Disable ADDDC Sparing Enable / Disable Patrol Scrub Enable/Disable Patrol Scrub. Disabled / Enabled / Enable at End of POST Patrol Scrub Interval http://www.tyan.com...
Page 184 Press <Enter> to bring up the Intel® VMD for Volume Management Device Configuration menu. Intel® AIC Retimer/AIC SSD Technology (non-VMD) Press<Enter> to bring up the Intel® AIC Retimer/AIC SSD Configuration menu. Retimer workaround Enable or disable the retime workaround no / yes http://www.tyan.com...
Page 185 PCIe Hot Plug Enable/Disable PCIe Hot Plug globally. no / yes http://www.tyan.com...
Page 186 Selects PCIe port Bifurcation for selected slot(s). Auto / x4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 IOU4 (IIO PCIe Port 5) Selects PCIe port Bifurcation for selected slot(s). Auto / x4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 http://www.tyan.com...
Page 187 Port 1A/2A/4A/5A/5B/5C/5D Settings related to PCI Express Ports (0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/4B/4C/4D/5A/5B/5C/5D). http://www.tyan.com...
Page 188 This option specifies if the link is considered Hot Plug capable. Disable / Enable Link Speed Choose Link Speed for this PCIe port. Auto / Gen1 (2.5 GT/s) / Gen2 (5 GT/s) / Gen3 (8 GT/s) / Gen4 (16 GT/s) http://www.tyan.com...
Page 189 PCI-E ASPM Support This option enables/disables the ASPM (L1) support for the downstream devices. Auto / L1 Only / Disabled Hide Port? User can force to hide this root port from OS. no / yes MCTP Enable/Disable MCTP no / yes http://www.tyan.com...
Page 190 Selects PCIe port Bifurcation for selected slot(s). Auto / x4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 IOU4 (IIO PCIe Port 5) Selects PCIe port Bifurcation for selected slot(s). Auto / x4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 http://www.tyan.com...
Page 191 Port 1A/2A/4A/5A/5B/5C/5D Settings PCIe ports Bifurcation for selected slot(s) http://www.tyan.com...
Page 192 This option specifies if the link is considered Hot Plug capable. Disable / Enable Link Speed Choose Link Speed for this PCIe port. Auto / Gen1 (2.5 GT/s) / Gen2 (5 GT/s) / Gen3 (8 GT/s) / Gen4 (16 GT/s) http://www.tyan.com...
Page 193 PCI-E ASPM Support This option enables/disables the ASPM (L1) support for the downstream devices. Auto / L1 Only / Disabled Hide Port? User can force to hide this root port from OS. no / yes MCTP Enable/Disable MCTP no / yes http://www.tyan.com...
Page 194 Enable/Disable DMA_CTRL_FLATFORM_OPT_ IN_FLAG in DMAR table in ACPI. Not compatible with Direct Device Assignment (DDA). Enable / Disable Interrupt Remapping Enable/Disable VT_D Interrupt Remapping Support Auto / Enable / Disable X2APIC Opt Out Enable/Disable x2APIC_OPT_OUT bit Enable / Disable http://www.tyan.com...
Page 195 Pre-boot DMA Protection Enable DMA Protection in Pre-boot environment (If DMAR table is installed in DXE and If VTD_INFO_PPT is installed in PEI.) Enable / Disable http://www.tyan.com...
Page 196 5.3.11.5.4 Intel® VMD Technology http://www.tyan.com...
Page 197 Disable / Enable VMD Config for IOU0 Enable/Disable VMD Disable / Enable VMD Config for IOU1 Enable/Disable VMD Disable / Enable VMD Config for IOU2 Enable/Disable VMD Disable / Enable VMD Config for IOU3 Enable/Disable VMD Disable / Enable http://www.tyan.com...
Page 198 VMD Config for IOU4 Enable/Disable VMD Disable / Enable http://www.tyan.com...
Page 199 Disable / Enable VMD Config for IOU1 Enable/Disable VMD Enable/Disable VMD in this Stack. Disable / Enable VMD Config for IOU2 Enable/Disable VMD Read only. VMD Config for IOU3 Enable/Disable VMD Enable/Disable VMD in this Stack. Disable / Enable http://www.tyan.com...
Page 200 VMD Config for IOU4 Enable/Disable VMD Enable/Disable VMD in this Stack. Disable / Enable http://www.tyan.com...
Page 201 5.3.11.5.5 Intel® AIC Retimer/AIC Technology (non-VMD) http://www.tyan.com...
Page 202 Annouce Intel AIC Retimer/AIC SSD HW at Stack3(Port3A-3D). Override IOUx bifurcation if required Disable / Enable Intel AIC Retimer/AIC SSD HW at Stack4 Annouce Intel AIC Retimer/AIC SSD HW at Stack4(Port4A-4D). Override IOUx bifurcation if required Disable / Enable http://www.tyan.com...
Page 203 Intel AIC Retimer/AIC SSD HW at Stack5 Annouce Intel AIC Retimer/AIC SSD HW at Stack5(Port5A-5D). Override IOUx bifurcation if required Disable / Enable http://www.tyan.com...
Page 204 5.3.11.6 Advanced Power Management Configuration CPU P State Control P State Control Configuration Sub Menu, include Turbo, XE and etc. Hardware PM State Control Hardware P-State setting. CPU C State Control CPU C State setting. http://www.tyan.com...
Page 205 Support Dynamic SST-PP Select Disable / Enable Intel SST-PP Support Dynamic SST-PP select Disable / Enable Energy Efficient Turbo Energy Efficient Turbo Disable, MSR 0x1FC [19]. Enable / Disable Turbo Mode Enable/Disable processor Turbo Mode (requires EMTTM enabled too). Disable / Enable http://www.tyan.com...
Page 206 Perf P Limit Enable/Disable Performance P-Limit. Disable / Enable http://www.tyan.com...
Page 207 Disable: Hardware chooses a P-state based on OS Request (Legacy P-States). Native Mode: Hardware chooses a P-state based on OS guidance. Out of Band Mode: Hardware autonomously chooses a P-state (no OS guidance). Disable / Native Mode / Out of Band Mode / Native Mode with No Legacy Support http://www.tyan.com...
Page 208 C0/C1 state / C2 state / C6 (non Retention) state / C6(Retention) state / Auto CPU C6 report Enable/Disable CPU C6 (ACPI C3) report to OS. Disabled / Enabled / Auto Enhanced Halt State (C1E) Core C1E auto promotion Control. Take effect after reboot. Disable / Enable http://www.tyan.com...
Page 209 5.3.12 Memory Topology Read only. http://www.tyan.com...
Page 210 5.3.13 Server ME Configuration Altitude The altitude of the platform location above the sea level, expressed in meters. The hex number is decoded as 2’s complement signed integer. Provide the 8000h value if the altitude is unknown. 8000 http://www.tyan.com...
Page 211 5.3.14 SATA Configuration SATA Configuration SATA devices and settings. SSATA Configuration sSATA devices and settings. http://www.tyan.com...
Page 212 Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. AHCI / RAID Support Aggressive Link Power Management Enables/Disables SALP. Disable / Enable Port 0/1/2/3/4/5/6/7 Enable or Disable SATA Port. Disable / Enable Hot Plug Designates this port as Hot Pluggable. Disable / Enable http://www.tyan.com...
Page 213 Otherwise all drives spin up at boot. Disable / Enable SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard disk Drive. Hard Disk Drive / Solid State Drive http://www.tyan.com...
Page 214 Identify the sSATA port is connected to Solid State Drive or Hard Disk Drive. AHCI / RAID Support Aggressive Link Power Management Enables/Disables SALP. Disable / Enable Port 0/1/2/3/4/5 Enable or Disable sSATA Port. Disable / Enable Hot Plug Designates this port as Hot Pluggable. Disable / Enable http://www.tyan.com...
Page 215 Identify the SATA port is connected to Solid State Drive or Hard disk Drive. Hard Disk Drive / Solid State Drive sSATA Topology Identify the Secondary SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2. Unknown / ISATA / Direct Connect / Flex / M2 http://www.tyan.com...
Page 216 5.3.15 PCH Configuration PCH Devices Enable/Disable Intel IO Controller Hub devices. ® PCI Express Configuration PCI Express Configuration settings. USB Configuration USB Configuration Settings. ADR Configuration Automatic DIMM Refresh (ADR) Configuration. http://www.tyan.com...
Page 217 5.3.15.1 PCH Devices Restore AC Power Loss Select S0/S5 for ACPI state after a G3. Power On / Power Off / Last State http://www.tyan.com...
Page 218 5.3.15.2 PCI Express Configuration PCI Express Root Port 1~20 PCI Express Root Port 1~20 Settings. http://www.tyan.com...
Page 219 L1 Substates PCI Express L1 Substates settings. Disable / L1.1 / L1.2 / L1.1 & L1.2 PCIe Speed Configure PCIe Speed. Auto / Gen1 / Gen2 / Gen3 Max Payload Size PCIE Max Payload Size Selection. MPL128B / MPL256B http://www.tyan.com...
Page 220 5.3.15.3 USB Configuration XHCI Idle L1 Enable XHCI Idle L1. Disable to workaround USB3 hot plug will fail after 1 hot plug removal. Please put the system to G3 for the new settings to take effect. Disable / Enable http://www.tyan.com...
Page 221 Enable/Disable ADR Timer Held-off for DEBUG PURPOSES ONLY!. Platform-POR / Enable / Held-off ADR timer expire time Select proper ADR timer value: 25uS, 50uS, 100uS or 0. Platform-POR / 25 uS / 50 uS / 100 uS / 0 us http://www.tyan.com...
Page 222 ADR timer multiplier Select proper ADR timer multiplier: x1, 8, 24, 40, 56, 64, 72, 80, 88, 96. Platform-POR / x1 / x8 / x24 / x40 / x56 / x64 / x72 / x80 / x88 / x96 http://www.tyan.com...
Page 223 USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support. Disabled / Enabled Port 60/64 Emulation Enables I/O Port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. Disabled / Enabled http://www.tyan.com...
Page 224 Mass storage device emulation type. ‘Auto’ enumerates devices according to their media format. Optical drives are emulated as ‘CDROM’, drives with no media will be emulated according to a drive type. Auto / Floppy / Forced FDD / Hard Disk / CD-ROM http://www.tyan.com...
Page 225 5.3.17 CSM Configuration Only Read http://www.tyan.com...
Page 226 5.3.18 NVMe Configuration This page shows the Device Name you installed. Press Enter to read the device information. If no NVME device is installed, it shows no NVME device is found. Read only. http://www.tyan.com...
Page 227 Single root means that all GPUs are connected to the same CPU, which is the CPU0. Dual-root means half of the GPUs are on CPU0 and the other half are attached to the CPU1. Single-Root / Dual-Root ICC Clock Spread Spectrum Turn on/off Spread Spectrum Setting for IsCLK. Enable / Disable http://www.tyan.com...
Page 228 When Redfish Host Interface Settings set to [Enabled], the following items will appear. Authentication mode Select authentication mode Basic Authentication / Session Authentication IP Address Enter IP address. IP Mask Address Enter IP Mask address. IP Port Enter IP Port. http://www.tyan.com...
Page 229 Enable Ipv4 HTTP Boot Support. If disabled IPV4 HTTP boot option will not be created. Disable / Enable Ipv6 PXE Support Enable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot option will not be created. Disable / Enable http://www.tyan.com...
Page 230 Wait time in seconds to press ESC key to abort the PXE boot. Use either+/- or numeric keys to set the value. Media detect count Number of times presence of media will be checked. Use either+/- or numeric keys to set the value. http://www.tyan.com...
Page 231 PWM Minimal Duty Cycle PWM Minimal Duty Cycle (%). NOTE: This item is available when Fan Speed Control is set to [Manual]. BMC Alert Beep Enable/Disable BMC Alert Beep. On / Off PMBus support PMBus Support. Enable / Disable http://www.tyan.com...
Page 232 Cold Redundancy Enabled or Disabled Advanced System Power Saving Enable / Disable Number of PSU 1 / 2 / 3 / 4 5.3.22.1 Sensor Data Register Monitoring NOTE: SDR cannot be modified. Read only. http://www.tyan.com...
Page 233 Enables the detecting and enabling of ADR. This is not available if eADR is enabled since eADR requires ADR to be enabled. Enable / Disable Assert ADR on Reset Assert ADR on Reset. Enable / Disable Assert ADR on Shutdown Assert ADR on Shutdown. Enable / Disable http://www.tyan.com...
Page 234 5.3.24 CPU Registration Sign-Up the current CPU This item support INTEL CPU, sign the CPU will record current CPU. Once BIOS checked different with registered CPU, show WARNING message on POST screen. Deregistration / Sign-up / Keep Current Status http://www.tyan.com...
Page 235 5.3.25 Memory Registration Sign-up the current Memory Sign the Memory will record current Memory. Once BIOS checked different with registered Memory, show WARNING message on POST screen. Deregistration / Sign-up / Keep Current Status http://www.tyan.com...
Page 236 5.3.26 T1s Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. Client Cert Configuration Press <Enter> to configure Client Cert. http://www.tyan.com...
Page 237 5.3.26.1 Server CA Configuration Enroll Cert Press <Enter> to enroll cert. Delete Cert Press <Enter> to delete cert. http://www.tyan.com...
Page 238 5.3.25.1.1 Enroll Cert Enroll Cert Using File Enroll Cert Using File. Cert GUID Input digit character in 11111111-2222-3333-4444-1234567890ab format. Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
Page 239 5.3.25.1.2 Delete Cert FE9C6606-8B49-44A3-8B6B-DEA3A0E032 GUID for CERT. Disabled / Enabled http://www.tyan.com...
Page 240 5.3.26 iSCSI Configuration Host iSCSI Configuration Host iSCSI Configuration http://www.tyan.com...
Page 241 Add an Attempt. Delete Attempts Delete one or more attempts. Change Attempt Order Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. http://www.tyan.com...
Page 242 5.3.26.1.1 Add an Attempt NOTE: Only LAN1 supports iSCSI function. MAC xx:xx:xx:xx:xx:xx (Intel® I210 Gigabit Network Connection) PFA: Bus 2 / Dev 0 / Func 0. http://www.tyan.com...
Page 243 Initiator IP address is system assigned in IP6 mode. In Autoconfigure mode, iSCSI driver will attempt to connect iSCSI target via IPv4 stack, if failed then attempt IPv6 stack. IPv4 / IPv6 / Autoconfigure Connection Retry Count The minimum value is 0 and the maximum is 16. 0 means no retry. http://www.tyan.com...
Page 244 Hexadecimal representation of the LU number. Examples are: 4752-3A4F-6b7e-3F99, 6734-9-156f-127, 4186-9. Authentication Type Authentication method: CHAP, Kerberos, or None. CHAP / None Save Changes Must reboot system manually for changes to take place. Back to Previous Page Back to Previous Page. http://www.tyan.com...
Page 245 Initiator IP address is system assigned in IP6 mode. In Autoconfigure mode, iSCSI driver will attempt to connect iSCSI target via IPv4 stack, if failed then attempt IPv6 stack. IPv4 / IPv6 / Autoconfigure Connection Retry Count The minimum value is 0 and the maximum is 16. 0 means no retry. http://www.tyan.com...
Page 246 Get target info via DHCP Get target info via DHCP Authentication Type Authentication method: CHAP, Kerberos, or None. CHAP / None Save Changes Must reboot system manually for changes to take place. Back to Previous Page Back to Previous Page. http://www.tyan.com...
Page 247 Disabled / Enabled Attempt 2 MAC xx:xx:xx:xx:xx:xx, PFA: Bus 2 / Dev 0 / Func 0, iSCSI mode: Disabled, IP version: IPv4. Disabled / Enabled Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
Page 248 Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. Attempt 1 Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
Page 249 5.3.27 VLAN Configuration (MAC:xxxxxxxxxxxx) Enter Configuration Menu Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
Page 250 Enter Configuration Menu VLAN ID VLAN ID of new VLAN or existing VLAN, valid value is 0~4094. Priority 802.1Q Priority, valid value is 0~7. Add VLAN Create a new VLAN or update existing VLAN. Remove VLAN Remove selected VLANs. http://www.tyan.com...
Page 251 5.3.28 MAC:xxxxxxxxxxxx - IPv4 Network Configuration Configured Indicate whether network address configured successfully or not. Disabled / Enabled Save Changes and Exit Save Changes and Exit. http://www.tyan.com...
Page 252 5.3.29 MAC:xxxxxxxxxxxx - IPv6 Network Configuration Enter Configuration Menu Press ENTER to enter configuration menu for IPv6 configuration. http://www.tyan.com...
Page 253 Duplicate Address Detection on a tentative address. A value of zero indicates that Duplicate Address Detection is not performed. Policy Automatic or manual. Automatic / Manual NOTE: The Advanced Configuration submenu is available when Policy is set to [Manual]. Save Changes and Exit Save Changes and Exit. http://www.tyan.com...
Page 254: Server Management
Enter value Between 3 to 6 min for FRB-2 Timer Expiration value. Not available if FRB-2 Timer is disabled. FRB-2 Timer Policy Configure how the system should respond if the FRB-2 Timer expires. Not available if FRB-2 Timer is disabled. Do Nothing / Reset / Power Down / Power Cycle http://www.tyan.com...
Page 255 Configure how the system should respond if the OS Boot Watchdog Timer expires. Not available if OS Boot Watchdog timer is disabled. Do Nothing / Reset / Power Down / Power Cycle BMC network configuration Configure BMC network parameters. http://www.tyan.com...
Page 256 BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. Unspecified / Static / DynamicBmcDhcp / DynamicBmcNonDhcp Management Port 2 Enable/Disable BMC Share NIC. Enabled / Disabled Configure IPV6 support Management Port 1 IPV6 Support Enable or Disable LAN1 IPV6 Support. Enabled / Disabled http://www.tyan.com...
Page 257 Management Port 2 IPV6 Support Enable or Disable LAN2 IPV6 Support. Enabled / Disabled http://www.tyan.com...
Page 258: Security
Set user password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation. Secure Frozen Mode Disable means Hard Drive on Non-frozen mode. Enable means Hard Drive on Frozen mode. Enable / Disable Secure Boot Secure Boot Configuration. http://www.tyan.com...
Page 259 Force System to User Mode. Install factory default Secure Boot key databases. Press ‘Yes’ to proceed ‘No’ to cancel. Reset to Setup Mode Delete all Secure Boot key database from NVRAM. Deleting all variables will reset the System to Setup Mode. Press ‘Yes’ to proceed ‘No’ to cancel. http://www.tyan.com...
Page 260 Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. http://www.tyan.com...
Page 261 Delete all Secure Boot key database from NVRAM. Deleting all variables will reset the System to Setup Mode. Press ‘Yes’ to proceed ‘No’ to cancel. Export Secure Boot variables Copy NVRAM content of Secure Boot variables to files in a root folder on a file system device. http://www.tyan.com...
Page 262 Authorized Signatures Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/C0FF Image (SHA256) Key source: Factory, External, Mixed http://www.tyan.com...
Page 263 Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/C0FF Image (SHA256) Key source: Factory, External, Mixed Update / Append http://www.tyan.com...
Page 264: Boot
Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. Off / On Quiet Boot Enable or disable Quiet Boot option. Enabled / Disabled Endless Boot Enable or disable Endless Boot. Enabled / Disabled http://www.tyan.com...
Page 265 Wait for ‘ESC’ key to be pressed if error occurs. Enabled / Disabled Boot Option Priorities Boot Option #1 Select the system boot order. Device Name / Disabled Delete Boot Option Remove an EFI boot option from the boot order. http://www.tyan.com...
Page 266 5.6.1 Delete Boot Option Delete Boot Option Remove an EFI boot option from the boot order. Select one to delete / Device Name http://www.tyan.com...
Page 267: Save & Exit
Discard Changes and Reset Reset system setup without saving any changes. Save Changes Save changes done so far to any of the setup options. Discard Changes Discard changes done so far to any of the setup options. Restore Defaults http://www.tyan.com...
Page 268 Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Boot Override Read only. http://www.tyan.com...
Page 269: Chapter 6: Diagnostics
BIOS flash failure, you must contact your dealer for a replacement BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.
Page 270: Amibios Post Code
South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading 0x06 Microcode loading 0x07 AP initialization after microcode loading 0x08 North Bridge initialization after microcode loading 0x09 South Bridge initialization after microcode loading 0x0A OEM initialization after microcode loading 0x0B Cache initialization http://www.tyan.com...
Page 271 Memory initialization. Configuring memory 0x2F Memory initialization (other) 0x30 Reserved for ASL (see ASL Status Codes section below) 0x31 Memory Installed 0x32 CPU post-memory initialization is started. 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) http://www.tyan.com...
Page 272 CPU microcode is not found or microcode update is failed. 0x5A Internal CPU error 0x5B Reset PPI is not available. 0x5C – 0x5F Reserved for future AMI error codes S3 Resume Progress Codes 0xE0 S3 Resume is started (S3 Resume PPI is called by the DXE IPL). http://www.tyan.com...
Page 273 0x63 CPU DXE initialization is started. 0x64 CPU DXE initialization (CPU module specific) 0x65 CPU DXE initialization (CPU module specific) 0x66 CPU DXE initialization (CPU module specific) 0x67 CPU DXE initialization (CPU module specific) 0x68 PCI host bridge initialization http://www.tyan.com...
Page 274 PCI Bus Assign Resources 0x97 Console output devices connect 0x98 Console Input devices connect 0x99 Super IO initialization 0x9A USB initialization is started. 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E -0x9F Reserved for future AMI codes http://www.tyan.com...
Page 275 DXE Error Codes 0xD0 CPU initialization error 0xD1 North Bridge initialization error 0xD2 South Bridge initialization error 0xD3 Some of the Architectural Protocols are not available 0xD4 PCI resource allocation error. Out of Resources 0xD5 No Space for Legacy Option ROM http://www.tyan.com...
Page 276: Intel Mrc Post Code
MC Frequency Lock 0xDD91 MC Frequency Lock Error 0xDD12 DDRIO Config - Post DCC 0xDD92 DDRIO Config - Post DCC Error 0xDD13 DDR SCOMP Config 0xDD93 DDR SCOMP Config Error 0xDD15 Memory SubSystem Config 0xDD95 Memory SubSystem Config Error http://www.tyan.com...
Page 277 0xDDA9 SenseAmp Offset Training Error 0xDD2A Read MPR training 0xDDAA Read MPR training Error 0xDD2B Read Leveling training 0xDDAB Read Leveling training Error 0xDD2C Jedec Write Leveling training 0xDDAC Jedec Write Leveling training Error 0xDD2D LPDDR3 Latency Set B http://www.tyan.com...
Page 278 Command Voltage Centering Error 0xDD3B Write Voltage Centering 2D 0xDDBB Write Voltage Centering 2D Error 0xDD3C Read Voltage Centering 2D 0xDDBC Read Voltage Centering 2D Error 0xDD3D Post training 0xDDBD Post training Error 0xDD3E Late command training 0xDDBE Late command training Error http://www.tyan.com...
Page 279 Early ReadMPR Timing Centering 2D 0xDDCC Early ReadMPR Timing Centering 2D Error 0xDD4E Write Leveling FlyBy training 0xDDCE Write Leveling FlyBy training Error 0xDD4F MRC Comp override 0xDDCF MRC Comp override Error 0xDD50 MRC activate 0xDDD0 MRC activate Error 0xDD51 Row Hammer Prevention http://www.tyan.com...
Page 280 0xDDE0 TXT Memory alias check Error 0xDD61 MRC Energy Performance Gain 0xDDE1 MRC Energy Performance Gain Error 0xDD62 ClkTCO Comp Training 0xDDE2 ClkTCO Comp Training Error 0xDD63 Read Per Bit Deskew Calibration 0xDDE3 Read Per Bit Deskew Calibration Error http://www.tyan.com...
Page 281 Margin limit Check on Fast Flow 0xDDF3 Margin limit Check on Fast Flow Error 0xDD74 Early Command Voltage Centering 0xDDF4 Early Command Voltage Centering Error 0xDD76 Read Timing optimization Shift Rx Vref 0xDDF6 Read Timing optimization Shift Rx Vref Error 0xDDFE No Memory detected http://www.tyan.com...
Page 282: Appendix Ii: Pcie Slot Location And Corresponding List
52:00.0 PCIE slot 4(J8) 57:00.0 PCIE slot 6(J10) 56:00.0 PCIE slot 8(J9) 53:00.0 PCIE slot 10(J7) CE:00.0 PCIE slot 13(J1) D1:00.0 PCIE slot 15(J3) D6:00.0 PCIE slot 17(J5) D5:00.0 PCIE slot 19(J4) D2:00.0 PCIE slot 21(J2) PCIE Slot Location http://www.tyan.com...
Page 283: Appendix Iii: Fan And Temp Sensors
This section aims to help readers identify the locations of some specific FAN and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. Figure 1: Sensor Location NOTE: The red spot indicates the sensor. http://www.tyan.com...
Page 284 Fan and Temp Sensor Location: Fan Sensor: It is located in the third pin of the fan connector, which detects the fan speed (rpm) Temp Sensor: refer to Figure 1: Sensor Location. They detect the system temperature around. http://www.tyan.com...
Page 285 BIOS Temp Sensor Name Explanation: http://www.tyan.com...
Page 286 http://www.tyan.com...
Page 287 Fan Speed of SYS_FAN_3 SYS_FAN_4 Fan Speed of SYS_FAN_4 SYS_FAN_5 Fan Speed of SYS_FAN_5 SYS_FAN_6 Fan Speed of SYS_FAN_6 SYS_FAN_7 Fan Speed of SYS_FAN_7 SYS_FAN_8 Fan Speed of SYS_FAN_8 SYS_FAN_9 Fan Speed of SYS_FAN_9 SYS_FAN_10 Fan Speed of SYS_FAN_10 http://www.tyan.com...
Page 288 SYS_FAN_11 Fan Speed of SYS_FAN_11 SYS_FAN_12 Fan Speed of SYS_FAN_12 PSU0_STATUS Current status of PSU0 PSU0_Temp Temperature of PSU0 PSU0_FAN Fan Speed of PSU0 PSU1_STATUS Current status of PSU1 PSU1_Temp Temperature of PSU1 PSU1_FAN Fan Speed of PSU1 http://www.tyan.com...
Page 289: Appendix Iv: Cable Connection Tables
4. VGA & COM port Cable Front BKT to S7129 MB Front BKT Connect to S7129 M/B FPIO_VGA → VGA Cable P/N: 422T61000008 HD_COM1 → COM port Cable P/N: 422T61000009 5. Rear USB Cable M7129F83A-RIO to S7129 MB M7129F83A-RIO Connect to S7129 M/B http://www.tyan.com...
Page 290 Slim-SAS Cable-2 SLIMSAS7 → (Riser-1 J6) P/N: 422T60900003 Slim-SAS Cable-3 SLIMSAS8 → (Riser-2 J5) P/N: 422T61600004 Slim-SAS Cable-4 SLIMSAS9 → (Riser-2 J6) P/N: 422T61600004 Riser PWR cable-1 → (Riser-1 PWR2) P/N: 422T62700006 Riser PWR cable-2 → (Riser-2 PWR2) P/N: 422T62700006 http://www.tyan.com...
Page 291 → P/N: 422T62700015 2x6P PWR Cable → P/N: 422T62700007 10. Rear FAN extend Cable Rear FAN to S7129 MB Rear FAN Connect to S7129 M/B → FAN1 P/N: 422T62700010 → FAN2 P/N: 422T62700010 → FAN3 P/N: 422T62700010 → FAN4 http://www.tyan.com...
Page 292 P/N: 422T62700010 http://www.tyan.com...
Page 293: Appendix V: Installing Ocp Card
Appendix V: Installing OCP Card Follow these instructions to install the OCP 3.0 Card. Unscrew the Rear IO Bracket. Push both latches to pull the Rear IO Bracket out. Unscrew the IO bracket. http://www.tyan.com...
Page 294 Pull out the IO bracket. Insert the 3.0 OCP card to the bracket. Reinstall the IO bracket into the chassis. http://www.tyan.com...
Page 295 http://www.tyan.com...
Page 296: Appendix Vi: Fru Parts Table
Appendix VI: FRU Parts Table FT83A-B7129 FRU Parts Item Model Number Part Number Picture Description TF-AIR DUCT;SBU,AL,FOR Air Duct 452T62700003 CPUHSK,_NCT,FT77D-B7109 TF-CABLE ASSY;CONTROL INTERNAL,SBU,28 AWG,600 mm,FAN 422T53400003 CTRL CABLE, 2*15P, P1.0/2*15P, P1.0,TN71-BP012 TF-CABLE ASSY;SAS INTERNAL,SBU,30 AWG,700 422T53400005 mm,MINI-SAS HD CABLE, SHORT...
Page 297 TF-AC/DC POWER CABLE;SBU,18 422T62700004 AWG,550 mm,2*4P(M),P4.2/ 2*4P(M), P4.2,UL1015, 13A, FT83A-B7129 TF-AC/DC POWER CABLE;SBU,18 422T62700005 AWG,700 mm,2*6P(M),P4.2/ 2*4P(M), P4.2(2), UL1015,13A, FT83A-B7129 TF-AC/DC POWER CABLE;SBU,18 422T62700006 AWG,450 mm,2*2P(M),P4.2/ 2*2P(M),P4.2,FT83A-B7129 TF-AC/DC POWER CABLE;SBU,18 422T62700007 AWG,150 mm,2*6P(M),P4.2/ 2*6P(M), P4.2, UL1015, 13A,FT83A-B7129 TF-CABLE ASSY;CONTROL INTERNAL,SBU,28 AWG,1100 mm,FP 422T62700009 CTRL CABLE, 2*15P, P1.0/2*12P,...
Page 298 TS65-B7120 TF-FAN ASSY;SBU,FAN, 12V, V80E12BS1NB5-07T095, 2BALL, 4.54A, 54.5W, 15000 RPM, 131.7 CFM, FRU-TS-9200 422T62700001 4.54 inch-H2O, 68.0 dBA, 240g, 80*80*38mm, 6 PIN (HEADER 1*6), WIRE L=170MM, FT83A-B7129 FRU-BP-9270 411T60900096 M1297T65-BP12E-12,FT83A-B7129 Backplane Riser card 411T62700036 M7129F83A-L16,FT83A-B7129 FRU OPTION KIT; GPU Card BKT; GPU...
Page 299: Appendix Vii: Glossary
IPL device is called upon to attempt loading of the OS. BIOS (Basic Input/Output System): the program that resides in the ROM chip, which provides the basic instructions for controlling your computer’s hardware. Both the operating system and application software use BIOS routines to ensure compatibility. http://www.tyan.com...
Page 300 SIMMs, and do not need to be installed in pairs. DIMM bank: sometimes called DIMM socket because the physical slot and the logical unit are the same. That is, one DIMM module fits into one DIMM socket, which is capable of acting as a memory bank. http://www.tyan.com...
Page 301 EEPROM (Electrically Erasable Programmable ROM): also called Flash BIOS, it is a ROM chip which can, unlike normal ROM, be updated. This allows you to keep up with changes in the BIOS programs without having to buy a new chip. TYAN ®...
Page 302 Pipeline burst SRAM: a fast secondary cache. It is used as a secondary cache because SRAM is slower than SDRAM, but usually larger. Data is cached first to the faster primary cache, and then, when the primary cache is full, to the slower secondary cache. http://www.tyan.com...
Page 303 Serial port: called as such because it transmits the eight bits of a byte of data along one wire, and receives data on another single wire (that is, the data is transmitted in serial form, one bit after another). http://www.tyan.com...
Page 304 CPUs without damaging the sensitive CPU pins. The CPU is lightly placed in an open ZIF socket, and a lever is pulled down. This shifts the processor over and down, guiding it into the board and locking it into place. http://www.tyan.com...
Page 305: Appendix Viii: Technical Support
2. See the TYAN website for FAQ’s, bulletins, driver updates, and other information: ® http://www.tyan.com 3. Contact your dealer for help BEFORE calling TYAN ® Returning Merchandise for Service During the warranty period, contact your distributor or system vendor FIRST for any product problems.
Page 306 You may obtain service by calling the manufacturer for a Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the ®...

This manual is also suitable for:

B7129f83av8e4hr-n B7129f83av14e8hr-n-he B7129f83av8e4hr-n-he

TYAN FT83A-B7129 Service Engineer's Manual

Quick Links

Need help?

Questions and answers

Related Manuals for TYAN FT83A-B7129

Summary of Contents for TYAN FT83A-B7129

This manual is also suitable for:

Table of Contents
