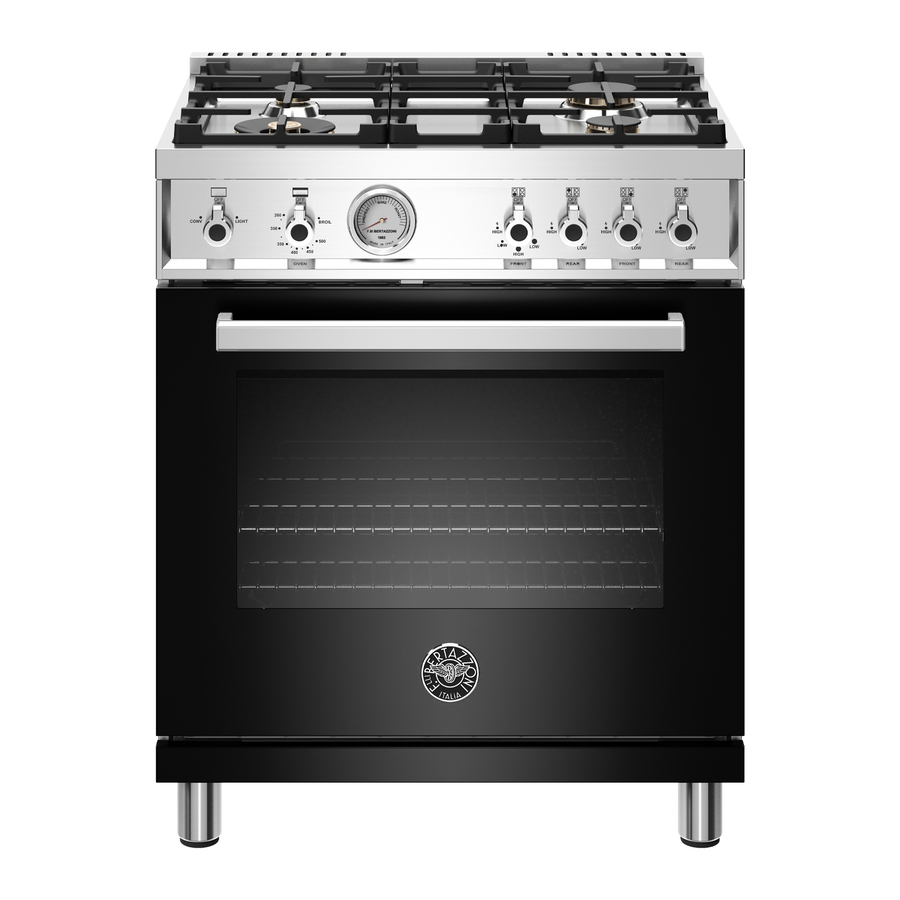

Bertazzoni X365GGVX Installation, Use & Care Manual
Freestanding gas ranges
Hide thumbs
Also See for X365GGVX:
- User instructions (8 pages) ,
- Installation and user instructions manual (27 pages)
Table of Contents
Advertisement
INSTALLATION, USE & CARE MANUAL
FREESTANDING GAS RANGES
Models X365GGVX (X36 5 00 X)
Models X365GGVBI
Models X365GGVCR
Models X365GGVGI
Models X365GGVRO
Models X365GGVVI
Models X365GGVVE
Models X365GGVBL
Models X365GGVNE
Models X366GGVX (X36 6 00 X)
Models X366GGVBI
Models X366GGVCR
Models X366GGVGI
Models X366GGVRO
Models X366GGVVI
Models X366GGVVE
Models X366GGVBL
Models X366GGVNE
[M3W0GTU4X(2 or 5)A]
[M3W0GTU4W(2 or 5)A]
[M3W0GTU4D(2 or 5)A]
[M3W0GTU4I(2 or 5)A]
[M3W0GTU4R(2 or 5)A]
[M3W0GTU4L(2 or 5)A]
[M3W0GTU4V(2 or 5)A]
[M3W0GTU4U(2 or 5)A]
[M3W0GTU4N(2 or 5)A]
[M3Y0GTU4X(2 or 5)A]
[M3Y0GTU4W(2 or 5)A]
[M3Y0GTU4D(2 or 5)A]
[M3Y0GTU4I(2 or 5)A]
[M3Y0GTU4R(2 or 5)A]
[M3Y0GTU4L(2 or 5)A]
[M3Y0GTU4V(2 or 5)A]
[M3Y0GTU4U(2 or 5)A]
[M3Y0GTU4N(2 or 5)A]
1
310349
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bertazzoni X365GGVX
Summary of Contents for Bertazzoni X365GGVX
- Page 1 INSTALLATION, USE & CARE MANUAL FREESTANDING GAS RANGES Models X365GGVX (X36 5 00 X) [M3W0GTU4X(2 or 5)A] Models X365GGVBI [M3W0GTU4W(2 or 5)A] Models X365GGVCR [M3W0GTU4D(2 or 5)A] Models X365GGVGI [M3W0GTU4I(2 or 5)A] Models X365GGVRO [M3W0GTU4R(2 or 5)A] Models X365GGVVI [M3W0GTU4L(2 or 5)A] Models X365GGVVE [M3W0GTU4V(2 or 5)A] Models X365GGVBL...
- Page 2 Bertazzoni product. This manual will help you learn to use the product in the safest and most effective manner and care for it so that it may give you the highest satisfaction for years to come.
-
Page 3: Table Of Contents
TABLE OF CONTENTS WARRANTY AND SERVICE............................4 IMPORTANT SAFETY INFORMATION ........................5 PRODUCT SPECIFICATIONS............................6 INSTALLATION BEFORE INSTALLATION ............................7 INSTALLING THE LEGS .............................. 8 INSTALLING THE WORKTOP FRONTGUARD (OPTIONAL) ................... 8 INSTALLING THE BACKGUARD..........................9 INSTALLING THE ANTI‐TIP STABILLTY DEVICE......................10 INSTALLATION REQUIREMENTS .......................... -
Page 4: Warranty And Service
WARRANTY AND SERVICE All Bertazzoni products carry a 2 year parts and labor warranty. Service on all Bertazzoni products shall be carried out by factory‐trained professionals only. For warranty service please contact Customer Service at the numbers indicated below. CUSTOMER SERVICE English/spanish hotline (866) 905‐0010... -
Page 5: Important Safety Information
WARNING! IMPORTANT SAFETY INFORMATION Read this instruction booklet before installing PLEASE READ AND FOLLOW THESE IMPORTANT and using the appliance. INSTRUCTIONS FOR THE SAFETY OF YOUR HOME The manufacturer will not be responsible for AND OF THE PEOPLE LIVING IN IT. any damage to property or to persons caused by Save this Manual for local electrical inspector’s incorrect installation or improper use of the... -
Page 6: Product Specifications
PRODUCT SPECIFICATIONS Dimensions (insert drawings front, side and back Weight Burner power Auxiliary 3400 BTU/h Semi‐rapid 6100 BTU/h Rapid 10400 BTU/h Dual burner (inner) 2800 BTU/h Dual burner ( outer) 12000 BTU/h Oven 16000 BTU/h broiler 14500 BTU/h... -
Page 7: Before Installation
WARNING! BEFORE INSTALLATION Do not use aerosol sprays in the vicinity of this This appliance shall only be installed by an appliance while it is in operation authorized professional. ROOM VENTILATION: An exhaust fan may be This appliance shall be installed in accordance used with the appliance;... -
Page 8: Installing The Legs
INSTALLING THE LEGS INSTALLING THE WORKTOP FRONTGUARD Bertazzoni ranges must be used only with the legs properly installed. To increase the clearance between the front edge of the worktop and the burners it is possible to Four height‐adjustable legs are shipped with the... -
Page 9: Installing The Backguard
2 lateral screws from the bottom. INSTALLING THE BACKGUARD The backguard must be installed prior to operation of the appliance for appropriate ventilation of the oven compartment. The supplied backguard is a 2‐part assembly. The box also contains a set of metal screws for securing the backguard to the worktop. -
Page 10: Installing The Anti-Tip Stabillty Device
INSTALLING THE ANTI‐TIP STABILlTY INSTALLATION REQUIREMENTS DEVICE The anti‐tip bracket shipped with the range must ELECTRICAL be properly secured to the rear wall as shown in the pircture below. A properly‐grounded horizontally‐ mounted The height of the bracket from the floor must be electrical receptacle should be installed no higher determined after the range legs have been than 3"... -
Page 11: Installation Adjacent To Kitchen Cabinets
This range may be installed directly adjacent to been designed to work in conjunction with the existing countertop high cabinets (36" or 91.5 cm Bertazzoni range and have the same finish for a from the floor). perfect look. For the best look, the worktop should be level For maximum performance, the height of the with the cabinet countertop. -
Page 12: Electrical Connection
WARNING! ELECTRICAL CONNECTION ELECTRICAL SHOCK HAZARD This unit is manufactured for a polarized, Disconnect electrical power at the circuit grounded 120 volt/60 Hz, 16 amp system. breaker box or fuse box before installing the Electric power consumption is about 150 W. appliance. -
Page 13: Gas Connection
MANUAL SHUT‐OFF VALVE GAS CONNECTION THIS VALVE IS NOT SHIPPED WITH THE APPLIANC All gas connections must comply with national AND MUST BE SUPPLIED BY THE INSTALLER. and local codes. The gas supply line (service) The manual shut‐off valve must be installed in must be the same size or greater than the inlet the gas service line between the gas hook‐up on line of the appliance. - Page 14 PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. The pressure regulator shipped with the appliance has has two female threads ½” NPT. The regulator shall be installed properly in order to be accessible when the appliance is installed in its final position.
-
Page 15: Gas Conversion
STEP 1: PRESSURE REGULATOR GAS CONVERSION The pressure regulator supplied with the appliance is a convertible type pressure regulator WARNING! for use with Natural Gas at a nominal outlet Before carrying out this operation, disconnect pressure of 4” w.c. or LP gas at a nominal outlet the appliance from gas and electricity. -
Page 16: Step 2: Surface Burners
7 mm {sochet wrench). Replace nozzles using the conversion set supplied with the range or by a Bertazzoni authorized parts warehouse. Each nozzle has a number indicating its flow diameter printed on the body. -
Page 17: Step 4: Broiler Burner
Replace the nozzle using the conversion Adjust the primary airflow by loosening the screw set supplied with the range or by a Bertazzoni P and setting the gap X in the Venturi cone to ½” authorized parts warehouse. Each nozzle has a (5/16”... -
Page 18: Step 5: Visual Checks
STEP 5: VISUAL CHECKS Before reinstalling the bottom panel, the following visual check must be performed to ensure that the conversion has been carried out properly and without damage to other components of the range. A) CONNECTION OF THERMOCOUPLES TO THERMOSTAT The thermocouples for both broiler and main oven burner are connected to the same magnet. -
Page 19: Step 6: Minimum Flame Adjustment
OVEN BURNER STEP 6: MINIMUM FLAME ADJUSTMENT 1. Set the oven temperature control knob to the MAXIMUM setting. WARNING! 2. Close the oven door and operate the oven for at least 10 minutes. These adjustments should be made only for use of the appliance with natural gas. - Page 20 Models X366GGVX (X36 6 00 X) [M3Y0GTU4X(2 or 5)A] Burner Position Injector Pressure Max Rate Min Rate By‐pass diam. [mm.] Type [i.w.c.] [BTU/h] [BTU/h] diam. [mm] Auxiliary Front R 0,90 4” 3400 Regulated 0,54 LP (Propane) 11” 3400 0,29 Semi‐Rapid Rear L &...
-
Page 21: Installation Checkllst
INSTALLATION CHECKLlST FINAL PREPARATION 1. Is the range mounted on its legs? Before using the oven, remove any protective wrap from the stainless steel. 2. Is the backguard securely connected? All stainless steel body parts should be wiped with hot, soapy water and with a liquid stainless 3. -
Page 22: User Manual
USER MANUAL SURFACE BURNER LAYOUT WARNING! Reflect names from brochure 1. Small Burner Do not to cover the holes inside the oven with 2. Medium burner aluminium foil. 3. Rapid burner Do not to cover the worktop with aluminium 4. Dual burner (Power burner) foil. -
Page 23: Surface Cooking
SURFACE BURNER OPERATION SURFACE COOKING THERMOCOUPLE SAFETY VALVE SYMBOLS Each surface burner of a Bertazzoni range is equipped with a thermocouple safety device. The thermocouple opens the flow of gas to the burner only when hot. Should the flame go off,... -
Page 24: Tips For Using Burners Correctly
TIPS FOR USING BURNERS CORRECTLY TIPS FOR USING PANS CORRECTLY WARNING! ATTENTION! KEEP CHILDREN AT A SAFE DISTANCE FROM THE Always ensure that bottom and handles of pans APPLIANCE DURING OPERATION. do not protrude from the worktop. DO NOT ALLOW CHILDREN TO OPERATE THE When cooking with flammable fat such as oil, do APPLIANCE. -
Page 25: Oven Cooking
OVEN SHELVES OVEN COOKING Bertazzoni ranges are equipped with commercial SYMBOLS grade shelves and a enamel cooking tray. Shelves are mounted on the appropriate guides situated on the sides of the oven compartment. Insert the shelf between top and bottom guide in any of the 4 positions available. -
Page 26: Gas Oven Operation
With the oven door partially open, turn the THERMOCOUPLE SAFETY VALVE control knob to the maximum temperature Bertazzoni gas ovens are equipped with a setting ( position). thermocouple safety device and a thermostat to set the proper cooking temperature. -
Page 27: Convection Cooking
CONVECTION COOKING COOKING WITH THE GAS BROILER Bertazzoni gas oven are equipped with a CONVECTION fan. WARNING In convection mode, the fan situated at the back Always keep the oven door open when lighting of the oven compartment creates horizontal the gas broiler. -
Page 28: Maintaining Your Range
Dry thoroughly before Bertazzoni ranges are equipped with a cooling using them again. Before reinstalling them on the fan. The fan starts operating each time the oven burner head, check that the gas flow holes are knob is on a position different from 0 (zero). -
Page 29: Important Appliance Information
IMPORTANT APPLIANCE INFORMATION MODEL ______________________________________________________________ DATE INSTALLED _______________________________________________________________ DEALER _______________________________________________________________ _______________________________________________________________ INSTALLER _______________________________________________________________ ________________________________________________________________ SERVICER _______________________________________________________________ ________________________________________________________________... - Page 30 BERTAZZONI SpA Via Palazzina 8 42016 Guastalla RE ITALY WWW.BERTAZZONI‐ITALIA.COM...
-
Page 31: Spare Part List
SPARE PART LIST DESCRIPTION 202387 BURNERS FLASK 202432 PART FOR DUAL WOK AND SEMI RAPID BURNERS 306003 THERMOSTAT CLIP 404198 WORKTOP FRONTGUARD 504160 COVER FOR SMALL FLAME SPREADER 504161 COVER FOR MEDIUM BURNER 504162 COVER FOR RAPID BURNER 504187 COVER IN FOR DUAL BURNER FLAME SPREADER 504186 COVER OUT FOR DUAL BURNER FLAME SPREADER 202431... - Page 32 125033 SIDE RED 125009 SIDE BLUE 125021 SIDE GREEN 125045 SIDE PURE WHITE 202389 RIGHT VERTICAL VENT 202214 FEET SUPPORT 201168 FIXING FOR WORK TABLE 308031 BUMPER FOR C.I. GRIDS AND DISHWARMER 403343 HANDLE TERMINAL 408053 CAST IRON PAN SUPPORT 1 BURNER 408052 CAST IRON PAN SUPPORT 2 BURNERS 202360...
