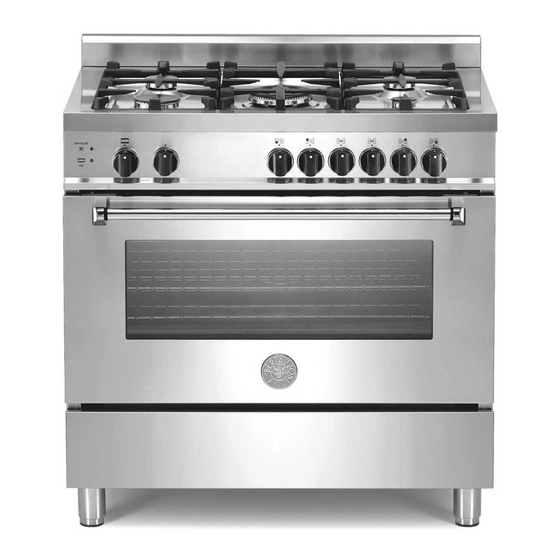

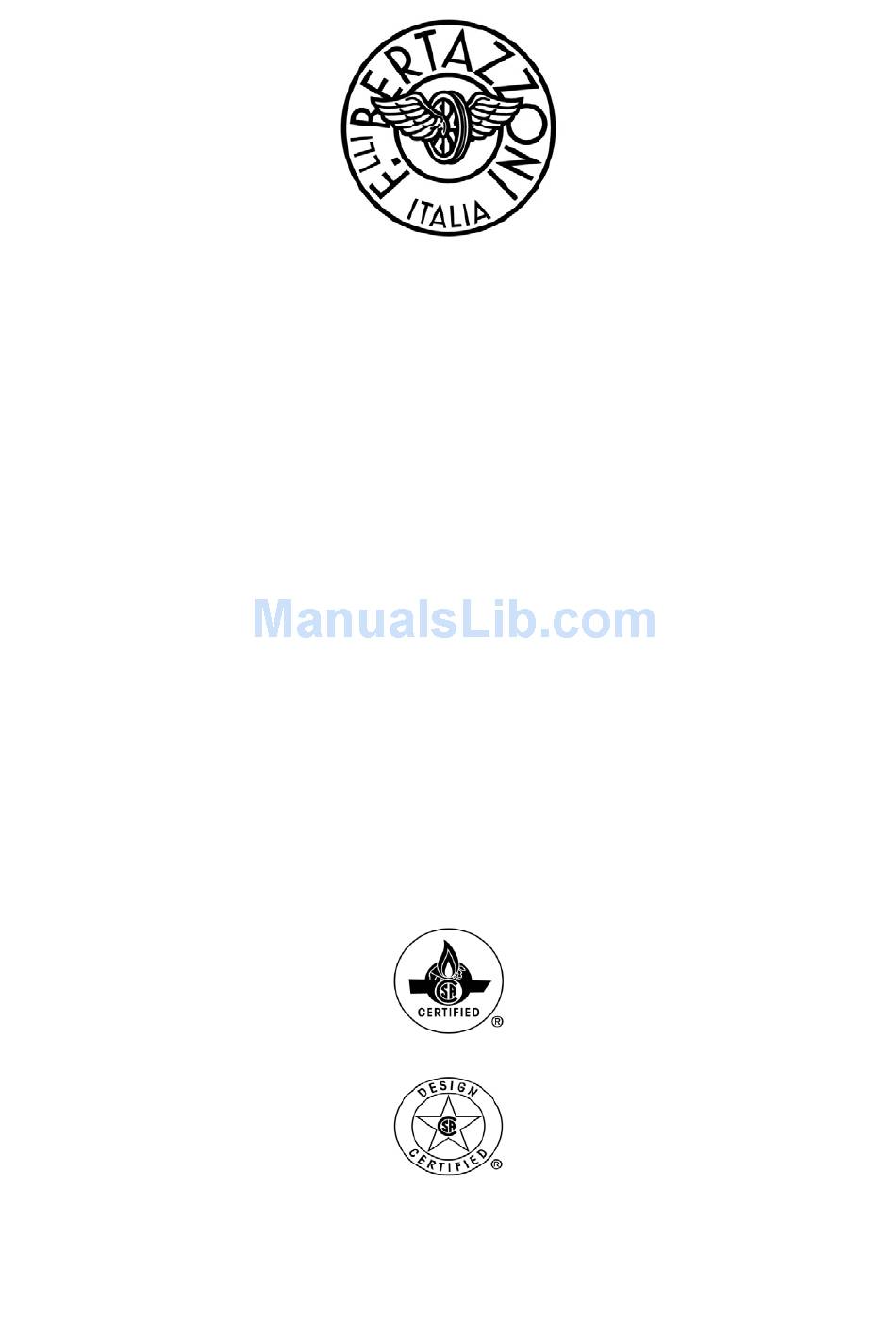

- Page 1 INSTALLATION, USE & CARE MANUAL FREESTANDING GAS RANGES DIMENSIONS: 30’’ (762 mm)(W) x 253/16’’ (640 mm)(D) x36’’ (915 mm)(H) MODELS A304GGVXE/02 A304GGVXT/002 [M7S0GNA5X(2,5)AUG] [M7S0GNU5X(2,5)AUA] 310584...
- Page 2 Bertazzoni product. This manual will help you learn to use the product in the safest and most effective manner and care for it so that it may give you the highest satisfaction for years to come.
-
Page 3: Table Of Contents
TABLE OF CONTENTS WARRANTY AND SERVICE... 4 IMPORTANT SAFETY INFORMATION ... 5 PRODUCT SPECIFICATIONS... 6 BEFORE INSTALLATION ... 7 INSTALLING THE LEGS ... 8 INSTALLING THE WORKTOP FRONTGUARD (OPTIONAL) ... 8 INSTALLING THE BACKGUARD... 10 INSTALLING THE ANTI‐TIP STABILLTY DEVICE... 11 INSTALLATION REQUIREMENTS ... -
Page 4: Warranty And Service
WARRANTY AND SERVICE All Bertazzoni products carry a 2 year parts and labor warranty. Service on all Bertazzoni products shall be carried out by factory‐trained professionals only. For warranty service please contact Customer Service at the numbers indicated below. English/spanish hotline French BERTAZZONIHELP@SERVICEPOWER.COM... -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION PLEASE READ AND FOLLOW THESE IMPORTANT INSTRUCTIONS FOR THE SAFETY OF YOUR HOME AND OF THE PEOPLE LIVING IN IT. Save this Manual for local electrical inspector’s use. Read and save these instructions for future reference. Observe all governing codes, ordinances and regulations. -
Page 6: Product Specifications
PRODUCT SPECIFICATIONS Dimensions (insert drawings front, side and back Weight Burner power Auxiliary Semi‐rapid Rapid Dual burner (inner) Dual burner ( outer) Oven broiler 3400 BTU/h 6100 BTU/h 10400 BTU/h 2800 BTU/h 12000 BTU/h 14500 BTU/h 12000 BTU/h... -
Page 7: Before Installation
BEFORE INSTALLATION This appliance shall only be installed by an authorized professional. This appliance shall be installed in accordance with the manufacturer’s installation instructions. This appliance must be installed in accordance with the norms & standards of the country where it will be installed. -
Page 8: Installing The Legs
INSTALLING THE LEGS Bertazzoni ranges must be used only with the legs properly installed. Four height‐adjustable legs are shipped with the range in the polysterene container situated over the appliance. Before installing the legs, position the appliance near its final location as the legs are not suitable for moving the appliance over long distances. -
Page 9: Installing The Worktop Frontguard (Optional)
INSTALLING THE WORKTOP FRONTGUARD Only model A304GGVXE To increase the clearance between the front edge of the worktop and the burners it is possible to install the worktop frontguard shipped with the appliance. To install the front guard, hold it with the pointed edges looking up. -
Page 10: Installing The Backguard
INSTALLING THE BACKGUARD The backguard must be installed prior to operation of the appliance for appropriate ventilation of the oven compartment. The supplied backguard is a 2‐part assembly. The box also contains a set of metal screws for securing the backguard to the worktop. Disassemble the backguard and position the front part on the worktop. -
Page 11: Installing The Anti-Tip Stabillty Device
INSTALLING THE ANTI‐TIP STABILlTY DEVICE The anti‐tip bracket shipped with the range must be properly secured to the rear wall as shown in the pircture below. The height of the bracket from the floor must be determined after the range legs have been adjusted to the desired height and after the range has been leveled. -
Page 12: Installation Adjacent To Kitchen Cabinets
This range will best perform when used with PRO line Bertazzoni exhaust hoods. These hoods have been designed to work in conjunction with the Bertazzoni range and have the same finish for a perfect look. For maximum performance, the height of the bottom of the hood from the worktop should be between 25 1/2"... -
Page 13: Electrical Connection
WARNING! ELECTRICAL CONNECTION ELECTRICAL SHOCK HAZARD This unit is manufactured for a polarized, Disconnect electrical power at the circuit grounded 120 volt/60 Hz, 15 amp system. breaker box or fuse box before installing the Electric power consumption is about 300 W. appliance. -
Page 14: Gas Connection
GAS CONNECTION All gas connections must comply with national and local codes. The gas supply line (service) must be the same size or greater than the inlet line of the appliance. This range uses a 1/2" NPT inlet (see drawing below for details of gas connection). - Page 15 PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. The pressure regulator shipped with the appliance has has two female threads ½” NPT. The regulator shall be installed properly in order to be accessible when the appliance is installed in its final position.
-
Page 16: Gas Conversion
GAS CONVERSION WARNING! Before carrying out this operation, disconnect the appliance from gas and electricity. Gas conversion shall be conducted by a factory‐ trained professional. Call the customer service hotline to identify a factory‐trained professional near your home. The gas conversion procedure for this range includes 6 steps: 1. -
Page 17: Step 2: Surface Burners
7 mm {sochet wrench). Replace nozzles using the conversion set supplied with the range or by a Bertazzoni authorized parts warehouse. Each nozzle has a number indicating its flow diameter printed on the body. -
Page 18: Step 4: Broiler Burner
Using a 7 mm [name of the tool] unscrew the nozzle. Replace the nozzle using the conversion set supplied with the range or by a Bertazzoni authorized parts warehouse. Each nozzle has a number indicating its flow diameter printed on the body. -
Page 19: Step 5: Visual Checks
STEP 5: VISUAL CHECKS Before reinstalling the bottom panel, the following visual check must be performed to ensure that the conversion has been carried out properly and without damage to other components of the range. A) CONNECTION OF THERMOCOUPLES TO THERMOSTAT The thermocouples for both broiler and main oven burner are connected to the same magnet. -
Page 20: Step 6: Minimum Flame Adjustment
STEP 6: MINIMUM FLAME ADJUSTMENT WARNING! These adjustments should be made only for use of the appliance with natural gas. For use with liquid propane gas, the choke screw must be fully turned in a clockwise direction. SURFACE BURNERS 1. Light one burner at a time and set the knob to the MINIMUM position (small flame). - Page 21 Models A304GGVXE/02 A304GGVXT/02 Burner Position Injector diam. [mm.] Auxiliary Rear L Semi-Rapid Front R Rapid Rear R Front L Inner Dual Burner Front L Outer N°2 x 1,15 N°2 x 0,70 Oven Oven downside Broiler Oven upside Pressure Type [i.w.c.] 0,90 4”...
-
Page 22: Installation Checkllst
INSTALLATION CHECKLlST 1. Is the range mounted on its legs? 2. Is the backguard securely connected? 3. Has the anti‐tip device been properly installed? 4. Does the clearance from the side cabinets comply with the manufacturers directions? 5. Is the electricity properly grounded? 6. -
Page 23: User Manual
USER MANUAL WARNING! Do not to cover the holes inside the oven with aluminium foil. Do not to cover the worktop with aluminium foil. Do not store any flammable object or objects under pressure in the storage compartment. Keep the area of operation of the range free from combustible materials, gasoline and other flammable vapors and liquid. -
Page 24: Surface Cooking
Minimum temperature setting SURFACE BURNER OPERATION THERMOCOUPLE SAFETY VALVE Each surface burner of a Bertazzoni range is equipped with a thermocouple safety device. The thermocouple opens the flow of gas to the burner only when hot. Should the flame go off,... -
Page 25: Tips For Using Burners Correctly
WARNING! KEEP CHILDREN AT A SAFE DISTANCE FROM THE APPLIANCE DURING OPERATION. DO NOT ALLOW CHILDREN TO OPERATE THE APPLIANCE. 1. Always check that the burner caps are properly installed before operation. 2. Verify that the flame of the worktop burners is completely blue and with regular aspect as shown below. -
Page 26: Oven Cooking
OVEN COOKING SYMBOLS Thermal bake selector Broiler selector Recommended control knob position for burner ignition 270F Mimimum oven temperature setting 500F Maximum oven temperature setting Oven on/off Oven status indicator. Convection fan and oven compartment light switch Oven switch for baking or broiling compartment light... -
Page 27: Oven Shelves
GAS OVEN OPERATION THERMOCOUPLE SAFETY VALVE Bertazzoni gas ovens are equipped with a thermocouple safety device and a thermostat to set the proper cooking temperature. The thermocouple opens the flow of gas to the burner only when hot. -
Page 28: Electric Ignition
Wait at least 60 seconds before attempting to light the oven again. CONVECTION COOKING Bertazzoni gas oven are equipped with a CONVECTION fan. In convection mode, the fan situated at the back of the oven compartment creates horizontal forced‐air... -
Page 29: Using The Thermometer
COOKING WITH THE GAS BROILER WARNING Always keep the oven door open when lighting the gas broiler. The gas broiler is activated with the same control knob used for setting the oven temperature. To activate the broiler, turn the control knob clockwise in the broiler position. -
Page 30: Maintaining Your Range
Alternatively use commercial bulbs type [list SPECS] COOLING FAN FAILURE Bertazzoni ranges are equipped with a cooling fan. The fan starts operating each time the oven knob is on a position different from 0 (zero). The fan circulates the air between the control... -
Page 31: Important Appliance Information
IMPORTANT APPLIANCE INFORMATION MODEL ______________________________________________________________ DATE INSTALLED _______________________________________________________________ DEALER _______________________________________________________________ _______________________________________________________________ INSTALLER _______________________________________________________________ ________________________________________________________________ SERVICER _______________________________________________________________ ________________________________________________________________... - Page 32 BERTAZZONI SpA Via Palazzina 8 42016 Guastalla RE ITALY WWW.BERTAZZONI‐ITALIA.COM...
-
Page 33: Spare Parts List
NUMBER COMPONENT 6010008 WIRE T-ZERO 601758 CIRCUIT DIAGRAM 202631 BURNERS FLASK 202432 PART FOR DUAL WOK AND SEMI RAPID BURNERS 306003 THERMOSTAT CLIP 306002 SPRING FOR KNOB 504160 COVER FOR SMALL FLAME SPREADER 504161 COVER FOR MEDIUM BURNER 504162 COVER FOR RAPID BURNER 504187 COVER IN FOR DUAL BURNER FLAME SPREADER 504186... - Page 34 502179 GAS VALVE BY PASS 029 502180 GAS VALVE BY PASS 047 200327 STAINLESS STEEL SIDE 202389 RIGHT VERTICAL VENT 202214 FEET SUPPORT 201197 FIXING FOR WORK TABLE 308031 BUMPER FOR C.I. GRIDS AND DISHWARMER 403463 HANDLE TERMINAL 403464 HANDLE TERMINAL 403465 FIXING HANDLE TERMINAL 408076...
- Page 40 SPARE PARTS LIST NUMBER COMPONENT 6010008 WIRE T-ZERO 601758 CIRCUIT DIAGRAM 202631 BURNERS FLASK 202432 PART FOR DUAL WOK AND SEMI RAPID BURNERS 306003 THERMOSTAT CLIP 306002 SPRING FOR KNOB 504160 COVER FOR SMALL FLAME SPREADER 504161 COVER FOR MEDIUM BURNER 504162 COVER FOR RAPID BURNER 504187...
- Page 41 200327 STAINLESS STEEL SIDE 202389 RIGHT VERTICAL VENT 202214 FEET SUPPORT 201197 FIXING FOR WORK TABLE 308031 BUMPER FOR C.I. GRIDS AND DISHWARMER 403463 HANDLE TERMINAL 403463 HANDLE TERMINAL 403464 HANDLE TERMINAL 403464 HANDLE TERMINAL 403465 FIXING HANDLE TERMINAL 403465 FIXING HANDLE TERMINAL 408076 CAST IRON PAN SUPPORT...
