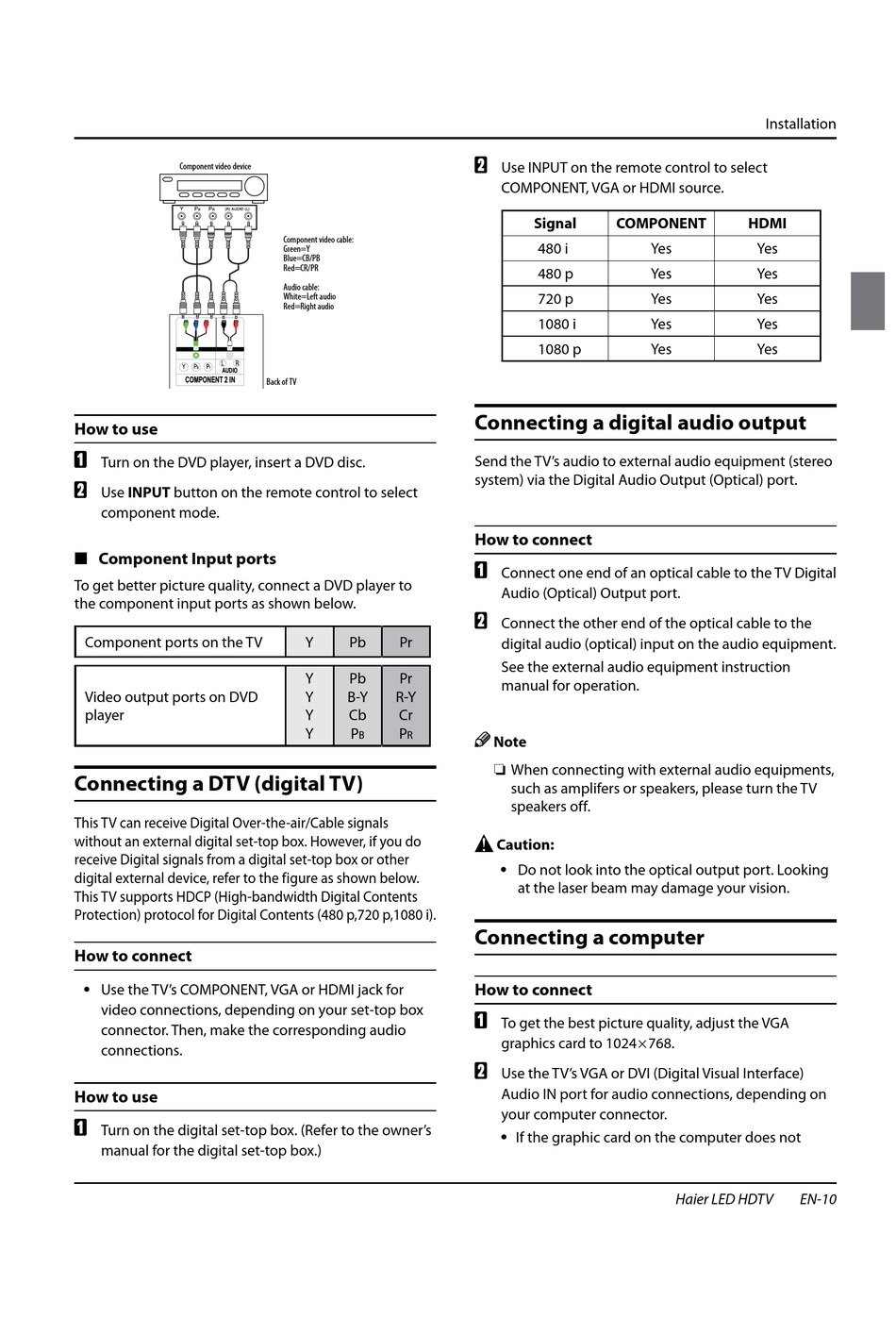

Connecting A Dtv (Digital Tv); Connecting A Digital Audio Output; Connecting A Computer - Haier HL40XSL2b Owner's Manual

User manual
Hide thumbs

Advertisement

Component video device
L
R
Y
P
P
b
r
AUDIO
COMPONENT 2 IN
How to use
A
Turn on the DVD player, insert a DVD disc.
B
Use
INPUT button on the remote control to select
component mode.
Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.
Component ports on the TV
Video output ports on DVD
player

Connecting a DTV (digital TV)

This TV can receive Digital Over-the-air/Cable signals
without an external digital set-top box. However, if you do
receive Digital signals from a digital set-top box or other
digital external device, refer to the figure as shown below.
This TV supports HDCP (High-bandwidth Digital Contents
Protection) protocol for Digital Contents (480 p,720 p,1080 i).
How to connect
Use the TV's COMPONENT, VGA or HDMI jack for
video connections, depending on your set-top box
connector. Then, make the corresponding audio
connections.
How to use
A
Turn on the digital set-top box. (Refer to the owner's
manual for the digital set-top box.)
Component video cable:
Green=Y
Blue=CB/PB
Red=CR/PR
Audio cable:
White=Left audio
Red=Right audio
Back of TV
Y
Pb
Pr
Y
Pb
Pr
Y
B-Y
R-Y
Y
Cb
Cr
Y
P
P
B
R
B
Use INPUT on the remote control to select
COMPONENT, VGA or HDMI source.
Signal
COMPONENT
480 i
480 p
720 p
1080 i
1080 p

Connecting a digital audio output

Send the TV's audio to external audio equipment (stereo
system) via the Digital Audio Output (Optical) port.
How to connect
A
Connect one end of an optical cable to the TV Digital
Audio (Optical) Output port.
B
Connect the other end of the optical cable to the
digital audio (optical) input on the audio equipment.
See the external audio equipment instruction
manual for operation.
Note
When connecting with external audio equipments,
such as amplifers or speakers, please turn the TV
speakers off.
!
Caution:
Do not look into the optical output port. Looking
at the laser beam may damage your vision.

Connecting a computer

How to connect
A
To get the best picture quality, adjust the VGA
graphics card to 1024 768.
B
Use the TV's VGA or DVI (Digital Visual Interface)
Audio IN port for audio connections, depending on
your computer connector.
If the graphic card on the computer does not
Installation
HDMI
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Haier LED HDTV
EN-10
