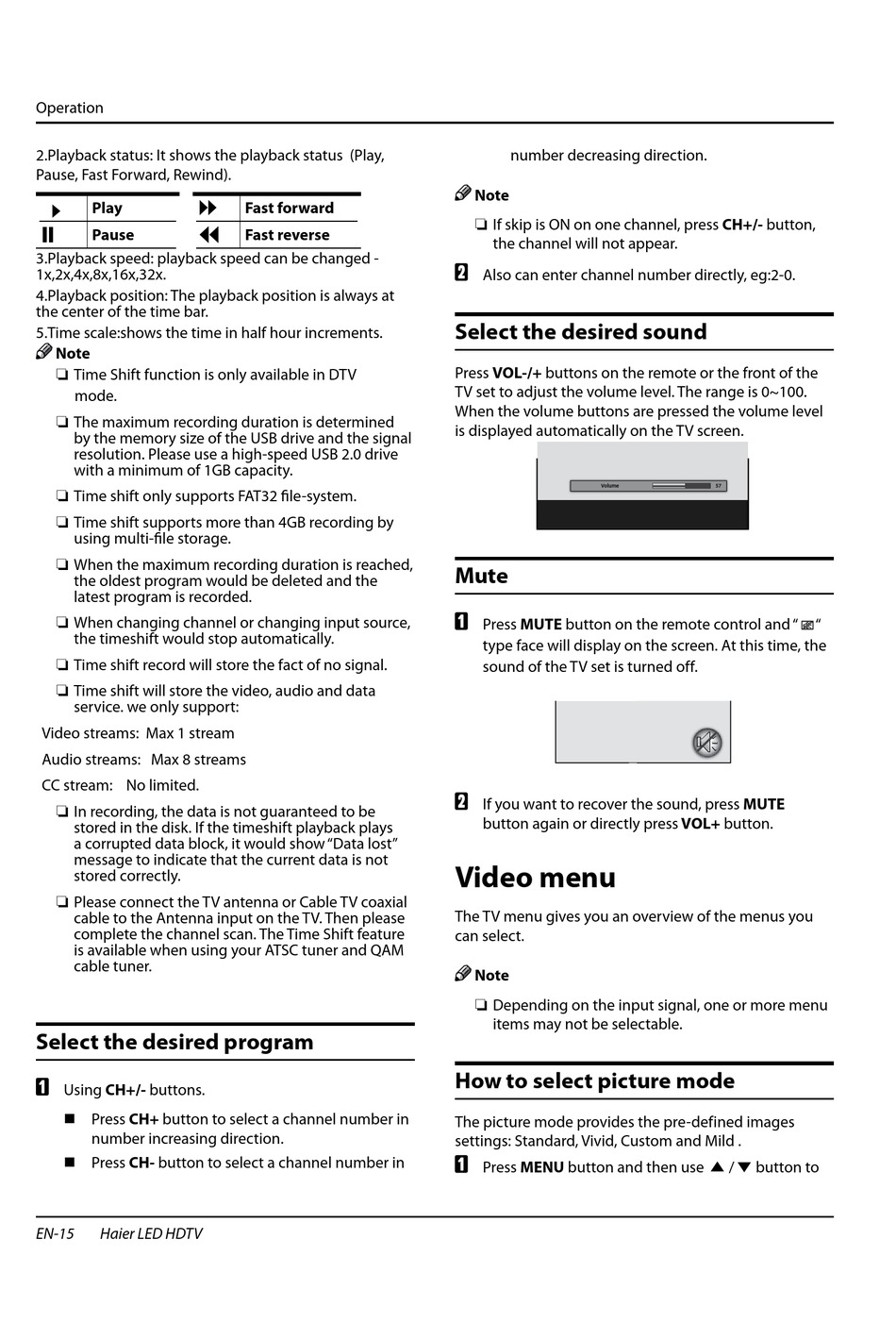

Operation
2.Playback status: It shows the playback status (Play,
Pause, Fast Forward, Rewind).
Play
Pause
3.Playback speed: playback speed can be changed -
1x,2x,4x,8x,16x,32x.
4.Playback position: The playback position is always at
the center of the time bar.
5.Time scale:shows the time in half hour increments.
Note
Time Shift function is only available in DTV
mode.
The maximum recording duration is determined
by the memory size of the USB drive and the signal
resolution. Please use a high-speed USB 2.0 drive
with a minimum of 1GB capacity.
Time shift only supports FAT32 file-system.
Time shift supports more than 4GB recording by
using multi-file storage.
When the maximum recording duration is reached,
the oldest program would be deleted and the
latest program is recorded.
When changing channel or changing input source,
the timeshift would stop automatically.
Time shift record will store the fact of no signal.
Time shift will store the video, audio and data
service. we only support:
Video streams: Max 1 stream
Audio streams: Max 8 streams
CC stream: No limited.
In recording, the data is not guaranteed to be
stored in the disk. If the timeshift playback plays
a corrupted data block, it would show "Data lost"
message to indicate that the current data is not
stored correctly.
Please connect the TV antenna or Cable TV coaxial
cable to the Antenna input on the TV. Then please
complete the channel scan. The Time Shift feature
is available when using your ATSC tuner and QAM
cable tuner.

Select the desired program

A
Using
CH+/- buttons.
Press CH+ button to select a channel number in
number increasing direction.
Press CH- button to select a channel number in
EN-15
Haier LED HDTV
Fast forward
Fast reverse
number decreasing direction.
Note
If skip is ON on one channel, press CH+/- button,
the channel will not appear.
B
Also can enter channel number directly, eg:2-0.

Select the desired sound

Press VOL-/+ buttons on the remote or the front of the
TV set to adjust the volume level. The range is 0~100.
When the volume buttons are pressed the volume level
is displayed automatically on the TV screen.
Volume

Mute

A
Press
MUTE button on the remote control and "
type face will display on the screen. At this time, the
sound of the TV set is turned off.
B
If you want to recover the sound, press
button again or directly press VOL+ button.

Video menu

The TV menu gives you an overview of the menus you
can select.
Note
Depending on the input signal, one or more menu
items may not be selectable.

How to select picture mode

The picture mode provides the pre-defined images
settings: Standard, Vivid, Custom and Mild .
A
Press
MENU button and then use
57
"
MUTE
/
button to
