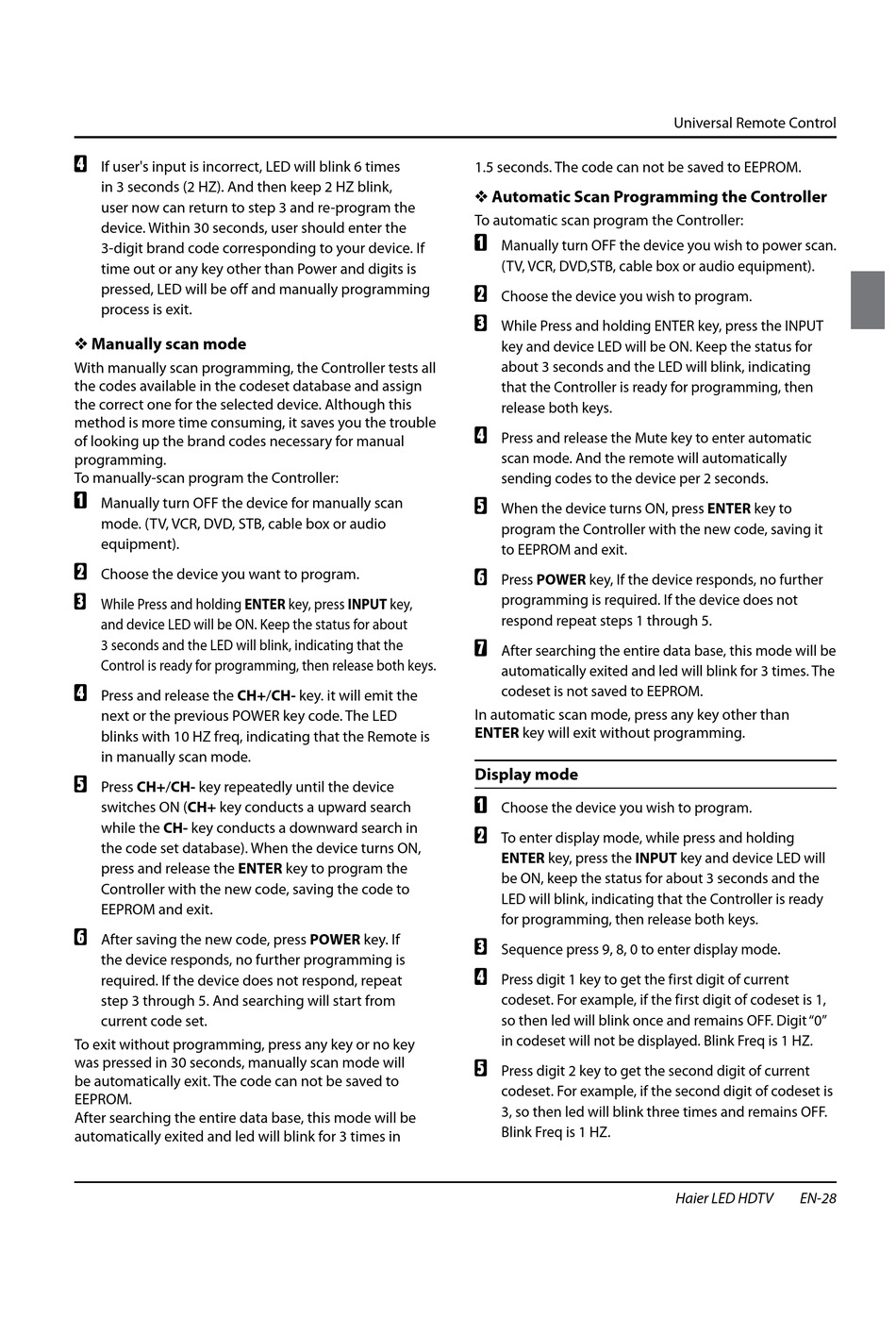

Haier HL40XSL2b Owner's Manual page 29

User manual
Hide thumbs

Advertisement

D
If user's input is incorrect, LED will blink 6 times
in 3 seconds (2 HZ). And then keep 2 HZ blink,
user now can return to step 3 and re-program the
device. Within 30 seconds, user should enter the
3-digit brand code corresponding to your device. If
time out or any key other than Power and digits is
pressed, LED will be off and manually programming
process is exit.
Manually scan mode
With manually scan programming, the Controller tests all
the codes available in the codeset database and assign
the correct one for the selected device. Although this
method is more time consuming, it saves you the trouble
of looking up the brand codes necessary for manual
programming.
To manually-scan program the Controller:
A
Manually turn OFF the device for manually scan
mode. (TV, VCR, DVD, STB, cable box or audio
equipment).
B
Choose the device you want to program.
C
While Press and holding
and device LED will be ON. Keep the status for about
3 seconds and the LED will blink, indicating that the
Control is ready for programming, then release both keys.
D
Press and release the
CH+/CH- key. it will emit the
next or the previous POWER key code. The LED
blinks with 10 HZ freq, indicating that the Remote is
in manually scan mode.
E
Press
CH+/CH- key repeatedly until the device
switches ON (CH+ key conducts a upward search
while the CH- key conducts a downward search in
the code set database). When the device turns ON,
press and release the ENTER key to program the
Controller with the new code, saving the code to
EEPROM and exit.
F
After saving the new code, press
the device responds, no further programming is
required. If the device does not respond, repeat
step 3 through 5. And searching will start from
current code set.
To exit without programming, press any key or no key
was pressed in 30 seconds, manually scan mode will
be automatically exit. The code can not be saved to
EEPROM.
After searching the entire data base, this mode will be
automatically exited and led will blink for 3 times in
ENTER key, press INPUT key,
POWER key. If
1.5 seconds. The code can not be saved to EEPROM.
Automatic Scan Programming the Controller
To automatic scan program the Controller:
A
Manually turn OFF the device you wish to power scan.
(TV, VCR, DVD,STB, cable box or audio equipment).
B
Choose the device you wish to program.
C
While Press and holding ENTER key, press the INPUT
key and device LED will be ON. Keep the status for
about 3 seconds and the LED will blink, indicating
that the Controller is ready for programming, then
release both keys.
D
Press and release the Mute key to enter automatic
scan mode. And the remote will automatically
sending codes to the device per 2 seconds.
E
When the device turns ON, press
program the Controller with the new code, saving it
to EEPROM and exit.
F
Press
POWER key, If the device responds, no further
programming is required. If the device does not
respond repeat steps 1 through 5.
G
After searching the entire data base, this mode will be
automatically exited and led will blink for 3 times. The
codeset is not saved to EEPROM.
In automatic scan mode, press any key other than
ENTER key will exit without programming.
Display mode
A
Choose the device you wish to program.
B
To enter display mode, while press and holding
ENTER key, press the INPUT key and device LED will
be ON, keep the status for about 3 seconds and the
LED will blink, indicating that the Controller is ready
for programming, then release both keys.
C
Sequence press 9, 8, 0 to enter display mode.
D
Press digit 1 key to get the first digit of current
codeset. For example, if the first digit of codeset is 1,
so then led will blink once and remains OFF. Digit "0"
in codeset will not be displayed. Blink Freq is 1 HZ.
E
Press digit 2 key to get the second digit of current
codeset. For example, if the second digit of codeset is
3, so then led will blink three times and remains OFF.
Blink Freq is 1 HZ.
Universal Remote Control
ENTER key to
Haier LED HDTV
EN-28
