Lucent Technologies PARTNER Advanced Communications System Release 1.0 System Planner Manual page 28

Template Instructions
•
If desired, write in line number, dial code feature, or auto dial number
•
If desired, write in Line Ringing (Imm, Del, or No) from Form B2
•
If desired, write in Line Access Restriction
(Out, In, or No) from Form B2
Intercom Intercom
Specify Automatic Line Selection: ________________________________________________________________
Identify extensions programmed as shown: ___________________________________________________
Ext.

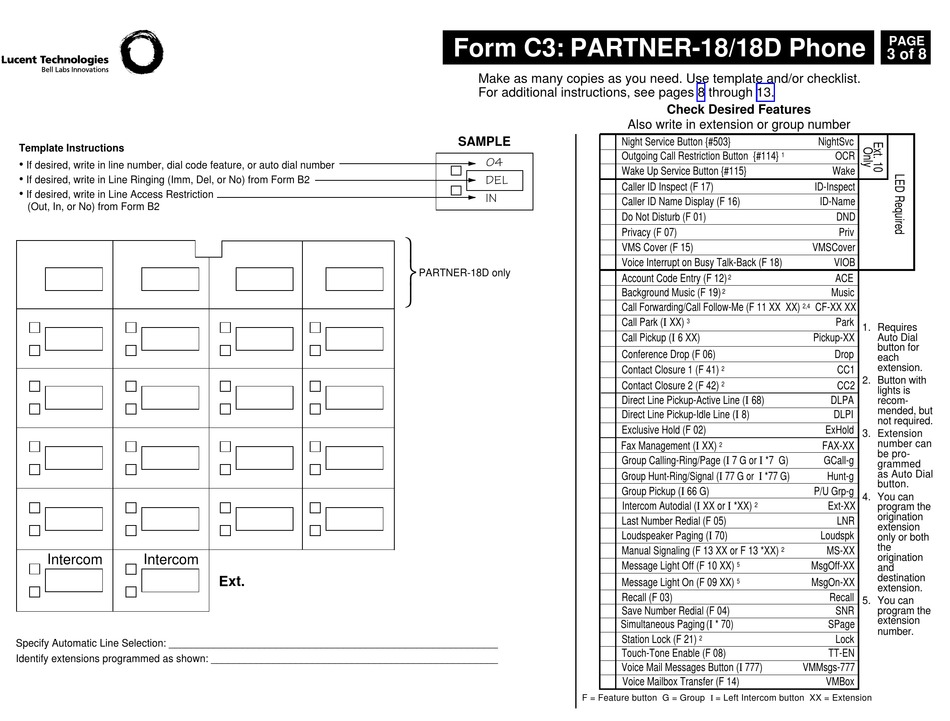

Form C3: PARTNER-18/18D Phone
Make as many copies as you need. Use template and/or checklist.
For additional instructions, see pages 8 through 13.
SAMPLE
04
DEL
IN
PARTNER-18D only
F = Feature button G = Group I = Left Intercom button XX = Extension
Check Desired Features
Also write in extension or group number
Night Service Button {#503}
Outgoing Call Restriction Button {#114}
1
Wake Up Service Button {#115}
Caller ID Inspect (F 17)
Caller ID Name Display (F 16)
Do Not Disturb (F 01)
Privacy (F 07)
VMS Cover (F 15)
Voice Interrupt on Busy Talk-Back (F 18)
Account Code Entry (F 12)
2
Background Music (F 19) 2
Call Forwarding/Call Follow-Me (F 11 XX XX)
Call Park (I XX)
3
Call Pickup (I 6 XX)
Conference Drop (F 06)
Contact Closure 1 (F 41) 2
Contact Closure 2 (F 42)
2
Direct Line Pickup-Active Line (I 68)
Direct Line Pickup-Idle Line (I 8)
Exclusive Hold (F 02)
Fax Management (I XX)
2
Group Calling-Ring/Page (I 7 G or I *7 G)
Group Hunt-Ring/Signal (I 77 G or I *77 G)
Group Pickup (I 66 G)
Intercom Autodial (I XX or I *XX) 2
Last Number Redial (F 05)
Loudspeaker Paging (I 70)
Manual Signaling (F 13 XX or F 13 *XX)
2
Message Light Off (F 10 XX)
5
Message Light On (F 09 XX)
5
Recall (F 03)
Save Number Redial (F 04)
Simultaneous Paging (I * 70)
Station Lock (F 21)
2
Touch-Tone Enable (F 08)
Voice Mail Messages Button (I 777)
Voice Mailbox Transfer (F 14)
PAGE
3 of 8
NightSvc
OCR
Wake
ID-Inspect
ID-Name
DND
Priv
VMSCover
VIOB
ACE
Music
CF-XX XX
2,4
Park
1. Requires
Pickup-XX Auto Dial
button for
Drop
each
extension.
CC1
2. Button with
CC2
lights is
DLPA
recom-
mended, but
DLPI
not required.
ExHold
3. Extension
number can
FAX-XX
be pro-
GCall-g
grammed
as Auto Dial
Hunt-g
button.
P/U Grp-g
4. You can
Ext-XX
program the
origination
LNR
extension
Loudspk
only or both
the
MS-XX
origination
MsgOff-XX
and
destination
MsgOn-XX
extension.
Recall
5. You can
SNR program the
extension
SPage
number.
Lock
TT-EN
VMMsgs-777
VMBox
