6. Configurator, General projector settings
Image 6-19
6.8.8

Lens settings for all layouts

Purpose
When changing from one layout to another, the zoom/focus settings can be different for each layout or
they can be kept the same for all layouts
How to set the lens settings

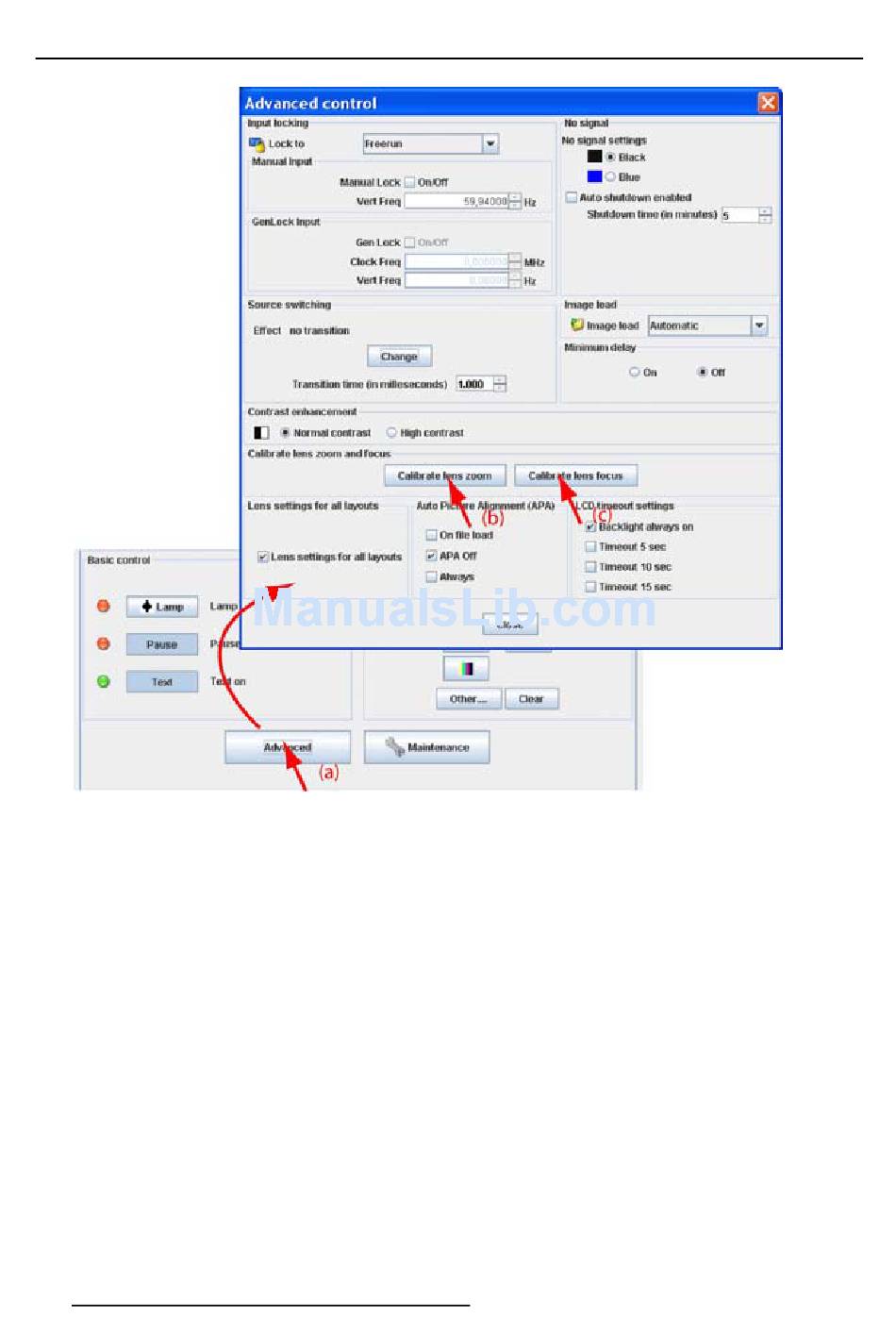

1. Click on Advanced (a). (image 6-20)
The Advanced control dialog box opens.
2. To set the lens settings for all layouts the same, check the check box before Lens settings for all lay-
outs.(b).
Not
each layout will use its own zoom/focus settings.
checked
Checked each layout will use the same zoom/focus settings. That means that the zoom/focus
settings of the previous selected layout will be applied to the next selected layout.
86 R5976924 PROJECTOR TOOLSET 16/04/2009
