Barco Projector Toolset Reference Manual page 119

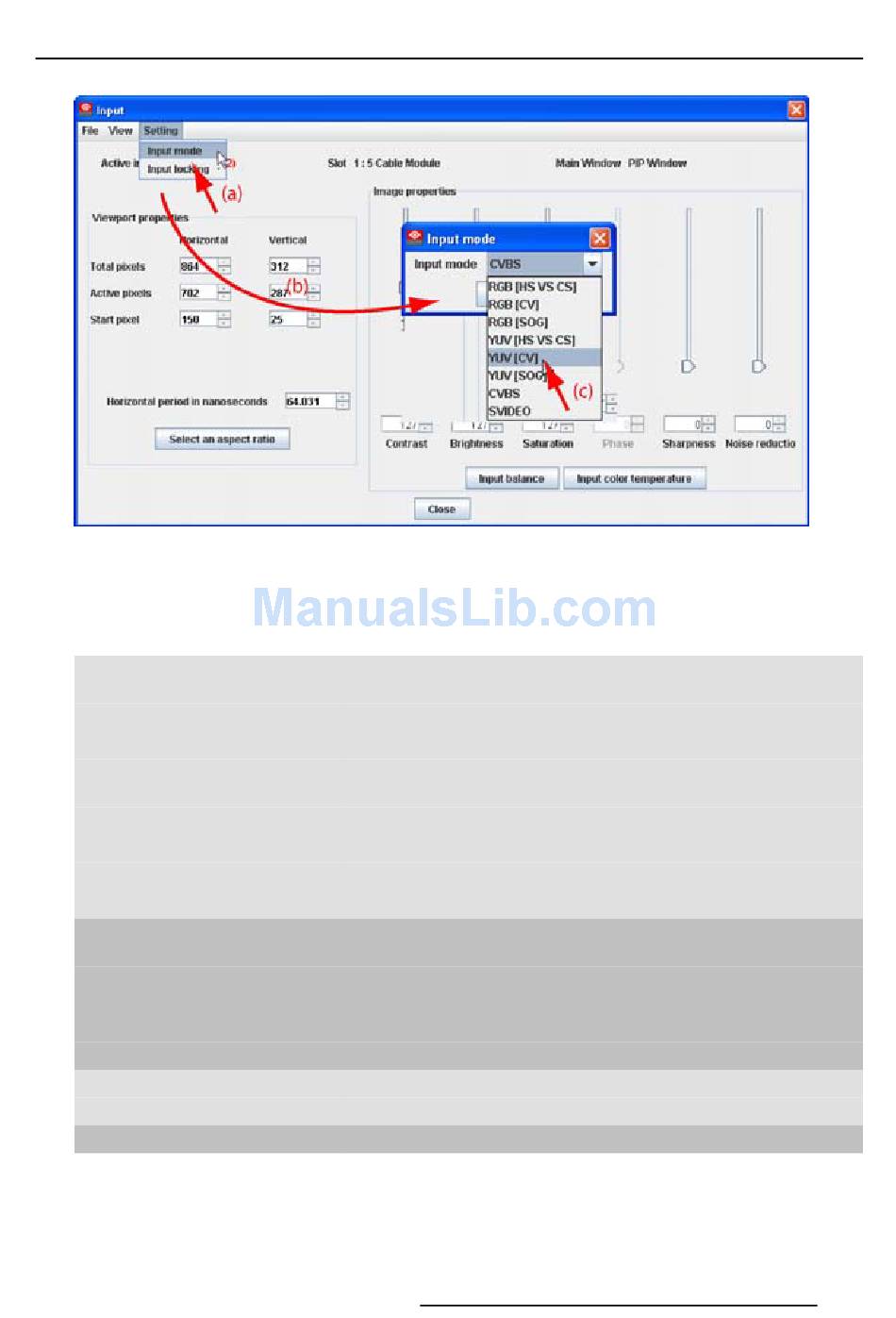

Image 8-6
Input mode selection
Possible results
Input Indication
module
5 cable
RGB HS/VS - CS
RGB CV
RGB SOG
YUV HS/VS - CS
YUV CV
YUV SOY
CVBS
S-Video
HBW
RGB HS/VS - CS
Data
RGB SOG
YUV HS/VS - CS
YUV SOY
INP1
HD-SDI
- SDI
INP 2
DVI DVI
R5976924 PROJECTOR TOOLSET 16/04/2009
8. Configurator, Projector adjustment settings
Description
RGB input with separate horizontal and vertical sync or separate
composite sync.
RGB input with composite video as sync signal
RGB input with sync on green
Component video with separate horizontal and vertical sync or
separate composite sync.
Component video with composite video as sync signal
Component video with sync on Y
Composite video
Super video
RGB input with separate horizontal and vertical sync or separate
composite sync.
RGB input with sync on green
Component video with separate horizontal and vertical sync or
separate composite sync.
Component video with sync on Y
Input 1 selected
Input 2 selected
Equalisation: 0 - 15
115
