What is the Basic Principal of ScenergiX ?
The principle of edge blending is achieved by linear modulation of the light output in the overlap zone so
that the light output in that zone equals the light output of the rest of the image.
Light output per image
Total composite light output

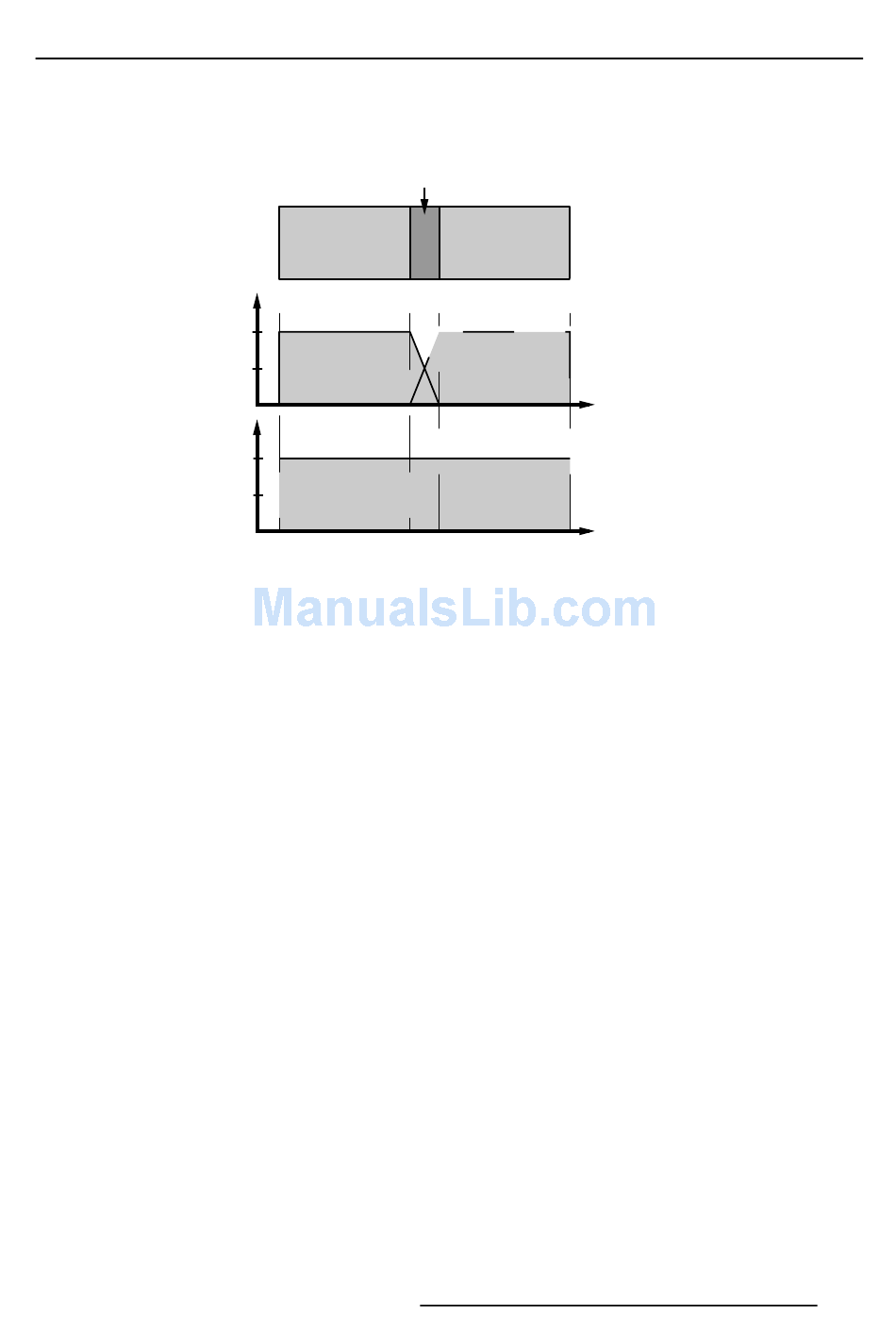

Image 7-14
ScenergiX Basic Principle
7.7.2

Preparations

ScenergiX Preparations
To ensure proper ScenergiX adjustment, be sure that the following adjustments are done perfectly on all
projectors:
• Convergence
• Geometry
• Color Matching (Color Temperature, Color Standard, Input Balance, Gamma)
7.7.3

ScenergiX activation

How to enable or disable ScenergiX
1. To enable ScenergiX, check the check box in front of enable.
To disable ScenergiX, uncheck the check box in front of enable. (image 7-15)
When enabled, Show alignment lines becomes available.
2. To display alignment lines on the screen, check the check box in front of Show alignment lines.
R5976924 PROJECTOR TOOLSET 16/04/2009
Adjustable overlapping area
100%
50%
image 1
100%
50%
image 1
7. Configurator, Projector alignment settings
image 2
image 2
101
