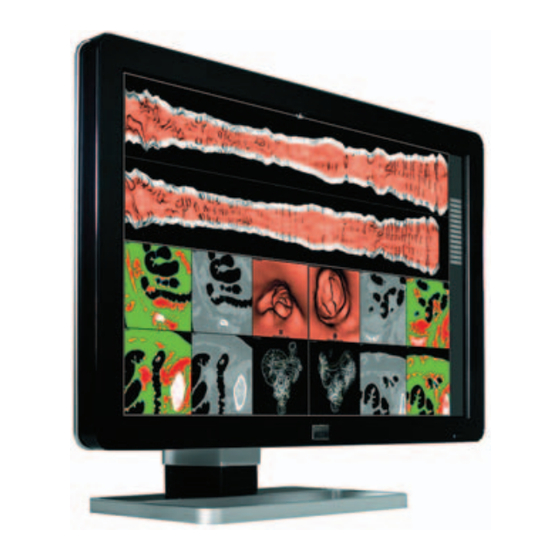

Coronis Fusion 6MP
Getting Started Guide

Advertisement

Table of Contents
loading

Related Manuals for Barco Coronis Fusion 6MP

Summary of Contents for Barco Coronis Fusion 6MP

  • Page 1 Coronis Fusion 6MP Getting Started Guide...
  • Page 2 (This page intentionally left blank.) (This page intentionally left blank.)

  • Page 3: Copyright Notice

    Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.
  • Page 4 pixel pitch of 0.1995mm. This provides the equivalent resolution of 2 x 3MP displays. The Coronis Fusion 6MP DL (MDCC-6130) display is not intended for primary diagnostic review of Mammography images.

  • Page 5: Table Of Contents

    Recommendations for using your display system ....... 18 Display controller installation ..........21 Display Controller Installation ............22 Which display controller? ............22 Installing a Barco display controller........22 Display installation ..............31 Installation precautions ..............32 Display parts, controls and connectors ......... 33 LED indicator ................
  • Page 6 Where to get more information..........57 Troubleshooting..............61 General tips ..................62 Configuring Windows..............63 Setting the resolution of your Barco Coronis Fusion 6MP Display ..............63 Configuring Windows Theme ..........63 Configuring Clone (duplicate) Mode........64 Configuring Software Rotation ..........64 Technical specifications ............

  • Page 7: Preface

    Preface Preface...

  • Page 8: Fcc Compliance Information

    FCC compliance information FCC compliance information FCC statement for the display Class B: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Ce Mark Notice

    CE mark notice CE mark notice Declaration of Conformity in accordance with Article 10 (1) of the CE directive This product has been designed and manufactured in accordance with the essential requirements of the Directives 89/336/EEC and MDD 93/42/EEC (class II b product), and for this product the procedures of Annex II have been applied to mark the product with the CE label.

  • Page 10: Environmental Information

    Environmental information Environmental information Disposal Information This product consists of devices that may contain mercury, which must be recycled or disposed of in accordance with local, state, or country laws. (Within this system, the backlight lamps in the monitor display contain mercury.) This equipment has required the extraction and use of natural resources for its production.
  • Page 11 Environmental information Information for China ROHS compliance Table of toxic and hazardous substances/elements and their content, as required by China’s management methods for controlling pollution by electronic information products Toxic or hazardous Substances and Elements Part Name Cr6+ PBDE Metal parts Plastic parts PCB or PCBA LCD panel...
  • Page 12 Environmental information LCD Monitor 　 　 　 　 　 　 零部件名稱 有毒有害物質或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 　 （Pb） （Hg） （Cd） （Cr6+） （PBB） （PBDE） 金属机构件 塑料机构件 电路板组件 * 液晶面板 电源模块 / 适配器 电源线 外部信号连接线 *： 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路 、连接器等 ○：表示该有毒有害物质在该部件所有均质材料中的含量均在 《电子信息产品中有 毒有害物质的限量要求标准》规定的限量要求以下...

  • Page 13: Safety Instructions

    Safety Instructions Safety Instructions General Recommendations Read the safety and operating instructions before operating the display. Retain safety and operating instructions for future reference. Adhere to all warnings on the display and in the operating instructions manual. Follow all instructions for operation and use. Electrical shock Type of protection (electrical): Display with external power supply: Class I equipment...
  • Page 14 Safety Instructions • The medical approved DC power supply must be powered by the AC mains voltage. Power cords: • Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 300 V min., provided with a hospital-grade type plug 5-15P configuration for 120V application, or 6-15P for 240V application.
  • Page 15 Safety Instructions This apparatus conforms to: CE0120 (MDD 93/42/EEC class IIb product), IEC 60601-1, UL 60601-1, CAN/CSA C22.2 No. 601.01-M90 (c-UL), CCC GB4943-1995 (IEC 60950-1). National Scandinavian Deviations for Cl. 1.7.2 : Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan" Norway: "Apparatet må tilkoples jordet stikkontakt" Sweden: "Apparaten skall anslutas till jordat uttag"...

  • Page 16: Explanation Of Symbols

    Explanation of symbols Explanation of symbols Symbols on the display and / or power supply On the display or power supply, you may find the following symbols (nonrestrictive list): Indicates compliance to the essential require- ments of the Directive 93/42/EEC Indicates compliance with Part 15 of the FCC rules (Class A or Class B) Indicates the display is approved according to...
  • Page 17 Explanation of symbols Indicates the display serial no. Consult the operating instructions Indicates this apparatus must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Symbols used throughout the manual: Warning: Risk of Caution: Risk of injury to human...

  • Page 18: Recommendations For Using Your Display System

    To do this, go to “Power Options Properties” in the “Control Panel”. Barco recommends setting DPMS activation after 20 minutes of non-usage. 2. Use a screen saver to avoid image retention Prolonged operation of an LCD with the same content on the same screen area may result in a form of image retention.
  • Page 19 Recommendations for using your display system diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white paper available at www.barcomedical.com.
  • Page 20 Recommendations for using your display system (This page intentionally left blank.)

  • Page 21: Display Controller Installation

    Display controller installation Display controller installation...

  • Page 22: Display Controller Installation

    Display Controller Installation Display Controller Installation Which display controller? Your Barco medical display is compatible with a large range of Barco and non-Barco display controller boards. Depending on the customer’s order details, the display can be delivered with or without a display controller.
  • Page 23 Display Controller Installation Types of display controllers for Barco Display Systems The following models of Barco display controllers are available for your display system. Please check which of the following models is delivered with your system, and follow the corresponding installation...

  • Page 24: Installation Procedure

    Display Controller Installation Installation Procedure The following instructions will take you step by step through the installation of the Barco display controller(s) for your B ARCO ORONIS 6MP Display System. USION CAUTION – Wear a grounded, protective ESD strap when handling or during installation of the display controller.
  • Page 25 Power connection for the MXRT 7300 controllers Screw in or fasten the display controller securely. Replace and secure the computer cover. Connect your Barco Coronis Fusion 6MP Displays to the Barco display controller(s) for your B 6MP Display ARCO...
  • Page 26 “Display installation” section of this manual. MXRT 1150 & MXRT 2150 IO-Panel for the Barco MXRT 1150 and Barco MXRT 2150 S-Video Connection This option is not supported by Barco. DMS-59 connector provides DVI-I / Head 1 & Head 2 output connections through included Y adaptor cable.
  • Page 27 Display Controller Installation MXRT 7300 IO-Panel for the Barco MXRT 7300 DisplayPort Connections DVI-I Connection Note: Disconnecting the DisplayPort cable may lock the display. Rebooting system may be required if lock occurs. Note: Only two of the three connectors can be used at a time.
  • Page 28 Note: Your Barco display(s) will be running in a basic video mode at a default refresh rate. Higher resolutions and refresh rates, such as 1536x2048@60Hz, are not available at this stage of the installation.
  • Page 29 Display Controller Installation Install the drivers, MediCal QAWeb software and documentation for your Barco Coronis Fusion 6MP Display System by following the instructions in the Driver and Software Installation section of this manual.
  • Page 30 Display Controller Installation (This page intentionally left blank.)

  • Page 31: Display Installation

    Display installation Display installation...

  • Page 32: Installation Precautions

    Installation precautions Installation precautions Precautions • Keep your original packaging. It is designed for this display and is the ideal protection during transport. • Avoid reflections in the flat panel to reduce eye strain. • Make sure the surface, stand, arm or boom to bear the display is strong and stable enough to bear its weight.

  • Page 33: Display Parts, Controls And Connectors

    Display parts, controls and connectors Display parts, controls and connectors LED indicator The LED color indicates the display’s power status: Table 1: Display is on (when enabled in the OSD). Green Display is in Standby power-saving mode. Orange Display is disconnected from the power or the LED’s on state is disabled in the OSD.
  • Page 34 Display parts, controls and connectors Figure 1: Touch keys Left/Down touch key To move down or decrease values in the OSD. Right/Up touch key To move up or increase values in the OSD. Enter touch key To display the OSD (on-screen display). In the OSD, this button acts as Enter button to make selections.
  • Page 35 Display parts, controls and connectors Control wheel The control wheel can be pressed like a push button and rotated like a knob. It allows to put the display in stand-by, navigate through the on- screen display (OSD) menus and change values in the OSD. The control wheel is located at the bottom of the LCD panel.

  • Page 36: Rear View

    Display parts, controls and connectors Rear view Figure 2: Rear view Connector compartment cover. Detach to get access to the signal connectors. Display stand cover. Slide it upward and detach it before connecting the signal cables to route the cables neatly. After connecting the cables, re-attach the cover to hide the cables.

  • Page 37: Connectors

    Display parts, controls and connectors When the display is shipped, the display height mechanism is locked to prevent damage during shipping. To unlock the mechanism and adjust the display height, pull out the red hook while pushing down the display panel. Then slowly release the display panel.
  • Page 38 Display parts, controls and connectors Figure 4: Connectors front “Left” DVI (digital) video input. See note below. 24 VDC power input. USB upstream connector (to PC). USB downstream connector. If the display’s USB upstream connector is connected to the PC USB bus, you can use the USB downstream connector to connect peripheral USB devices.
  • Page 39 Display parts, controls and connectors USB 2.0 devices are supported. Note: The Barco Coronis Fusion 6MP Display disposes of 2 video inputs. You can connect both video inputs or just one input. • When both inputs are used (DuoView), the signal on the “left”...

  • Page 40: Connecting The Signal Cables

    Connecting the signal cables Connecting the signal cables To connect the signal cables to the display: Unpack the display and put it on a solid flat surface. Make sure the computer is turned off. To get access to the connectors, remove the connector compartment cover (1).
  • Page 41 Connecting the signal cables Figure 6: Signal cable connections • Connect Head1 of the graphic board to the “left” DVI connector (4) and connect Head2 to the “right” DVI connector (8). (“Left” and “Right” refer to their location for the user looking at the screen.) •...
  • Page 42 Connecting the signal cables After routing the cables, re-attach the display stand cover. Startup the display. Note: When after startup you wish to change the screen resolution, try to do so in the display control panel on the computer. If you cannot select the desired resolution in the control panel, you need to select the desired resolution in the display OSD by means of the Preferred Input function in the Settings menu.
  • Page 43 Connecting the signal cables Recommended resolutions according to OSD selection No. of Windows video OSD selection heads Result resolution connected 2x1640x2048 1640x2048@50 Hz 2x1640x2048 3280x2048@50 Hz (extend desktop) 1x3280x2048 3280x2048@35 Hz (1) (3) 2x1536x2048 1536x2048@50 Hz 2x1536x2048 3072x2048@50 Hz (extend desktop) 2x1640x2016 1640x2016@50 Hz 2x1640x2016...
  • Page 44 Connecting the signal cables No. of Windows video OSD selection heads Result resolution connected 1x3280x2016 3280x2016@35 Hz (2) (3) 2x1536x2016 1536x2016@50 Hz 2x1536x2016 3072x2016@50 Hz (extend desktop) The I-Guard is visible in the top of the active image. Note: Top of the active image is blanked so that the i-Guard Note: is not visible.

  • Page 45: Vesa-Mount Installation

    Vesa-mount installation Vesa-mount installation Important: • Use an arm that is approved by VESA (according to the VESA 100 mm standard). • Use an arm that can support a weight of at least 25 kg (55.12 lbs). To attach the panel unit to an arm stand: Release the display panel from the display stand as follows: •...
  • Page 46 Vesa-mount installation Attach the panel firmly to the arm stand using 4 screws M4 x 10 You should mount the panel in landscape position. Portrait position is not supported.

  • Page 47: Cleaning Instructions

    Cleaning instructions Cleaning instructions Precautions Precautions • Before cleaning, switch the display in stand-by position to prevent the control touch keys from being activated inadvertently by sweeping over the front filter. In stand-by position the touch keys cannot be activated by just sweeping over them.

  • Page 48: Cabinet

    Cleaning instructions • Sidolin glass cleaner In case none of the above cleaning products is available, use plain water. Do NOT use: • Alcohol/solvents at higher concentration > 5% • Strong alkalis lye, strong solvents • Acid • Detergents with fluoride •...

  • Page 49: Software Installation

    Software installation Software installation...

  • Page 50: Driver And Software Installation

    6MP Display System. ARCO ORONIS USION Before you begin make sure that all of your Barco Coronis Fusion 6MP Display(s) is connected to the appropriate display controller(s) in your system. Note: This installation procedure is based on operating Windows in “Classic” theme. If “Aero” or “Basic” theme is selected in Windows, sections of this procedure may be different than what is listed.
  • Page 51 Installation Wizard will detect any prior installations and start the uninstallation process automatically if necessary. Note: When there is a non-Barco board in the system, we recommend that you first install the driver for the non-Barco board, prior to installation of the Barco driver. After each driver installation, you should reboot the system, before proceeding with installation of another driver.
  • Page 52 Barco Monitor Plug and Play Software should automatically detect your Barco displays and attach them to the desktop with the correct resolution. If the Barco Monitor Plug and Play Software fails to detect your Barco displays or fails to...

  • Page 53: Reinstalling Drivers

    Windows section of this manual. Reinstalling drivers You can install new drivers or reinstall existing drivers at any time by using the Barco Set-up wizard on your Barco Coronis Fusion 6MP Display System Installation CD-ROM, see Installing the B MXRT ARCO drivers and software, on page 50 of this manual.
  • Page 54 The PnPUtil will parse the inf files and add the MXRT drivers to the driver store. If this is the first installation of a Barco driver, the trust prompt will ask whether you really want to install the driver. Check the box that says...
  • Page 55 All of the systems with this driver store are set up for intervention-free silent installation. To do a silent installation it is only necessary to navigate to the Barco root folder and execute the command "setup.exe -silent". This can be done from the command shell, from the Run command, or from a command shortcut.
  • Page 56 Driver and Software Installation (This page intentionally left blank.)

  • Page 57: Where To Get More Information

    Where to get more information Where to get more information...
  • Page 58 The online user guide is installed on the system PC during the system driver installation. To open the online user guide, select Start>Program Files>Barco>Documentation>Coronis online user guide from the Windows Start menu. The online user guide uses Java scripts to create the html pages. In Windows XP, SP2, it is possible that Internet Explorer blocks them for security reasons.
  • Page 59 Where to get more information...
  • Page 60 Where to get more information (This page intentionally left blank.)

  • Page 61: Troubleshooting

    Troubleshooting Troubleshooting...

  • Page 62: General Tips

    General tips General tips • If one display from a multi-head system exhibits problems, try to eliminate the problem by switching video cables or power supplies. In that way you can find out if the problem resides in the display or not. If the display screen remains black after installation: Possible causes: •...

  • Page 63: Configuring Windows

    Configuring Windows Setting the resolution of your Barco Coronis Fusion 6MP Display Note: In order to set the resolution of your Barco Coronis Fusion 6MP Display you must be logged in using an account with administrator privileges. Accessing the Windows Display Control Panel Right click on the desktop, and select Screen resolution.

  • Page 64: Configuring Clone (Duplicate) Mode

    Configuring Windows Configuring Clone (duplicate) Mode In the Windows Control Panel, click on Appearance and Personalization. Click on Display. Click on Change Display Settings. In the Multiple Displays drop down list, these options are available (this only appears if there is more than 1 display connected to system): •...

  • Page 65: Technical Specifications

    Technical specifications Technical specifications...
  • Page 66 Technical specifications MDCC 6130 DL: Item Specification Screen technology TFT AM Color LCD Dual Domain IPS-Pro Active screen size 772 mm (30.4") (diagonal) Active screen size (H x 654 x 409 mm (25.8 x 16.1") Aspect ratio (H:V) 16:10 Resolution 6MP (3280 x 2048) Pixel pitch 0.1995 mm...
  • Page 67 Technical specifications Item Specification Response time (Tr + 18 ms Scanning frequency 30-150 kHz; 15-80 Hz (H; V) Housing color Black Video input signals DVI-D Dual Link (2x) Video inout terminals USB ports 1 upstream (endpoint), 3 downstream USB standard Power requirements 100-240V (nominal)
  • Page 68 Technical specifications Item Specification Net weight packaged w/o stand Height adjustment 96 mm range Tilt -5° / +25° Swivel -45° / +45° Pivot Mounting standard VESA (100 mm) Screen protection Protective, non-reflective glass cover Recommended CT, MR, US, DR, CR, NM, Film modalities Certifications UL 60601-1...
  • Page 69 Technical specifications Item Specification Units per pallet Pallet dimensions (W x H)
  • Page 70 Technical specifications (This page intentionally left blank.)

  • Page 71: Warranty Statement

    Warranty Statement Warranty Statement...

  • Page 72: Barco Mid General Warranty Terms And Conditions

    In no event shall Customer return a defective Product or part thereof to Barco without Barco's prior written approval. In the event the return to Barco of the defective Product is authorized by Barco, Barco shall issue to Customer an RMA (Return Material Authorization).
  • Page 73 2.3 All software installed on the system, whether they are acquired from Barco nv, MID or third party. An exception is made for software delivered by Barco nv, MID that would prove to be a cause for the mal functioning of the hardware covered under this Agreement.
  • Page 74 LCD technology. Barco nv, MID does not warrant a minimum life time nor a performance of any of the consumables. 2.6 Replacement of moveable parts such as power cords, remote controls, …...
  • Page 75 Barco nv, MID is entitled not to perform warranty repairs and terminate the warranty agreement. Any actions that have been taken by Barco nv, MID in this respect, may be invoiced to the Customer at normal pricing.
  • Page 76 8.2 Barco nv, MID shall not be responsible for machine failure and/or its failure to render service or maintenance due to causes beyond its reasonable control.
  • Page 77 Warranty Statement...
  • Page 78 Warranty Statement...
  • Page 79 Warranty Statement...
  • Page 80 K5902015-05 January 2011 Barco n.v. President Kennedypark 35 8500 Kortrijk Belgium www.barco.com...
