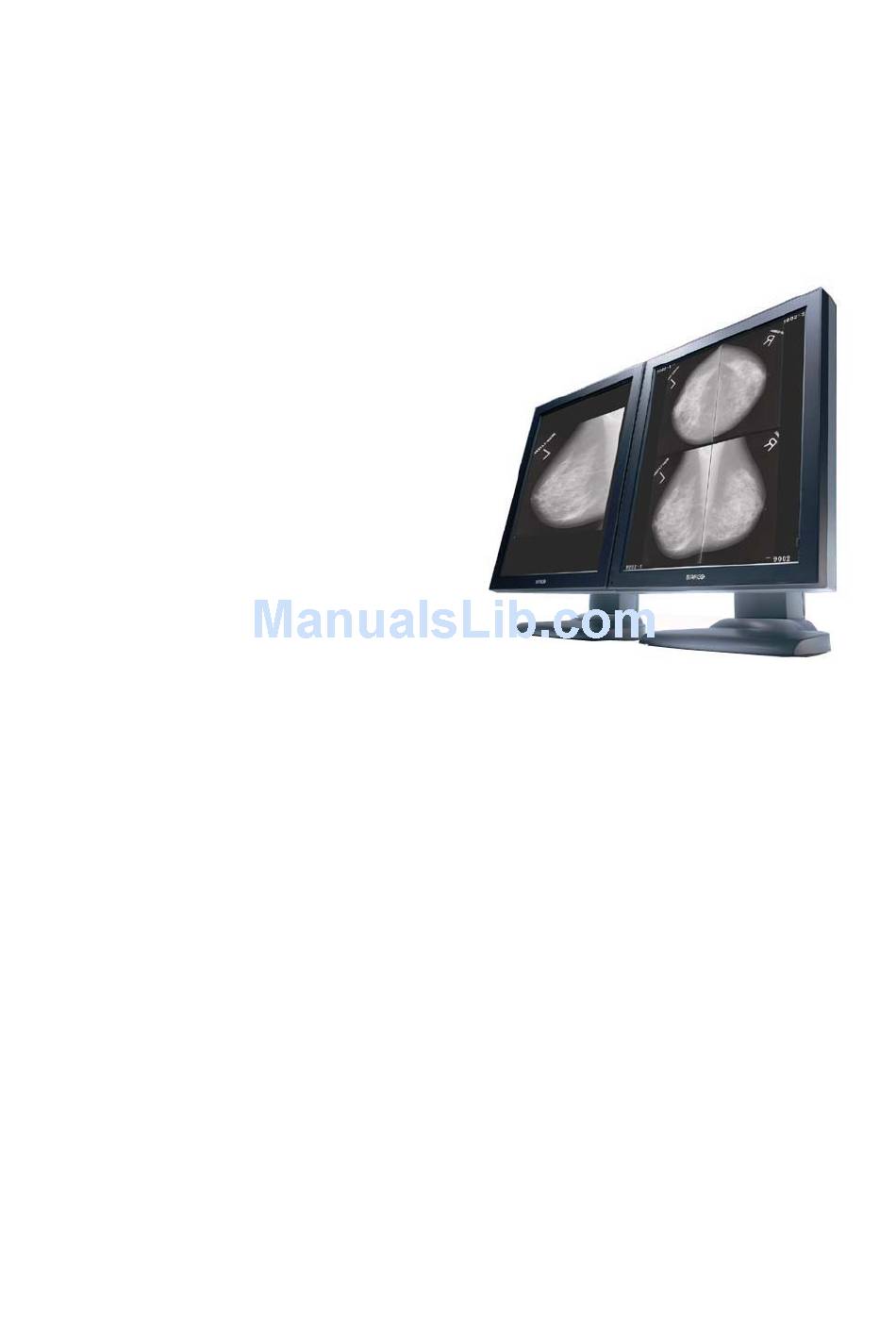

Coronis 5MP Mammo
Getting Started Guide

Advertisement

Table of Contents
loading

Related Manuals for Barco Coronis 5MP Mammo

Summary of Contents for Barco Coronis 5MP Mammo

  • Page 1 Coronis 5MP Mammo Getting Started Guide...
  • Page 2 (This page intentionally left blank.) (This page intentionally left blank.)

  • Page 3: Copyright Notice

    Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.
  • Page 4 Indications for use The Coronis 5MP Mammo (MDMG-5121) Display is intended to be used in displaying and viewing digital images, for review and analysis by trained medical practitioners. It is specifically designed for digital mammography applications.

  • Page 5: Table Of Contents

    Rear view ................25 Display controller installation ..........27 Display Controller Installation ............28 Which display controller? ............28 Installing a Barco display controller........28 Installation Procedure............. 31 Display installation ..............37 Installation precautions ..............38 After unpacking the display ............39 Adjust the panel orientation ............
  • Page 6 Table of Contents Precautions................49 Front filter ................49 Cabinet ..................50 Software installation ............. 51 Driver and Software Installation ........... 52 Driver and software installation prerequisites...... 52 Installing the B MXRT drivers and software ....52 ARCO Installing the B or Nio drivers and software58 ARCO ORONIS...

  • Page 7: Preface

    Preface Preface...

  • Page 8: Fcc Compliance Information

    FCC compliance information FCC compliance information FCC statement for the display FCC Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Fcc Statement For The Graphic Board

    FCC compliance information FCC statement for the graphic board Class A: This Barco Graphics Controller complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.

  • Page 10: Ce Mark Notice

    CE mark notice CE mark notice Declaration of Conformity in accordance with Article 10 (1) of the CE directive This product has been designed and manufactured in accordance with the essential requirements of the Directives 89/336/EEC and MDD 93/42/EEC (class II b product), and for this product the procedures of Annex II have been applied to mark the product with the CE label.

  • Page 11: Environmental Information

    Environmental information Environmental information Disposal Information This product consists of devices that may contain mercury, which must be recycled or disposed of in accordance with local, state, or country laws. (Within this system, the backlight lamps in the monitor display contain mercury.) This equipment has required the extraction and use of natural resources for its production.
  • Page 12 Environmental information Information for China ROHS compliance Table of toxic and hazardous substances/elements and their content, as required by China’s management methods for controlling pollution by electronic information products Toxic or hazardous Substances and Elements Part Name Cr6+ PBDE Metal parts Plastic parts PCB or PCBA LCD panel...
  • Page 13 Environmental information 　 　 　 　 　 　 LCD Monitor 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 　 （Pb） （Hg） （Cd） （Cr6+） （PBB） （PBDE） 金属机构件 塑料机构件 电路板组件 * 液晶面板 电源模块 / 适配器 电源线 外部信号连接线 *： 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路 、连接器等 ○：表示该有毒有害物质在该部件所有均质材料中的含量均在 《电子信息产品中有 毒有害物质的限量要求标准》规定的限量要求以下 ×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 《电子信息产品 中有毒有害物质的限量要求标准》规定的限量要求；...

  • Page 14: Safety Instructions

    Safety Instructions Safety Instructions General Recommendations Read the safety and operating instructions before operating the display. Retain safety and operating instructions for future reference. Adhere to all warnings on the display and in the operating instructions manual. Follow all instructions for operation and use. Electrical shock Type of protection (electrical): Display with external power supply: Class I equipment...
  • Page 15 Safety Instructions (Skynet SNP-A129-M, Jerome WSX824M, Sinpro MPU130- 108). • The medical approved DC power supply must be powered by the AC mains voltage. Power cords: • Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 300 V min., provided with a hospital-grade type plug 5-15P configuration for 120V application, or 6-15P for 240V application.
  • Page 16 Safety Instructions This apparatus conforms to: CE0120 (MDD 93/42/EEC class IIb product), IEC 60601-1, UL 60601-1, CAN/CSA C22.2 No. 601.01-M90 (c-UL), CCC GB4943-1995 (IEC 60950-1). National Scandinavian Deviations for Cl. 1.7.2 : Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan" Norway: "Apparatet må tilkoples jordet stikkontakt" Sweden: "Apparaten skall anslutas till jordat uttag"...

  • Page 17: Recommendations For Using Your Display System

    To do this, go to “Power Options Properties” in the “Control Panel”. Barco recommends setting DPMS activation after 20 minutes of non-usage. 2. Use a screen saver to avoid image retention Prolonged operation of an LCD with the same content on the same screen area may result in a form of image retention.
  • Page 18 Recommendations for using your display system diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white paper available at www.barcomedical.com.

  • Page 19: Explanation Of Symbols

    Explanation of symbols Explanation of symbols Symbols on the display and / or power supply On the display or power supply, you may find the following symbols (nonrestrictive list): Indicates compliance to the essential require- ments of the Directive 93/42/EEC Indicates compliance with Part 15 of the FCC rules (Class A or Class B) Indicates the display is approved according to...
  • Page 20 Explanation of symbols Indicates the display serial no. Consult the operating instructions Indicates this apparatus must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Symbols used throughout the manual: Warning: Risk of Caution: Risk of injury to human...

  • Page 21: Introduction

    Introduction Introduction...

  • Page 22: Installation Overview

    Installation overview Installation overview If applicable, install the graphic board in the computer. Remove the foot rear cover. Pull out the red clip from the tilt & swivel foot. If you wish to rotate the panel, first tilt the panel slightly in order not to damage the tilt &...
  • Page 23 Installation overview Install software and user manu- als. Start up and use MediCal QAWeb Agent. Enable DPMS & screensaver for Important optimal display performance throughout the product lifetime.

  • Page 24: Display Parts, Controls And Connectors

    Display parts, controls and connectors Display parts, controls and connectors Front view Figure 1: Front side Power LED The LED is off when the display is disconnected from the power. The LED is also off when the LED function is disabled in the on- screen display (OSD).

  • Page 25: Rear View

    Display parts, controls and connectors Rear view Figure 2: Rear side Connector compartment cover To get access to the connectors, remove the cover by pulling down the 2 clips at the top of the cover. Tilt & swivel foot cover This cover is packed in a separate box when the display is shipped to the customer.
  • Page 26 Display parts, controls and connectors USB downstream port When the display is connected to the PC USB bus, you can connect USB devices, such as keyboard, mouse, digital camera, to this connector. Tilt & swivel foot clip The display is shipped with this clip in the foot to protect the tilt &...

  • Page 27: Display Controller Installation

    Display controller installation Display controller installation...

  • Page 28: Display Controller Installation

    Display Controller Installation Display Controller Installation Which display controller? Your Barco medical display is compatible with a large range of Barco and non-Barco display controller boards. Depending on the customer’s order details, the display can be delivered with or without display controller.
  • Page 29 Display Controller Installation Types of display controllers for Barco Display Systems The following models of Barco display controllers are available for your display system. Please check which of the following models is delivered with your system, and follow the corresponding installation...
  • Page 30 VGA on ALL the other BarcoMed display controllers. To use a BarcoMed display controller with a third party VGA controller or with one or more Barco MXRT display controllers, do NOT enable VGA on the BarcoMed display controller.

  • Page 31: Installation Procedure

    Display Controller Installation Installation Procedure The following instructions will take you step by step through the installation of the display controller(s) for your B ARCO ORONIS Display System. AMMO CAUTION – Wear a grounded, protective ESD strap when handling or during installation of the display controller. Electrostatic charges can damage the display controller.
  • Page 32 Display Controller Installation Align the display controller(s) for your B 5MP M ARCO ORONIS AMMO Display System with the slot(s) and press it(them) in firmly until the card(s) is(are) fully seated. Note: The next step applies only to the MXRT 5100, MXRT 7100, and MXRT 7200.
  • Page 33 “Display installation” section of this manual. Figure 8: IO-Panel for the Barco MXRT 1150 and Barco MXRT 2150 S-Video Connection This option is not supported by Barco. DMS-59 connector provides DVI-I / Head 1 & Head 2...
  • Page 34 Display Controller Installation Figure 9: IO-Panel for the Barco MXRT 2100 and Barco MXRT 5200 MXRT 2100 MXRT 5200 Head 2– DVI-I Head 1– DVI-I Connection Connection Head 1– DVI-I Head 2– DVI-I Connection Connection Note: For 6mp, connect Head 1 to left input, and Head 2 to right input.
  • Page 35 Display Controller Installation Note: For 6mp, connect Head 1 to left input, and Head 2 to right input. Figure 11: IO-Panel for the Barco MXRT 7300 DisplayPort Connections DVI-I Connection Note: Disconnecting the DisplayPort cable may lock the display. Note: Only two of the three connectors can be used at a time.
  • Page 36 Note: Your Barco display(s) will be running in a basic video mode at a default refresh rate. Higher resolutions and refresh rates, such as 1536x2048@60Hz, are not available at this stage of the installation.

  • Page 37: Display Installation

    Display installation Display installation...

  • Page 38: Installation Precautions

    Installation precautions Installation precautions Precautions • Keep your original packaging. It is designed for this display and is the ideal protection during transport. • Avoid reflections in the flat panel to reduce eye strain. • Place the display on a strong and stable table or desk. •...

  • Page 39: After Unpacking The Display

    After unpacking the display After unpacking the display Impoartant In the factory, the height-positioning system in the display foot is blocked with a red clip to prevent damage during transportation. Before installing the display, you must remove this clip. Clip Figure 13 To remove the clip: Position the display with its rear side facing you.

  • Page 40: Adjust The Panel Orientation

    Adjust the panel orientation Adjust the panel orientation You can change the orientation of the panel at any time, but it is more convenient to select landscape or portrait orientation before connecting the cables. Figure 14: Portrait orientation Figure 15: Landscape orientation To change the panel orientation: Stand at the front side of the panel and take the panel at both sides.
  • Page 41 Adjust the panel orientation Figure 16: Tilt the panel before rotating To change from portrait to landscape, turn the panel counterclockwise. Figure 17: To rotate the panel from portrait to landscape To change from landscape to portrait, turn clockwise. Note: If, after installing the display or the system, you change the panel orientation while an image is on the screen, the result depends on the graphic board and the resolution of the image.
  • Page 42 Adjust the panel orientation In some cases the image will be rotated automatically, in other cases it will not be rotated (e.g., when pixels would be lost after rotation). If necessary, change the image resolution in the display control panel and restart the system after changing the orientation.

  • Page 43: Connecting The Signal Cables

    Connecting the signal cables Connecting the signal cables To connect the signal cables to the display: To get access to the connectors, remove the connector compartment cover by pulling down the 2 clips at the top of the cover. Figure 18: Connector compartment Connect the cables to the appropriate connectors: Figure 19: Inputs •...
  • Page 44 Connecting the signal cables power supply (5) to a grounded power outlet by means of the proper power cord delivered in the packaging. Figure 20: External DC power supply Caution: If the display is set up away from the power source, ensure that the external DC power supply is supported and not dangling from the floor, this can lead to exccesive strain on the cable and plugs.

  • Page 45: Cable Routing

    Cable routing Cable routing Routing the signal cables • Bind the cables in the connector compartment together with the cable tie inside the connector compartment. • Put the connector compartment cover back on the display. Pay attention that the signal cables are positioned under the bulge in the cover.
  • Page 46 Cable routing Push the upper side of the cover onto the foot, so that the hooks inside the cover are positioned right under the bulges at the rear of the foot. Slide the cover upward while moving the lower side of the cover towards the foot.

  • Page 47: Vesa-Mount Installation

    Vesa-mount installation Vesa-mount installation The panel, standard attached to the tilt & swivel foot, is compatible with the VESA 100 mm standard. So it can be used with an arm stand according to the VESA 100 mm standard. Therefore, the tilt & swivel foot must be removed from the panel. Impoartant •...
  • Page 48 Vesa-mount installation Lift up the round plastic cover. Remove the four screws fixing the foot while supporting the foot. Attach the arm stand firmly to the panel using 4 screws M4 x 8 4 screws M4 x 8mm Figure 23...

  • Page 49: Cleaning Instructions

    Cleaning instructions Cleaning instructions Precautions • Take care not to damage or scratch the front filter or LCD panel. Be careful with rings or other jewelry that can touch the front filter. • Do not apply pressure on the front filter or LCD panel. •...

  • Page 50: Cabinet

    Cleaning instructions • Detergents with fluoride • Detergents with ammonia • Detergents with abrasives • Steel wool • Sponge with abrasives • Steel blades • Cloth with steel thread Cabinet Proceed as follows: • Clean the cabinet using a soft cotton cloth, lightly moistened with a recognized cleaning product for medical equipment.

  • Page 51: Software Installation

    Software installation Software installation...

  • Page 52: Driver And Software Installation

    MXRT family of controllers and B ARCO ARCO family of controllers is handled separately. If you install Barco displays without Barco display controllers, no drivers will be installed. Only the online user manual will be installed on your system. Driver and software installation prerequisites...
  • Page 53 B 5MP M Display System ARCO ORONIS AMMO Installation CD-ROM into your computer’s CD/DVD drive after the operating system has started. If your CD/DVD drive’s auto-run is not enabled or the Barco Product Installation Wizard does not...
  • Page 54 The Barco Product Installation Wizard will now guide you through the installation of the driver. Click Yes to accept the terms of the Barco and ATI license agreements. The Barco setup wizard will continue with the installation only if you accept the terms of both license...

  • Page 55: Reinstalling Drivers

    Software should automatically detect your Barco displays and attach them to the desktop with the correct resolution. If the Barco Monitor Plug and Play Software fails to detect your Barco displays or fails to attach them to the desktop correctly please refer to the section, Setting the resolution of your Barco Display in the Configuring Windows section of this manual.
  • Page 56 Note: When uninstalling the Barco MXRT drivers, the dialog box shown in figure 24 will appear, and select the driver listed. Figure 24: Barco MXRT Driver Removal Wizard (driver version may be different than what is pictured) Note: Vista Only: After uninstalling the driver, shutdown the machine and remove the card.
  • Page 57 5MP M Display System Installation ARCO ORONIS AMMO CD-ROM into your CD/DVD drive. When the Barco Product Installation Wizard starts click “Cancel”. Click the Start button in the task bar. Click Run. Click Browse and Browse to the root directory of the B...

  • Page 58: Installing The B

    Run MXRT driver cleaner.bat by double clicking on it (this will either be installed as an icon on your desktop, or can be found on the Barco Display System installation CD at: drivers\2KXP\ATI). This will remove all the previous installed MXRT driver files.
  • Page 59 Installation CD-ROM into your CD/DVD drive after the operating system has started. If your CD/DVD drive’s auto-run is not enabled or the Barco Product Installation Wizard does not start automatically, you can run the Barco Product Installation Wizard manually by following these steps: Click the Start button in the task bar.
  • Page 60 Next to accept the default settings or if you know the settings required for your viewing application, you may select them now and then click Next. You may change these settings later by accessing the Barco Driver tab within the Windows Display Control Panel. Figure 26: Please refer to your application manuals for information on the correct Palette and Drawing modes to select.
  • Page 61 Software should automatically detect your Barco displays and attach them to the desktop with the correct resolution. If the Barco Monitor Plug and Play Software fails to detect your Barco displays or fails to attach them to the desktop correctly please refer to the section, Setting the resolution of your Barco Coronis Display in the Configuring Windows section of this manual.
  • Page 62 To install the drivers and software silently, please follow the steps below: Insert the B 5MP M Display System Installation ARCO ORONIS AMMO CD-ROM into your CD/DVD drive. When the Barco Product Installation Wizard starts click “Cancel”. Click the Start button in the task bar. Click Run. Click Browse and...
  • Page 63 Driver and Software Installation Browse to the root directory of the B ARCO ORONIS Display System Installation CD-ROM. AMMO Click on the file, Setup.exe, and click Open. Browse to the root directory of the location where you saved the contents of your B 5MP M ARCO ORONIS...
  • Page 64 Driver and Software Installation (This page intentionally left blank.)

  • Page 65: Where To Get More Information

    Where to get more information Where to get more information...
  • Page 66 The online user guide is installed on the system PC during the system driver installation. To open the online user guide, select Start>Program Files>Barco>Documentation>Coronis online user guide from the Windows Start menu. The online user guide uses Java scripts to create the html pages. In Windows XP, SP2, it is possible that Internet Explorer blocks them for security reasons.
  • Page 67 Where to get more information...
  • Page 68 Where to get more information (This page intentionally left blank.)

  • Page 69: Troubleshooting

    Troubleshooting Troubleshooting...

  • Page 70: General Tips

    General tips General tips • If one display from a multi-head system exhibits problems, try to eliminate the problem by switching video cables or power supplies. In that way you can find out if the problem resides in the display or not. If the display screen remains black after installation: Possible causes: •...

  • Page 71: Configuring Windows

    Setting”. Click on the Settings tab (the Settings tab is not present in Vista). Select the rectangle that represents the Barco display whose settings you wish to change. Note: If you are using the VGA capabilities of your B ARCO display controller, the resolution for the first display may be set to a VGA resolution of “640 x 480”...
  • Page 72 Configuring Windows will be one rectangle for the virtual display representing the two heads controlled by each BarcoMed display controller output. If you installed your B 5MP M Display System ARCO ORONIS AMMO drivers in DualView mode (default for Windows XP) there will be a rectangle representing each head controlled by each output of the display controller.

  • Page 73: Setting The Color And Palette Modes

    Display System you must be logged in using ORONIS AMMO an account with administrator privileges. If you are using a color display in conjunction with your Barco grayscale display(s) you should configure your desktop before setting the resolution of the your Barco grayscale display(s).
  • Page 74 Configuring Windows (This page intentionally left blank.)

  • Page 75: Technical Specifications

    Technical specifications Technical specifications...
  • Page 76 Technical specifications Item Specification Product acronym MDMG-5121 Screen technology TFT AM LCD Dual Domain IPS Active screen size 541 mm (21.3") (diagonal) Active screen size (H 422 x 338 mm (16.6 x 13.3") x V) Aspect ratio (H:V) Resolution 5MP (2560 x 2048) Pixel pitch 0.1650 mm Color imaging...
  • Page 77 Technical specifications Item Specification DICOM calibrated 600 cd/m² luminance (ULT off)* Contrast ratio (typi- 900:1 cal)* Response time (Tr + 50 ms Scanning frequency 30-150 kHz; 15-80 Hz (H; V) Housing color Gray Video input signals DVI-D Dual Link Video inout termi- nals USB ports 1 upstream (endpoint), 2 downstream...
  • Page 78 Technical specifications Item Specification Net weight with 13.3 kg stand Net weight w/o 9.2 kg stand Net weight pack- 17.9 kg aged with stand Net weight pack- 13.8 kg aged w/o stand Height adjustment 60 mm range Tilt -5° / +30° Swivel -45°...
  • Page 79 Technical specifications Item Specification Supplied accessories Getting Started Guide Quick-Installation Sheet Video cable (DVI Dual Link) Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC)) USB 2.0 cable External power supply Optional accessories QA software MediCal QAWeb Units per pallet Pallet dimensions (W x H)
  • Page 80 Technical specifications (This page intentionally left blank.)

  • Page 81: Warranty Statement

    Any claim under the Warranties must be notified to Barco in writing within 8 days from the date the defect or failure has been discovered or noticed the first time. The Customer, upon the occurrence of...
  • Page 82 All software installed on the system, whether they are acquired from Barco nv, MID or third party. An exception is made for software delivered by Barco nv, MID that would prove to be a cause for the mal functioning of the hardware covered under this Agreement.
  • Page 83 LCD luminance uniformity that is in within the product specifications or luminance uniformity performance that is inherent to LCD technology. Barco nv, MID does not warrant a minimum life time nor a performance of any of the consumables.
  • Page 84 If there is an indication that the equipment was used – even temporary – outside its specifications, Barco nv, MID is entitled not to perform warranty repairs and terminate the warranty agreement. Any actions that have been taken by Barco nv, MID in this respect, may be invoiced to the Customer at normal pricing.
  • Page 85 Barco nv, MID shall not be responsible for machine failure and/or its failure to render service or maintenance due to causes beyond its reasonable control.
  • Page 86 Warranty Statement...
  • Page 87 Warranty Statement...
  • Page 88 K5902024-02 October 2011 Barco nv President Kennedypark 35 8500 Kortrijk Belgium www.barco.com...
