Actron CP9580 Instruction Manual

Autoscanner plus.
Hide thumbs

Advertisement

CP9580
Auto Scanner
Plus
®
P/N 0002-000-3119

Advertisement

Troubleshooting

   Related Manuals for Actron CP9580

   Summary of Contents for Actron CP9580

  • Page 1

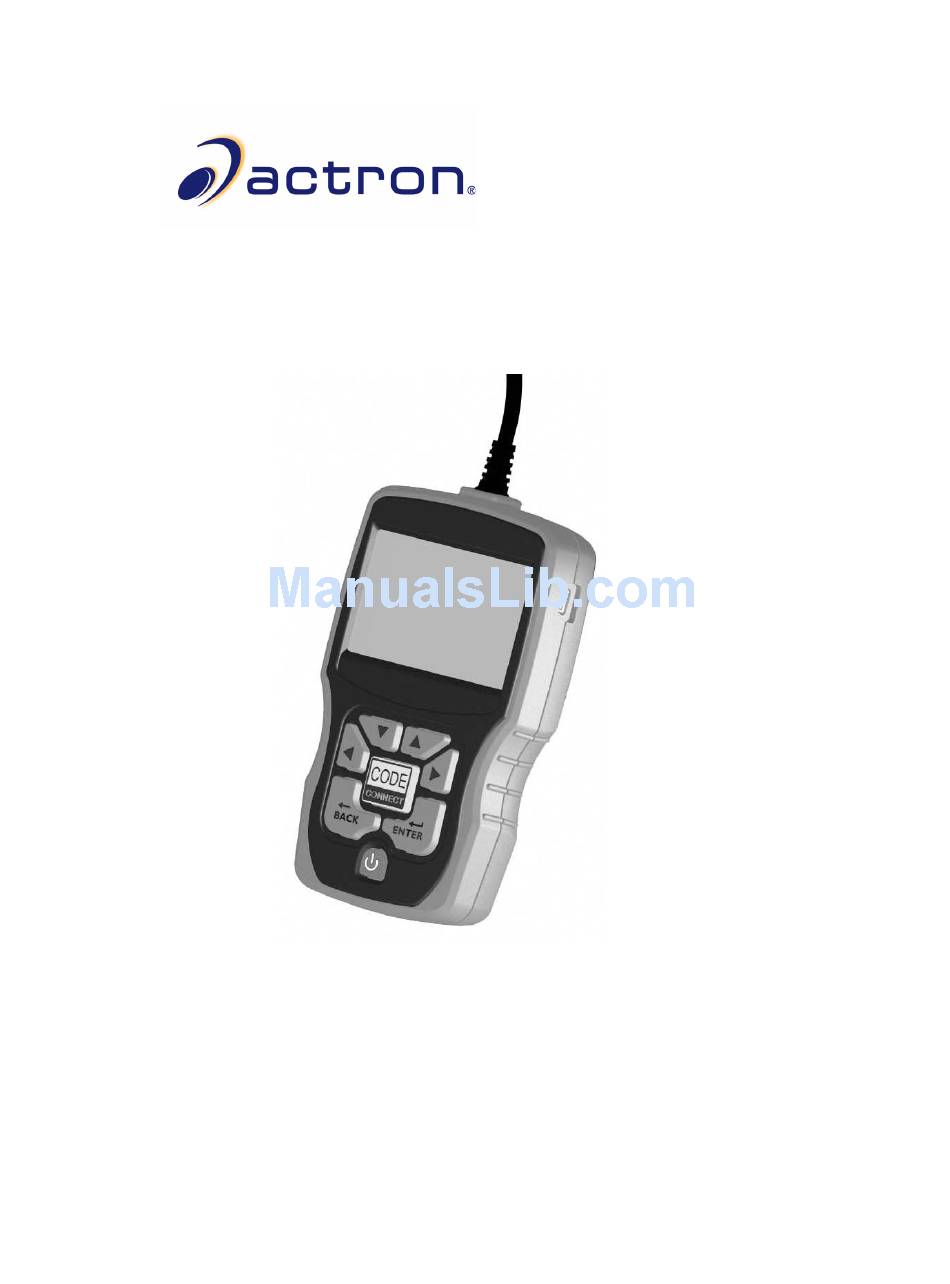

    CP9580 Auto Scanner Plus ® P/N 0002-000-3119...

  • Page 2: Contacting Customer Support

    Board ID: Burn Date: Burn Loc: If you have questions or concerns Contact Technical Support: •Phone: 1-800-228-7667 •Website: www.actron.com •Mail: SPX Service Solutions •655 Eisenhower Dr. •Owatonna, MN 55060 •Attn: Technical Support Copyright Information Copyright © 2010 SPX Corporation All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents Safety Precautions Important Safety Messages ....... Safety - iii Section 1 –...

  • Page 4

    Section 4 – Diagnostic Menu Diagnostic Menu ..........4-2 I/M Monitors (Emissions) .

  • Page 5: Safety Precautions

    Safety Precautions For your safety, read this manual thoroughly before operating your Scan Tool. Always refer to and follow safety messages and test procedures provided by the manufacturer of the vehicle or equipment being tested. The safety messages presented below and throughout this user’s manual are reminders to the operator to exercise extreme care when using this test instrument.

  • Page 6: Type Styles Used

    Safety Precautions Type Styles Used: Safety messages contain three different type styles. • Normal type states the hazard. • Bold type states how to avoid the hazard. Italic type states the possible consequences of not avoiding the • hazard Icons used: An icon, when present, gives a graphical description of a potential hazard.

  • Page 7: Important Safety Messages

    Safety Precautions Important Safety Messages Risk of electric shock. • Do not exceed voltage limits between inputs indicated in the Specifications. • Use extreme caution when working with circuits that have voltage greater than 60 volts DC or 24 volts Electric shock can cause injury.

  • Page 8

    Safety Precautions • Avoid making an accidental connection between the battery terminals. Do not place uninsulated metal tools on the battery. • When removing battery cables, remove the ground cable first. • Avoid sparks when connecting or disconnecting power leads to the battery. •...

  • Page 9

    Safety Precautions Battery acid is a highly corrosive sulfuric acid. • Safety goggles and protective gloves must be worn by the operator and any bystanders. - Even if your everyday glasses have impact resistant lenses, they are NOT safety glasses, and may not provide adequate protection.

  • Page 10

    Safety Precautions Risk of fire. • Safety goggles and protective clothing must be worn by the operator and any bystanders. - Even if your everyday glasses have impact resistant lenses, they are NOT safety glasses, and may not provide adequate protection. •...

  • Page 11

    Safety Precautions Risk of burns. Batteries can produce a short-circuit current high • enough to weld jewelry to metal. - Remove jewelry such as rings, bracelets and watches before working near batteries. Short circuits can cause injury. Risk of burns. •...

  • Page 12

    Safety Precautions Engine compartment contains electrical connections and hot or moving parts. • Keep yourself, test leads, clothing and other objects clear of electrical connections and hot or moving engine parts. • Do not wear watches, rings, or loose fitting clothing when working in an engine compartment.

  • Page 13

    Safety Precautions Risk of unexpected vehicle movement. • Block drive wheels before performing a test with engine running. • Unless instructed otherwise: PRNDL2 - set parking brake - put gear selector in neutral for manual transmissions - put gear selector in park for automatic transmissions - disconnect release mechanism on the automatic parking brake release for testing and reconnect when testing is completed.

  • Page 14

    Safety Precautions Misdiagnosis may lead to incorrect or improper repair and/or adjustment. • Do not rely on erratic, questionable, or obviously erroneous test information or results. - If test information or results are erratic, questionable, or obviously erroneous, make sure all connections and data entry information are correct and test procedures were performed correctly.

  • Page 15: Safety Messages

    Section 1 – Using This Manual This manual contains instructions for the use and setup of your Scan Tool. Safety Messages Refer to Safety Precautions on page Safety - i. Check Note A check note provides additional information about the subject in the preceding paragraph.

  • Page 16

    Using This Manual Functions and Selections Diagnostic and tool functions performed by the Scan Tool are highlighted in bold. Example: The View Data function allows you to view the vehicle’s parameter identification (PID) data in real time. Menus The menus on the Scan Tool display are referenced in the procedures and are highlighted in bold-italic text.

  • Page 17: Section 2 - Getting Started

    Section 2 – Getting Started Introduction The Scan Tool was developed by experts in the automotive service industry to help diagnose vehicles and assist in troubleshooting procedures. The Scan Tool monitors vehicle events and retrieves codes from the vehicle’s control modules to help pinpoint problem areas. All information, illustrations and specifications contained in this manual are based on the latest information available from industry sources at the time of publication.

  • Page 18: Download Scanning Suite

    Getting Started Download Scanning Suite ✓ Go to www.actron.com/downloads and download the Scanning Suite PC application. ✓ Scanning Suite is NOT required to operate the Scan Tool ✓ Install the downloaded Scanning Suite application prior to connecting the Scan Tool to the PC.

  • Page 19: Vehicle Service Information

    Getting Started Vehicle Service Information The following is a list of web sites and phone numbers where electronic engine control (EEC) diagnostic information is available. ✓ Some manuals may be available at your local dealer, auto parts stores or local public libraries. Domestic Vehicles Web Site Phone Number...

  • Page 20

    Getting Started Acura www.acura.com 1-800-999-1009 Honda www.honda.com 1-800-999-1009 Lexus www.lexus.com 1-800-255-3987 Scion www.scion.com 1.866.70.SCION Toyota www.toyota.com 1-800-GO-TOYOTA Hyundai www.hyundai.com 1-800-633-5151 Infiniti www.infiniti.com 1-800-662-6200 Nissan www.nissanusa.com 1-800-nissan1 www.kia.com 1-800-333-4542 Mazda www.mazda.com 1-800-222-5500 Daewoo www.daewoo.com 1-822-759-2114 Subaru www.subaru.com 1-800-SUBARU3 Isuzu www.isuzu.com 1-800-255-6727 Not Available Not Available Mitsubishi...

  • Page 21

    Getting Started OBD II On-board diagnostics version II (OBD II) is a system that the Society of Automotive Engineers (SAE) developed to standardize automotive electronic diagnosis. Beginning in 1996, most new vehicles sold in the United States were fully OBD II compliant. ✓...

  • Page 22: Sae Publications

    Getting Started SAE Publications SAE has published hundreds of pages of text defining a standard communication protocol that establishes hardware, software, and circuit parameters of OBD II systems. Unfortunately, vehicle manufacturers have different interpretations of this standard communications protocol. As a result, the generic OBD II communications scheme varies, depending on the vehicle.

  • Page 23: Data Link Connector (dlc)

    Getting Started Data Link Connector (DLC) The data link connector (DLC) allows the Scan Tool to communicate with the vehicle’s computer(s). Beginning in 1996, vehicles sold in the United States use the J1962 (OBD II) DLC, a term taken from a physical and electrical specification number assigned by the SAE (J1962).

  • Page 24: Obd Ii Diagnostic Trouble Codes (dtcs)

    Getting Started OBD II Diagnostic Trouble Codes (DTCs) ✓ J2012 and ISO 15031-6 are standards for all DTCs, established by the SAE, International Organization for Standardization (ISO) and other governing bodies. ❒ Codes and definitions assigned by these specifications are known as Generic OBD II codes.

  • Page 25: Section 3- Using The Scan Tool

    Section 3 – Using The Scan Tool The Scan Tool LCD Display – backlit, 128 x 64 pixel display with contrast adjustment. UP and DOWN arrow keys – moves selection UP or DOWN. key – selects displayed items. ENTER LEFT and RIGHT arrow keys –...

  • Page 26: Specifications

    Using The Scan Tool Specifications Display: Backlit, 128 x 64 pixel display with contrast adjust Operating Temperature: 0 to 50°C (32 to 122°F) Storage Temperature: -20 to 70°C (-4 to 158°F) Internal Power: 4-AAA Batteries External Power: 7 to 16 Volts ✓...

  • Page 27: Included With Scan Tool

    Using The Scan Tool Included with Scan Tool Table 1: Included with Scan Tool Part Part Description USB Cable Used to print and upgrade tool software. Quick Start A short version of the user manual which explains enough tool Manual functionality to get you started using your Scan Tool.

  • Page 28: Display

    Using The Scan Tool Display The display has a large viewing area for displaying messages, instructions, and diagnostic information. ✓ The back-lit liquid crystal display (LCD) is a 128 x 64 pixel display. ❒ Characters used to help operate the Scan Tool are: Indicates information is available for an item or multiple items.

  • Page 29: Power

    Using The Scan Tool Power Internal Battery ✓ Battery power is not required to use tool. ✓ ON/OFF button on Scan Tool turns tool on and off. ❒ ON/OFF Press and hold key for at least 1 second to turn on Scan Tool.

  • Page 30: System Setup

    Using The Scan Tool Vehicle Power When the Scan Tool is connected to the vehicle’s DLC, the tool is powered by the vehicle and will automatically turn on once connected. USB Power When the tool is connected to a Personal Computer (PC) via the USB cable, the tool will automatically power up.

  • Page 31: Changing Measurement Units

    Using The Scan Tool 1.Select System Setup. •Use UP or DOWN Main Menu arrow key until System Setup ===================== Vehicle Diagnostics is highlighted. Review Data •Press ENTER Print Data System Setup System Setup Changing Measurement Units ✓ English is the default measurement unit. ✓...

  • Page 32: Changing Display Contrast

    Using The Scan Tool Changing Display Contrast From System Setup screen: 1.Select Adjust Contrast. •Use UP or DOWN System Setup arrow key until Adjust ===================== English/Metric Contrast is highlighted. Adjust Contrast Adjust Contrast Auto-Power Off •Press ENTER Quick Test Print Header Language Setup 2.Increase or Decrease Display Contrast.

  • Page 33

    Using The Scan Tool From System Setup menu: 1.Select Auto-Power Off. •Use UP or DOWN System Setup arrow key until Auto-Power ===================== English/Metric Off is highlighted. Adjust Contrast •Press Auto-Power Off Auto-Power Off ENTER Quick Test Print Header Language Setup 2.Increase or Decrease Auto Power Off Time.

  • Page 34: Quick Test

    Using The Scan Tool Quick Test ✓ Quick Test is a feature of the tool that occurs the first time the tool establishes communication with the vehicle after vehicle selection. Quick Test will display the results of I/M Monitors and Read Codes. Quick Test is enabled by default.

  • Page 35: Print Header

    Using The Scan Tool Print Header ✓ Print Header selection allows the user to turn off the Scan Tool printing the currently-selected vehicle prior to the retrieved vehicle data when selecting items from the Print Data menu. ✓ For example, if your currently-selected vehicle is a 2008 Chevrolet Corvette W = 6.2L, this information would print at the top of the page for the data you are printing.

  • Page 36: Language Setup

    Using The Scan Tool Language Setup ✓ Language Setup selection allows the user to change the language used by the Tool. ✓ English is the default language. From System Setup menu: 1.Select Language Setup. •Use UP or DOWN System Setup arrow key until Language ===================== English/Metric...

  • Page 37: View Tool Information

    Using The Scan Tool View Tool Information ✓ This function allows you to view specific tool information that may be needed when contacting customer service. From System Setup menu: 1.Select Tool Information. •Use UP or DOWN System Setup arrow key until Tool ===================== Adjust Contrast Information is highlighted.

  • Page 38: Display Test

    Using The Scan Tool Display Test The Display Test is used to check the display. ✓ The test fills every pixel of the display with a solid black character. From System Setup menu: 1.Select Display Test. •Use UP or DOWN System Setup arrow key until Display Test is =====================...

  • Page 39: Keypad Test

    Using The Scan Tool Keypad Test The Keypad Test is used to verify keys are working correctly. From System Setup menu: 1.Select Keypad Test. •Use UP or DOWN System Setup arrow key until Keypad Test ===================== Print Header is highlighted. Language Setup •Press Tool Information...

  • Page 40

    Using The Scan Tool From System Setup menu: 1.Select Memory Test. •Use UP or DOWN System Setup arrow key until Memory Test ===================== Print Header is highlighted. Language Setup •Press Tool Information ENTER Display Test Keypad Test Memory Test Memory Test ❒...

  • Page 41: Program Mode

    Using The Scan Tool Program Mode The Program Mode is used for updating the Scan Tool. System Setup Instructions are provided with ===================== upgrades. Refer to “Download Language Setup Tool Information Scanning Suite” on page 2-2. Display Test Keypad Test Memory Test Program Mode Program Mode...

  • Page 42: Vehicle-specific Features

    Using The Scan Tool Vehicle-Specific Features Review Data ✓ The Review Data function allows the user to view the information from the previous vehicle tested. ✓ Scan Tool does not require power from the vehicle to use the Review Data function. 1.

  • Page 43: Recording

    Using The Scan Tool Recording The Recording function is used to play back a recording. ✓ This function is very similar to View Data. The only difference is that View Data is real time viewing of PIDs, while Recording is a viewing of previously recorded PIDs.

  • Page 44: Print Data

    Use the Print Header function to turn On/Off printing vehicle information prior to printing data. ✓ Make sure you have previously downloaded and installed the Scanning Suite PC software from www.actron.com. Refer to “Download Scanning Suite” on page 2-2. ✓ Launch Scanning Suite and then start printing application.

  • Page 45

    Using The Scan Tool 1. Select Print Data. •Use UP or DOWN Main Menu arrow key until Print Data is ===================== Vehicle Diagnostics highlighted. Review Data Print Data Print Data •Press ENTER System Setup ✓ On the Print Data menu, Print All prints all data collected by the Scan Tool.

  • Page 46: Code Lookup

    Using The Scan Tool Code Lookup Code Lookup is used to look up definitions of DTCs stored in the Scan Tool. ✓ The Scan Tool does not require power from the vehicle to perform this function. From Diagnostic Menu: 1. Select Code Lookup. •Use UP or DOWN...

  • Page 47

    Using The Scan Tool ✓ To enter another DTC, press P1575 BACK Warning Buzzer Malfunction ✓ Press again to return to the Diagnostic Menu. BACK • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 3 – 23...

  • Page 48: Connecting The Scan Tool

    Using The Scan Tool Connecting The Scan Tool To diagnose a vehicle, connect the DLC cable to the vehicle’s DLC. Refer to “Data Link Connector (DLC)” on page 2-8 of Getting Started. If you just want to power up the tool to do self-tests, code lookup, review or printing data from the last vehicle tested, then you do not need to attach the cable to the DLC.

  • Page 49

    Using The Scan Tool ✓ If you select the previous vehicle, the tool will proceed to the Diagnostic menu. ✓ If you wish to select a vehicle other than the previous vehicle, then choose between Global OBD II, Domestic Vehicles, European Vehicles, or Asian Vehicles and continue making selections until the vehicle selection is complete.

  • Page 50: Code Connect Feature

    Using The Scan Tool Code Connect Feature Code Connect is an experience-based database derived from over 3.6 million phone calls from technicians seeking assistance diagnosing repair problems on their vehicles. Code Connect brings the technology of professional technicians to a DIY scan tool. Don’t waste time trying to find the answer.

  • Page 51

    Using The Scan Tool How to use Code Connect: 1.When the Code Connect icon is shown on the display, press CODE CONNECT key. •While viewing trouble codes: 1 of 3 •Refer to “Read Codes” on P0122 MOD $10 page 4-7 for more information. Throttle/Pedal Position Sensor A Circuit Low Input...

  • Page 52

    Using The Scan Tool 2.Scroll through the code-specific repair TOP REPORTED FIXES information. 1-Replaced Throttle Position Sensor(TPS) •Use UP or DOWN 2-Replaced Air arrow keys to scroll one line at Conditioner(A/C) Pressure Sensor a time. FREQ REPORTED FIXES •Use LEFT or RIGHT arrow keys to scroll 8 lines at a time, or a whole screen.

  • Page 53: Diagnostic Menu

    Section 4 – Diagnostic Menu ✓ The first time the scan tool links to the vehicle, the communication protocol is automatically detected, and is used until the Scan Tool is turned off or another vehicle is diagnosed. ✓ If an Error Message displays, make sure the OBDII connector is attached, and the ignition key is on.

  • Page 54

    Diagnostic Menu Diagnostic Menu Review Data, Print Data, Code Lookup, and System Setup are covered in section 3 of this manual. These items are not covered in this section. ✓ The Diagnostic Menu is broken down into the following Diagnostic Menu selections: ===================== I/M Monitors...

  • Page 55

    Diagnostic Menu ❒ Code Lookup ❒ System Setup – English/Metric – Adjust Contrast – Auto-Power Off – Quick Test – Print Header – Language Setup – Tool Information – Display Test – Keypad Test – Memory Test – Program Mode •...

  • Page 56: I/m Monitors (emissions)

    Diagnostic Menu I/M Monitors (Emissions) The I/M Monitors (Inspection / Maintenance) function is used to view a snapshot of the operations for the emission system on OBD II vehicles. ✓ I/M Monitors is a very useful function. To guarantee no faults exist make sure all monitors are ok or n/a and no DTC’s exist.

  • Page 57

    Diagnostic Menu From the Diagnostic Menu: 1. Select I/M Monitors. •Use UP or DOWN Diagnostic Menu arrow key until I/M Monitors is ===================== I/M Monitors I/M Monitors highlighted. Read Codes •Press ENTER. Erase Codes MIL Status State OBD Check View Data Two types of I/M Monitors test are: ❒...

  • Page 58

    Diagnostic Menu Abbreviations and names for OBD II Monitors supported by the Scan Tool are shown below. They are required by the United States Environmental Protection Agency (EPA). Not all monitors are supported by all vehicles •Abbreviated Name Expanded Name - Misfire Monitor Misfire Monitor - Fuel System Mon...

  • Page 59: Read Codes

    Diagnostic Menu Read Codes ✓ The Read Codes function allows the Scan Tool to read the DTCs from the vehicle’s control modules. DTCs are used to help determine the cause of a problem or problems with a vehicle. These codes cause the control module to illuminate the malfunction indicator lamp (MIL) when emission-related or driveability fault occurs.

  • Page 60

    Diagnostic Menu ✓ If no DTCs are present a message stating System Pass: Read Codes No Faults Detected is displayed. ===================== ✓ If you selected All of the Above System Pass from the Select Module menu, then all of the codes will be No faults detected.

  • Page 61: Module Description

    Diagnostic Menu Module Description Anti-lock Brake System module. Global OBD II This selection will communicate with the vehicle using Global OBD II. See Introduction to On-Board Diagnostics. DTC Description - This area is reserved for the text describing the trouble code listed in the DTC number field. DTC Type - This area is reserved for providing additional information about the DTC.

  • Page 62

    Diagnostic Menu DTC Type Description History Intermittent codes placed in the vehicle’s memory when the trouble orig- inally occurred, and will remain there even if the trouble has been cor- rected. If no trouble after 50 engine warm-up cycles, the DTC will be erased.

  • Page 63

    Diagnostic Menu ❒ In this example, module (MOD) $18 is reporting the 1 of 3 P0113 DTCs. MOD $18 IAT Sensor 1 Circuit High Input ❒ In this example, the ABS Module is reporting a Current 1 of 7 Code. The $28 is the ABS ABS $28 module address.

  • Page 64: Erase Codes

    Diagnostic Menu Erase Codes The Erase Codes function deletes DTCs and I/M Monitor data from vehicle’s control module(s). Perform this function key on engine off (KOEO). Do not start the engine. ✓ The Erase Codes function may also erase View Freeze Data, O2 Monitor Tests, and Diagnostic Monitor Test results depending on vehicle.

  • Page 65

    Diagnostic Menu •Selecting No displays a Com- mand Cancelled message. Erase Codes ===================== Command Cancelled Press BACK To Exit 2. Select Yes to erase diagnostic results and Erase Codes codes. ===================== Are you sure you •Use LEFT arrow key. want to Erase Diagnostic Results •Press ENTER.

  • Page 66: Mil Status

    Diagnostic Menu MIL Status From Diagnostic Menu: 1. Select MIL Status. •Use UP or DOWN Diagnostic Menu arrow key until MIL Status is ===================== I/M Monitors highlighted. Read Codes •Press ENTER. Erase Codes MIL Status MIL Status State OBD Check View Data 2.

  • Page 67: State Obd Check

    Diagnostic Menu State OBD Check The State OBD Check function is used to display a basic status of the vehicles OBD system. ❒ Malfunction Indicator Lamp (MIL) Status ❒ Codes Found ❒ I/M Monitors ✓ Erase Codes deletes DTCs and clears I/M Monitors from vehicle’s computer module(s).

  • Page 68

    Diagnostic Menu From the Diagnostic Menu: 1. Select State OBD Check Diagnostic Menu ===================== •Use UP or DOWN I/M Monitors arrow key until State OBD Read Codes Check is highlighted Erase Codes MIL Status •Press ENTER. State OBD Check State OBD Check View Data 2.

  • Page 69: View Data

    Diagnostic Menu View Data The View Data function allows real time viewing of the vehicle’s computer module’s Parameter Identification (PID) data. As the computer monitors the vehicle, information is simultaneously transmitted to scan tool. ✓ View data allows the following items to be viewed on the scan tool: ❒...

  • Page 70

    Diagnostic Menu 2. Observe while Scan Tool validates PID MAP. Validating PIDs X / Y Please Wait ✓ PID MAP validation is the tool asking the vehicle which PIDs are supported. See Appendix A for a complete list of PIDs supported by the tool.

  • Page 71: View Menu

    Diagnostic Menu View PIDs on Scan Tool. •Use UP or DOWN A/C PRESS (psi) 15.5 arrow key. A/C PRESS (V) 3.00 A/F RATIO 14:1 •See Appendix A for PID BARO PRESS ("Hg) 29.9 Definitions. ABSLT TPS (%) 12.2 ENGINE (RPM) 2352 CALC LOAD (%) 83.1...

  • Page 72

    Diagnostic Menu Select Custom List Select. •Use UP or DOWN Select Data to View arrow key until Custom Data ===================== Entire Data List List is highlighted. Custom Data List Custom Data List •Press ENTER. English / Metric 2. Select View Instructions or Not.

  • Page 73: Record Data

    Diagnostic Menu ✓ If the icon displays while a PID is selected press ENTER to ABS TPS (%) view graph. Press BACK 100+ to Return to PID Screen. 5. Return to Select Data to View Menu. •Press BACK 6. Return to Diagnostic Menu. •Press BACK Record Data...

  • Page 74

    Diagnostic Menu 1. Select Record Data. •Use UP or DOWN Diagnostic Menu arrow key until Record Data is ===================== Read Codes highlighted. Erase Codes •Press ENTER. MIL Status State OBD Check View Data Record Data Record Data ✓ Follow all instructions on display. ✓...

  • Page 75

    Diagnostic Menu ✓ Data continues to be saved until either: Record Data ===================== ❒ Record memory is full. **Recording Data** ❒ Operator presses ENTER. Frame xx of yy. Press ENTER to stop. ✓ Scan Tool recording times vary. A recording consists of frames of data prior to trigger and several frames after trigger.

  • Page 76: View Freeze Data

    Diagnostic Menu View Freeze Data When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. View Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault. ✓...

  • Page 77

    Diagnostic Menu ✓ icon indicates that the CODE CONNECT key is active. Press CODE CONNECT key to display repair information. Refer to “Code Connect” on page 3-26. 4. Select another frame to view (if available). •Press BACK 5. Return to Diagnostic Menu. •Press BACK •...

  • Page 78: Drive Cycle Monitor

    Diagnostic Menu Drive Cycle Monitor The Drive Cycle Monitor function is very similar to the I/M Monitors though the Drive Cycle Monitor is used to view REAL TIME operations of the Emissions System on OBD II vehicles. ✓ Drive Cycle Monitor continuously updates as the vehicle reports operations of the Emission System.

  • Page 79

    Diagnostic Menu 1. Select Drive Cycle Monitor. •Use UP or DOWN arrow Diagnostic Menu ===================== key to highlight Drive Cycle View Fre eze Data Monitors. Drive Cycle Monitor Drive Cycle Monitor O2 Monitor Tests •Press ENTER. Diag Monitor Tests On-Board Systems Vehicle Information ✓...

  • Page 80

    Diagnostic Menu Since DTCs Cleared This Drive Cycle ===================== ===================== Catalyst Mon Catalyst Mon Htd Catalyst Htd Catalyst Evap System Mon Evap System Mon ✓ The Scan Tool display is continuously updated. Monitors that are “ok” will disappear and only the “inc” monitors will remain displayed. Monitors designated “n/a”...

  • Page 81: O2 Monitor Tests

    Diagnostic Menu O2 Monitor Tests OBD II regulations require applicable vehicles monitor and test oxygen (O2) sensors to determine problems related to fuel and emissions. The O2 Monitor Tests allows retrieval of completed O2 sensors monitor test results. ✓ The O2 Monitor Tests is not an on-demand test. O2 sensors are not tested when selected via the menu.

  • Page 82

    Diagnostic Menu The following O2 Sensor Tests are available: 1) Rich-to-lean sensor threshold voltage 2) Lean-to-rich sensor threshold voltage 3) Low sensor voltage for switch time 4) High sensor voltage for switch time 5) Rich-to-lean sensor switch time 6) Lean-to-rich sensor switch time 7) Minimum sensor voltage test cycle 8) Maximum sensor voltage test cycle 9) Time between sensor transitions...

  • Page 83

    Diagnostic Menu ✓ Test IDs are shown for unknown O2 sensor tests. 3. View Results of Selection. •Use UP or DOWN arrow key. O2 Bank1 Sensor1 ===================== RICH-LN Thresh MOD: MAX: -----(V) MEAS: 0.555(V) MIN: -----(V) 4. Return to O2 Sensor Tests menu. •Press BACK 5.

  • Page 84: Diagnostic Monitor Tests

    Diagnostic Menu Diagnostic Monitor Tests The Diagnostic Monitor Test function is useful after servicing or after erasing a vehicle’s memory. Test results do not necessarily indicate a faulty component or system. ✓ Non-CAN vehicles Diagnostic Monitor Test receives test results for emission-related powertrain components and systems that are not continuously monitored.

  • Page 85

    Diagnostic Menu 2. Review test results displayed on Scan Tool. Select Diag Mon Test •Use UP or DOWN ===================== Test $01 Test $01 arrow key until desired test Test $03 results is highlighted. Test $10 Test $21 •Press ENTER. Test $22 Test $25 Non-CAN Vehicles ✓...

  • Page 86

    Diagnostic Menu ✓ On Non-CAN vehicles the Scan Tool displays: Test $53 ===================== ❒ Test data (test ID) ❒ Maximum value (MAX) MOd: MAX: ❒ Test measurements (MEAS) MEAS: ❒ MIN: ---- Minimum value (MIN) ❒ Status (STS) ❒ Measurements and Specification values are Non-CAN Vehicles hexadecimal numbers (i.e.,...

  • Page 87: On-board Systems

    Diagnostic Menu On-Board Systems The On-Board Systems test allows the Scan Tool to control operation of vehicle components, tests or systems. ✓ Some manufacturers do not allow tools to control vehicle systems. A vehicle not supporting an on-board system is identified by a message that is displayed when selected.

  • Page 88: Vehicle Information

    Diagnostic Menu Vehicle Information The Vehicle Information function allows the Scan Tool to request the vehicle’s VIN number, calibration ID(s) which identifies software version in vehicle control module(s), calibration verification numbers (CVN(s)) and in-use performance tracking. ✓ Vehicle Information function applies to model year 2000 and newer OBD II compliant vehicles.

  • Page 89

    Diagnostic Menu 2. Select information to view from Menu. Vehicle Information •Use UP or DOWN ===================== arrow key to highlight desired selection. CAL ID •Press ENTER. 3. View Information Supported by Vehicle. •Use UP or DOWN arrow key (if required). ===================== ===================== VIN #1...

  • Page 90

    Diagnostic Menu Abbreviated Name Expanded Name In-Use Perf In-Use Performance Tracking Tracking OBD Mon Cond OBD Monitoring Conditions Encountered Counts Ignition Cycles Ignition Counter Cat Comp Bank x Catalyst Monitor Completion Counts Bank x Cat Cond Bank x Catalyst Monitor Conditions Encountered Counts Bank x O2 Comp Bank x O2 Sensor Monitor Completion Counts Bank x...

  • Page 91: Modules Present

    Diagnostic Menu Modules Present The Scan Tool identifies the module IDs and communication type for all Global OBD II modules in the vehicle. From the Diagnostic Menu: 1. Select Modules Present. •Use UP or DOWN Diagnostic Menu arrow key until Modules ===================== Drive Cycle Monitor Present is highlighted.

  • Page 92

    Diagnostic Menu ❒ SAE J1850 protocol is shown as VPWM or PWM. Modules Present ===================== Protocols $10 VPWM* $1A VPWM* Modules Present ===================== Protocols $10 PWM* $1A PWM* ❒ ISO 15765-4 protocol is shown as CAN. Modules Present ===================== Protocols $01 CAN*7e9 $00 CAN*7e8 ✓...

  • Page 93

    Diagnostic Menu ❒ ISO 14230-4 protocol is shown as K2K (Keyword 2000). Modules Present ===================== Protocols $10 K2K* $1A K2K* ✓ In the above examples, the * indicates the protocol used to communicate to the vehicle’s control module. • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 4 – 41...

  • Page 94

    Diagnostic Menu 4 – 42 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...

  • Page 95: Section 5 - Troubleshooting

    Section 5 – Troubleshooting Error Messages Check the following if an error message displays: ❒ Verify ignition key is in the ON and not in the ACCESSORIES position. ❒ Make sure the DLC Cable is attached to vehicle’s data link connector (DLC) and Scan Tool.

  • Page 96: Vehicle Communication Fault

    Troubleshooting Vehicle Communication Fault The vehicle’s control module(s) enters into an unrecoverable state. 1.Turn vehicle key to off position. Vehicle Comm Fault ===================== • Wait 10 seconds. Please Turn the • Press ENTER. Key Off For 10 Seconds Press ENTER To Reset Tool.

  • Page 97: Operating Error Or Erroneous Data

    Troubleshooting Operating Error or Erroneous Data An Operating Error or Erroneous Data occurs if vehicle’s computer(s) stop(s) communicating with Scan Tool. 1.Make Selection LINK ERROR • Use LEFT or RIGHT arrow key. Operating Error •Press ENTER. Check Connections! Try Again? ✓...

  • Page 98

    Troubleshooting 1.Place Display Face Down. • On non-abrasive surface. 2. Remove Battery Cover. • Turning phillips screw counterclockwise. • Slide battery cover off. 3. Remove Batteries and Prop- erly Discard. 4. Install New Batteries. • 4-AAA Alkaline Batteries. 5. Reinstall Battery Cover. •...

  • Page 99: Tool Self-tests

    Troubleshooting Tool Self-Tests Tool Self-Tests check the display, keys, and internal memory. ✓ Refer to Using The Scan Tool section of the manual for the operation procedures for Scan Tool self-tests. Technical Support • Toll-Free Number: 1-800-228-7667. • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 5 – 5...

  • Page 100: Troubleshooting

    Troubleshooting 5 – 6 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...

  • Page 101: Appendix A - Pid Definitions

    Appendix A – PID Definitions NOTE: The Tool only displays the PIDs the vehicle supports. Tool Description Tool Description ABS EVAP VP Absolute FUEL TYPE Type of Fuel in Evaporative Vehicle Emission System Vapor Pressure ABS FRP Absolute Fuel Intake Air Rail Pressure Temperature ABS LOAD...

  • Page 102

    PID Definitions Tool Description Tool Description CLR TRIPS Number of OUT TEMP Outside Air Warm-ups Since Temperature DTCs Cleared CMD EQ RAT Commanded PTO STATUS Power Take Off Equivalence Status Ratio COOLANT Engine Coolant REL FRP Relative Fuel Rail Pressure or Vacuum EGR CMD Commanded...

  • Page 103

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • PID Definitions •...

  • Page 104: Pid Definitions

    PID Definitions A – 4 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...

  • Page 105

    Appendix B – Glossary A/C: Air Conditioner A/D: Analog to Digital A/F: Air/Fuel ratio. The proportion of air and fuel delivered to the cylinder for combustion. For example, an A/F ratio of 14:1 denotes 14 times as much air as fuel in the mixture.

  • Page 106

    Glossary BCM: Body Control Module Boost Control Solenoid: A solenoid that is energized by the PCM, in order to control turbo/supercharger boost pressure. Brake Switch Signal: An input signal to the PCM indicating that the brake pedal is being pressed. This signal is typically used to disengage Cruise Control systems and Torque Converter Clutch (TCC) solenoids.

  • Page 107

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Glossary CTS: Coolant Temperature Sensor.

  • Page 108

    Glossary EFI: Electronic Fuel Injection. Any system where a computer controls fuel delivery to the engine by using fuel injectors. EGR: Exhaust Gas Recirculation. The PCM uses the EGR system to recirculate exhaust gases back into the intake manifold to reduce emissions. EGR is used only during warm engine cruise conditions.

  • Page 109

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Glossary IAC: Idle Air Control.

  • Page 110

    Glossary MAP: Manifold Absolute Pressure (sensor). Measures intake manifold vacuum or pressure and sends a frequency or voltage signal (depending on sensor type) to the PCM. This gives the PCM information on engine load for control of fuel delivery, spark advance, and EGR flow. MAT: Manifold Air Temperature (sensor).

  • Page 111: Pending Codes

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Glossary PCM: Powertrain Control Module.

  • Page 112

    Glossary ROM: Read-Only Memory. Permanent programming information stored inside the PCM, containing the information the PCM needs to operate a specific vehicle model/engine combination. RPM: Revolutions Per Minute SAE: Society of Automotive Engineers. Scan Tool: A device that interfaces with and communicates information on a data link. SDM: Sensing and Diagnostic Module Sensor x:...

  • Page 113

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Glossary TDC: Top Dead Center.

  • Page 114

    Glossary Warm-up Cycle: Warm-up cycle is when the engine coolant temperature rises at least 40 degrees above that at engine start up. WOT: Wide-Open Throttle. The vehicle operating condition brought about when the throttle is completely (or nearly) open. The PCM typically delivers extra fuel to the engine and de-energizs the A/C compressor at this time for acceleration purposes.

  • Page 115: Spx Limited Warranty

    SPX Limited Warranty THIS WARRANTY IS EXPRESSLY LIMITED TO ORIGINAL RETAIL BUYERS OF SPX ELECTRONIC DIAGNOSTIC TOOLS (“UNITS”). SPX Units are warranted against defects in materials and workmanship for one year (12 months) from date of delivery. This warranty does not cover any Unit that has been abused, altered, used for a purpose other than that for which it was intended, or used in a manner inconsistent with instructions regarding use.

  • Page 116

    Glossary B – 12 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...

  • Page 117

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Glossary •...

  • Page 118

    © 2010 SPX Corporation All Rights Reserved. Todos los derechos reservados. Tous droits réservés. P/N 0002-000-3119...

Comments to this Manuals

Symbols: 0
Latest comments:
  • GILBERTO Oct 13, 2016 04:38:
    QUISIERA LOS CODIGOS QUE ME MARCA EL OBII DE MI CAMIONETA FORD WINDSTAE 2000 3.8 TODOS CON B1185 B1198 ETC. NO PUEDO ENCONTRARL​OS PARA SABER CUAL ES LA FALLA DE MI WINDSTAE
  • WALTER ALEXANDER Feb 13, 2016 12:22:
    TRYING FIND AIR BAG FOR 1997 ISUZU RODEO
  • Michael Francis Jan 25, 2016 03:47:
    Please how can I installed the scanning suite to my obd ll ,and what is the mining of dtc not found .
  • Michael Francis Jan 25, 2016 03:46:
    Please how can I installed the scanning suite to my obd ll ,and what is the mining of dtc not found .
  • james tanner May 05, 2015 11:46:
    first time user this verry heard to do
