Door Adjustment

ADJUSTING THE DOOR
Your door is aligned at the factory before shipment. Occasional re-adjustment may
be necessary, especially if an overlay panel is installed. The following procedure
will correct for up to 1/4" alignment.

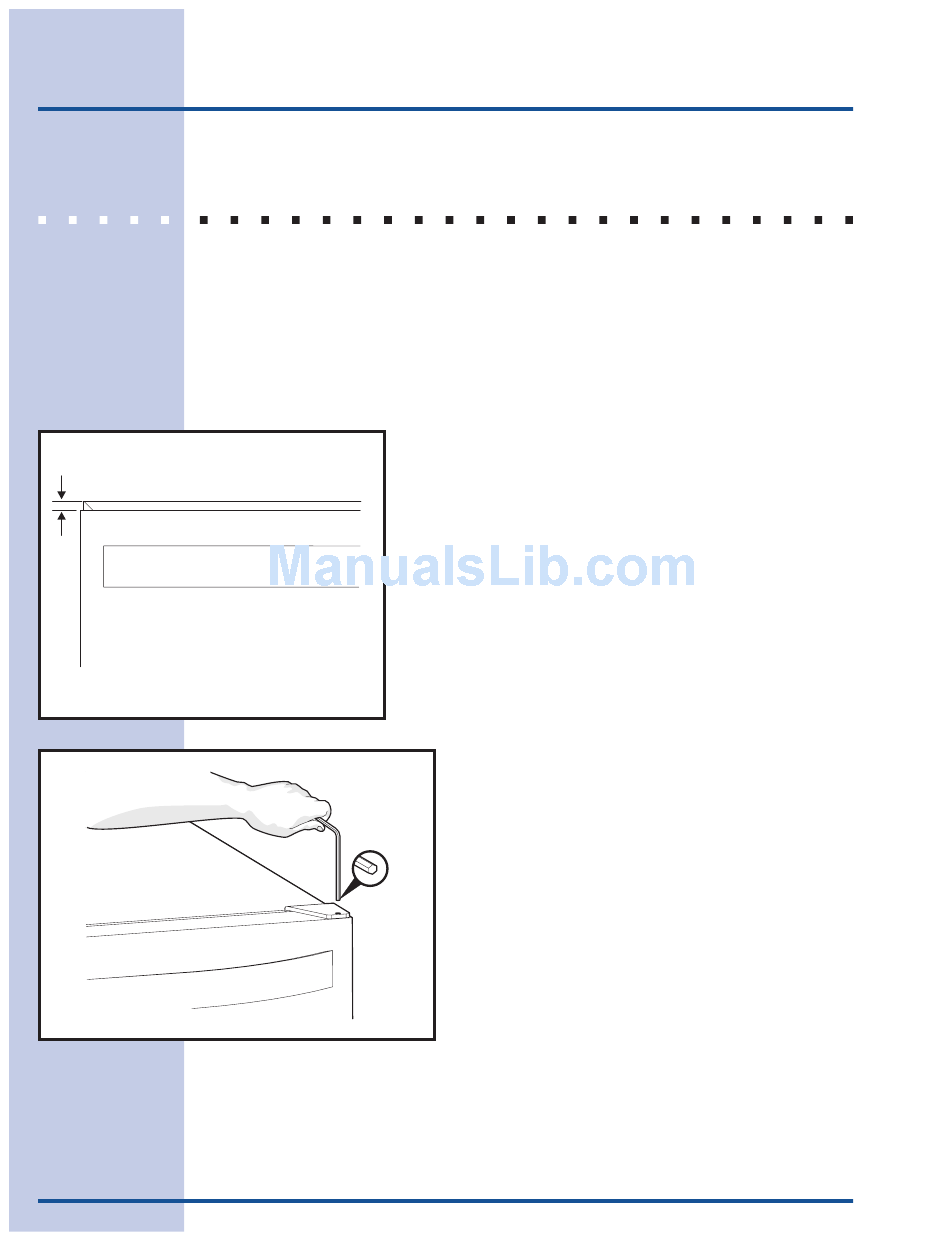

The door should never be flush with the top of the cabinet. Even when level, the top
edge of the door will be 1/8" below the top of the cabinet (see Figure 21).
1/8"
To adjust :
1
Compare the top edge of the door (opposite the
Figure 21
hinges) to the top edge of the cabinet and note the
type (up or down) of adjustment needed.
2
Remove the top hinge pivot pin with a 7/64" hex
wrench (see Figure 22) and lift door off bottom
hinge pin. Be careful not to lose door closers (see
Figure 24).
3
With door upside-down, loosen but do not remove
the two hinge plate screws.
Figure 22
