Removing a Memory Extender Board
The memory extender boards is located under the front cover.
Ensure that the system is powered off and all power sources have been disconnected
WARNING
from the server prior to attempting this procedure.
Voltages are present at various locations within the server whenever an ac power
source is connected. This voltage is present even when the main power switch is in
the off position.
Failure to observe this warning can result in personal injury or damage to
equipment.
To remove a memory extender board, follow these steps:
Step 1. If rack-mounted, slide the server out from the rack until it stops. (See "Extend the Server from the
Rack" on page 22.)
Step 2. Remove the front bezel from the chassis. (See "Removing the Front Bezel" on page 28.)
Step 3. Remove the front cover from the chassis. (See "Removing the Front Cover" on page 29.)
Step 4. Press the latches on the extraction levers located on each side of the memory extender board.
Step 5. Pull on the extraction levers to unplug the memory extender board from the socket located on the
midplane riser board and remove the memory extender board from the chassis.

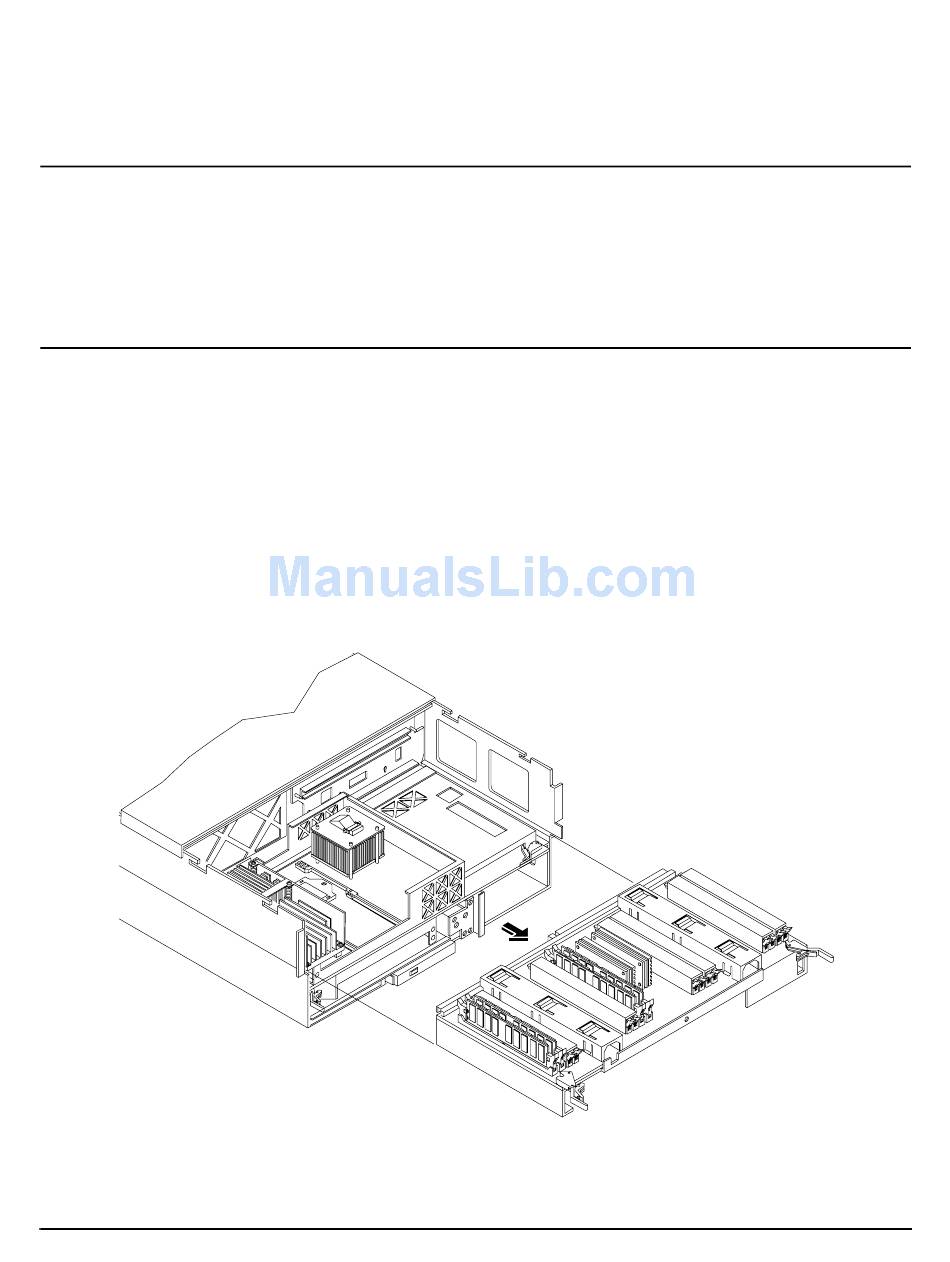

Figure 1-30 Removing the Memory Extender Board
