Menu Bar

The Single IP Management window contains a menu bar for device configurations, as seen below.
The five menus on the menu bar are as follows.
File
• Print Setup – Will view the image to be printed.
Print Topology – Will print the topology map.
•
• Preference – Will set display properties, such as polling interval, and the views to open at SIM startup.
Group
Add to group – Add a candidate to a group. Clicking this option will reveal the following dialog box for the user to enter a
•
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the dialog box.
• Remove from Group – Remove an MS from the group.
Device
Configure – Will open the Web manager for the specific device.
•
View
• Refresh – Update the views with the latest status.
Topology – Display the Topology view.
•
Help
• About – Will display the SIM information, including the current SIM version.
®
DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch

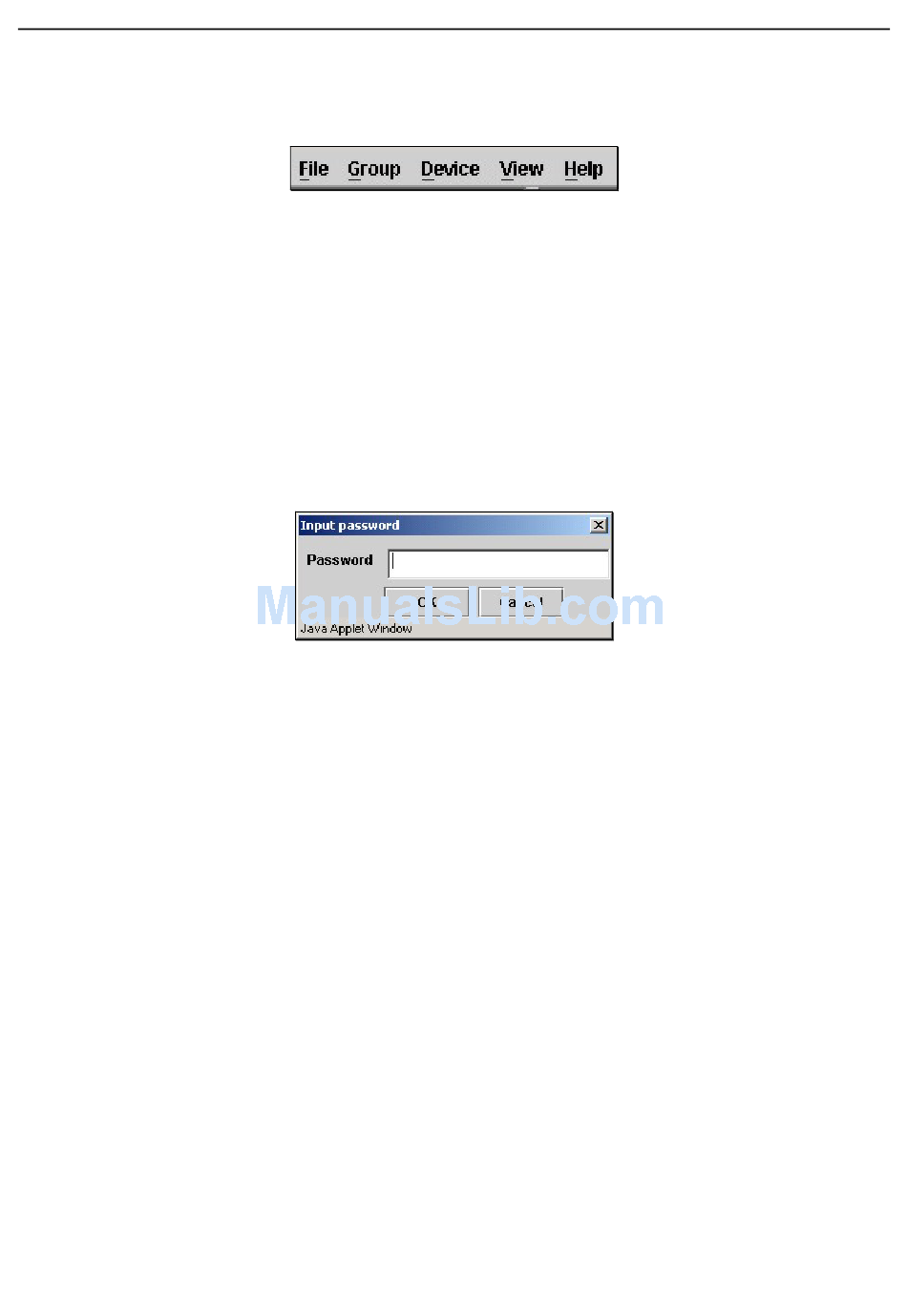

Figure 2 - 60. Menu Bar of the Topology View
Figure 2 - 61. Input password dialog box
