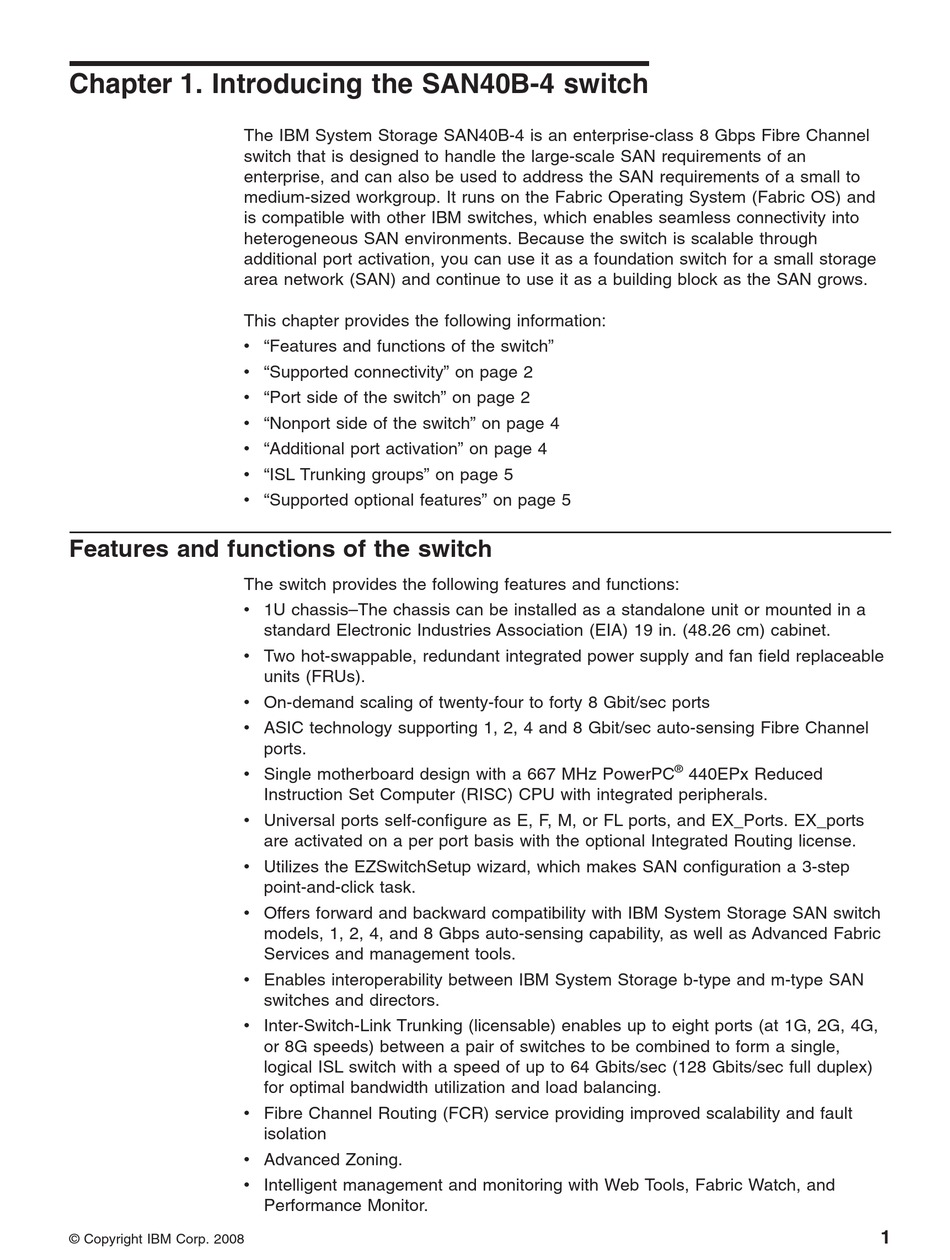

Chapter 1. Introducing the SAN40B-4 switch

The IBM System Storage SAN40B-4 is an enterprise-class 8 Gbps Fibre Channel
switch that is designed to handle the large-scale SAN requirements of an
enterprise, and can also be used to address the SAN requirements of a small to
medium-sized workgroup. It runs on the Fabric Operating System (Fabric OS) and
is compatible with other IBM switches, which enables seamless connectivity into
heterogeneous SAN environments. Because the switch is scalable through
additional port activation, you can use it as a foundation switch for a small storage
area network (SAN) and continue to use it as a building block as the SAN grows.
This chapter provides the following information:
v "Features and functions of the switch"
v "Supported connectivity" on page 2
v "Port side of the switch" on page 2
v "Nonport side of the switch" on page 4
v "Additional port activation" on page 4
v "ISL Trunking groups" on page 5
v "Supported optional features" on page 5

Features and functions of the switch

The switch provides the following features and functions:
v 1U chassis–The chassis can be installed as a standalone unit or mounted in a
v Two hot-swappable, redundant integrated power supply and fan field replaceable
v On-demand scaling of twenty-four to forty 8 Gbit/sec ports
v ASIC technology supporting 1, 2, 4 and 8 Gbit/sec auto-sensing Fibre Channel
v Single motherboard design with a 667 MHz PowerPC
v Universal ports self-configure as E, F, M, or FL ports, and EX_Ports. EX_ports
v Utilizes the EZSwitchSetup wizard, which makes SAN configuration a 3-step
v Offers forward and backward compatibility with IBM System Storage SAN switch
v Enables interoperability between IBM System Storage b-type and m-type SAN
v Inter-Switch-Link Trunking (licensable) enables up to eight ports (at 1G, 2G, 4G,
v Fibre Channel Routing (FCR) service providing improved scalability and fault
v Advanced Zoning.
v Intelligent management and monitoring with Web Tools, Fabric Watch, and
© Copyright IBM Corp. 2008
standard Electronic Industries Association (EIA) 19 in. (48.26 cm) cabinet.
units (FRUs).
ports.
Instruction Set Computer (RISC) CPU with integrated peripherals.
are activated on a per port basis with the optional Integrated Routing license.
point-and-click task.
models, 1, 2, 4, and 8 Gbps auto-sensing capability, as well as Advanced Fabric
Services and management tools.
switches and directors.
or 8G speeds) between a pair of switches to be combined to form a single,
logical ISL switch with a speed of up to 64 Gbits/sec (128 Gbits/sec full duplex)
for optimal bandwidth utilization and load balancing.
isolation
Performance Monitor.
®
440EPx Reduced
1
