HP Compaq nc6000 - Notebook PC Maintenance And Service Manual page 99

1. Prepare the notebook for disassembly (refer to
2. Turn the notebook upside down, with the front facing you.
3. Remove the PM2.5×3.5 screw 1 that secures the Mini PCI
compartment cover to the notebook.
4. Lift the right side of the cover up and swing it to the left 2.
5. Remove the cover.
✎
The Mini PCI compartment cover is included in the
Miscellaneous Plastics Kit, spare part number 344411-001.

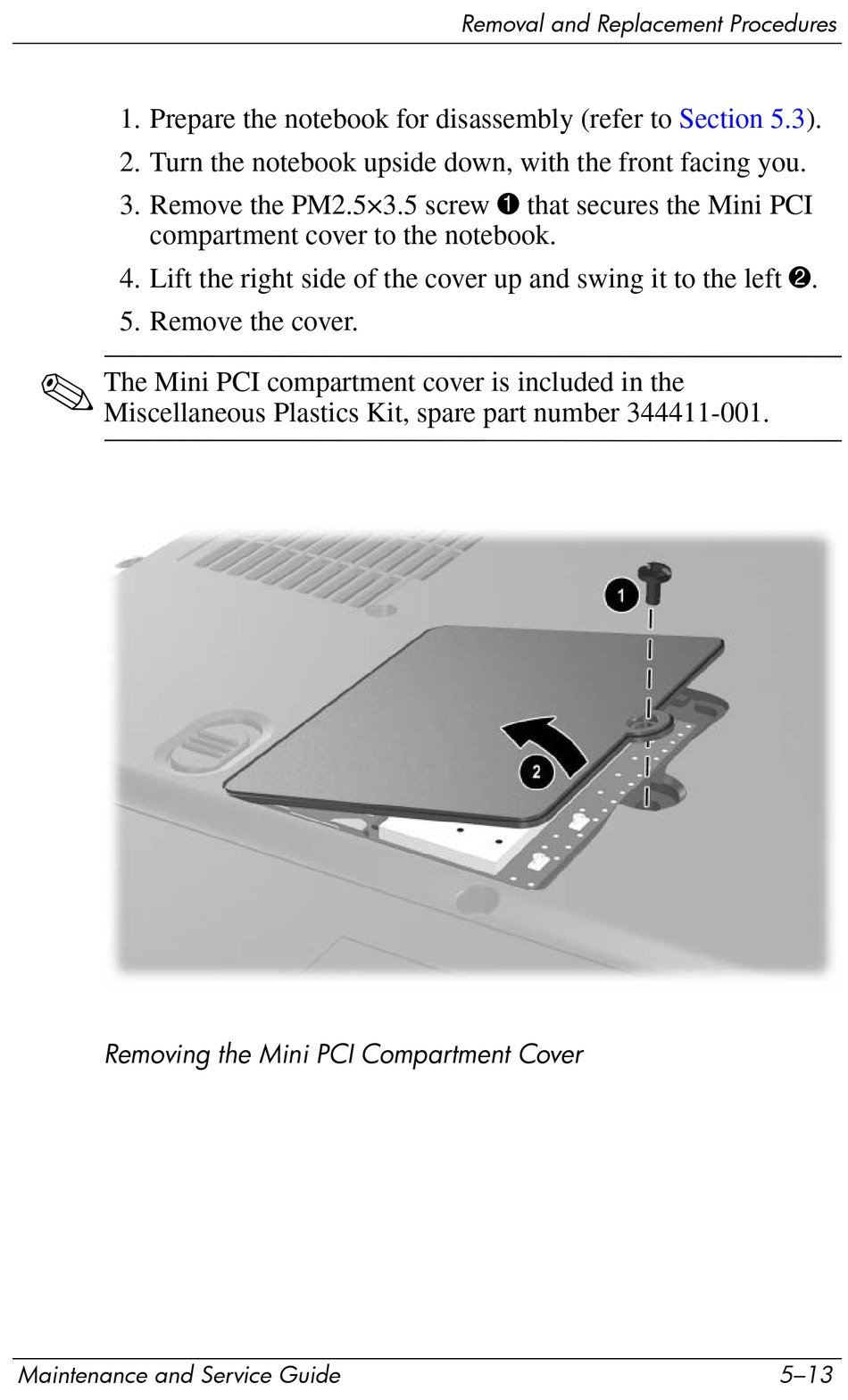

Removing the Mini PCI Compartment Cover
Maintenance and Service Guide
Removal and Replacement Procedures
Section 5.3).
5–13
