Removal and Replacement Procedures
5. Eject the smart card from the notebook using a flat-bladed
tool to press the small metal eject tab 1 to the left of the
smart card.
6. Remove the card from the slot 2.

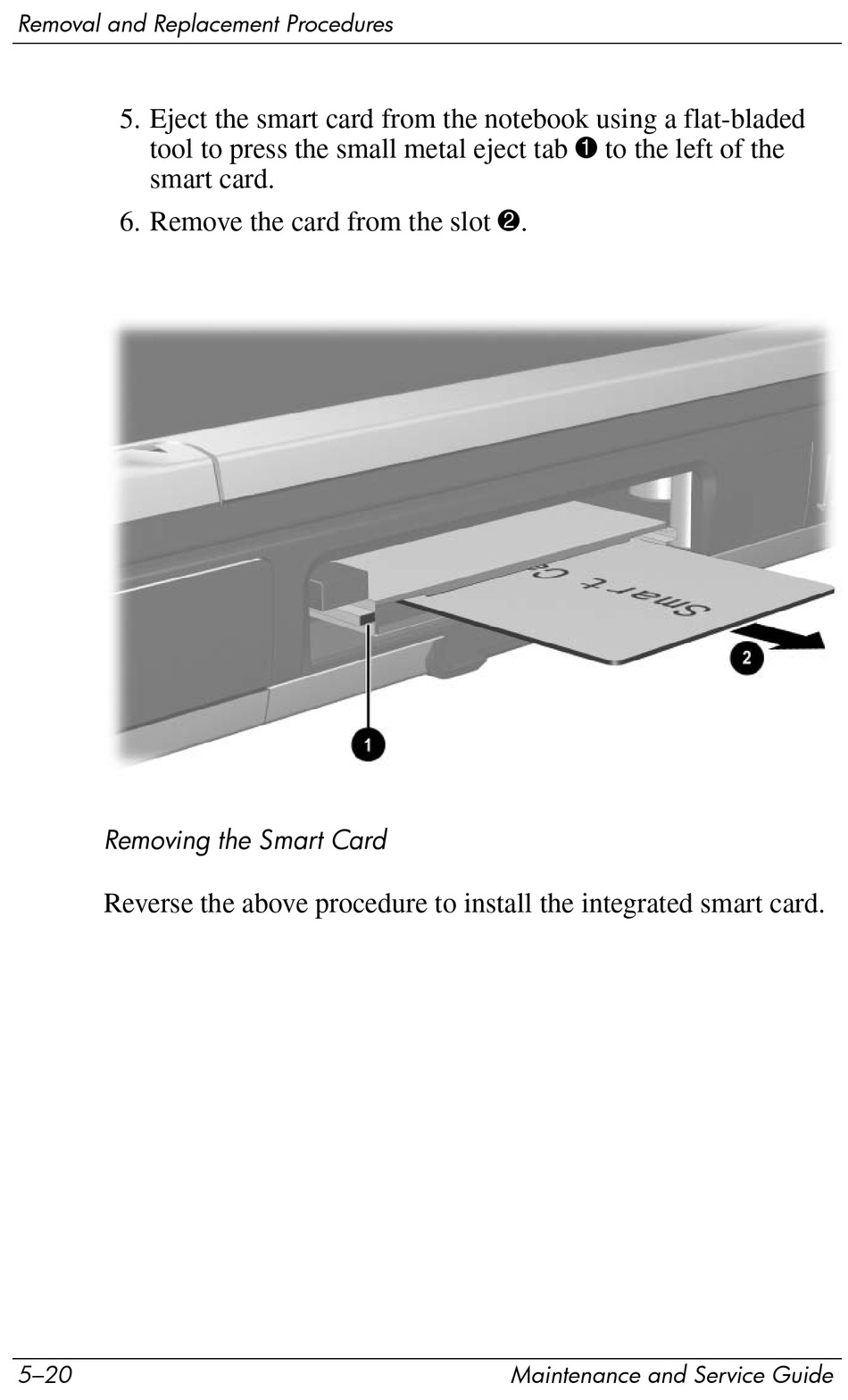

Removing the Smart Card
Reverse the above procedure to install the integrated smart card.
5–20
Maintenance and Service Guide
