Removal and Replacement Procedures
6. If a wireless communications device is installed in this
compartment, disconnect the two antenna cables from
the Mini PCI communications board. Note that the longer
cable 1 connects to the rear antenna terminal and the shorter
antenna cable 2 connects to the front antenna terminal.
7. If a modem is installed in this compartment, disconnect the
modem cable from the modem 3.

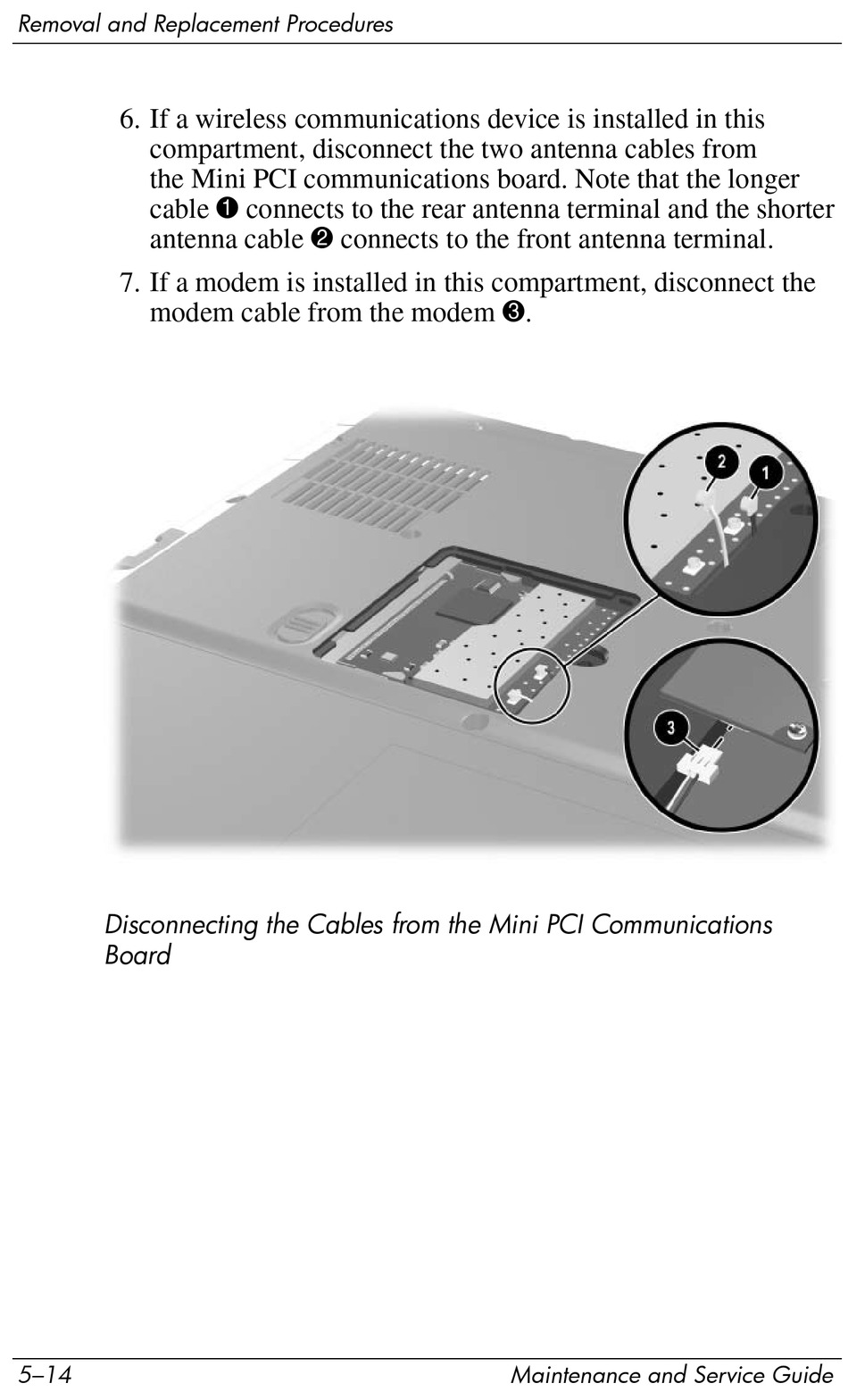

Disconnecting the Cables from the Mini PCI Communications
Board
5–14
Maintenance and Service Guide
