2. Use a flat-bladed screwdriver to turn the processor lock screw
one-quarter turn counterclockwise 1 to release the processor
from the socket.
3. Lift the processor straight up 2 to remove it.
✎
Note that the gold triangle 3 on the processor should be aligned
in the lower right corner when you install the processor.

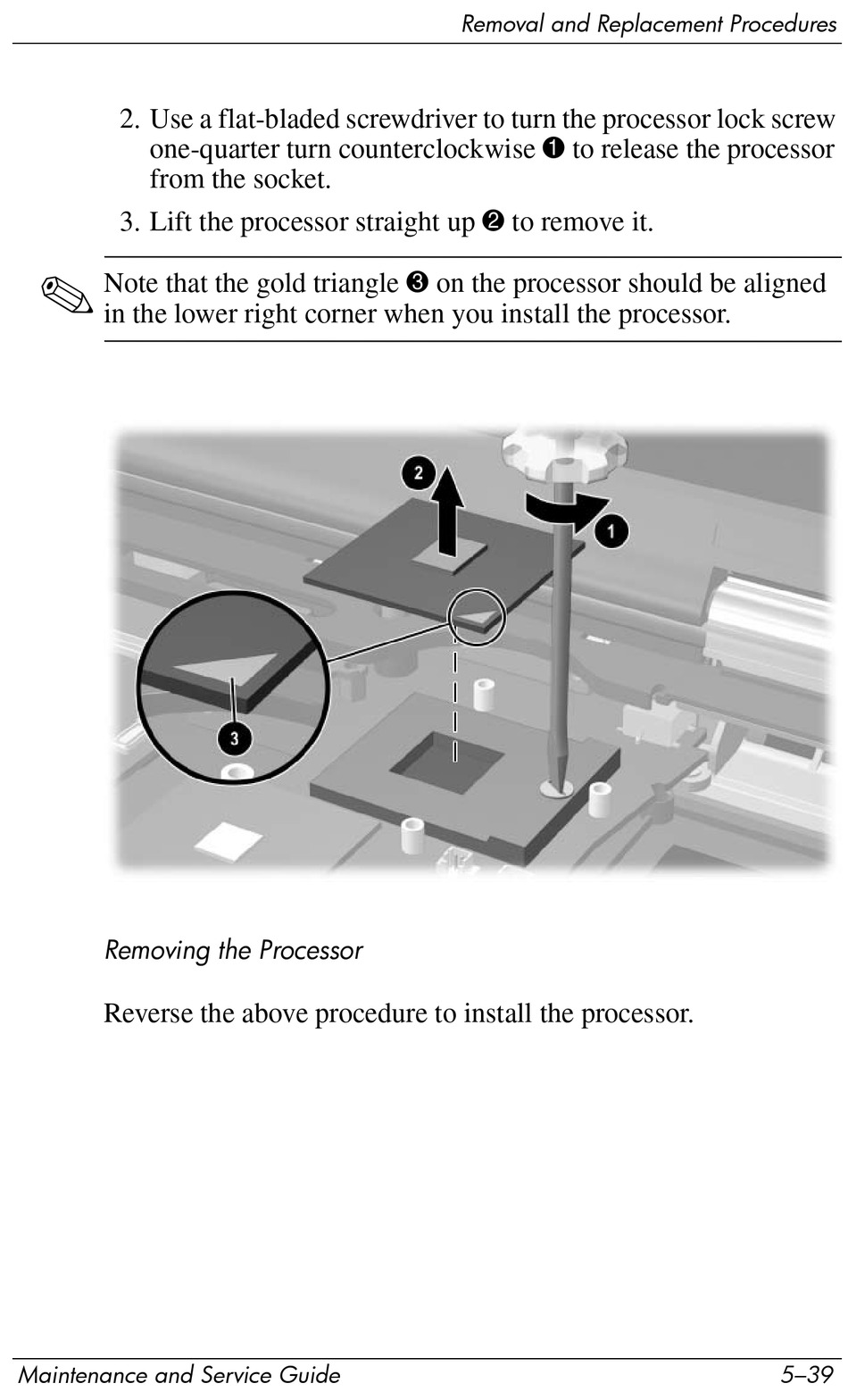

Removing the Processor
Reverse the above procedure to install the processor.
