Enterasys Intrusion Prevention System Reporting Manual page 75

Event Table Pane

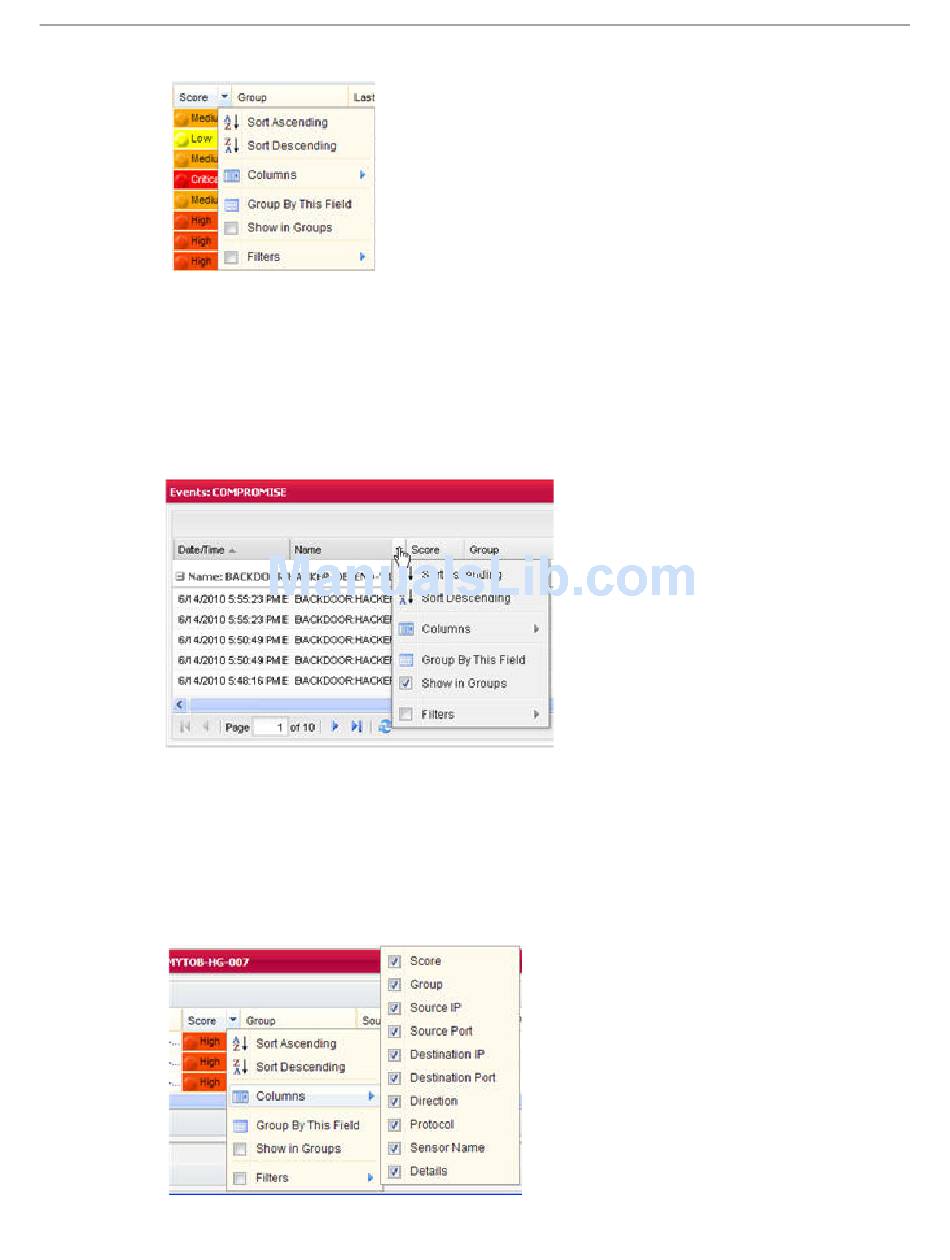

Figure 6-6
Group Options
Use the Group By This Field option to group the Event Table pane by the values in a specific
column, as shown in
checkbox is automatically checked. To undo the grouping, uncheck the Show in Groups
checkbox.
Figure 6-7
Selecting Columns to Display
You can select what columns to display in the Event Table pane, by checking and unchecking the
desired columns in the Columns option drop down menu.
list of columns in the Event Detail table. Check or uncheck the appropriate check box to display or
hide specific columns.
Figure 6-8
Column Drop Down Menu
Figure 6-7. When you select Group By This Field, the Show in Groups
Grouping Options
Selecting Columns to Display
Customizing the Event Table Display
Figure 6-8 illustrates how to display a
Enterasys IPS Analysis and Reporting Guide 6-5
