Top N Reports

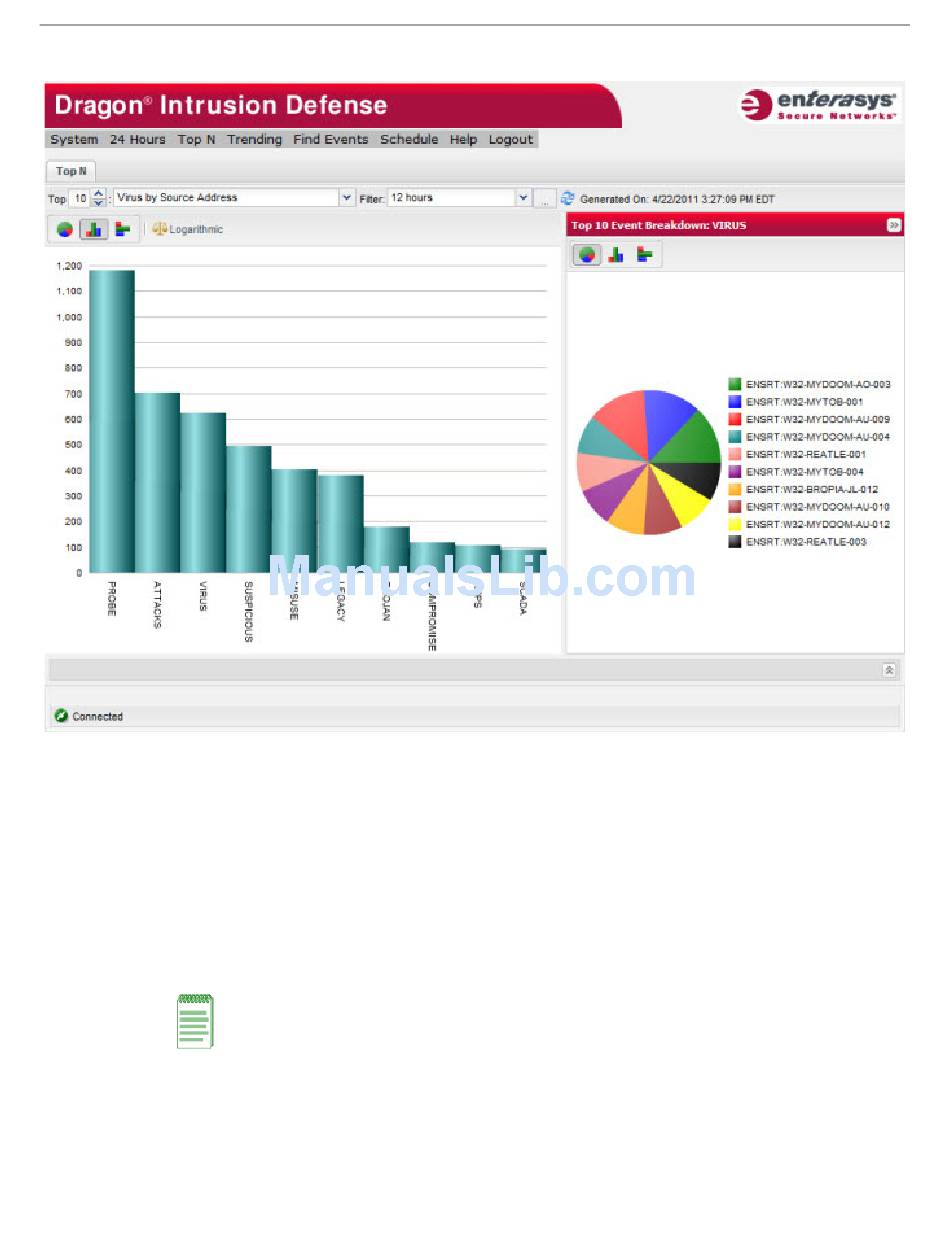

Figure 4-3
Top 10 Event Breakdown Pane
Displaying Details for a Selected Event
Single clicking on a data group in the charts or table view causes details of the event to display in
the Event Table pane. The Event Table pane is described in detail in
Selecting a Chart Type
The default chart type of Top N reports is Column and the default chart type of Event Breakdown
charts is Pie, but you can interactively change the chart type by clicking on the chart type icons at
the top of the windows.
Note: Pie chart legends in Top N reports have the potential for their bottom keys to be chopped off
if the view port/browser window is too small for the number of slices displayed by the chart. You can
either hover over a pie slice to see what it represents in a tooltip or change the chart type to Bar or
Column to obtain a chart with labeled data.
Selecting a Chart Type
Chapter 6, Event Table
Enterasys IPS Analysis and Reporting Guide 4-5
Pane.
