Getting Started

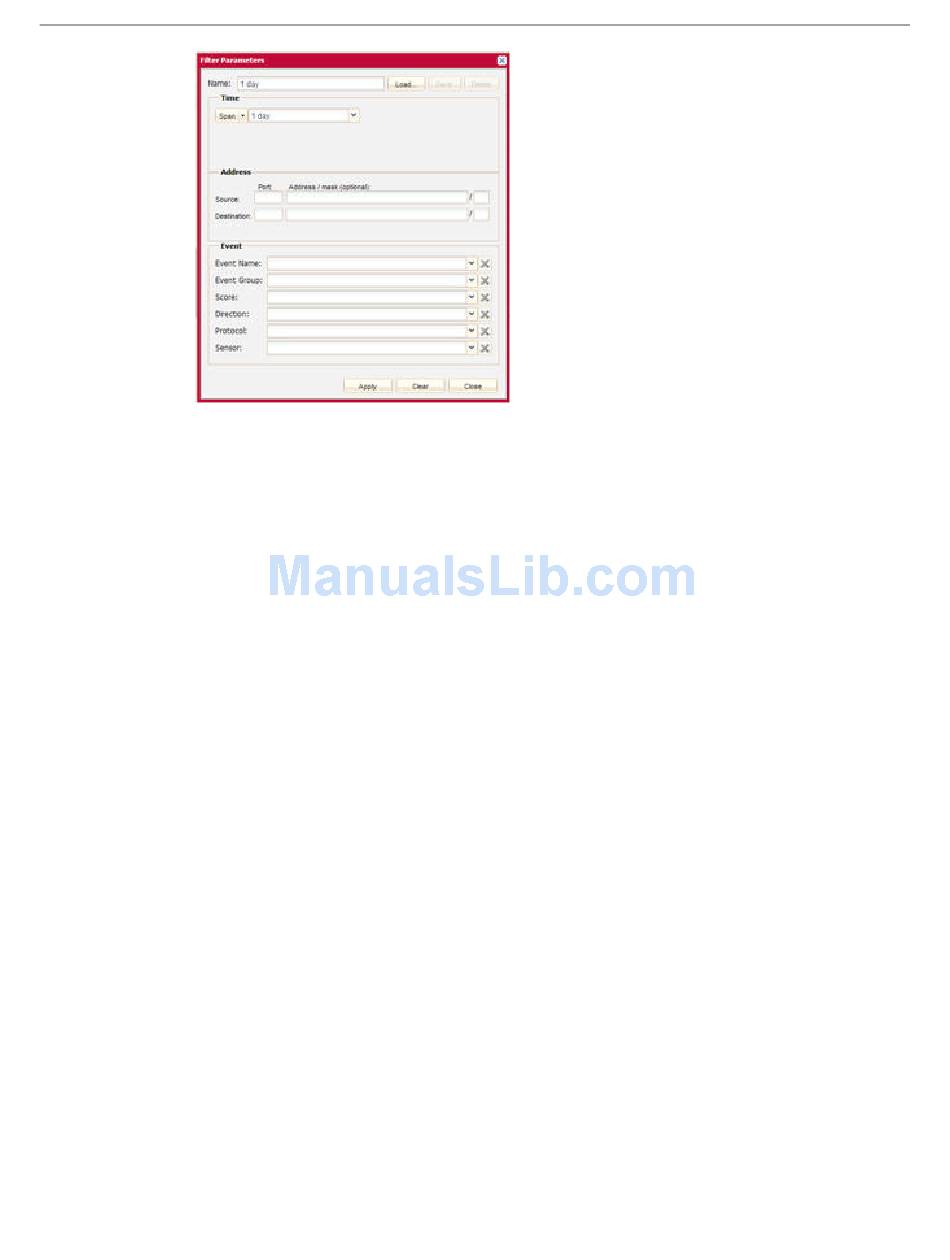

2. Optionally, to edit an existing filter or create a new filter based on an existing filter, click the
Load button, then select the desired filter from the Select Filter to Load dialog box.
3. If you are creating a new filter, change the name of the filter.
Note that the default name of a new report is "1 day," which must be changed in order to save
the new report.
4. For Top N report filters, in the Time group area, select either Range or Span from the drop
down list, then specify the desired values.
If no times are specified for the Range, the default times are from midnight on the start date to
11:59:59 pm on the end date.
Note that if you launch the Filter Parameters dialog from the 24 Hours reports, the Time group
area is grayed out and not available.
5. When you have completed specifying the filter parameters, click Apply to apply the filter to
the report. Note that this does not save the filter, but only applies a temporary filter to the
report.
6. Click Save to save the filter and apply the filter to the current report.
Note that the Save button is not available unless you have changed the name of the filter.

Creating and Viewing User Defined Reports

You can also create and generate reports based on criteria you want to see, by creating your own
report templates from predefined templates and then scheduling the report to run. Access these
functions from the Schedule menu bar item.
See Chapter 9, User Defined

Creating a User Defined Report

User Defined report templates are easily created from predefined templates.
To create a new user defined report template and run the report:
1. Select Schedule > Manage Report Templates from the main menu bar, then click the New
Template button.
Reporting, for more information.
Creating and Viewing User Defined Reports
Enterasys IPS Analysis and Reporting Guide 1-11
