The Tabbed Panel
The Tabbed Panel on the right side of the Dashboard presents detailed information about the
Enterasys IPS components and subcomponents present in your network environment. The
following top-level tabs are in this panel:
•

Systems Tab

• Sensors Tab
• Interfaces Tab
• EMS/Reporting Tab
Systems Tab
By default, the Systems tab provides a table of system information for all the Enterasys IPS
systems in your environment. An Enterasys IPS system is any system known to the EMS that
contains an IPS component.
tab table.
You can display details about a specific system by selecting the system and clicking the double
arrow button at the bottom right of the tab, as shown in
2-4 Enterasys IPS Analysis and Reporting Guide
Description

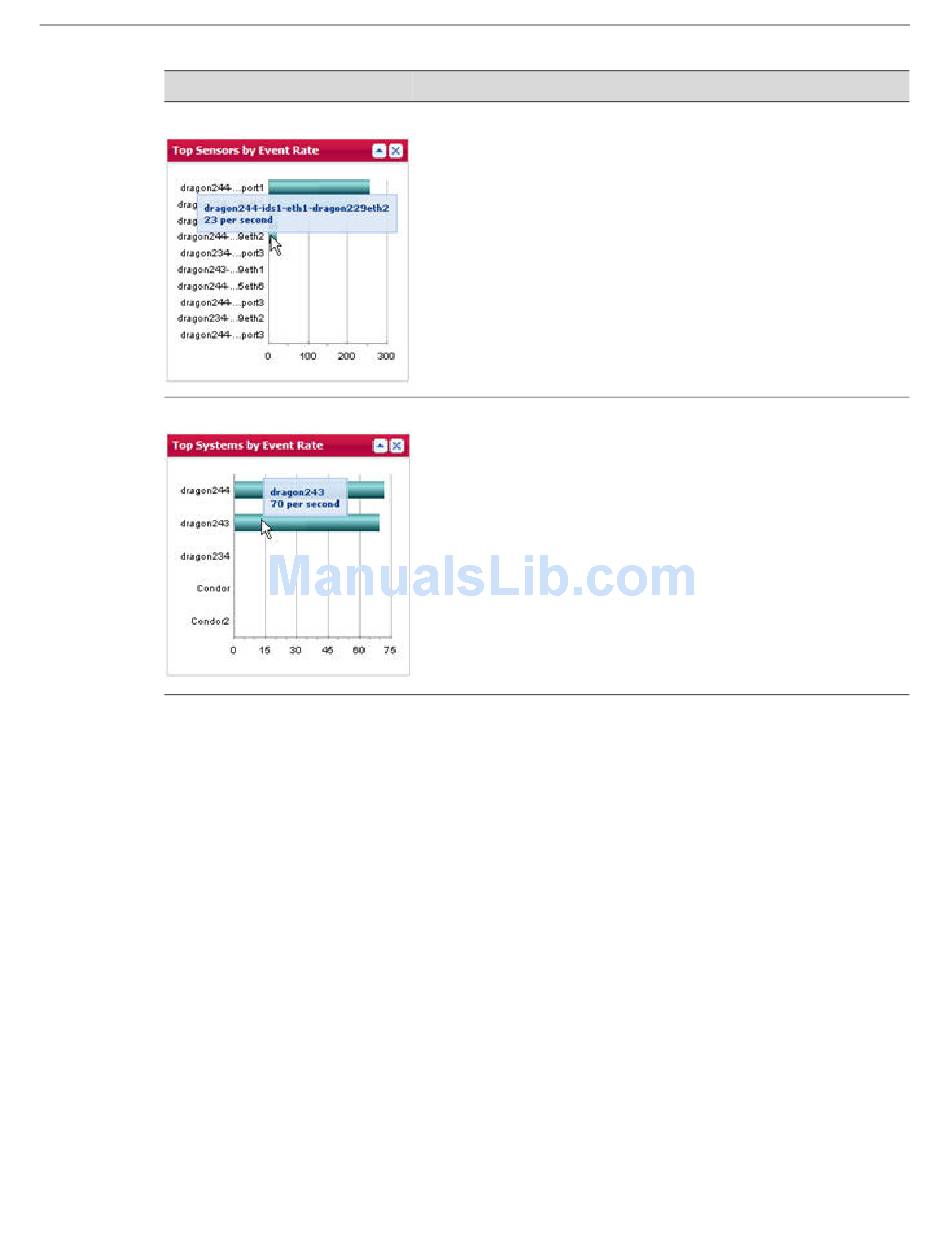

The Top Sensors by Event Rate chart displays a bar graph of the top
ten most active (by Event Rate) Host and Network Sensors. Each of
the top ten Sensors is an entry in the chart.
The tooltip per bar displays the name of the sensor and the event rate
of that sensor in events per second.
Clicking any bar in the chart opens the
individual sensor. For example, clicking the bar for
dragon244-ids1-eth1 opens the Sensors tab and filters the table to
display only that sensor.
The Top Systems by Event Rate chart displays a bar graph of the top
ten most active (by Event Rate) Enterasys IPS systems. Each of the
top ten systems is an entry in the chart.
The tooltip per bar displays the name of the system and the event rate
of that system in events per second.
Clicking any bar in the chart opens the
individual system.
Table 2-2 on page 2-5 describes the columns displayed in the Systems
Sensors Tab, filtered on that
Systems Tab, filtered on that
Figure 2-1 on page 2-5.
System Dashboard
