System Dashboard

EMS/Reporting Tab

The EMS/Reporting tab displays Enterasys IPS-specific system information about EMS and
Reporting servers in this Enterasys IPS environment. A graph of event cache traffic over time is
also displayed, as shown in

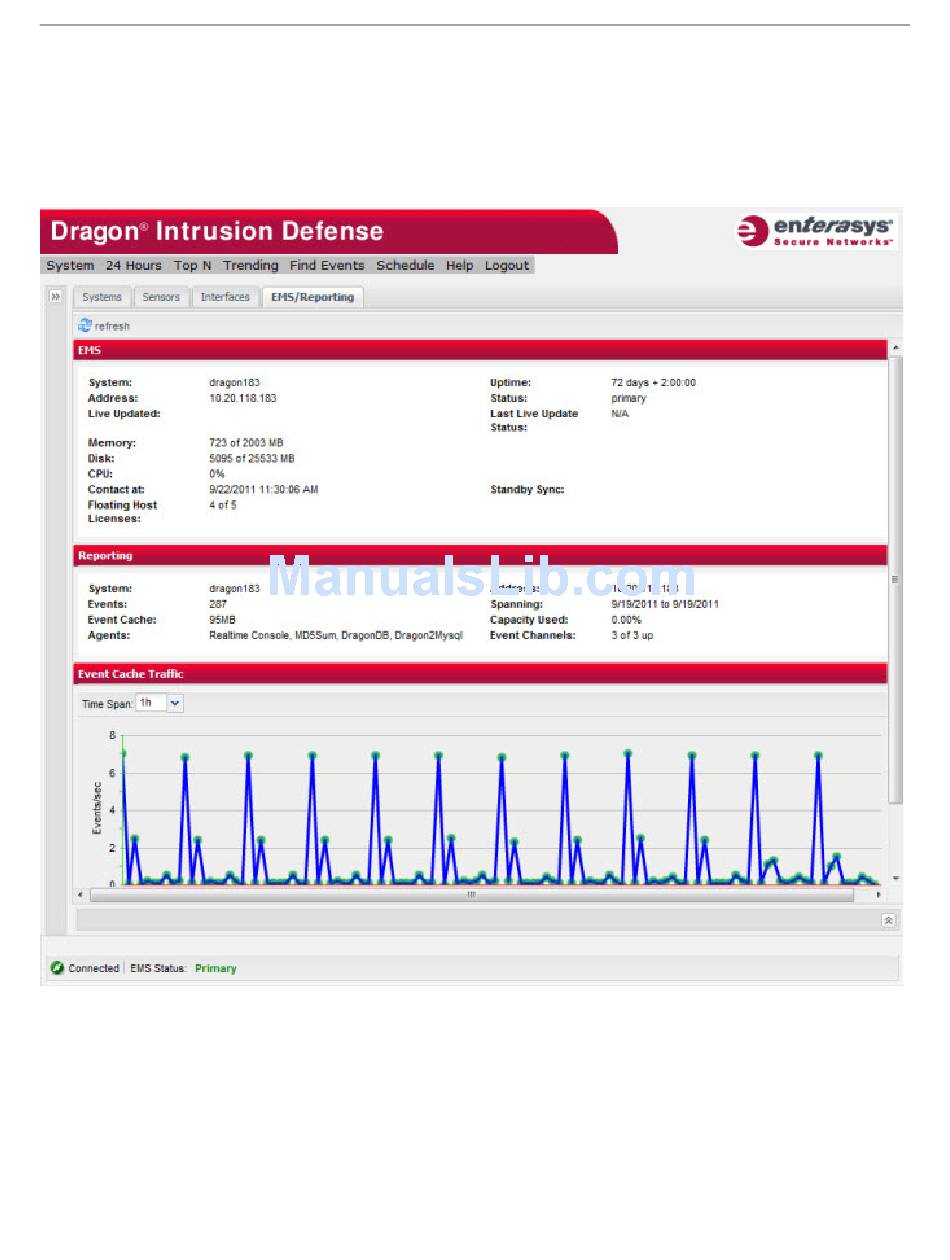

Figure 2-4 The EMS/Reporting Tab
Event Cache Traffic Graph
The Event Cache Traffic graph provides a visual indication of the rate at which events are being
sent to the EMS, and the rate at which they are being processed.
Events are sent to the EMS and stored temporarily in the event cache. After all registered agents
have processed an event, it is removed from the cache.
The line graph displays the rates at which events are entering and leaving the cache over the
selected time span. Green indicates received events and blue indicates processed events.
Figure 2-4 below.
Enterasys IPS Analysis and Reporting Guide 2-11
