Customizing 24 Hours Report Tables

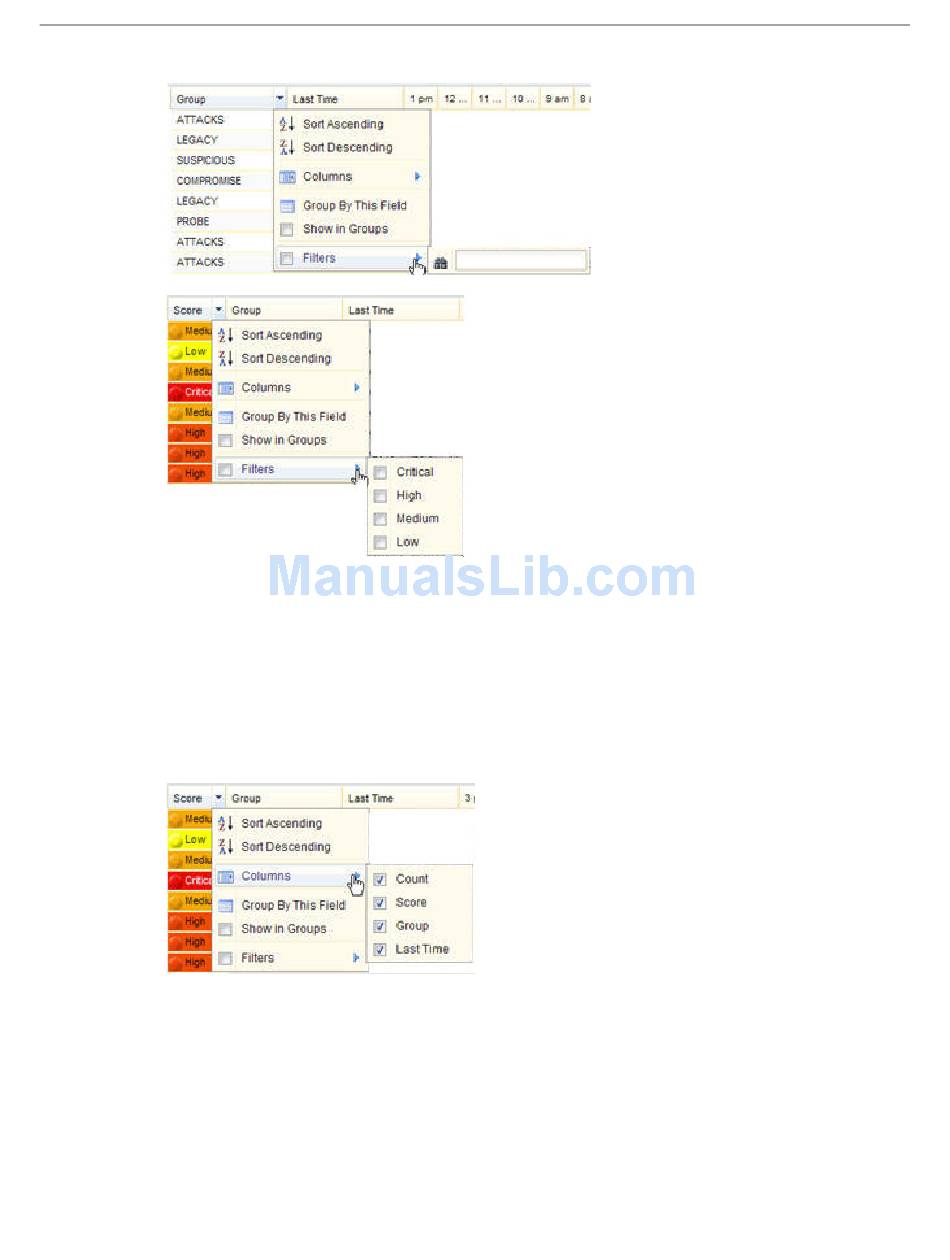

Figure 3-7
s
Selecting Columns to Display
You can select what columns to display in the 24 Hours report tables, by checking and unchecking
the desired columns in the Columns option drop down menu.
display a list of columns in the 24 Hours Event Summary report. Check or uncheck the
appropriate check box to display or hide specific columns.
Figure 3-8
Exporting Tables in CSV Format
The tables displayed in the 24 Hours reports can be exported in CSV (comma separated values)
format and opened immediately or saved as a file.
1.
Click on the CSV button to the far right on the bar at the top of the report.
2.
When prompted, select Open or Save.
3.
If you selected Open, the file will be opened using the selected application (such as Microsoft
Excel). If you selected Save, you will be prompted to specify the location.
3-6 Enterasys IPS Analysis and Reporting Guide
Column Filters Option
Selecting Columns to Display
24 Hours Reports
Figure 3-8
illustrates how to
